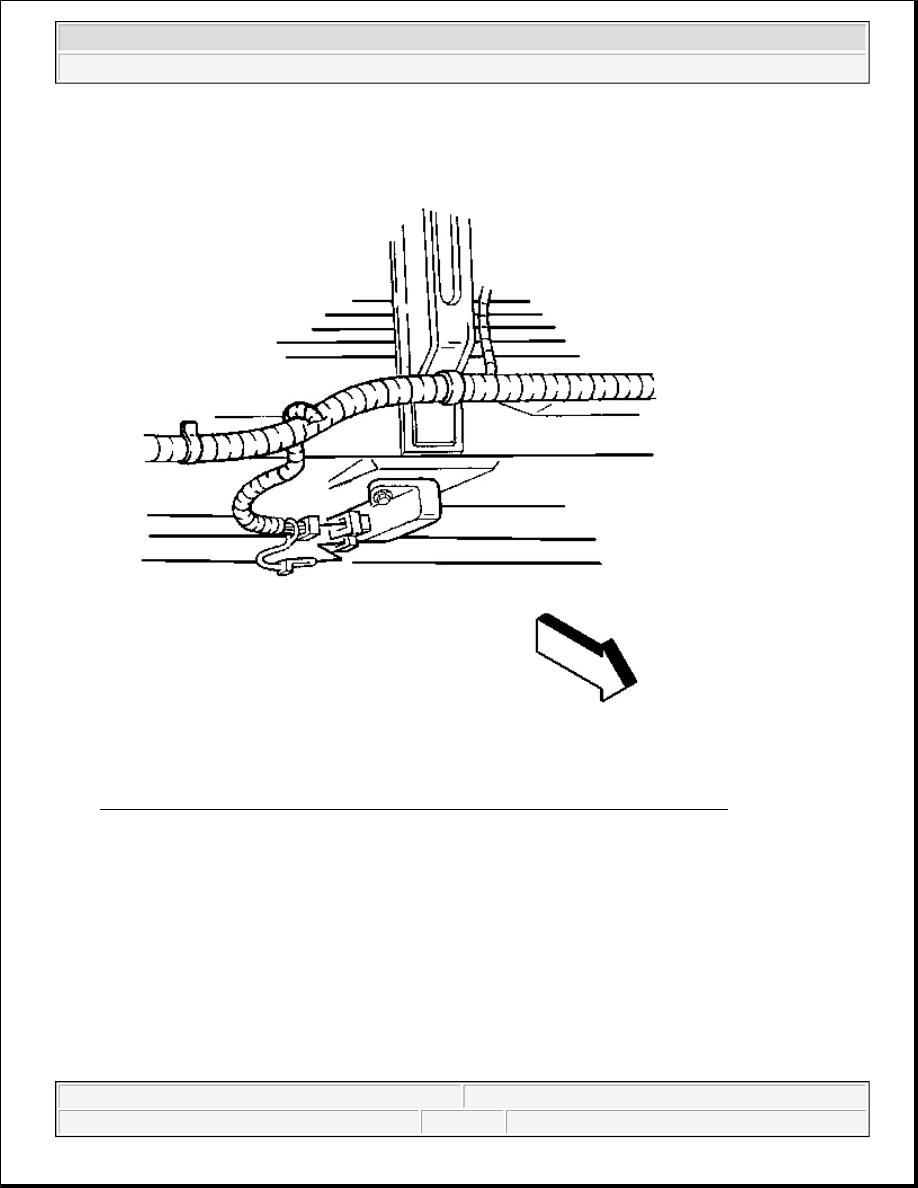

Fig. 25: Inflatable Restraint Front End Discriminating Sensor Harness Connector
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the inflatable restraint front end discriminating sensor harness connector from the sensor.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Fig. 26: CPA & EFS Connectors Located On The Frame Crossmember
Courtesy of GENERAL MOTORS CORP.

5. Remove the mounting fasteners.

6. Remove the inflatable restraint front end discriminating sensor from the vehicle.

7. Perform the following steps in order to complete the fastener repair:

1. Remove and discard the improperly installed fastener.

IMPORTANT: The following procedure should be utilized in the event that the sensor

mounting holes or fasteners are damaged to the extent that the sensor
may no longer be properly mounted.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



2. Chisel off the damaged weld nut.

3. Condition the front end lower tie surface where the new weld nut is to be installed.

4. Install the new weld nut GM P/N 11514034 or equivalent into position.

5. Migweld the new weld nut to the front end lower tie surface in the correct

6. Use the new fastener GM P/N 11514034 or equivalent.

Installation Procedure

1. Install the inflatable restraint front end discriminating sensor to the front end lower tie surface.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Fig. 27: CPA & EFS Connectors Located On The Frame Crossmember
Courtesy of GENERAL MOTORS CORP.

2. Install the inflatable restraint front end discriminating sensor mounting fasteners.

Tighten: Tighten the screws to 10 N.m (89 lb in).
