Hummer H2. Manual - part 2015

GENERAL INFORMATION

Maintenance Reminder Lights - Hummer

CHANGE OIL SOON INDICATOR

2003 H2

1. The Oil Life System will show when to change the engine oil and oil filter. This will usually occur

between 3000 and 7500 miles since the last oil change. Under severe conditions, the indicator may come
on before 3000 miles. The system will not detect dust in the oil. Reset the system when the oil has been
changed.

2. To reset oil life system, turn ignition ON, with engine OFF. Fully push and release the accelerator pedal

slowly 3 times within 5 seconds. If the CHANGE OIL SOON light flashes, the system is resetting. Turn
ignition OFF. Start engine and all to idle. The oil life will change to 100 percent. If the CHANGE OIL
SOON indicator comes back on, the system has not reset. Repeat the procedure.

2004 H2

The vehicle has a computer system that has a change engine oil light, indicating when to change the engine oil
and filter. See Fig. 1 . This is based on engine revolutions and engine temperature, and not on mileage. Based
on driving conditions, the mileage at which an oil change will be indicated can vary considerably. For the oil
life system to work properly, the system must be reset every time the oil is changed.

When the system has calculated that oil life has been diminished, it will indicate that an oil change is necessary.
The change engine oil light will come on. The oil must be changed as soon as possible. It is possible that, if the
vehicle is driven under the best conditions, the oil life system may not indicate that an oil change is necessary
for over a year. However, the engine oil and filter must be changed at least once a year and at this time the
system must be reset. If the system is ever reset accidentally, the oil must be changed at 3000 miles since the
last oil change. Remember to reset the oil life system whenever the oil and filter is changed.

1. Press the fuel information button until Engine Oil Life appears on the screen.

NOTE:

Most vehicles are equipped with a Malfunction Indicator Light (MIL) or check
engine light. If light comes on and remains on while driving, the vehicle requires
some type of repair. See appropriate service and repair information. After
repairing fault(s) and clearing fault code(s), the MIL or check engine light
should go out. Some models may use a dual-function indicator light, which is
also used to indicate emission component service is due. After performing
required service, reset indicator light.

NOTE:

This article is only to be used for resetting maintenance reminder lights (when
applicable). Some models (not all) may be equipped with one or more resetable
maintenance reminder lights indicating maintenance is required. Once required
maintenance services are performed, resetting of lights may be required.
Information is provided to reset these lights where applicable.

2004 Hummer H2

GENERAL INFORMATION Maintenance Reminder Lights - Hummer

2004 Hummer H2

GENERAL INFORMATION Maintenance Reminder Lights - Hummer

2. Press and hold the select button for 5 seconds.

3. OIL LIFE RESET will appear on the screen for 10 seconds.

4. The oil life system is reset.

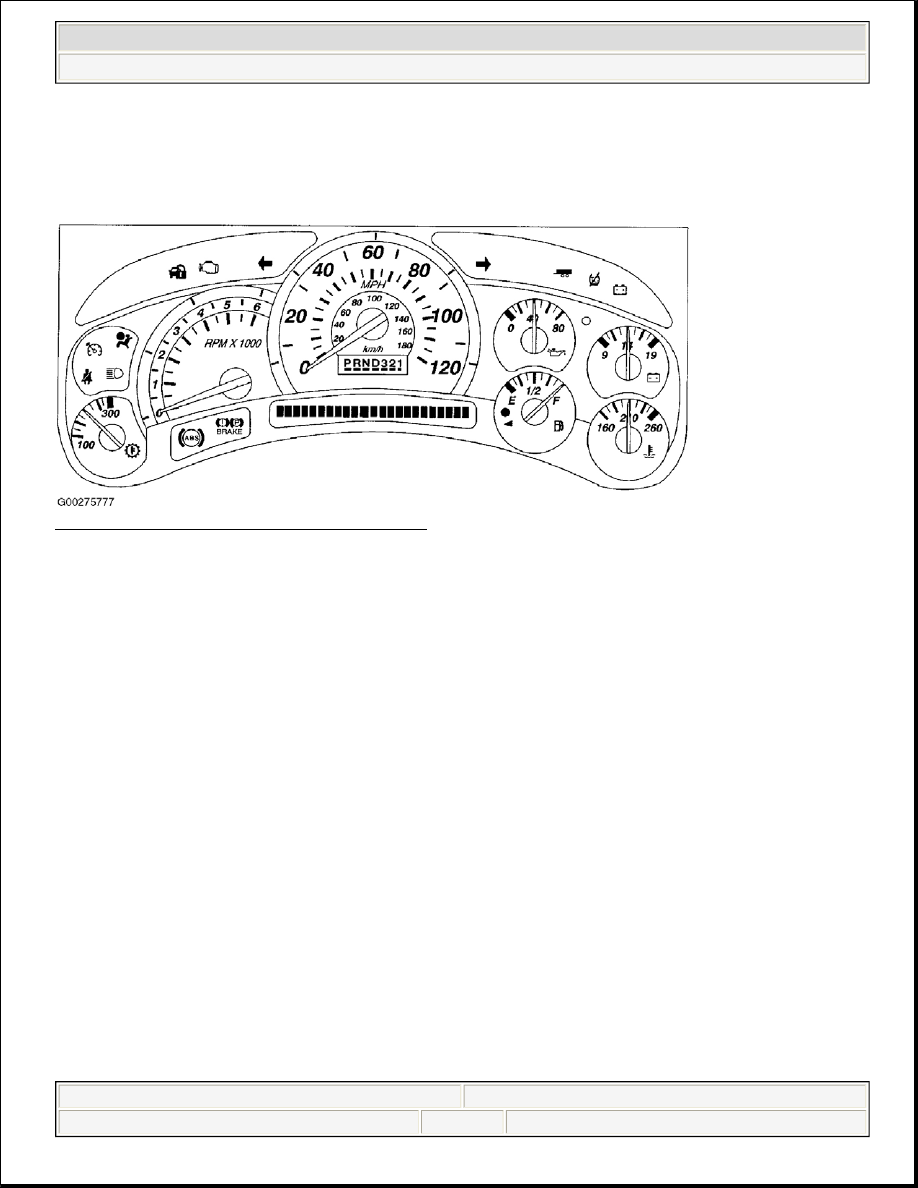

Fig. 1: Identifying Instrument Cluster (2004 H2)
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

GENERAL INFORMATION Maintenance Reminder Lights - Hummer

2004 GENERAL INFORMATION

Maintenance and Lubrication - Hummer H2

SPECIFICATIONS

CAPACITIES - APPROXIMATE FLUID

Capacities - Approximate Fluid

FLUID AND LUBRICANT RECOMMENDATIONS

Fluid and Lubricant Recommendations

Application

Specification

Metric

English

Air Conditioning Refrigerant R-134a

1.6 lb

0.7 KS

Axles

Front Axle

1.73 Liters

1.83 Pints

Rear Axle

2.6 Liters

2.75 Quarts

Engine Cooling System

6.0L V8

12.7 Liters

13.0 Quarts

Engine Crankcase

6.0L V8

5.7 Liters

6.0 Quarts

Fuel Tank

121.0 Liters

32.0 Gallons

Transmission

4L60-E After Filter/Pan Removal

4.7 Liters

5.0 Quarts

After Complete Overhaul - 4L60-E

10.6 Liters

11.0 Quarts

Transfer Case
Borg Warner 4484

1.4 Liters

1.5 Quarts

Wheel Nut Torque

140 ft lb

190 N.m

Application

Fluid/Lubricant

Automatic Transmission

DEXTRON(R) III Automatic Transmission Fluid

Chassis Lubrication

Chassis Lubrication GM P/N 12377985 or equivalent or lubricant meeting
requirements of NLGI # 2, Category LB or GC-LB

Clutch linkage Pivot
Points

Engine Oil

Engine Coolant

50/50 mixture of clean, drinkable water and use only GM DEX-COOL(R) or
Havoline DEX-COOL(R) coolant.

Engine Oil

Engine oil with the American Petroleum Institute Certified for Gasoline
Engines "Starburst" symbol of the proper viscosity.

Front and Rear Axle

SAE 75W-90 Synthetic Axle Lubricant GM P/N 12378261 (Canadian P/N

2004 Hummer H2

2004 GENERAL INFORMATION Maintenance and Lubrication - Hummer H2

2004 Hummer H2

2004 GENERAL INFORMATION Maintenance and Lubrication - Hummer H2

TIRE INFLATION PRESSURE SPECIFICATIONS

When you inflate the tires to the recommended inflation pressures, the factory-installed wheels and tires are
designed to handle loads to the tire's rated load capacity. Incorrect tire pressures, or under-inflated tires, can
cause the following conditions:

Vehicle handling problems

Poor fuel economy

Shortened tire life

Tire overloading

Check the tire pressure when the following apply:

The tires are cool.

The vehicle has not been driven for more than 3 hours.

The vehicle has been driven less than 1.6 km (1 mi).

Check the tires monthly or before any extended trip. Adjust the tire pressure to the specifications on the tire
placard. Refer to Label - Vehicle Certification (w/o RPO Z49) or Label - Vehicle Certification (w/RPO
Z49) in General Information. Install the valve caps or extensions on the valves. These keep out dust and water.

The kilopascal (kPa) is the metric term for tire inflation pressure. The tire pressure may be printed in both
kilopascal (kPa) and psi. One psi equals 6.9 kPa.

10953455) or equivalent meeting GM Specification 9986115.

Hood and Door Hinges

Multi-Purpose Lubricant, Superlube GM P/N 12346241 (Canadian P/N
10953474) or equivalent.

Hydraulic Brake System

Delco(R) Supreme II Brake Fluid GM P/N 12377967 (Canadian P/N
992667) or equivalent DOT P/N 3 Brake Fluid

Key Lock Cylinders

Multi-Purpose Lubricant, Superlube GM P/N 12346241 (Canadian P/N
10953474) or equivalent.

Outer Tailgate Handle
Pivot Points and Hinges

Multi-Purpose Lubricant, Superlube GM P/N 12346241 (Canadian P/N
10953474) or equivalent.

Power Steering System

GM Power Steering Fluid GM P/N 1052884 - 1 pint, GM P/N 1050017 - 1
quart, (Canadian P/N 993294) - 1 pint, (Canadian P/N 992646) - 1 quart or
equivalent.

Transfer Case

DEXRON(R) III Fluid GM P/N 12346143 (Canadian P/N 10952622).

Weatherstrip Conditioning Dielectric Silicone Grease GM P/N 12345579 (Canadian P/N 1974984) or

equivalent.

Weatherstrip Squeaks

Synthetic Grease with Teflon, Superlube GM P/N 12371287 (Canadian P/N
10953437) or equivalent.

Windshield Washer
Solvent

GM Optikleen Washer Solvent GM P/N 1051515 (Canadian P/N 993033) or
equivalent.

2004 Hummer H2

2004 GENERAL INFORMATION Maintenance and Lubrication - Hummer H2
