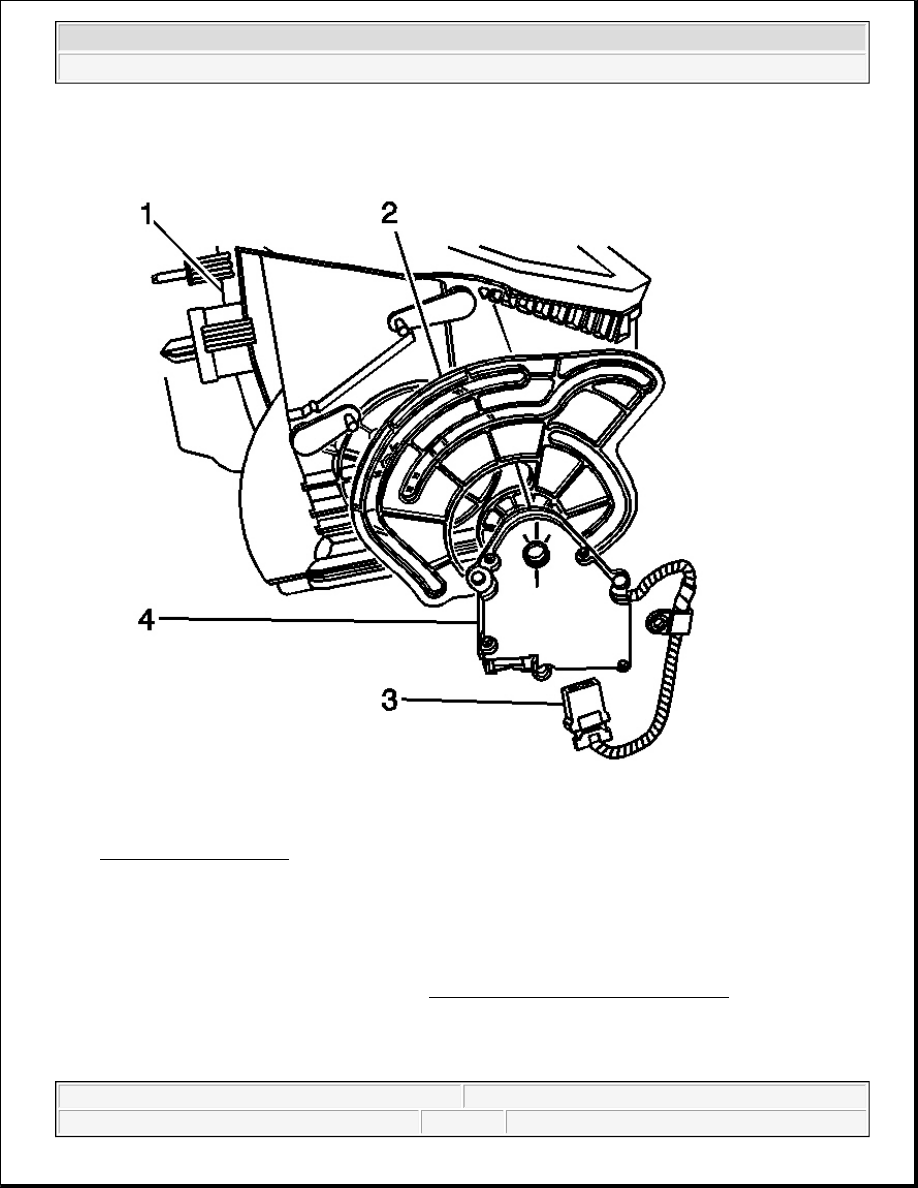

Fig. 132: Mode Actuator
Courtesy of GENERAL MOTORS CORP.

5. Connect the electrical connector (3) to the mode actuator (4).

6. Install the screws to the mode actuator (4).

7. Install the mode actuator (4) to the HVAC module assembly (1).

8. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

MODE DOOR REPLACEMENT - UPPER

Removal Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

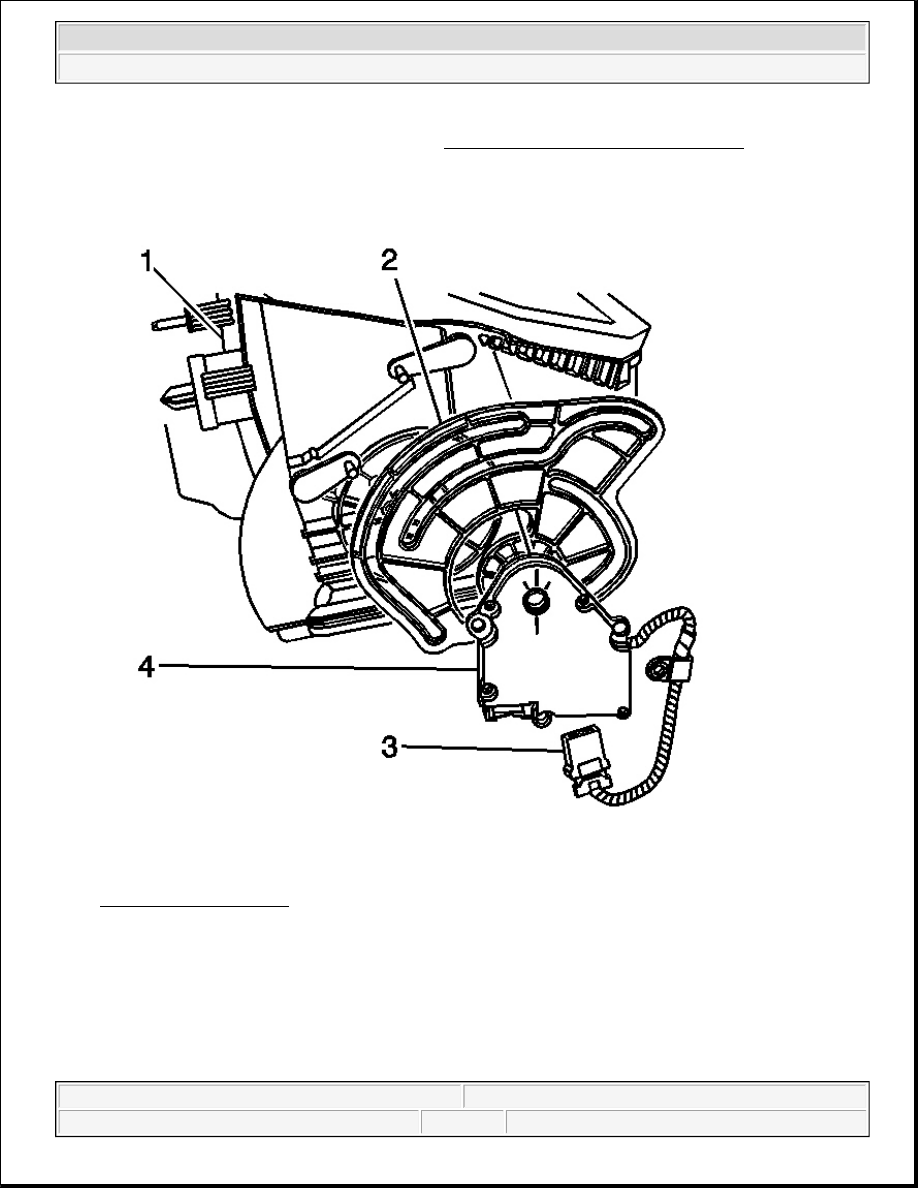

Fig. 133: Mode Actuator
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector (3) from the mode actuator (4).

3. Remove the screws from the mode actuator (4).

4. Remove the mode actuator (4) from the HVAC module assembly (1).

5. Remove the wiring harness from the air distribution housing (1).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



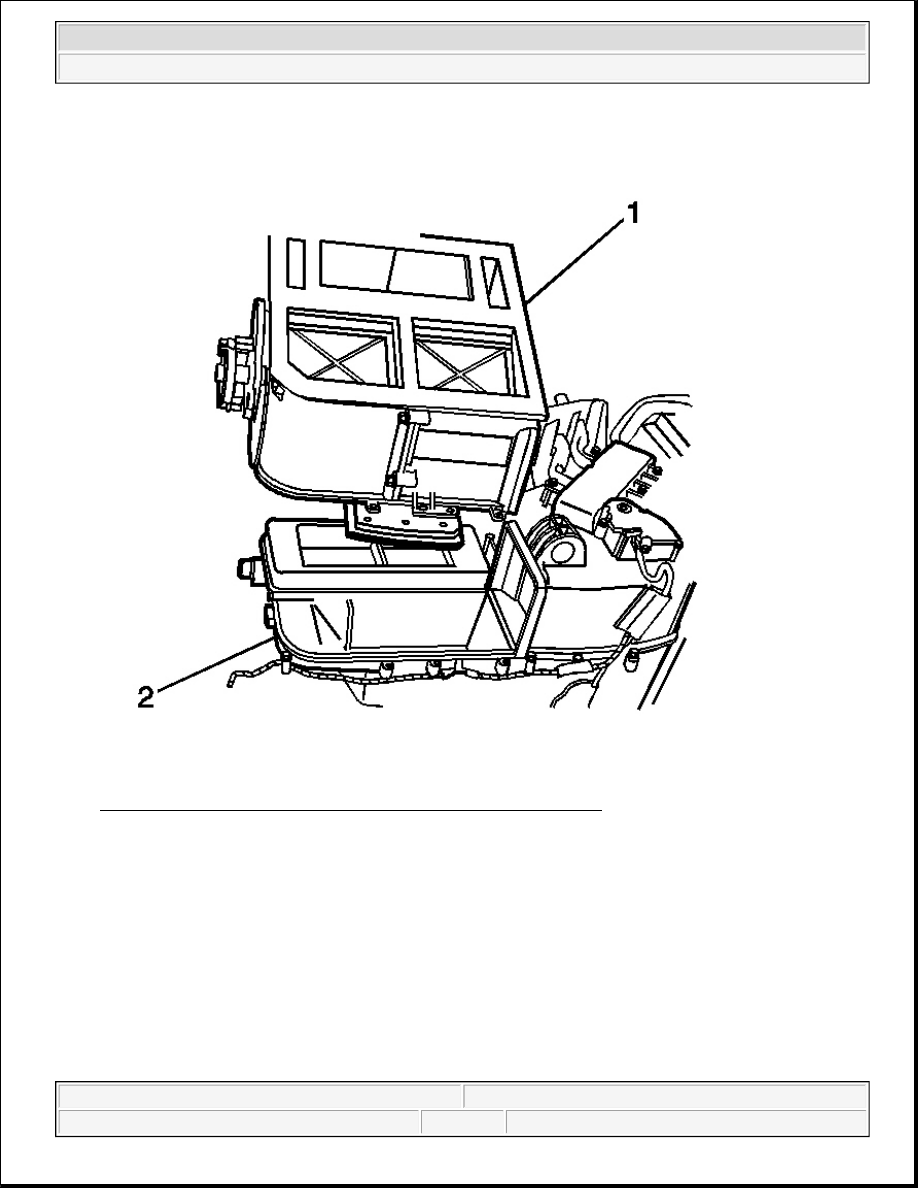

Fig. 134: Air Distribution Housing And HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.

6. Remove the screws from the air distribution housing (1).

7. Remove the air distribution housing (1) from the HVAC module assembly (2).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



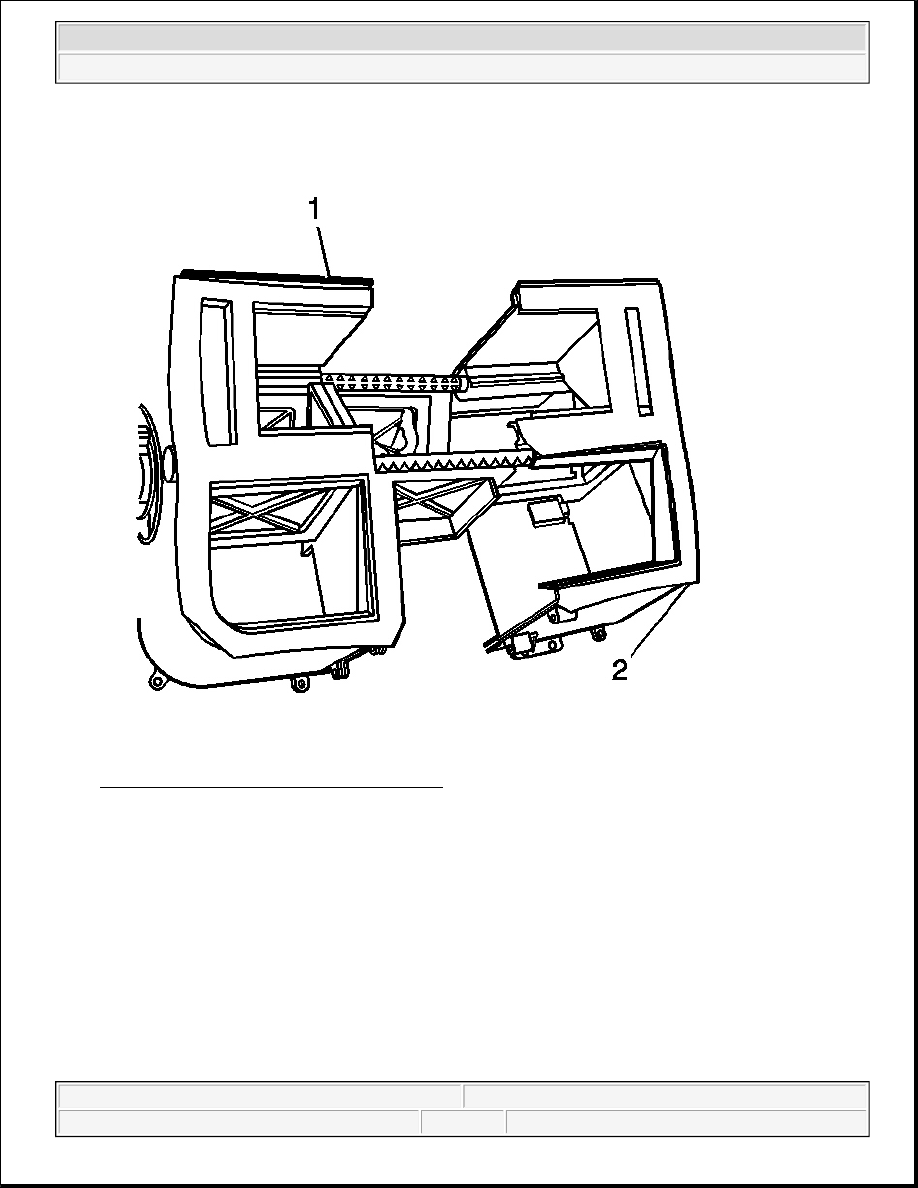

Fig. 135: Screws & Air Distribution Housing
Courtesy of GENERAL MOTORS CORP.

8. Remove the screws from the air distribution housing (1).

9. Separate the air distribution housing halves.
