Fig. 76: Surge Tank Outlet Hose & Surge Tank
Courtesy of GENERAL MOTORS CORP.

7. Reposition the surge tank outlet hose clamp (5) from the surge tank (2).

8. Remove the surge tank outlet hose (3) from the surge tank (2).

9. Remove the surge tank outlet hose (3) from the vehicle.

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



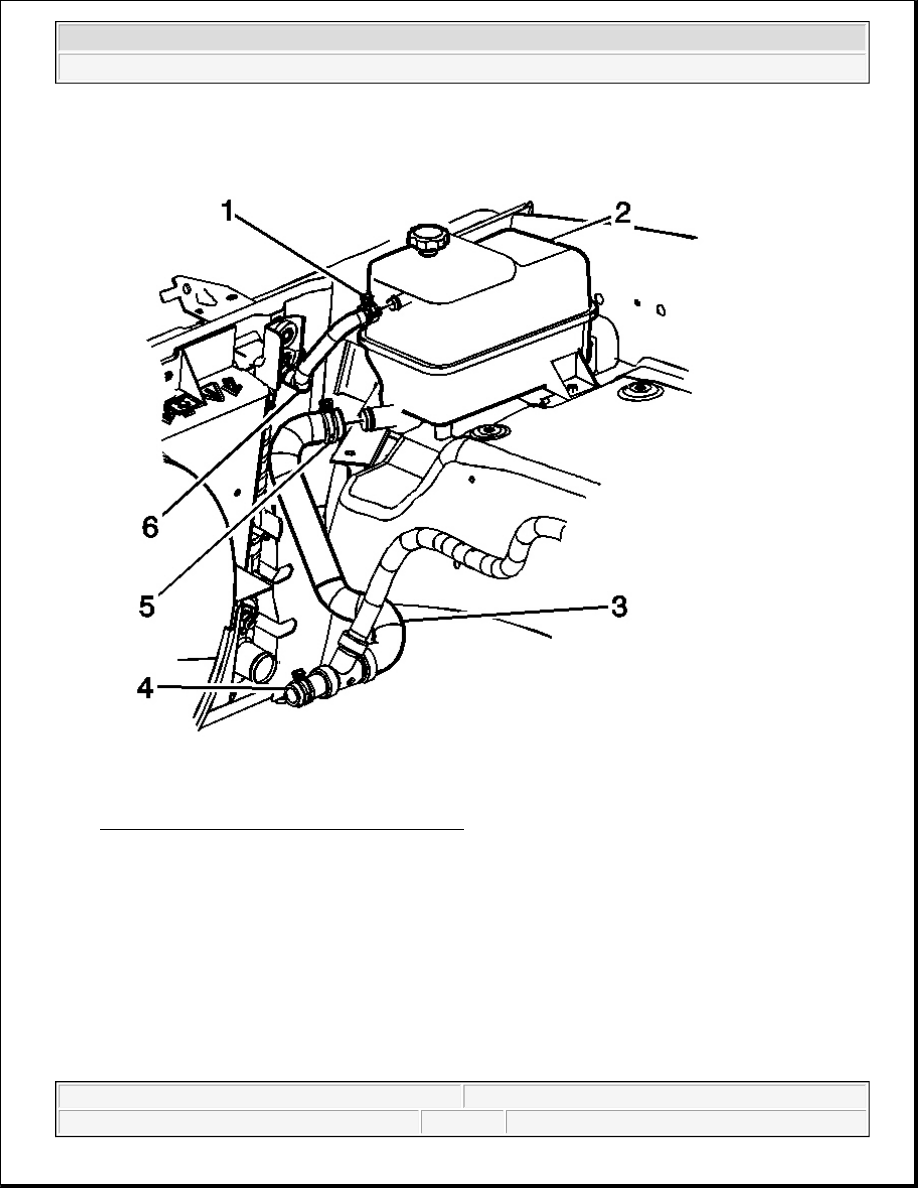

Fig. 77: Surge Tank Outlet Hose & Surge Tank
Courtesy of GENERAL MOTORS CORP.

1. Install the surge tank outlet hose (3) to the vehicle.

2. Install the surge tank outlet hose (3) to the surge tank (2).

3. Install the surge tank outlet hose clamp (5) to the surge tank (2).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



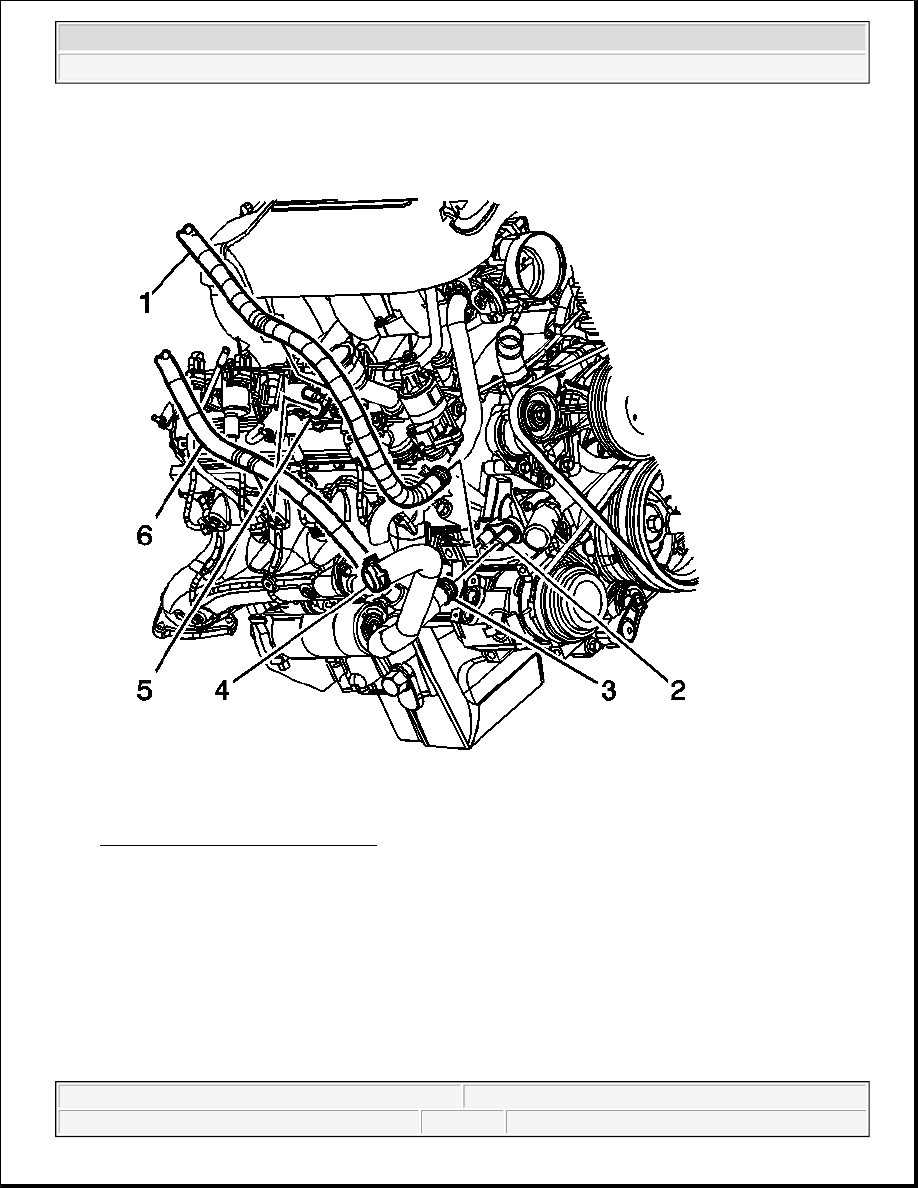

Fig. 78: Heater Inlet Hose & Engine
Courtesy of GENERAL MOTORS CORP.

4. Install the surge tank outlet hose (6) to the engine (2).

5. Install the surge tank outlet hose clamp (3) to the engine (2).

6. Install the surge tank outlet hose to the mounting clip.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



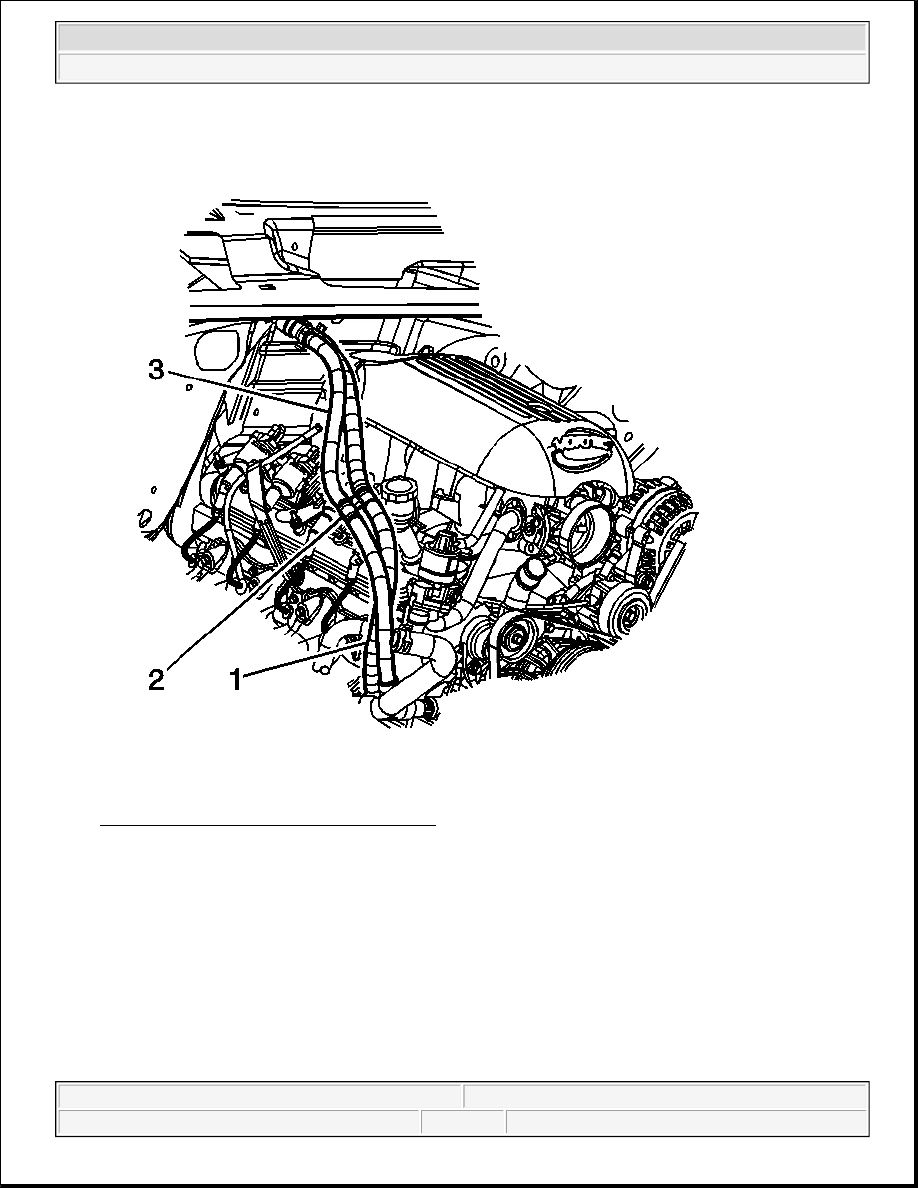

Fig. 79: Heater Inlet Hose & Mounting Clip
Courtesy of GENERAL MOTORS CORP.

7. Install the surge tank outlet hose (3) to the mounting clip (2).
