The J 43600 is a complete air conditioning service center for R-134a. The ACR 2000 recovers, recycles,
evacuates and recharges A/C refrigerant quickly, accurately and automatically. The unit has a display screen
that contains the function controls and displays prompts that will lead the technician through the recover,
recycle, evacuate and recharge operations. R-134a is recovered into and charged out of an internal storage
vessel. The ACR 2000 automatically replenishes this vessel from an external source tank in order to maintain a
constant 5.45-6.82 kg (12-15 lbs) of A/C refrigerant. See Special Tools and Equipment .

The ACR 2000 has a built in A/C refrigerant identifier that will test for contamination, prior to recovery and
will notify the technician if there are foreign gases present in the A/C system. If foreign gases are present, the
ACR 2000 will not recover the refrigerant from the A/C system.

The ACR 2000 also features automatic air purge, single pass recycling and an automatic oil drain.

or the mist. Exposure may irritate the eyes, nose, and throat. Work in a
well ventilated area. In order to remove R-134a from the A/C system, use
service equipment that is certified to meet the requirements of SAE J 2210
(R-134a recycling equipment). If an accidental system discharge occurs,
ventilate the work area before continuing service. Additional health and
safety information may be obtained from the refrigerant and lubricant
manufacturers.

CAUTION: For personal protection, goggles and gloves should be worn and a clean

cloth wrapped around fittings, valves, and connections when doing work
that includes opening the refrigerant system. If R-134a comes in contact
with any part of the body severe frostbite and personal injury can result.
The exposed area should be flushed immediately with cold water and
prompt medical help should be obtained.

NOTE:

R-134a is the only approved refrigerant for use in this vehicle. The use of any
other refrigerant may result in poor system performance or component failure.

NOTE:

To avoid system damage use only R-134a dedicated tools when servicing the
A/C system.

NOTE:

Use only Polyalkylene Glycol Synthetic Refrigerant Oil (PAG) for internal
circulation through the R-134a A/C system and only 525 viscosity mineral oil on
fitting threads and O-rings. If lubricants other than those specified are used,
compressor failure and/or fitting seizure may result.

NOTE:

R-12 refrigerant and R-134a refrigerant must never be mixed, even in the
smallest of amounts, as they are incompatible with each other. If the
refrigerants are mixed, compressor failure is likely to occur. Refer to the
manufacturer instructions included with the service equipment before
servicing.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Refer to the J 43600 ACR 2000 manual for operation and setup instruction. Always recharge the A/C System
with the proper amount of R-134a. Refer to Refrigerant System Capacities for the correct amount. See
Special Tools and Equipment .

A/C Refrigerant System Oil Charge Replenishing

If oil was removed from the A/C system during the recovery process or due to component replacement, the oil
must be replenished. Oil can be injected into a charged system using J 45037 . For the proper quantities of oil to
add to the A/C refrigerant system, refer to Refrigerant System Capacities . See Special Tools and
Equipment .

FLUSHING

Tools Required

z

J 43600 ACR 2000 Air Conditioning Service Center. See Special Tools and Equipment .

z

J 45268 Flush Adapter Kit. See Special Tools and Equipment .

z

J 41447 Leak Detection Dye. See Special Tools and Equipment .

z

J 42220 Universal 12V Leak Detection Lamp. See Special Tools and Equipment .

Flushing is intended to remove the following:

z

Contaminated PAG oil

z

Desiccant, following a desiccant bag failure

z

Overcharge of PAG oil

z

Refrigerant contamination

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .

2. Remove the orifice tube. Refer to Expansion (Orifice) Tube Replacement .

3. Connect the A/C lines with the orifice tube removed.

4. Remove the A/C compressor. Refer to Compressor Replacement .

5. Install J 45268-5 to the A/C discharge hose.

6. Install J 45268-4 to the A/C suction hose.

IMPORTANT: Flushing with the ACR 2000 is not intended to remove metal from the A/C

system.

IMPORTANT: Warmer engine or ambient temperature decreases the refrigerant

recovery time during the A/C flush procedure.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



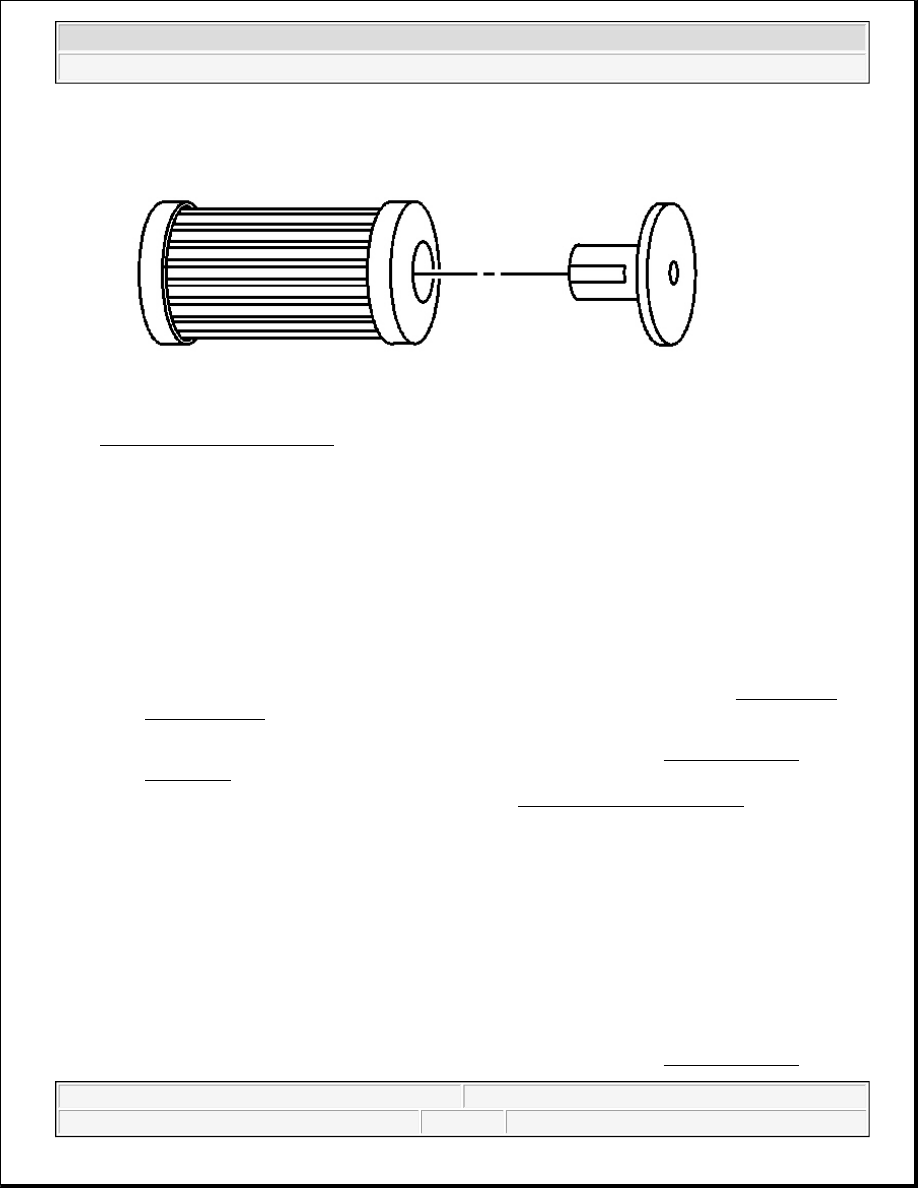

Fig. 2: Removing Check Valve
Courtesy of GENERAL MOTORS CORP.

7. Forward flow refrigerant flushing is recommended for contaminated refrigerant or PAG oil.

Perform the following procedure:

1. Service the filter with ACDelco P/N GF 470, before each flush.

Connect J 45268-1 flush filter to the suction port of J 45268 -4 flush adapter. See Special Tools
and Equipment .

2. Install the blue hose from J 43600 to J 45268-1 flush filter adapter. See Special Tools and

Equipment .

3. Install the red hose from J 43600 to J 45268-5. See Special Tools and Equipment .

8. Reverse flow refrigerant flushing is recommended for desiccant bag failure only.

Perform the following procedure and replace the accumulator when the flush is complete:

1. Service the filter with ACDelco P/N GF 470, before each flush.

Connect the J 45268-1 flush filter to the discharge port of the J 45268-5 flush adapter.

2. Install the blue hose from J 43600 to J 45268-1 flush filter adapter. See Special Tools and

IMPORTANT: The filter inside J 45268-1 is serviceable. Remove and discard the

check valve from the filter.

IMPORTANT: The filter inside J 45268-1 is serviceable. Remove and discard the

check valve from the filter.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Equipment .

3. Install the red hose from J 43600 to the suction port of J 45268-4. See Special Tools and

Equipment .

9. Flush the A/C system. Follow the instructions supplied with the J 43600 . See Special Tools and

Equipment .

10. Remove J 45268-4 from the A/C suction hose.

11. Remove J 45268-5 from the A/C discharge hose.

12. Drain the PAG oil from the A/C Compressor. Rotate the compressor input shaft to assist in draining the

PAG oil from the compressor.

13. Add back the total system capacity of PAG oil to the A/C compressor. Refer to Refrigerant System

Capacities .

14. Add one bottle of J 41447 directly to the A/C compressor. See Special Tools and Equipment .

15. Install the A/C compressor. Refer to Compressor Replacement .

16. Inspect the orifice tube for debris. Clean or replace as needed.

17. Install the orifice tube. Refer to Expansion (Orifice) Tube Replacement .

18. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .

19. Leak test the fittings using the J 42220 . See Special Tools and Equipment .

COMPRESSOR OIL BALANCING

Draining

1. Drain the oil from both the suction and discharge ports of the removed compressor into a clean, graduated

container.

Rotate the compressor shaft to assist in draining the compressor.

IMPORTANT: Close the valve on the external refrigerant tank, before starting the flush

process.

IMPORTANT: Flushing will remove all the PAG oil from the A/C system.

The A/C system must be replenished with the correct amount of PAG oil.

IMPORTANT: Flushing will remove the fluorescent leak detection dye from the A/C

system.

IMPORTANT: Drain and measure as much of the refrigerant oil as possible from the

removed compressor.
