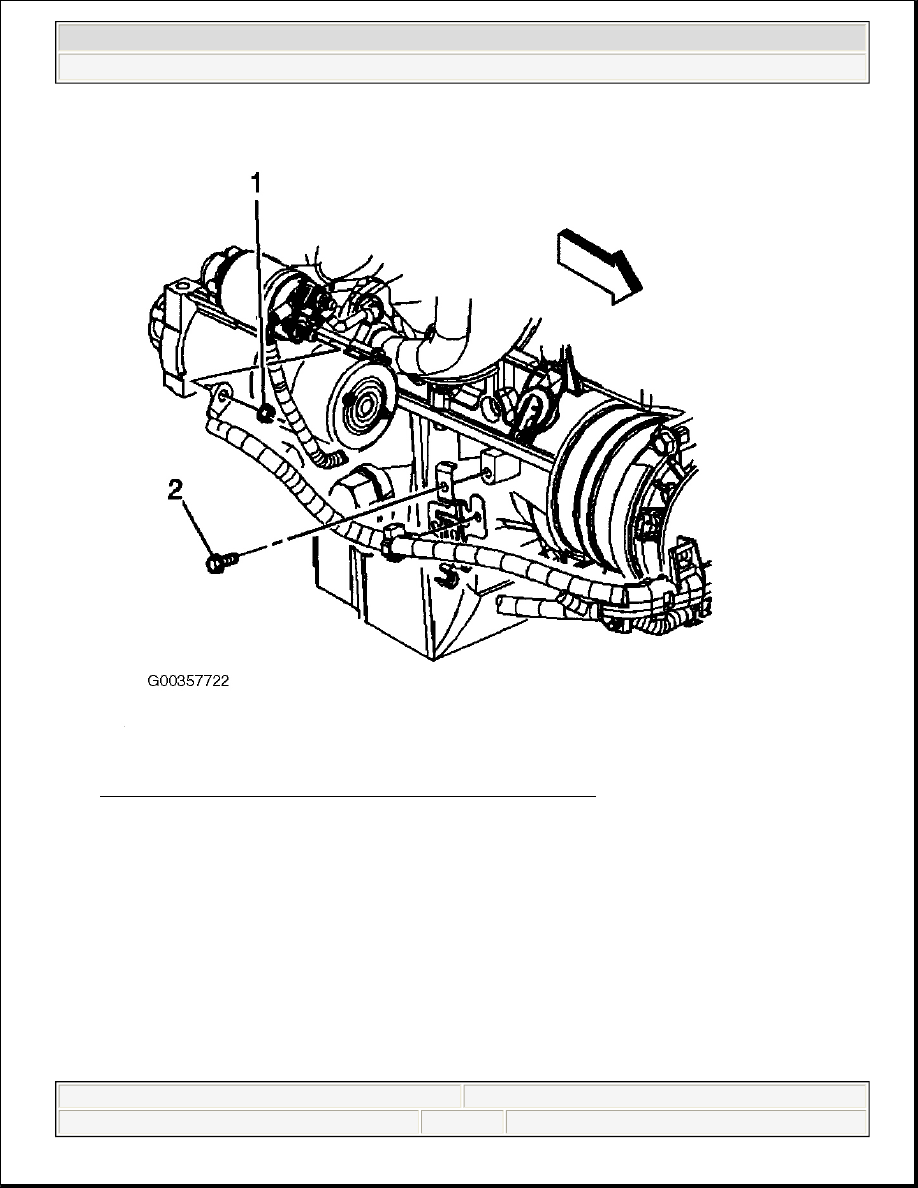

5. Install the engine wiring harness ground/negative cable bolt. Tighten the engine wiring harness ground/negative cable bolt to 25 N.m (18 lb ft). 6. Install the engine protection shield. 7. Lower the vehicle. 8. Install the negative cable clip to the positive cable clip. 9. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) . BATTERY POSITIVE CABLE REPLACEMENT Removal Procedure 1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) . 2. Unsnap the positive battery cable cap. 3. Disconnect the positive battery cable. 4. Remove the underhood bussed electrical center (UBEC) cover. Position the lower cover to the side. 5. Remove the positive battery cable bolt at the UBEC. 6. Unsnap the junction block cover. 7. Remove the positive battery cable (1) from the junction block. See Fig. 1 . 8. Raise and suitably support the vehicle with safety stands. 9. Remove the engine protection shield. 10. Remove the positive battery cable channel bolt. 11. Slide the channel pin out of the oil pan tab. 12. Remove the positive battery cable from the channel. 13. Remove the positive cable nut 14. Remove the positive cable from the starter. 15. Remove the positive cable clip from the clip on the oil pan. 16. Remove the positive cable from the clip on the oil pan. 17. Remove the positive battery cable. CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless NOTE: The bolt is integral to the battery cable and is not removable.
2004 Hummer H2 2004 STARTING & CHARGING SYSTEMS Starters - H2
|
