5. Install the right exhaust manifold pipe nuts.

Tighten: Tighten the nuts to 50 N.m (39 lb ft).

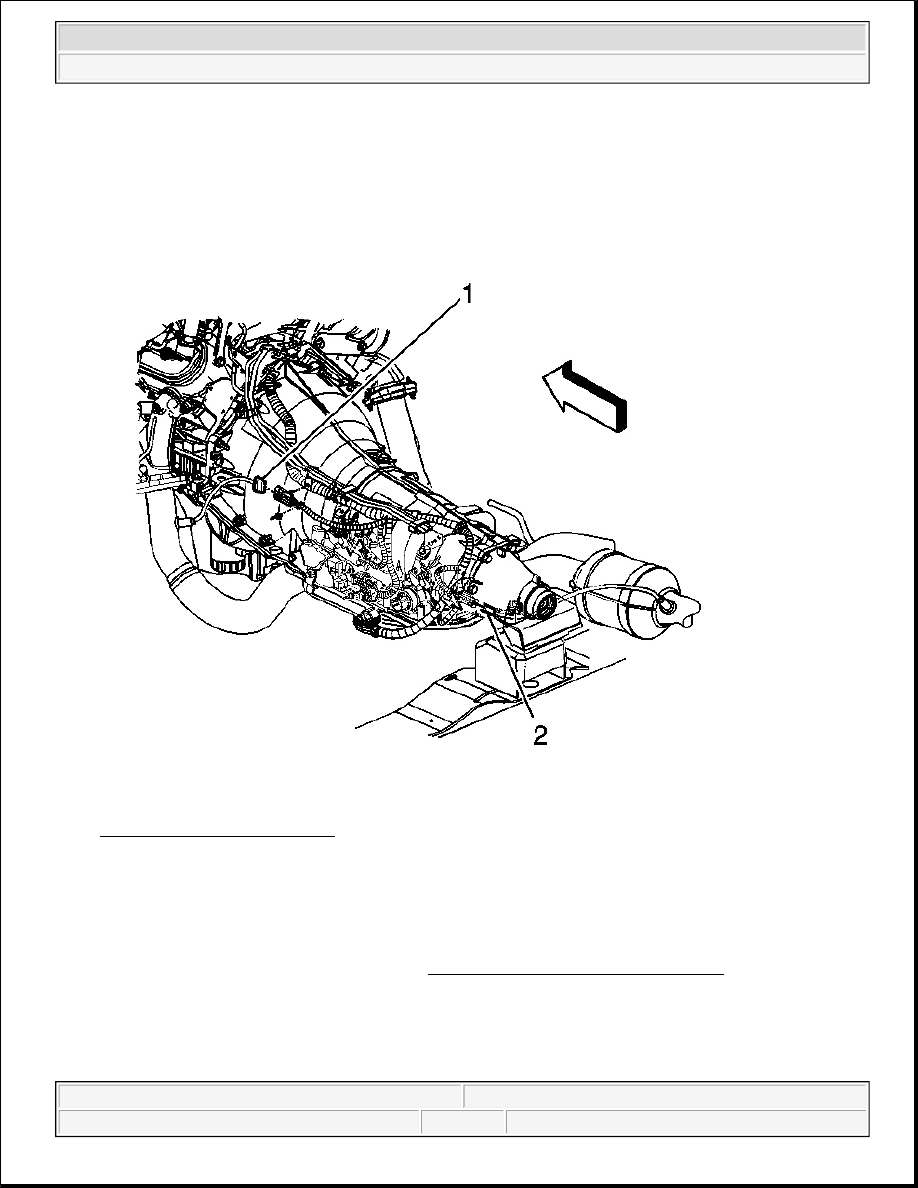

Fig. 24: View Of Transmission
Courtesy of GENERAL MOTORS CORP.

6. Connect the oxygen sensor electrical connector (1).

7. Connect the CPA retainer.

8. Remove the adjustable jackstands from catalytic converter or exhaust manifold pipe.

9. Install the engine protection shields. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

Tighten: Tighten the bolts to 20 N.m (15 lb ft).

10. Lower the vehicle.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



CATALYTIC CONVERTER REPLACEMENT (RIGHT HAND)

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the catalytic converter guard. Refer to Catalytic Converter Guard Replacement in Frame and

Underbody.

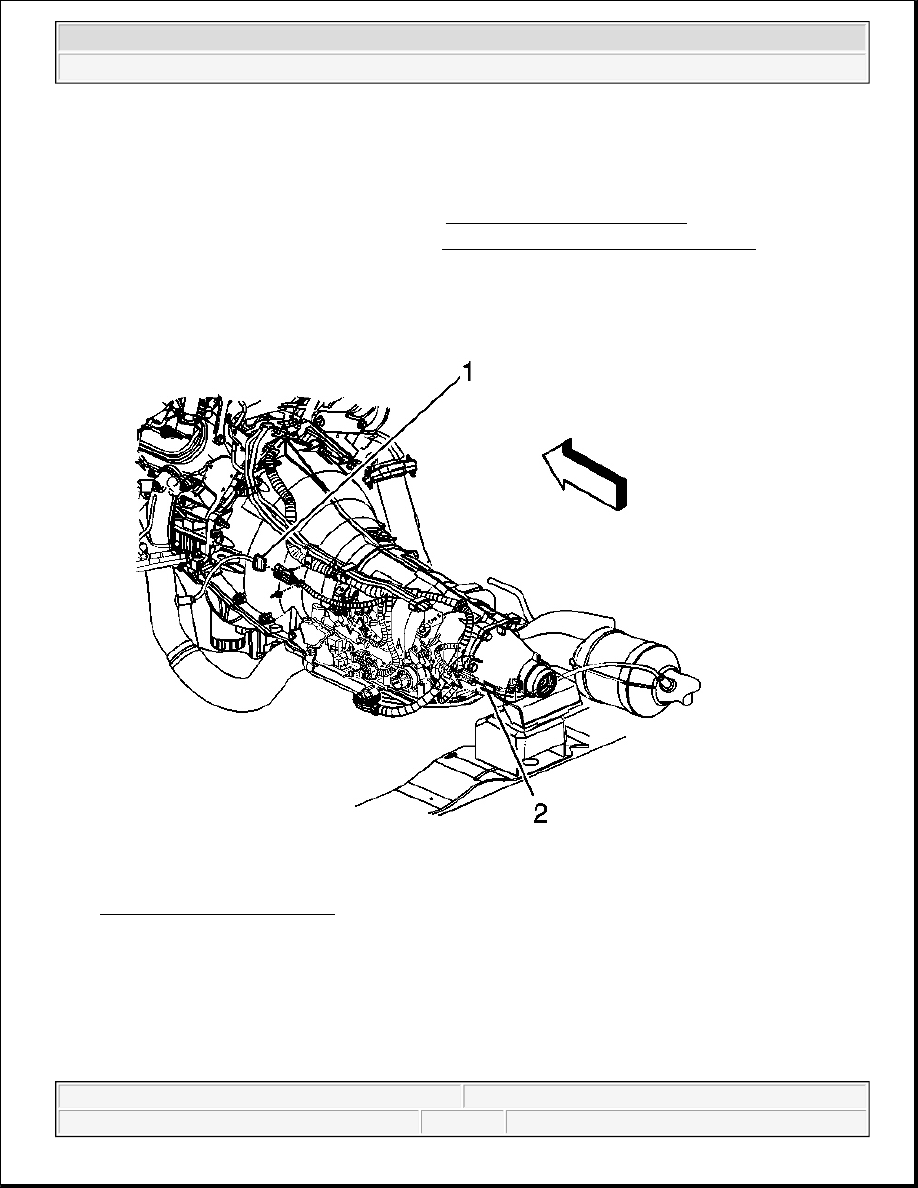

Fig. 25: View Of Transmission
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the connector position assurance (CPA) retainers.

4. Disconnect the oxygen sensor electrical connectors (1, 2).

5. Remove the catalytic converter to muffler flange nuts.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



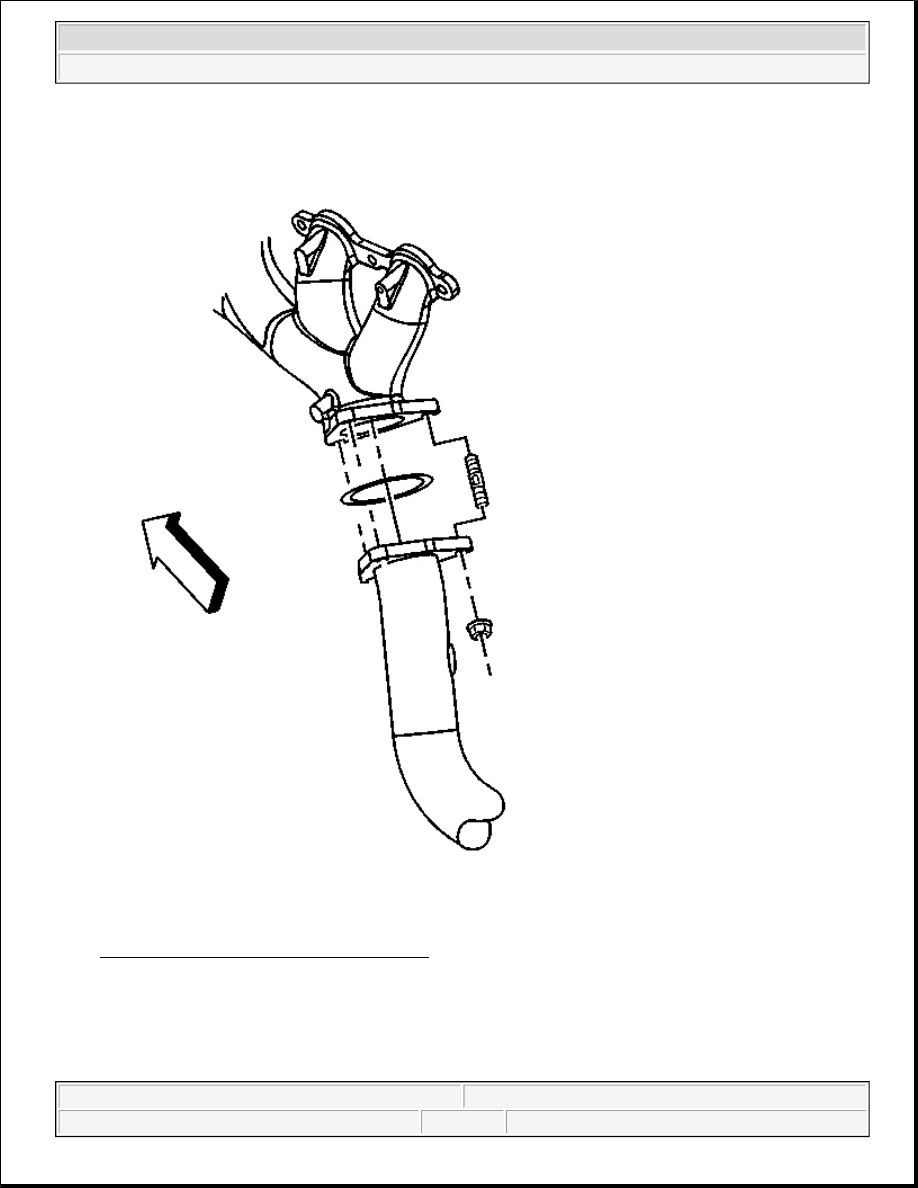

Fig. 26: Exhaust Manifold Pipe Nuts (Left)
Courtesy of GENERAL MOTORS CORP.

6. Remove the left exhaust manifold pipe nuts.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



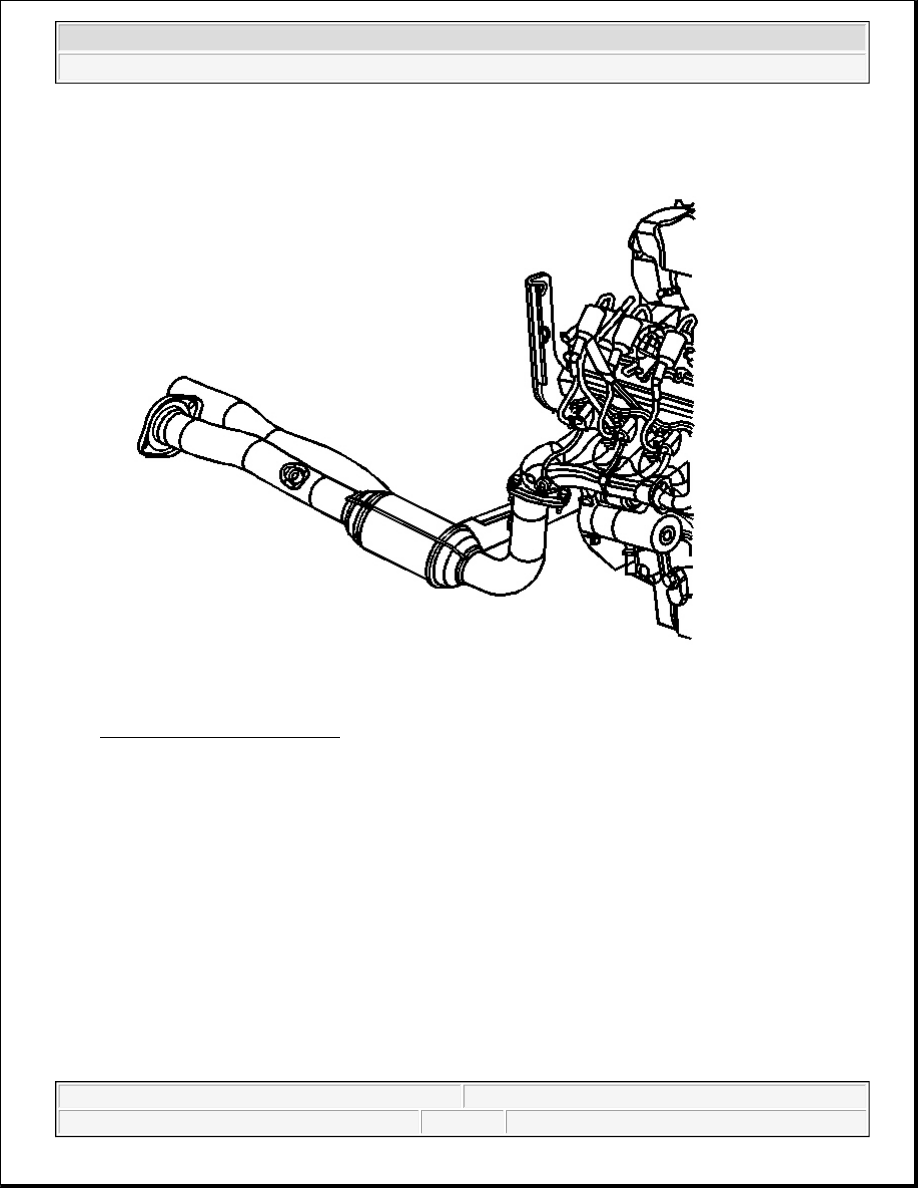

Fig. 27: Exhaust Manifold Pipe
Courtesy of GENERAL MOTORS CORP.

7. Remove the catalytic converter.
