12. Lower the vehicle.

13. Fill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.

EXHAUST MANIFOLD PIPE REPLACEMENT

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

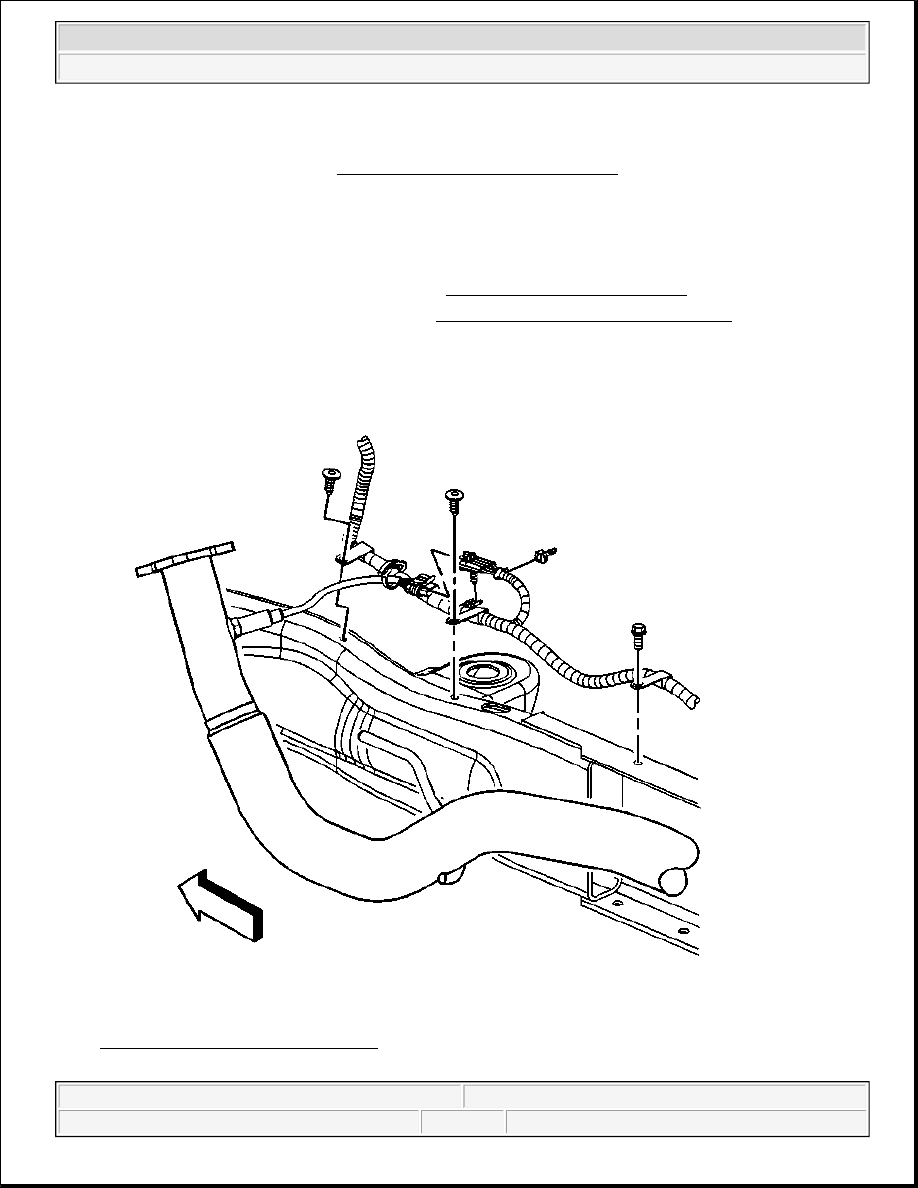

Fig. 13: View Of O2 Sensor Harness
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



3. Remove the exhaust muffler. Refer to Muffler Replacement .

4. Remove the clip around the engine harness and the oxygen sensor pigtail.

5. Disconnect the connector position assurance (CPA) retainer.

6. Disconnect the oxygen sensor electrical connector.

7. If replacing the exhaust manifold pipe, remove the oxygen sensor.

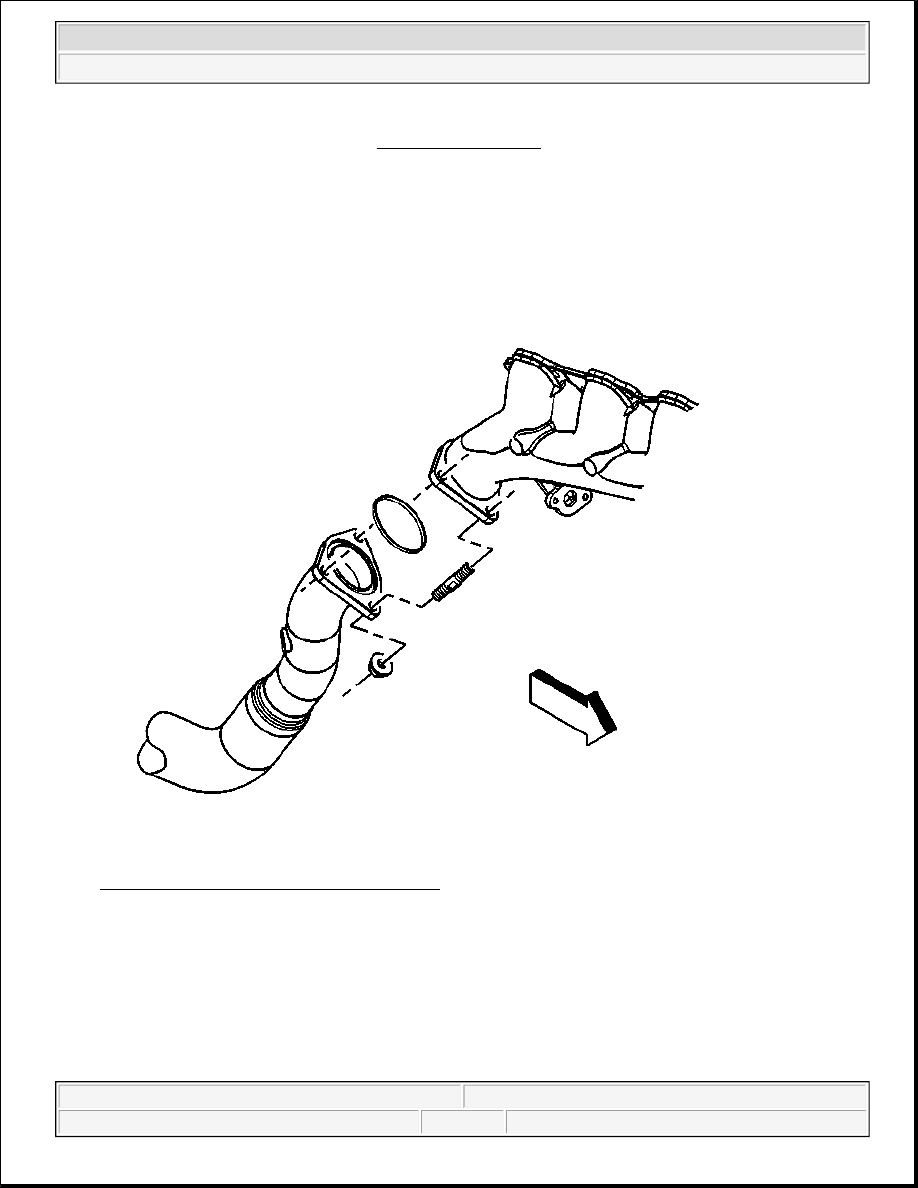

Fig. 14: Exhaust Manifold Pipe Nuts (Right)
Courtesy of GENERAL MOTORS CORP.

8. Remove the exhaust manifold pipe nuts.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



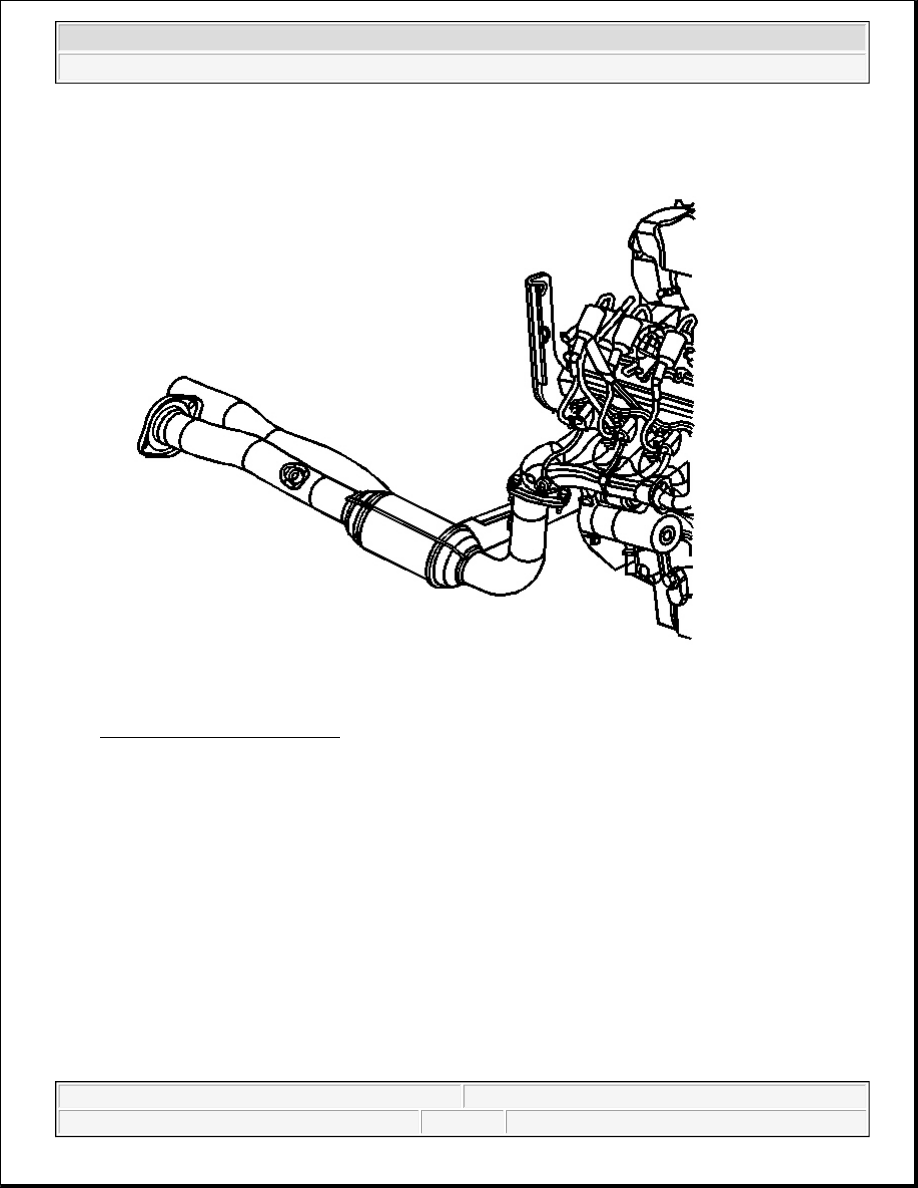

Fig. 15: Exhaust Manifold Pipe
Courtesy of GENERAL MOTORS CORP.

9. Remove the exhaust manifold pipe.

10. Slide the exhaust manifold pipe hanger out of the exhaust pipe hanger bracket.

11. Discard the exhaust manifold pipe seal.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



Fig. 16: Exhaust Manifold Pipe
Courtesy of GENERAL MOTORS CORP.

1. Install a new exhaust manifold pipe seal to the exhaust manifold pipe.

2. Install the exhaust manifold pipe.

3. Apply lubricant to the exhaust pipe hanger bracket, in order to aid in installation.

4. Slide the exhaust manifold pipe hanger into the exhaust pipe hanger bracket.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2
