EXHAUST NOISE

Exhaust Noise

REPAIR INSTRUCTIONS

EXHAUST MANIFOLD REPLACEMENT - LEFT

Removal Procedure

Irregularities at the mating surfaces on
the flange connections.

Repair as required or replace the affected component. Refer to
the affected components procedure for service.

Exhaust manifold cracked or broken.

Replace the exhaust manifold. Refer to

z

Exhaust Manifold Replacement - Left

z

Exhaust Manifold Replacement - Right .

Exhaust system component connection
welds leaking.

Replace the leaking component. Refer to the affected
component's procedure for service.

Muffler damaged or leaking at the
seams.

Replace the affected muffler. Refer to Muffler Replacement .

Condition

Action

DEFINITION: An audible or physical noise due to a faulty component or damaged components causing
a loose or misaligned exhaust system resulting in a rattle or vibration noise (buzz, groan, hum).Refer to
Symptoms - Engine Exhaust prior to beginning this table.

CAUTION:

While engine is operating, the exhaust system will become extremely hot. To prevent burns avoid
contacting a hot exhaust system.

Popping or hissing noise

Exhaust leak. Refer to Exhaust Leakage .

Loud exhaust

1. Compare to a known good vehicle.

2. Inspect for a damaged or failed muffler or resonator.

3. Replace the faulty muffler. Refer to Muffler Replacement .

External rattle or vibration
noise

1. Inspect for a bent or loose hanger, loose heat shield, or loose clamp.

2. Inspect for a exhaust pipe causing interference.

3. Repair or replace the affected component. Refer to the affected

component's service procedure.

Internal rattle

1. Test the components by tapping with a rubber mallet to confirm a

rattle.

2. Replace the faulty catalytic converter, or muffler. Refer to one of the

following procedures:

z

Catalytic Converter Replacement (Right Hand)

z

Muffler Replacement



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



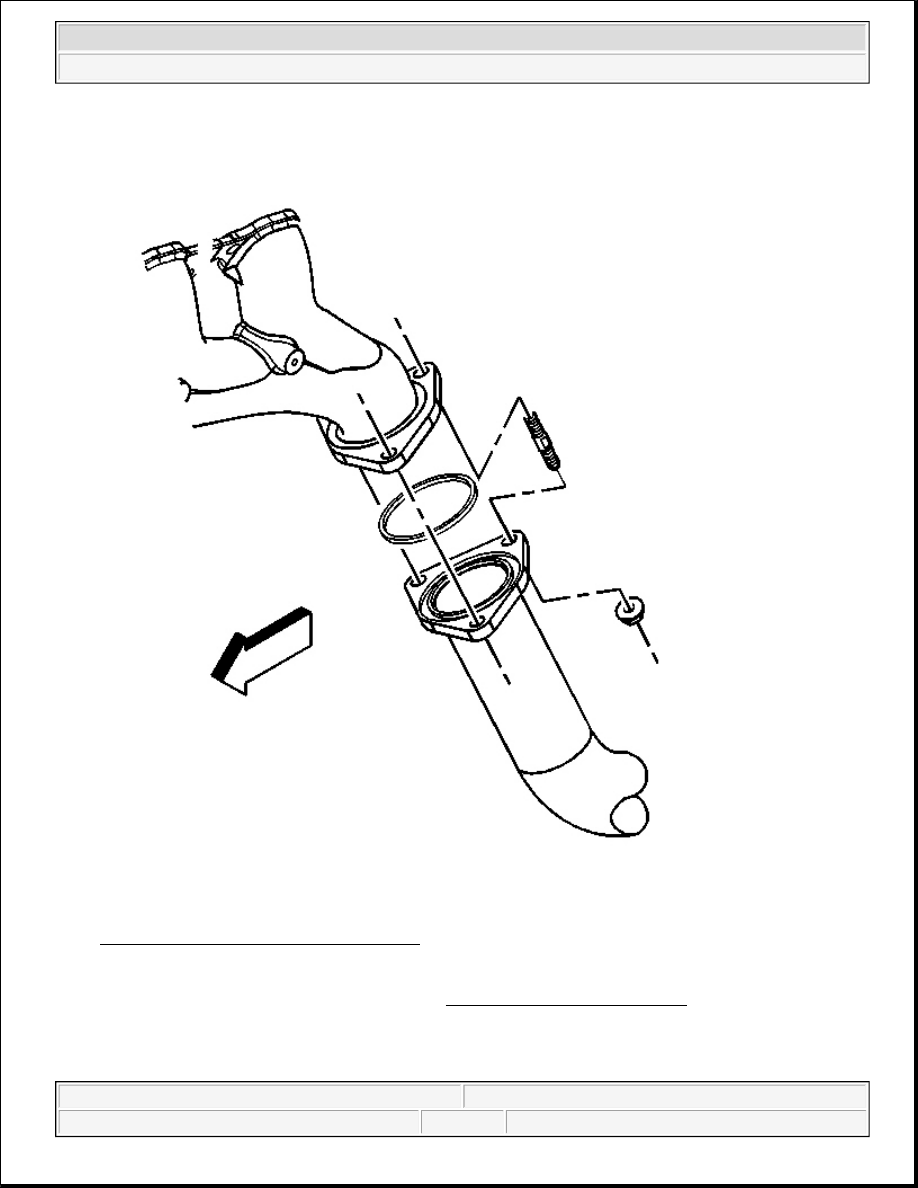

Fig. 1: Exhaust Manifold Pipe Nuts (Left)
Courtesy of GENERAL MOTORS CORP.

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the exhaust manifold pipe nuts.

3. Lower the vehicle.

4. Remove the spark plug wires. Refer to Spark Plug Wire Replacement in Engine Controls - 4.8L, 5.3L



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2



and 6.0L.

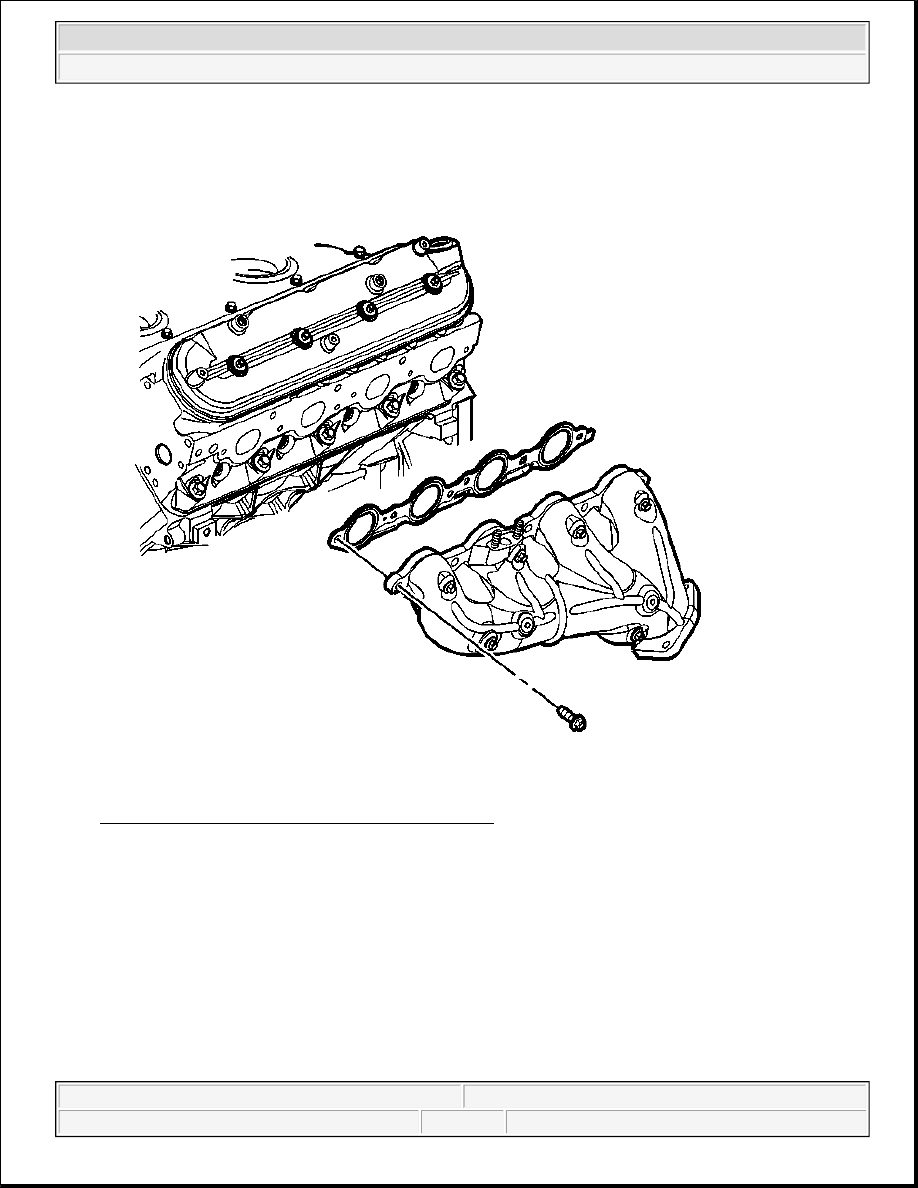

Fig. 2: Exhaust Manifold Bolts, Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.

5. Remove the exhaust manifold bolts, manifold, and gasket.

6. Discard the gasket.



2004 Hummer H2

2004 ENGINE Engine Exhaust - Hummer H2

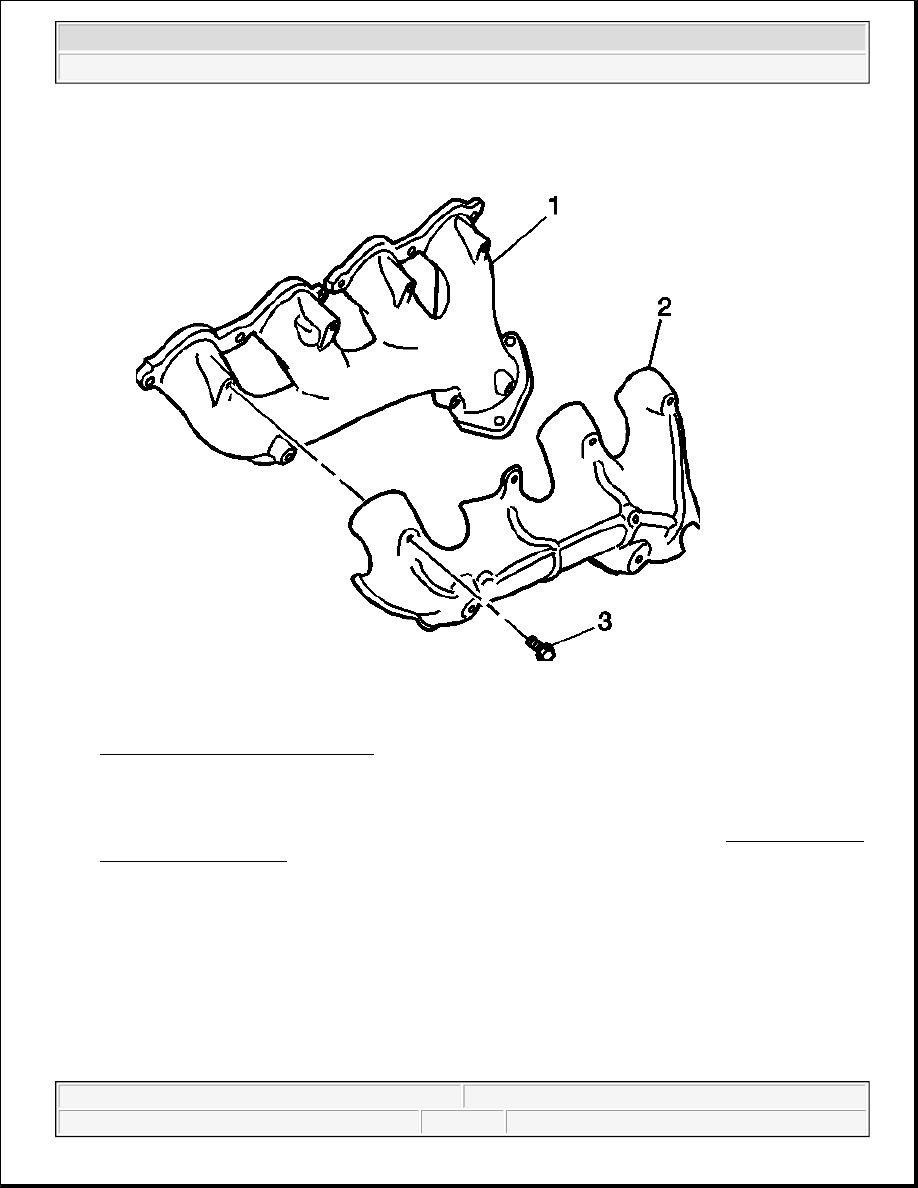

Fig. 3: View Of Heat Shield & Bolts
Courtesy of GENERAL MOTORS CORP.

7. Remove the heat shield bolts (3), and shield (2) from the exhaust manifold (1), if necessary.

8. Clean and inspect the exhaust manifold, if the manifold is not being replaced. Refer to Exhaust Manifold

Cleaning and Inspection in the Engine Mechanical - 4.8L, 5.3L and 6.0L.

Installation Procedure
