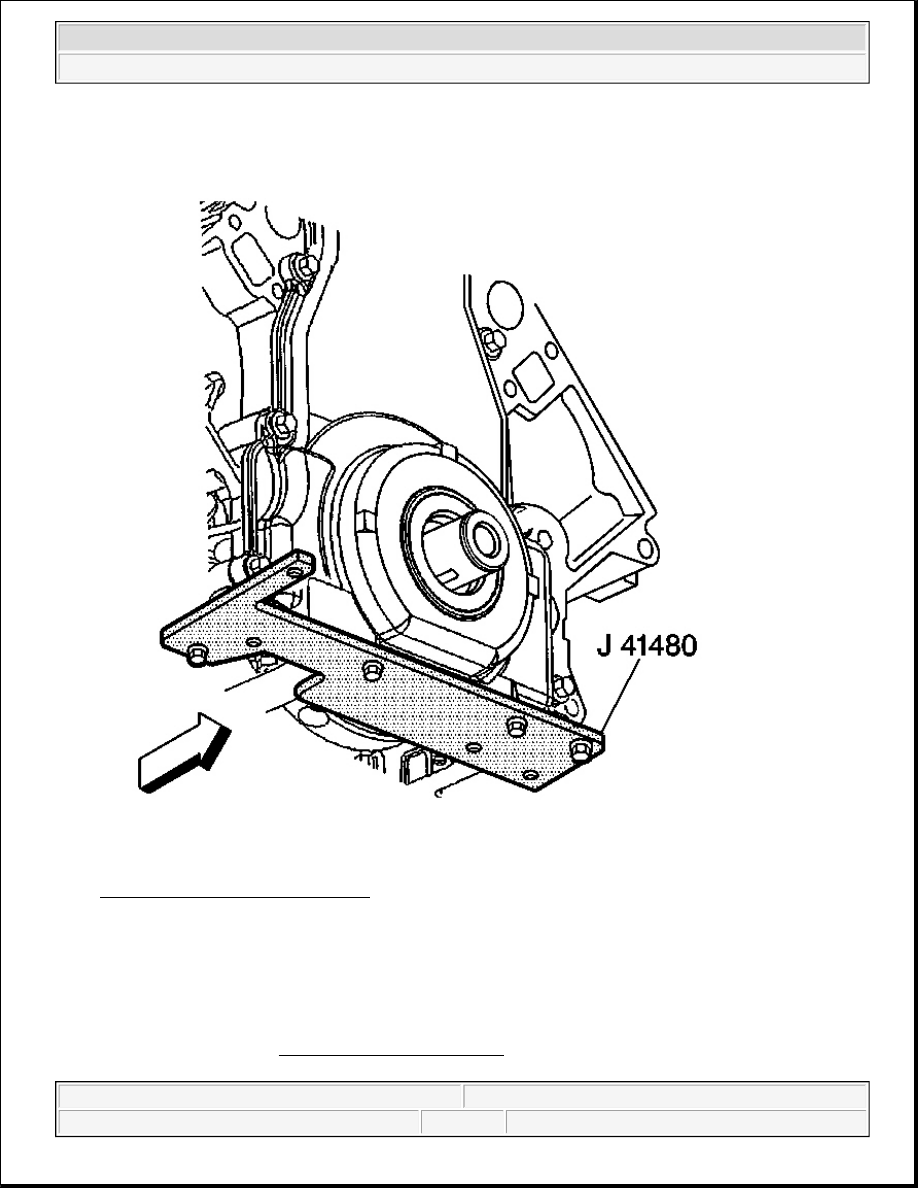

Fig. 623: View Of J 41480 Installed
Courtesy of GENERAL MOTORS CORP.

3. Install the J 41480 . See Special Tools and Equipment .

NOTE:

Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: Start the tool-to-front cover bolts. Do not tighten the bolts at this time.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Tighten: Tighten the tool-to-engine block bolts to 25 N.m (18 lb ft).

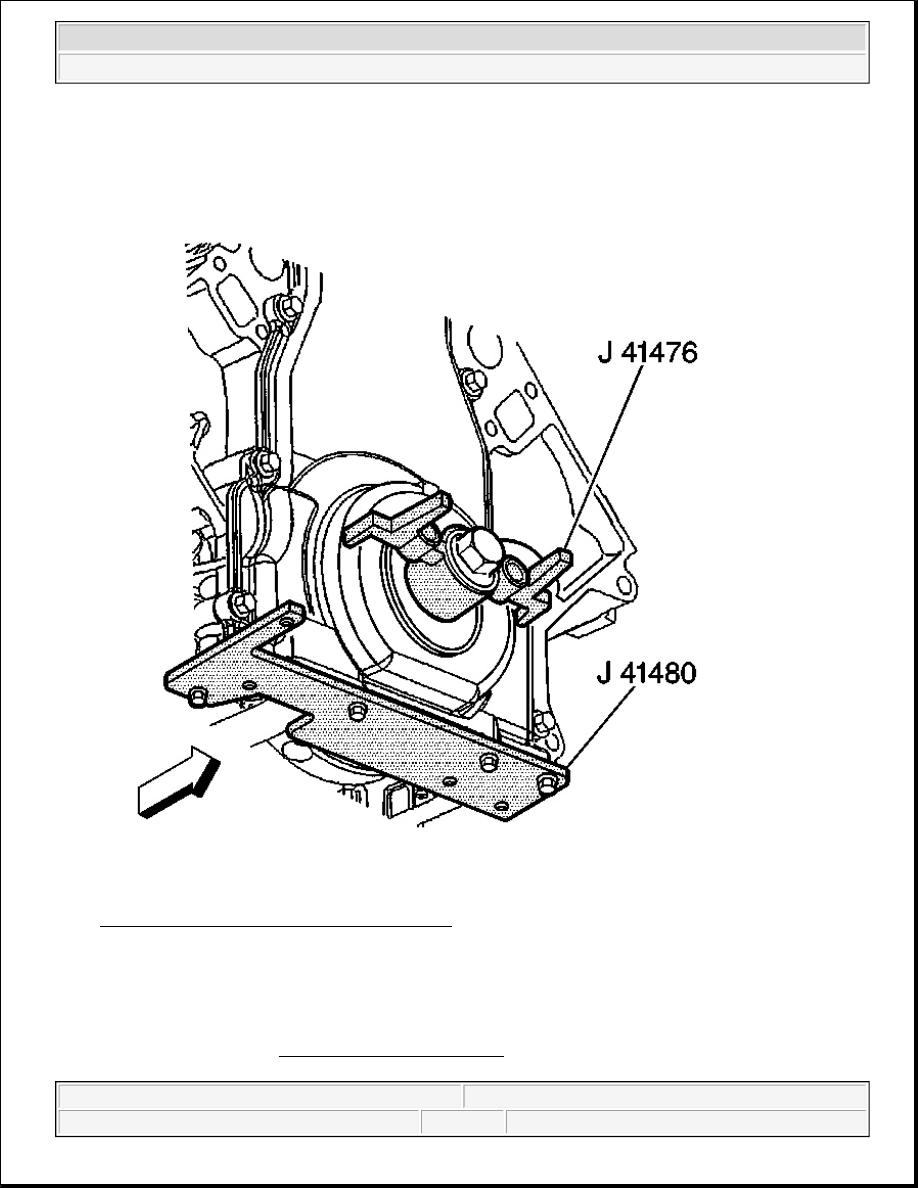

Fig. 624: View Of J 41476 & J 41480 Installed
Courtesy of GENERAL MOTORS CORP.

4. Install the J 41476 . See Special Tools and Equipment .

5. Install the crankshaft balancer bolt.

IMPORTANT: Align the tapered legs of the tool with the machined alignment surfaces

on the front cover.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Tighten:

1. Tighten the crankshaft balancer bolt by hand until snug. Do not overtighten.

2. Tighten the J 41480 . See Special Tools and Equipment .

3. Tighten the engine front cover bolts to 25 N.m (18 lb ft).

6. Remove the tools.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

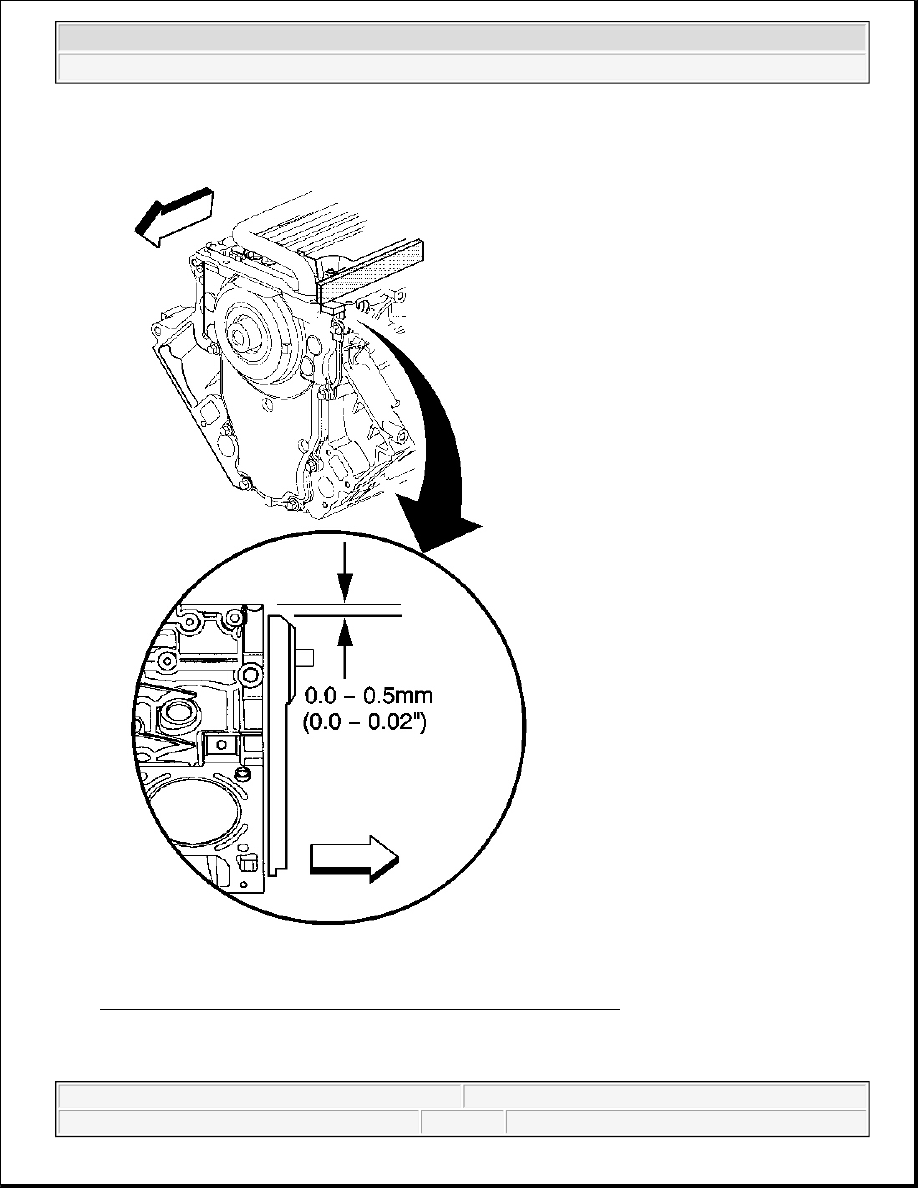

Fig. 625: Front Cover-To-Engine Block Proper Installation Position
Courtesy of GENERAL MOTORS CORP.

7. Measure the oil pan surface flatness, front cover-to-engine block.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2
