3. Using the bolts as a handle, carefully install the camshaft into the engine block.

4. Remove the 3 bolts from the front of the camshaft.

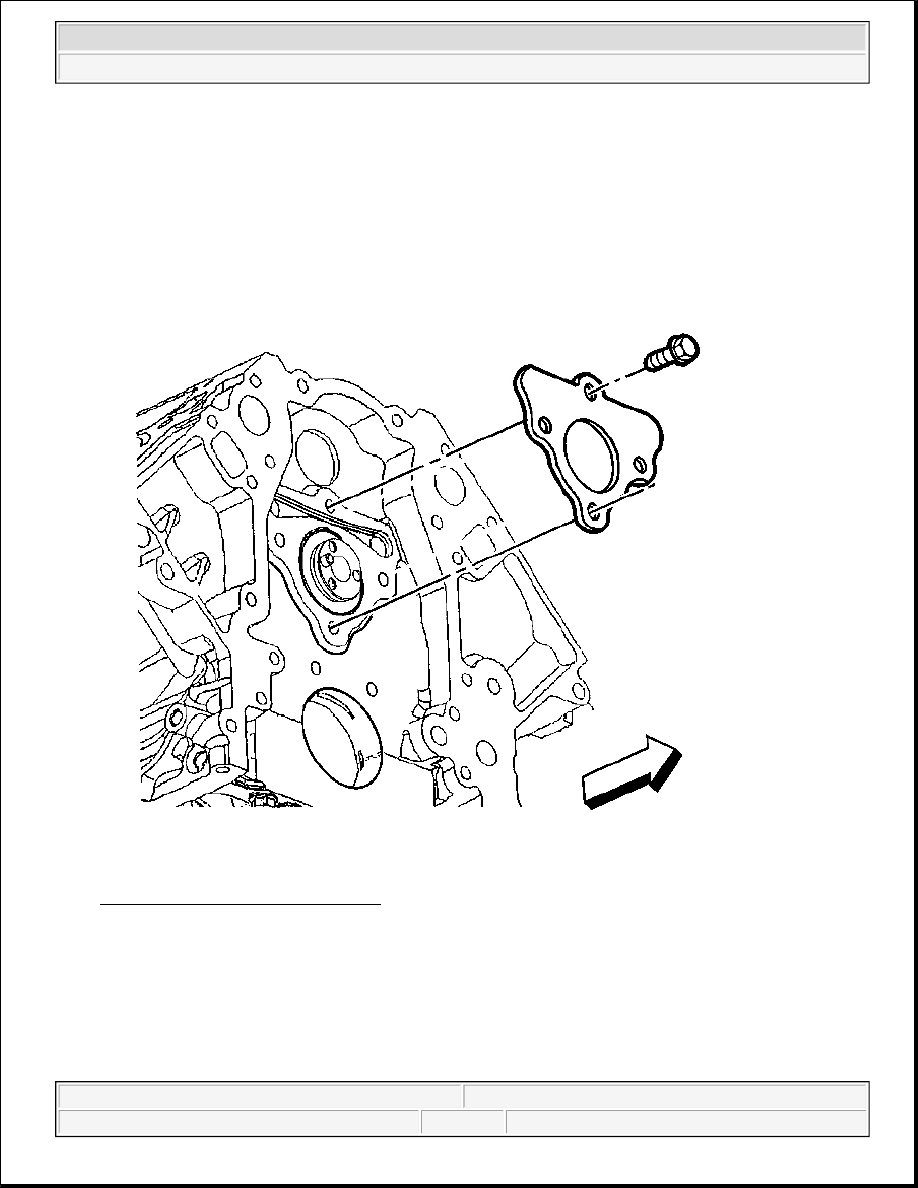

Fig. 603: Camshaft Retainer & Bolts
Courtesy of GENERAL MOTORS CORP.

removing or installing the camshaft to avoid damage to the camshaft
bearings.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

IMPORTANT:

z

Install the retainer plate with the sealing gasket facing the engine
block.

z

The gasket surface on the engine block should be clean and free of



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



5. Install the camshaft retainer and the bolts.

Tighten: Tighten the camshaft retainer bolts to 25 N.m (18 lb ft).

6. Inspect the camshaft sensor O-ring seal. If the O-ring seal is not cut or damaged, it may be used again.

7. Lubricate the O-ring seal with clean engine oil.

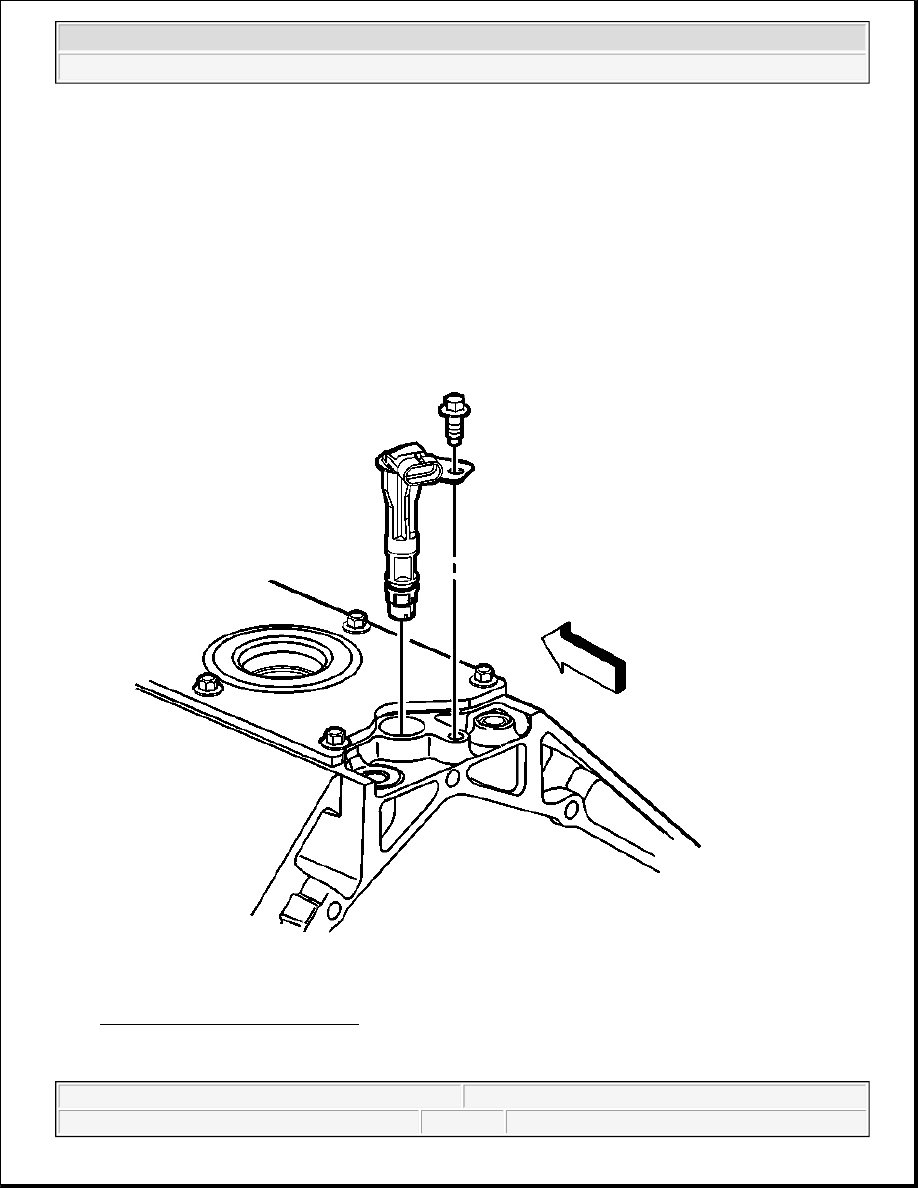

Fig. 604: Camshaft Sensor & Bolt
Courtesy of GENERAL MOTORS CORP.

dirt or debris.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



8. Install the camshaft position (CMP) sensor and bolt.

Tighten: Tighten the CMP sensor bolt to 25 N.m (18 lb ft).

TIMING CHAIN AND SPROCKETS INSTALLATION

Tools Required

J 41665 Crankshaft Balancer and Sprocket Installer. See Special Tools and Equipment .

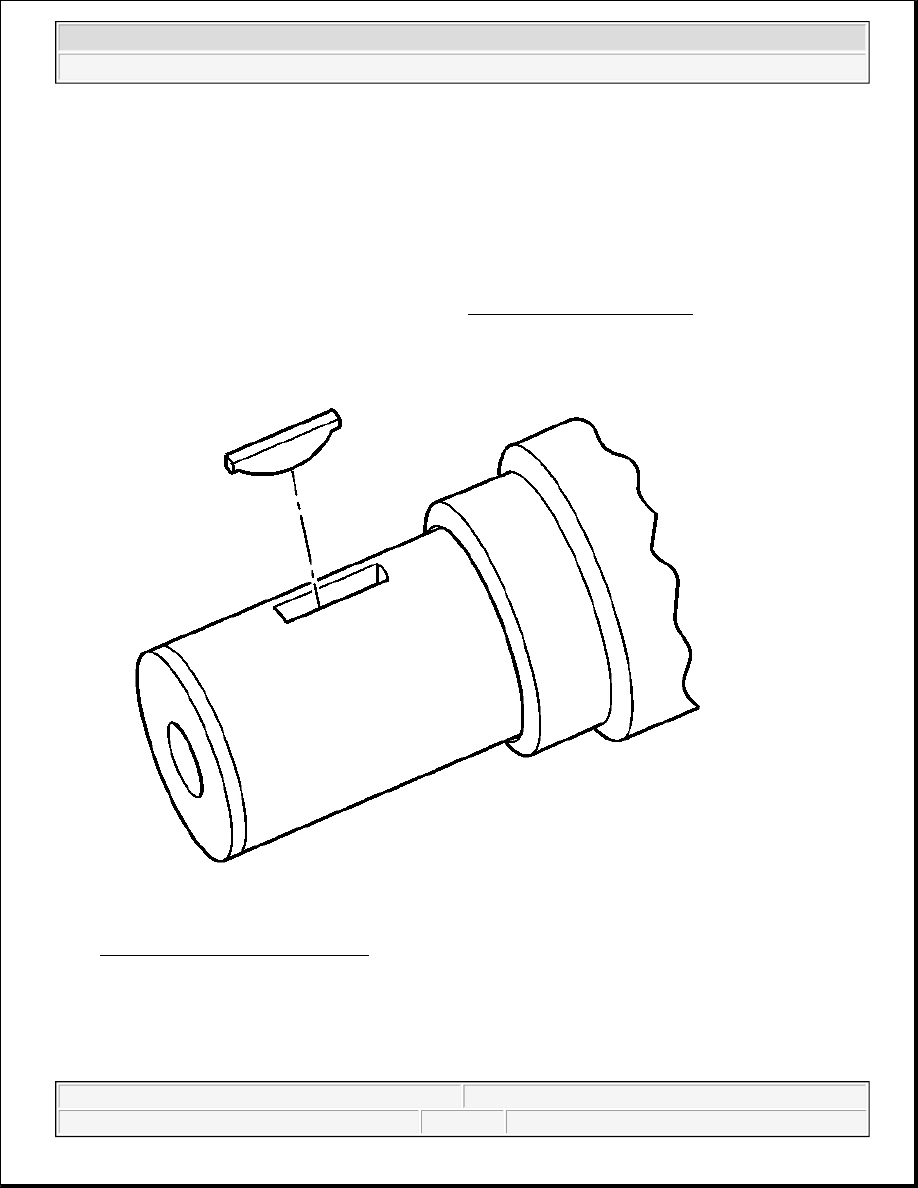

Fig. 605: Crankshaft Sprocket Key
Courtesy of GENERAL MOTORS CORP.

1. Install the key into the crankshaft keyway, if previously removed.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

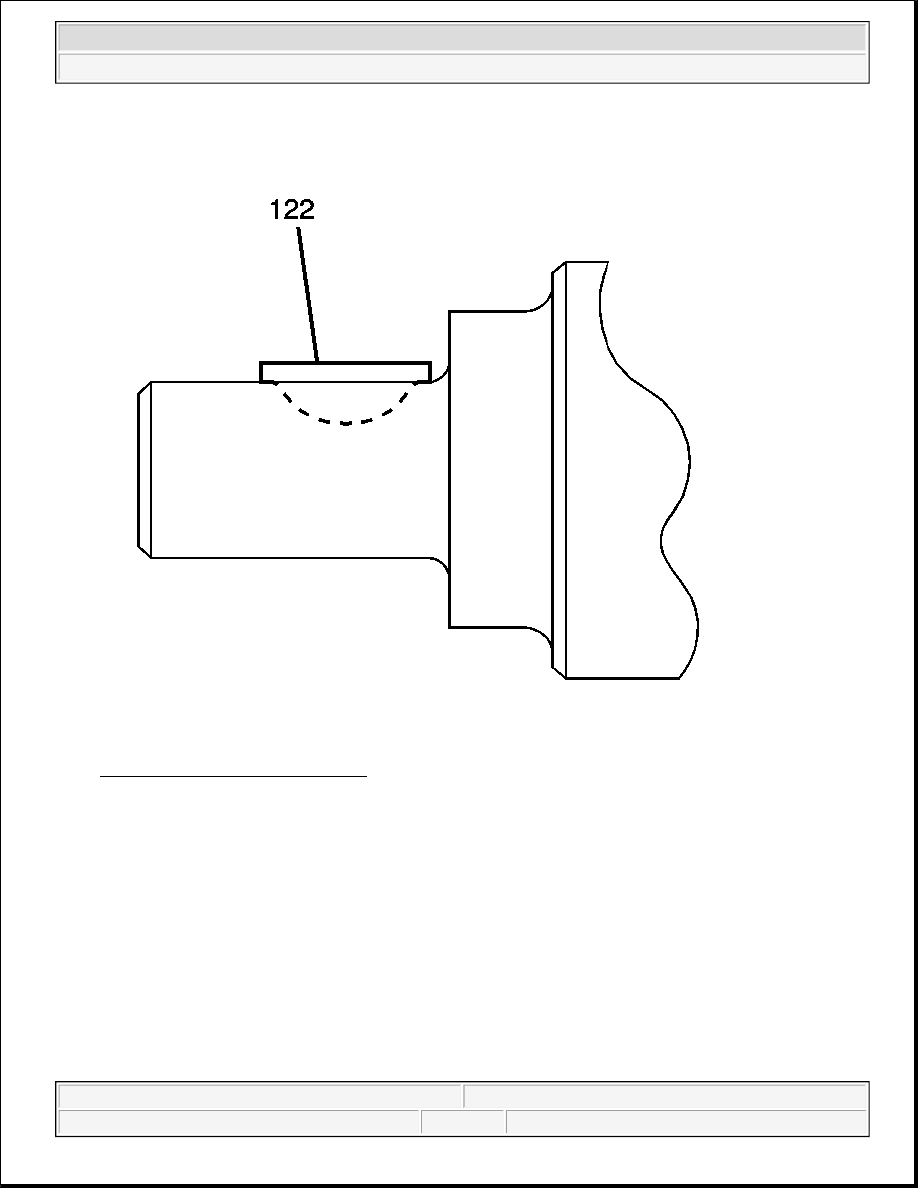

Fig. 606: Installed Crankshaft Key
Courtesy of GENERAL MOTORS CORP.

2. Tap the key (122) into the keyway until both ends of the key bottom onto the crankshaft.
