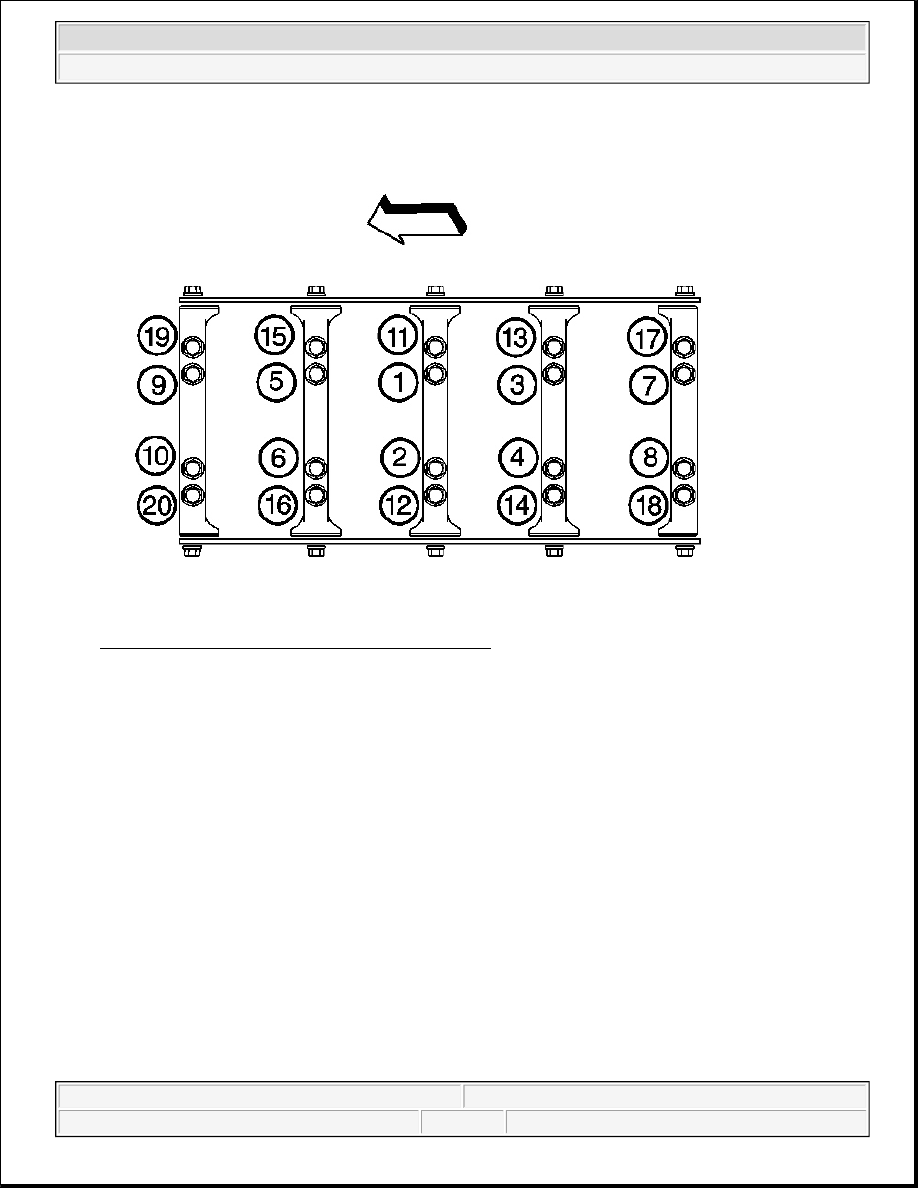

Fig. 570: Main Cap Bolt Hole Tightening Sequence
Courtesy of GENERAL MOTORS CORP.

4. Drill out the damaged hole.

The outer bolt hole locations (11-20) have the shallower counterbores. Use sleeve J 42385-316 with the
drill.

Drill until the stop collar of the drill bit or the sleeve contacts the bushing.

5. Using compressed air, clean out any chips.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

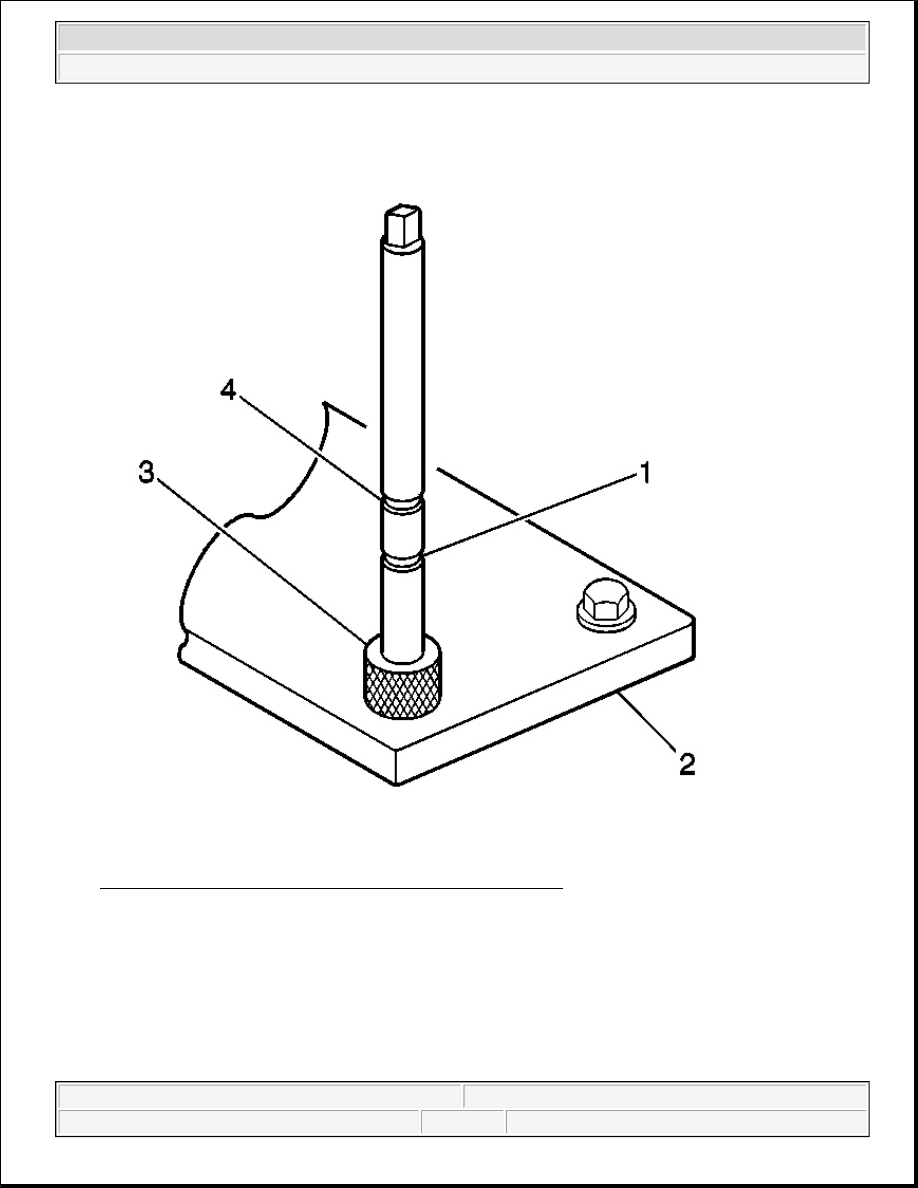

Fig. 571: Tap Upper & Lower Marks, Fixture Plate Bushing
Courtesy of GENERAL MOTORS CORP.

6. Using a tap wrench, tap the threads of the drilled hole.

In order to tap the new threads to the proper depth, rotate the tap into the hole until the mark on the tap
aligns with the top of the bushing.

For the deeper main cap holes (1-10), rotate the tap until the upper mark (4) on the tap aligns with the top
of the bushing (3).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



For the shallower main cap holes (11-20), rotate the tap until the lower mark (1) on the tap aligns with top
of the bushing (3).

7. Using compressed air, clean out any chips.

8. Spray cleaner GM P/N 12346139 (Canadian P/N 10953463) or equivalent into the hole.

9. Using compressed air, clean any cutting oil and chips out of the hole.

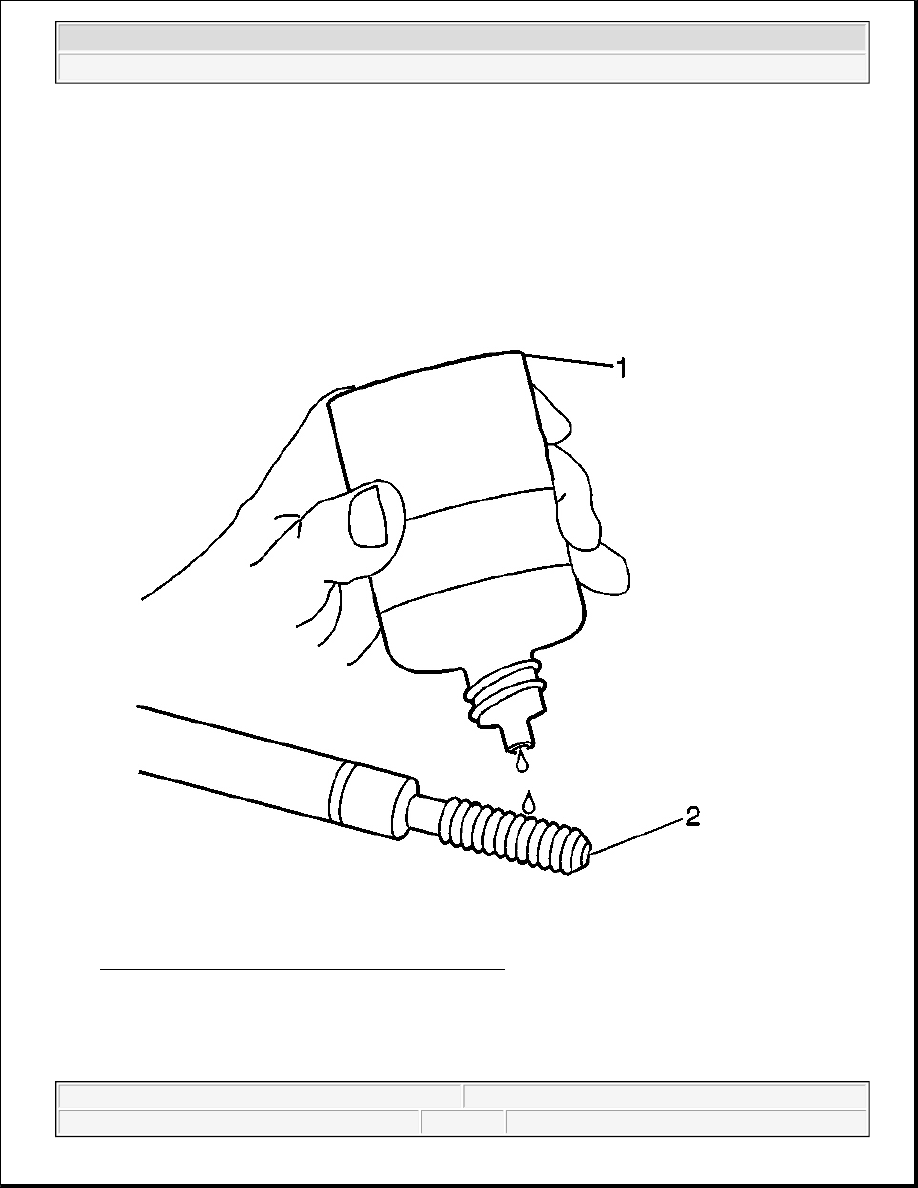

Fig. 572: Lubricating Installer Tool Using Driver Oil
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not allow oil or other foreign material to contact the outside diameter

(OD) of the insert.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



10. Lubricate the threads of the installer tool (2) with the driver oil (1).

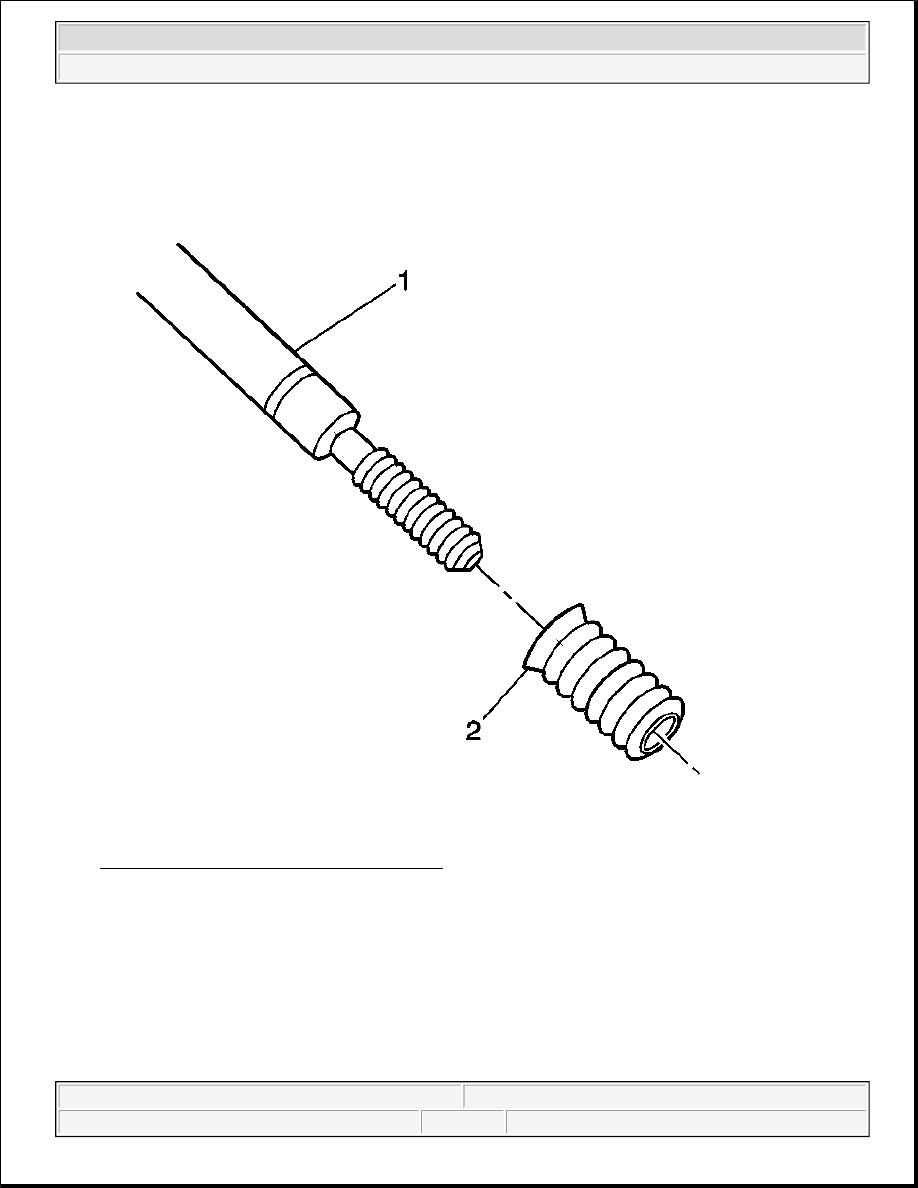

Fig. 573: Bushing Type Insert & Driver Tool
Courtesy of GENERAL MOTORS CORP.

11. Install the insert (2) onto the driver tool (1).
