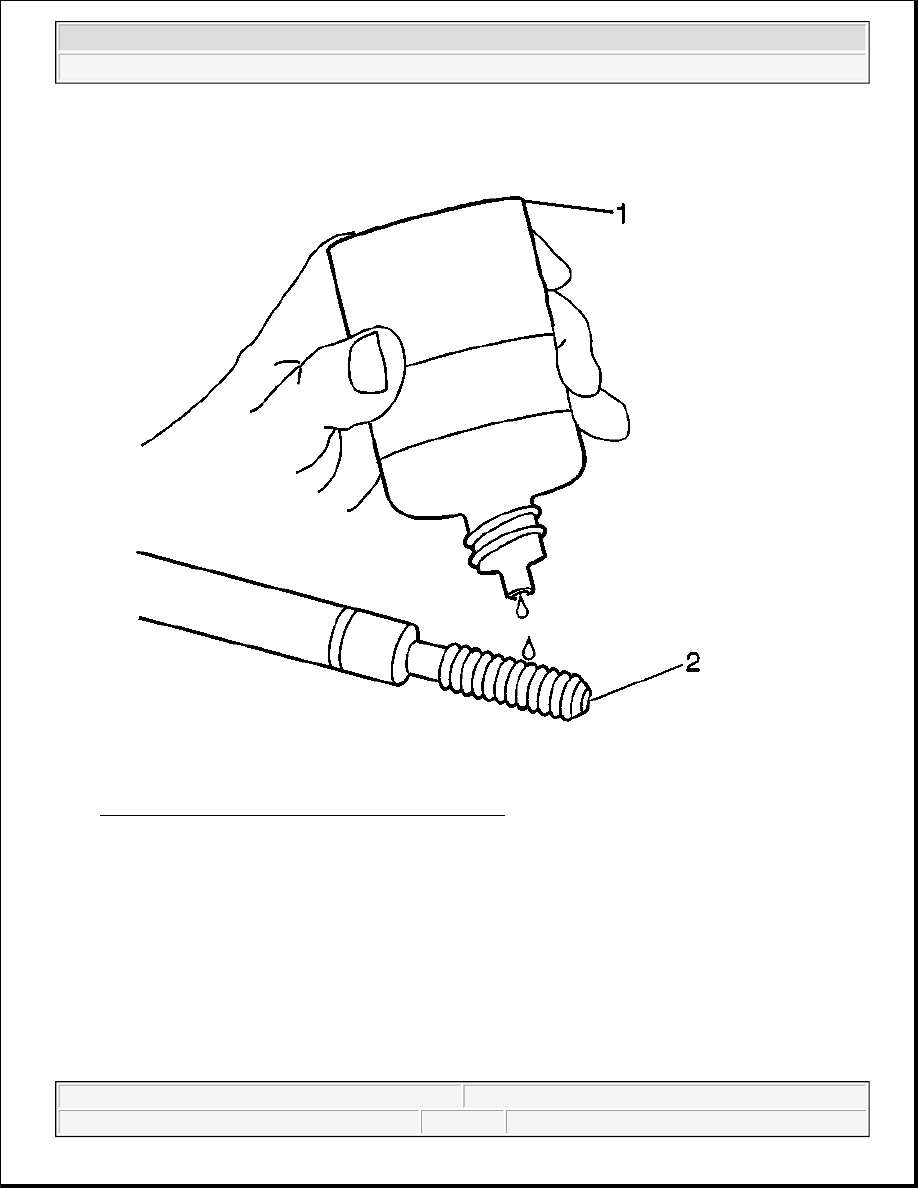

Fig. 551: Lubricating Installer Tool Using Driver Oil
Courtesy of GENERAL MOTORS CORP.

9. Lubricate the threads of the installer tool (2) with the driver oil (1).

IMPORTANT: Do not allow oil or other foreign material to contact the outside diameter

(OD) of the insert.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

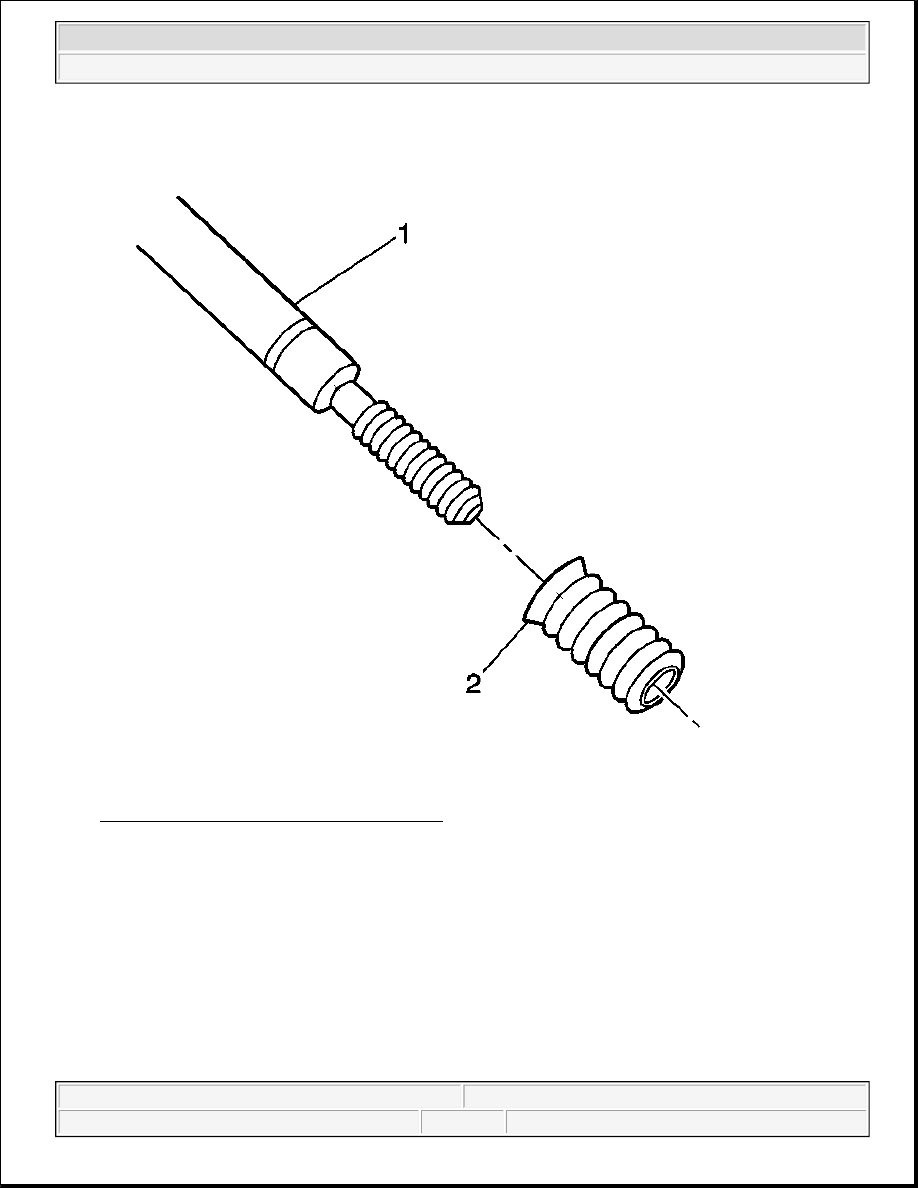

Fig. 552: Bushing Type Insert & Driver Tool
Courtesy of GENERAL MOTORS CORP.

10. Install the insert (2) onto the driver tool (1).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

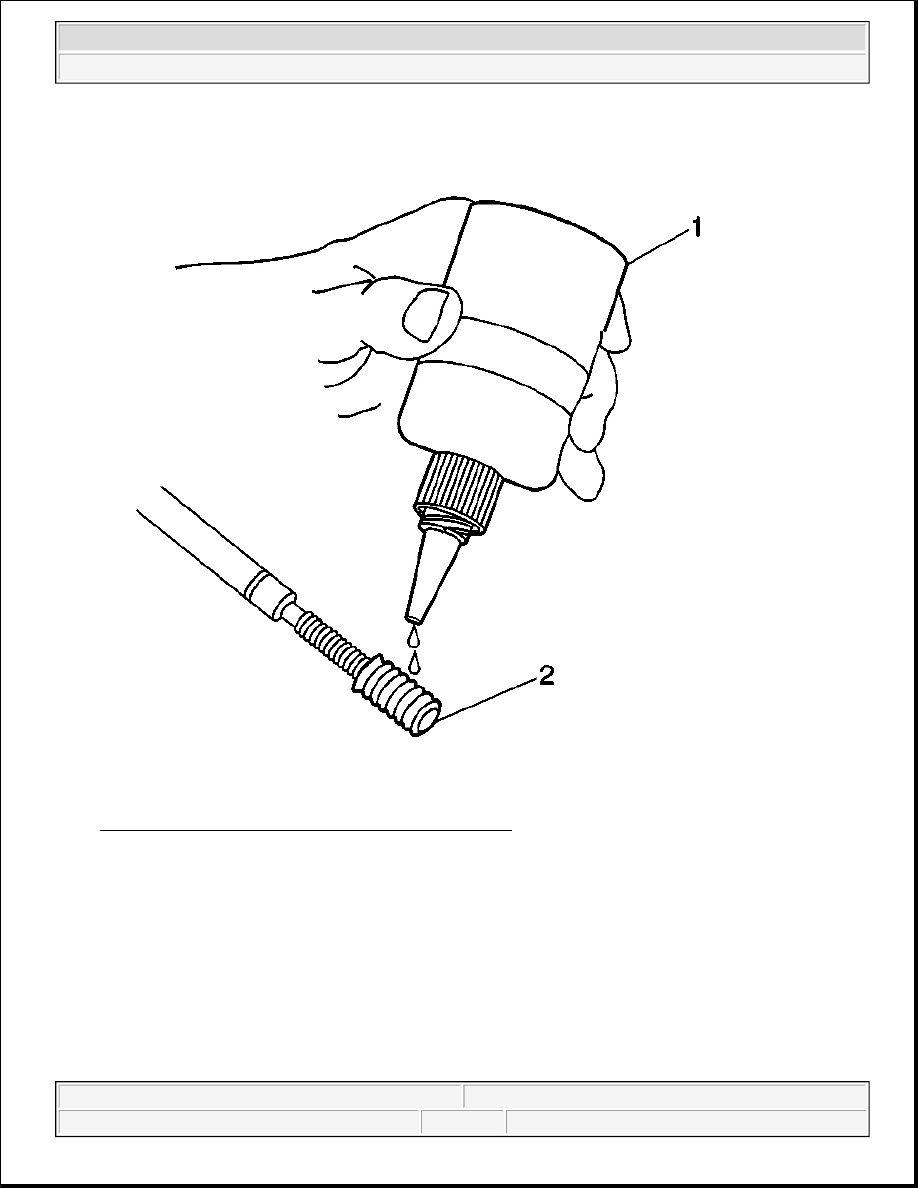

Fig. 553: Applying Threadlock To Insert OD Threads
Courtesy of GENERAL MOTORS CORP.

11. Apply threadlock LOCTITE(tm) 277, J 42385-109 (1), or equivalent to the insert OD threads (2).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

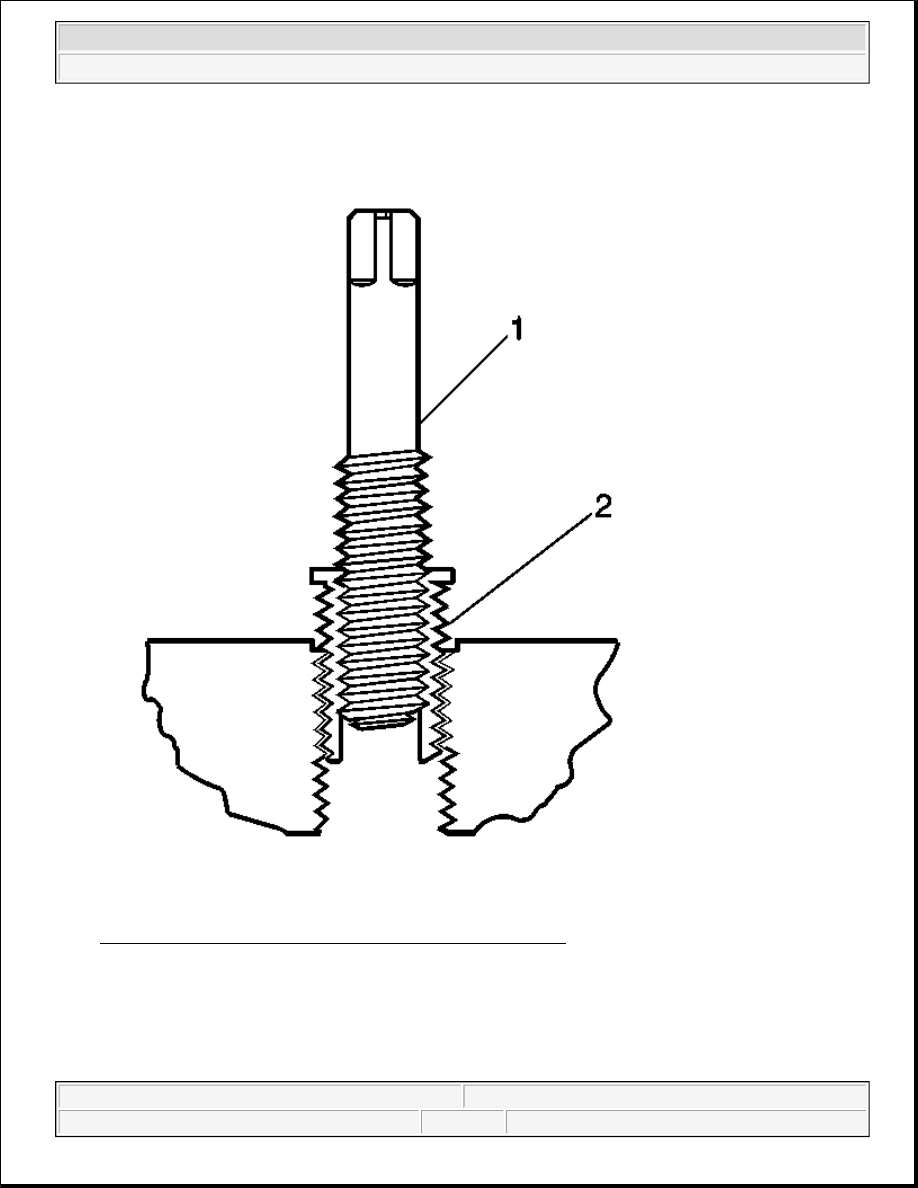

Fig. 554: Installing Insert Into Bolt Hole Using Installer Tool
Courtesy of GENERAL MOTORS CORP.

12. Install the insert (2) into the hole.

Install the insert until the flange of the insert contacts the counterbored surface. Continue to rotate the
installer tool (1) through the insert.
