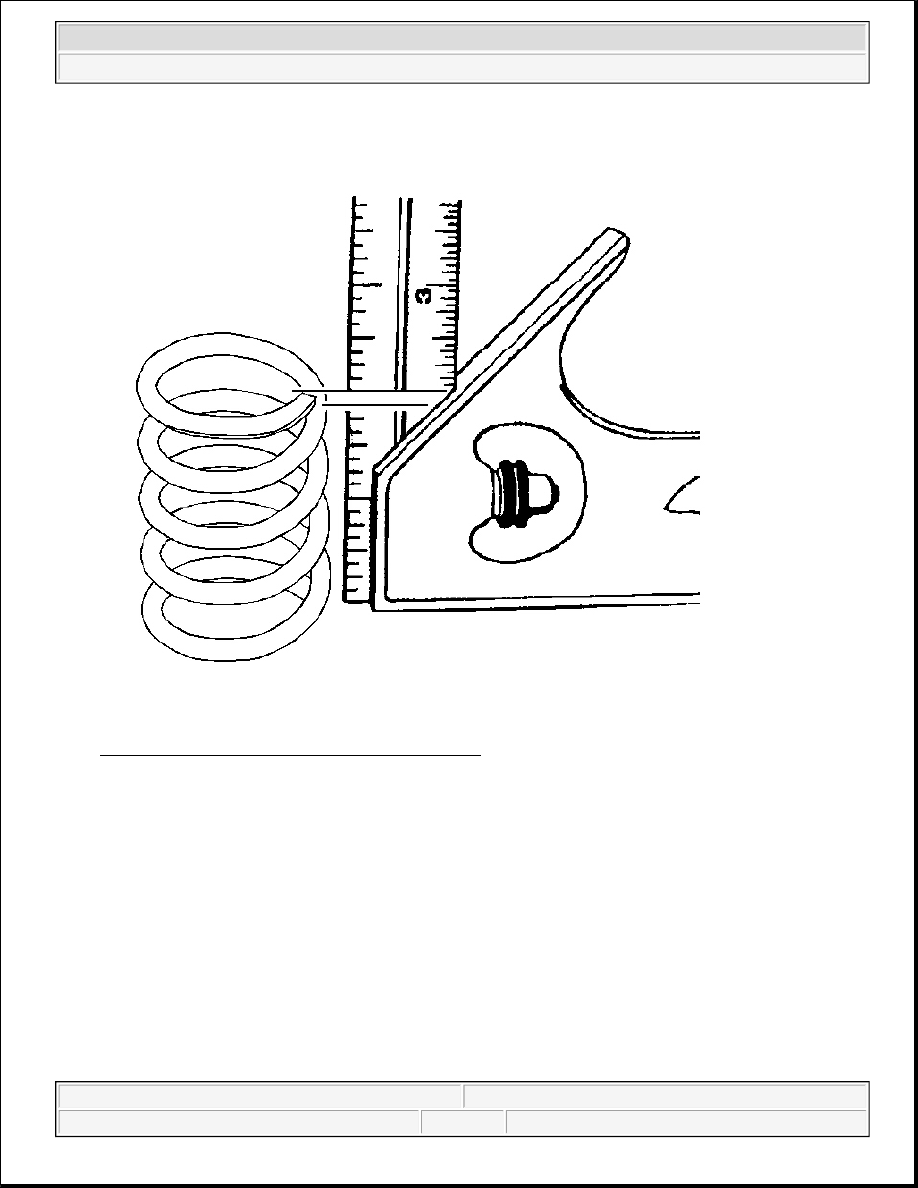

Fig. 479: Inspecting Valve Spring For Squareness
Courtesy of GENERAL MOTORS CORP.

4. Inspect the valve springs for squareness.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

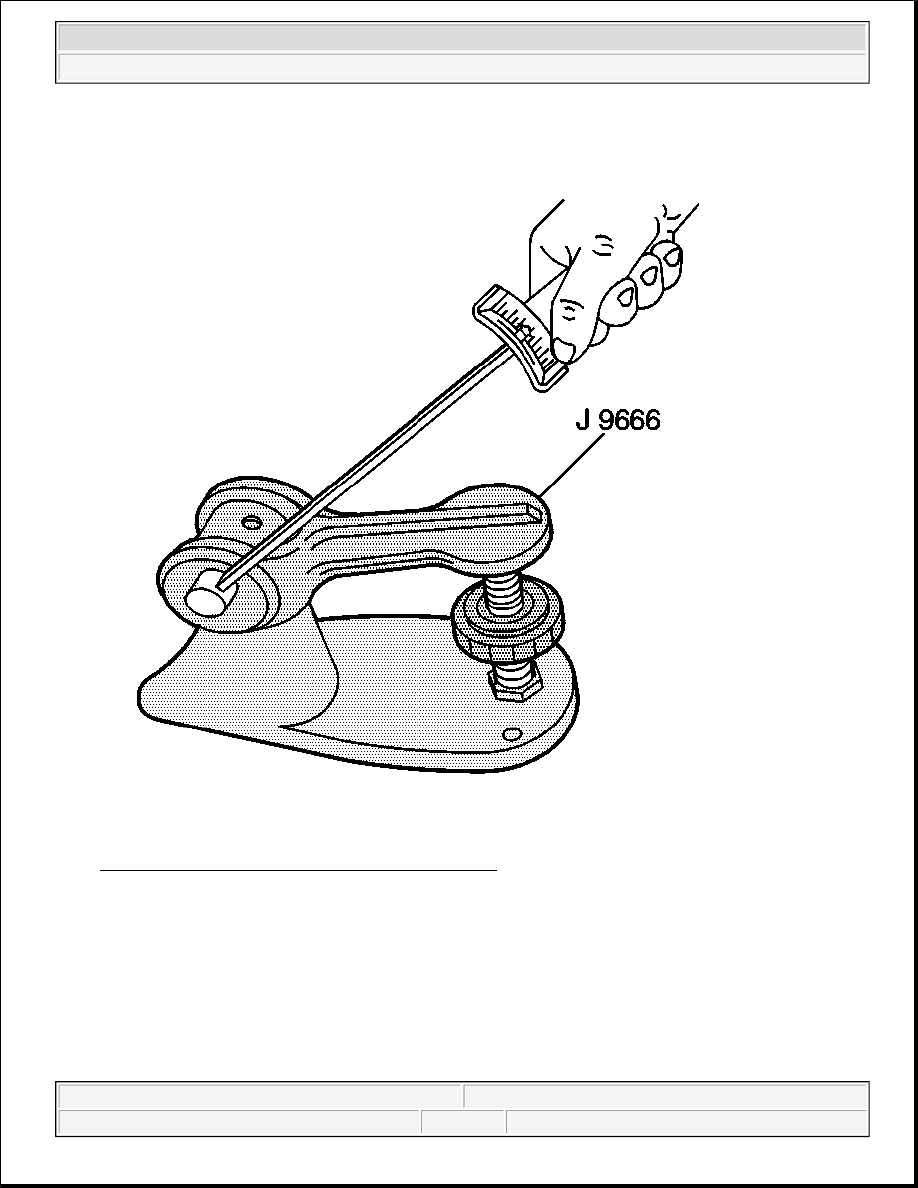

Fig. 480: Measuring The Valve Spring Using J 9666
Courtesy of GENERAL MOTORS CORP.

5. Use the J 9666 in order to measure the valve spring tension.

Replace the spring if the spring tension is less than 310 N (70 lb) at 45.75 mm (1.80 in).

VALVE GUIDE REAMING/VALVE AND SEAT GRINDING

Tools Required



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



J 37378-1 Valve Guide Reamer. See Special Tools and Equipment .

Valve Guide Reaming

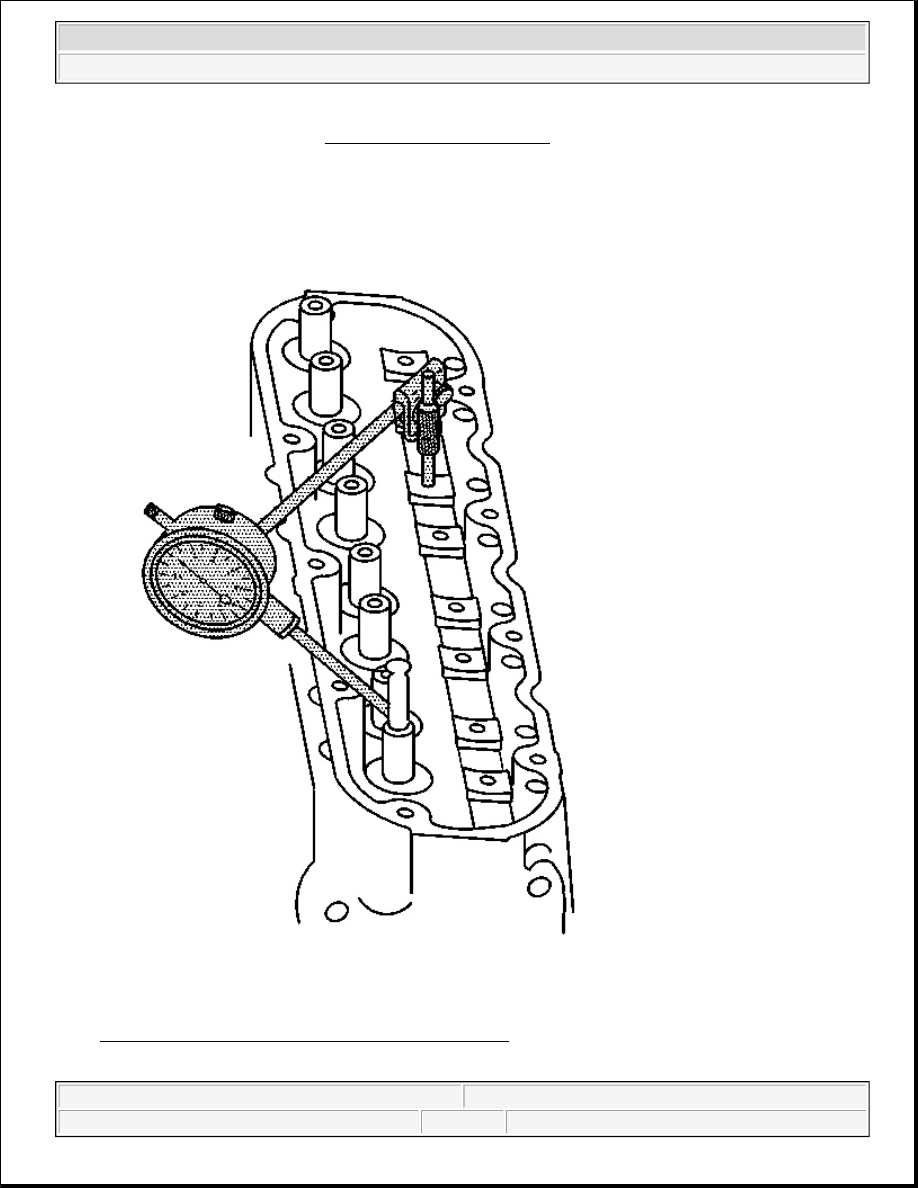

Fig. 481: Measuring Valve Stem-To-Guide Clearance
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



1. Measure the valve stem-to-guide clearance using a dial indicator. Position the tip of the dial indicator at

the top of the valve guide.

Valve stem-to-guide clearance may also be obtained by using a micrometer to measure the valve stem
diameter and a ball type measuring gauge to measure the guide bore.

IMPORTANT:

z

Excessive valve stem-to-guide clearance may cause a noisy valve
train, premature valve stem oil seal wear, component damage, and/or
excessive engine oil consumption.

z

Insufficient valve stem-to-guide clearance will result in noisy or
sticking valves. Valves that are too tight may disturb engine
smoothness or lead to component damage.
