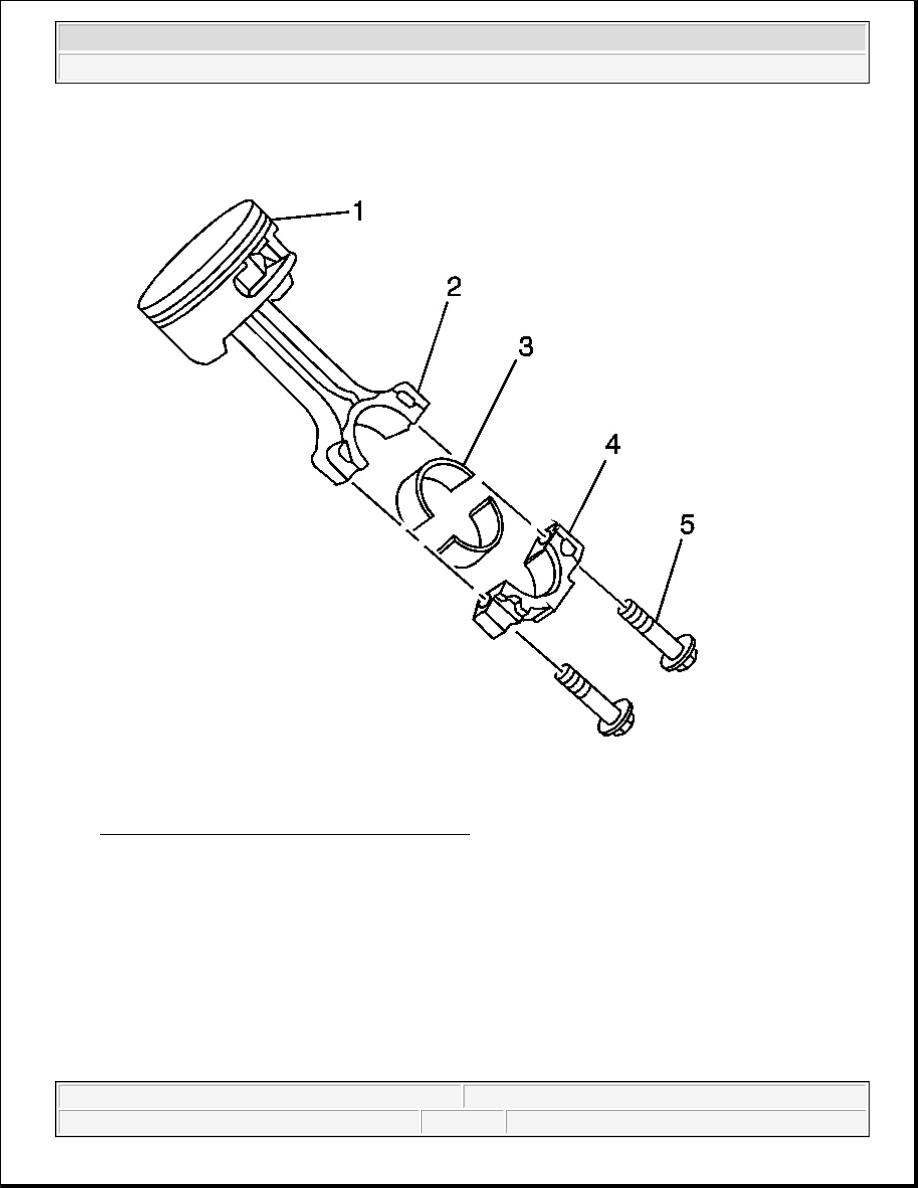

Fig. 414: Piston & Connecting Rod Components
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

Replace pistons, pins, and connecting rods that are damaged or
show signs of excessive wear.

z

The first design press-fit piston, pin, and connecting rod are to be
serviced as an assembly.

z

Do not wire brush any part of the piston.

z

Measurement of the components should be taken with the
components at normal room temperature.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



1. Clean the varnish and carbon from the piston (1) using cleaning solvent.

2. Dry the components with compressed air.

CAUTION: Wear safety glasses in order to avoid eye damage.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

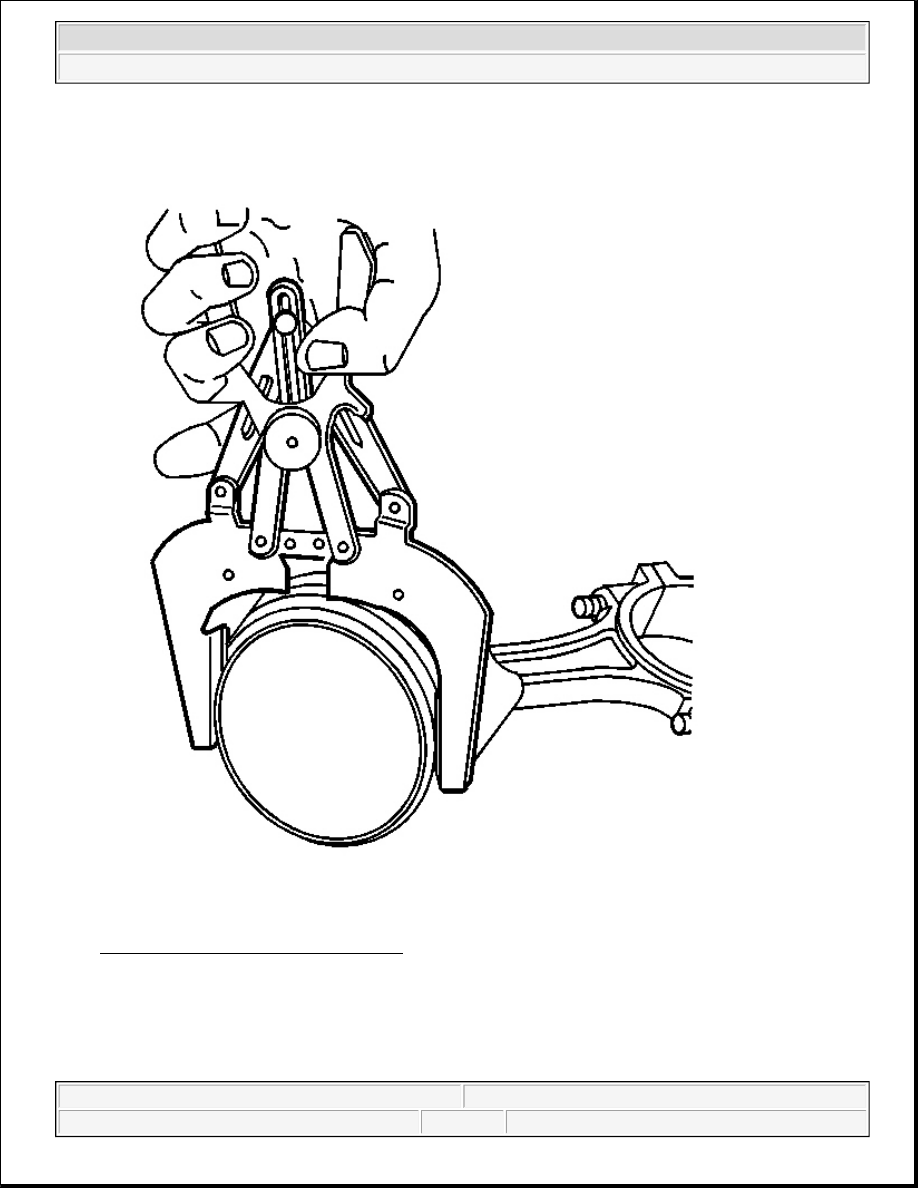

Fig. 415: Cleaning Piston Ring Grooves
Courtesy of GENERAL MOTORS CORP.

3. Clean the piston ring grooves with a suitable ring groove cleaning tool.

4. Clean the oil lubrication holes and slots.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

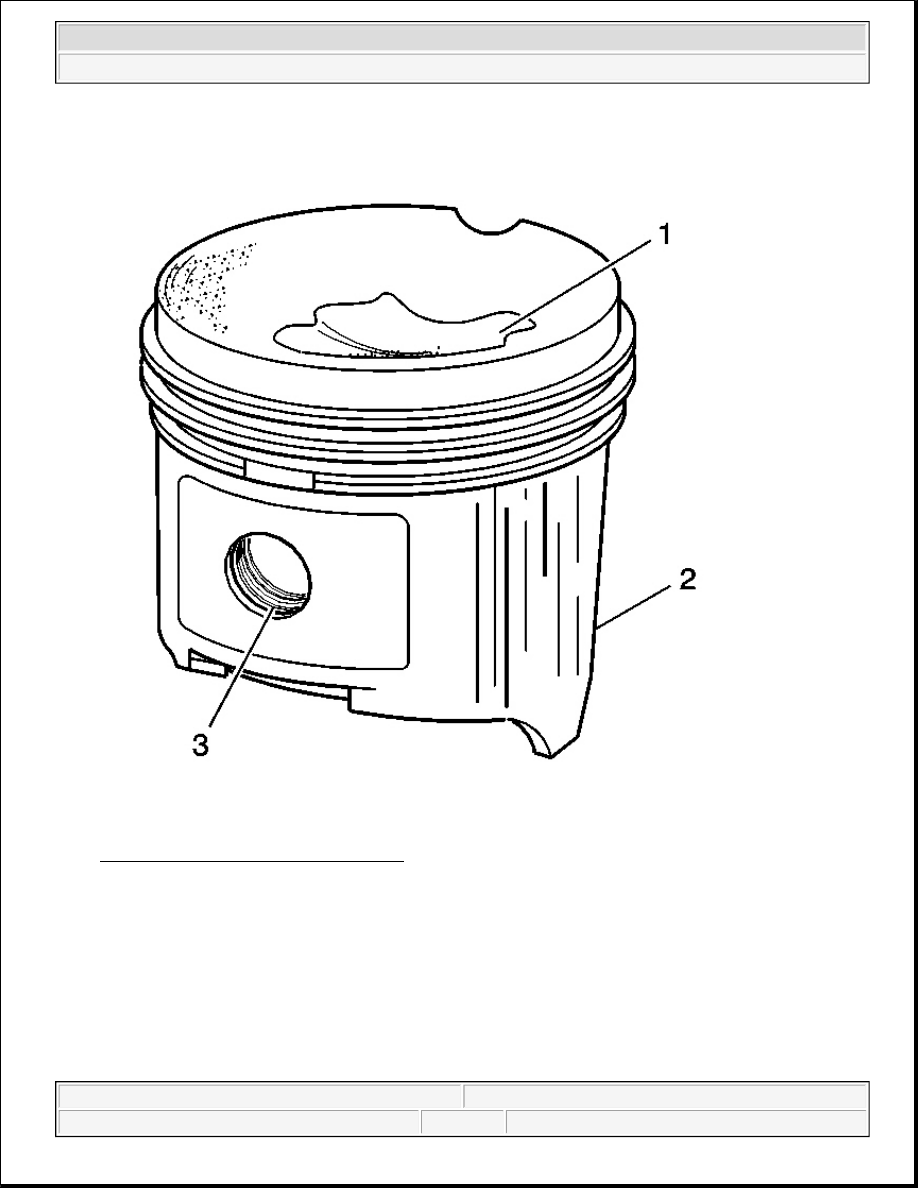

Fig. 416: Inspecting Piston For Damage
Courtesy of GENERAL MOTORS CORP.

5. Inspect the piston for the following conditions:

z

Cracks in the piston ring lands, the piston skirt, or pin bosses

z

Piston ring grooves for nicks, burrs, or warpage which may cause the piston ring to bind

MINOR imperfections may be removed from the piston with a fine file.

z

Scuffed or damaged skirts (2)

z

Eroded areas at the top of the piston (1)
