Worn, grooved, or damaged hub seal surface

A crankshaft balancer hub seal surface with excessive scoring, grooves, rust or other damage must
be replaced.

Minor imperfections on the hub seal surface may be removed with polishing compound or fine
grade emery cloth.

z

Dirty or damaged belt grooves

The balancer belt grooves should be free of any nicks, gouges, or other damage that may not allow
the belt to track properly.

Minor imperfections may be removed with a fine file.

z

Worn, chunking or deteriorated rubber between the hub and pulley

ENGINE FLYWHEEL CLEANING AND INSPECTION

IMPORTANT: In order for the belt to track properly, the belt grooves should be free

of all dirt or debris.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



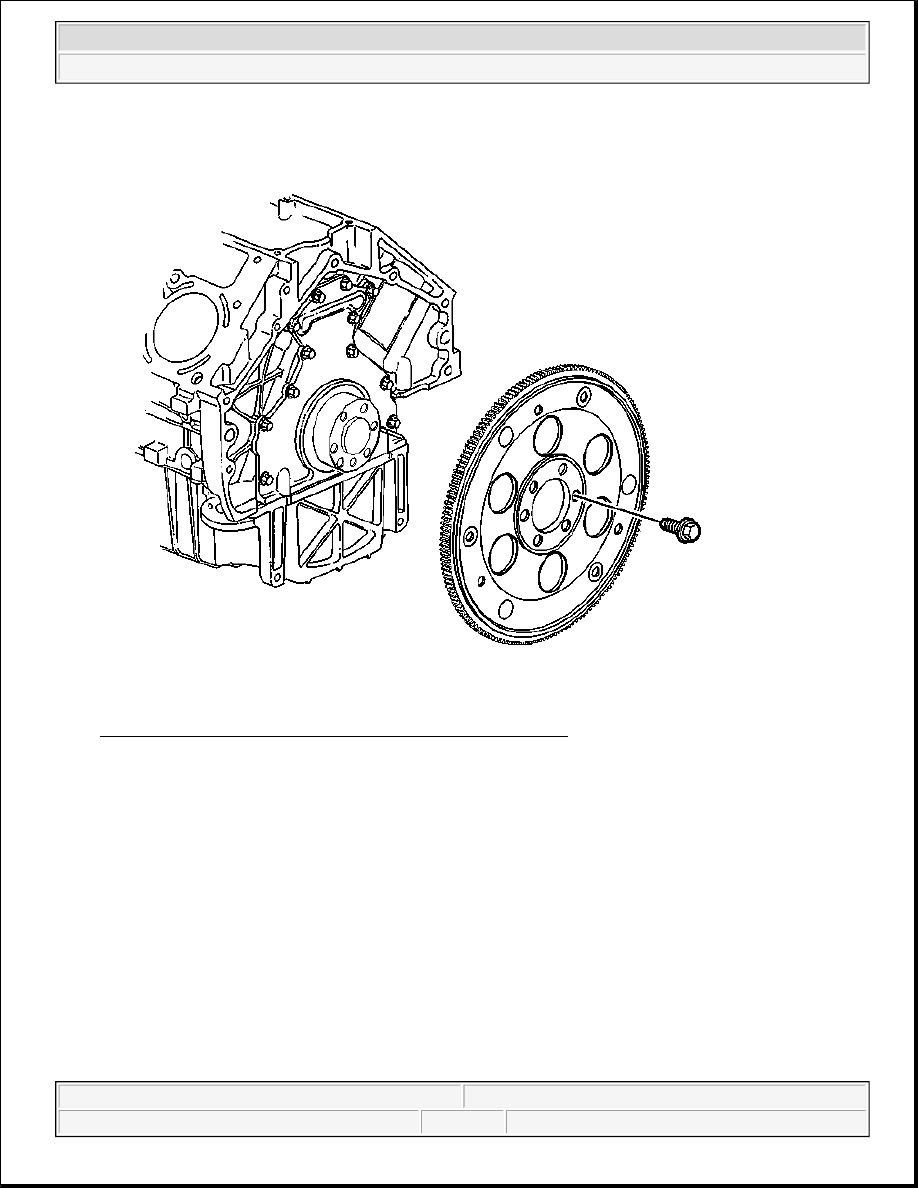

Fig. 403: Engine Flywheel & Bolts (Automatic Transmission)
Courtesy of GENERAL MOTORS CORP.

1. Clean the flywheel in solvent.

2. Dry the flywheel with compressed air.

3. Inspect the automatic transmission flywheel for the following conditions:

z

Damaged ring gear teeth

z

Stress cracks around the flywheel-to-crankshaft bolt hole locations

z

Welded areas that retain the ring gear onto the flywheel for cracking

PISTON AND CONNECTING ROD DISASSEMBLE

IMPORTANT: Do not attempt to repair the welded areas that retain the ring gear to

the flywheel plate. Install a new flywheel.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Press-Fit Piston Pin

Tools Required

J 24086-C Piston Pin Remover/Installer Set. See Special Tools and Equipment .

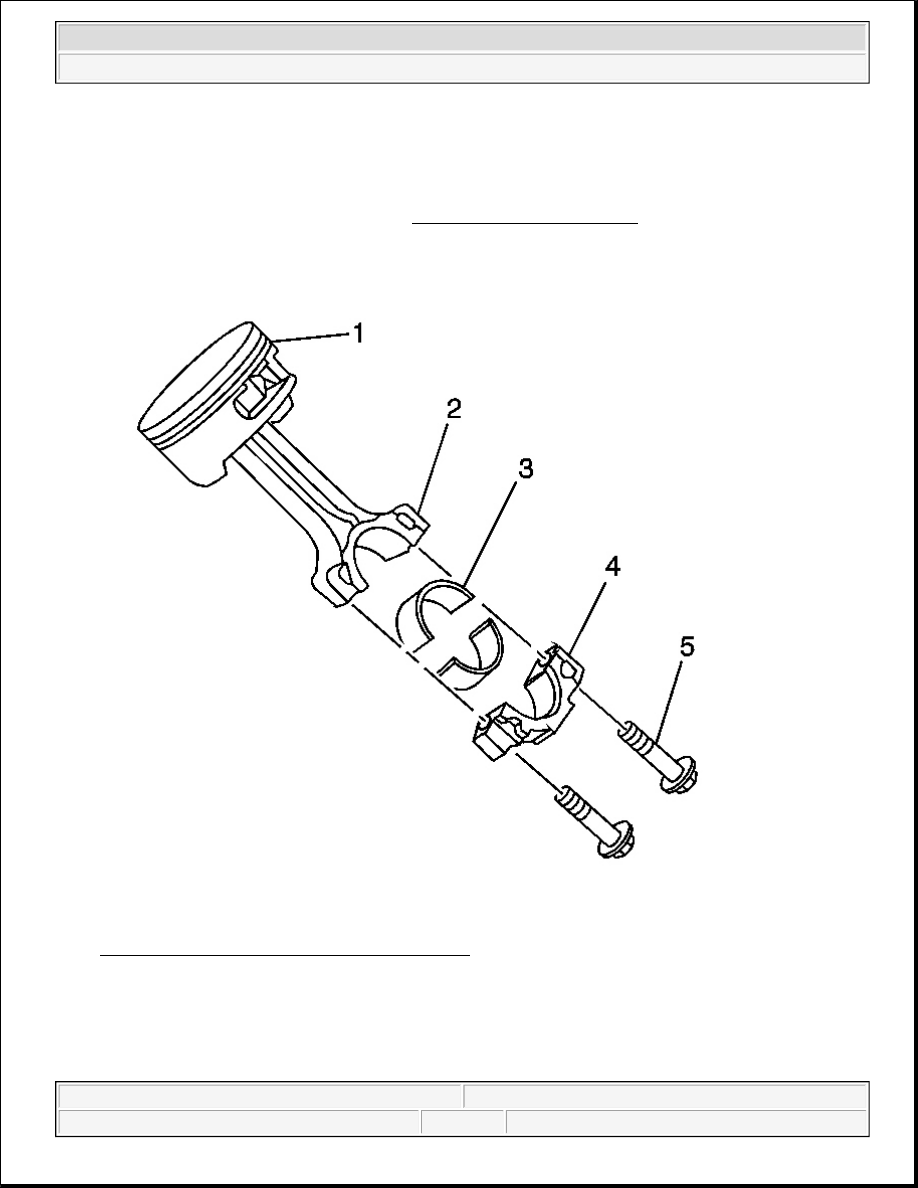

Fig. 404: Piston & Connecting Rod Components
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

Disassembly of the piston, press-fit design piston pin, and
connecting rod may create scoring or damage to the piston pin and
piston pin bore. If the piston, pin, and connecting rod have been



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



1. Remove the connecting rod bearings (3) from the rod (2) and cap (4).

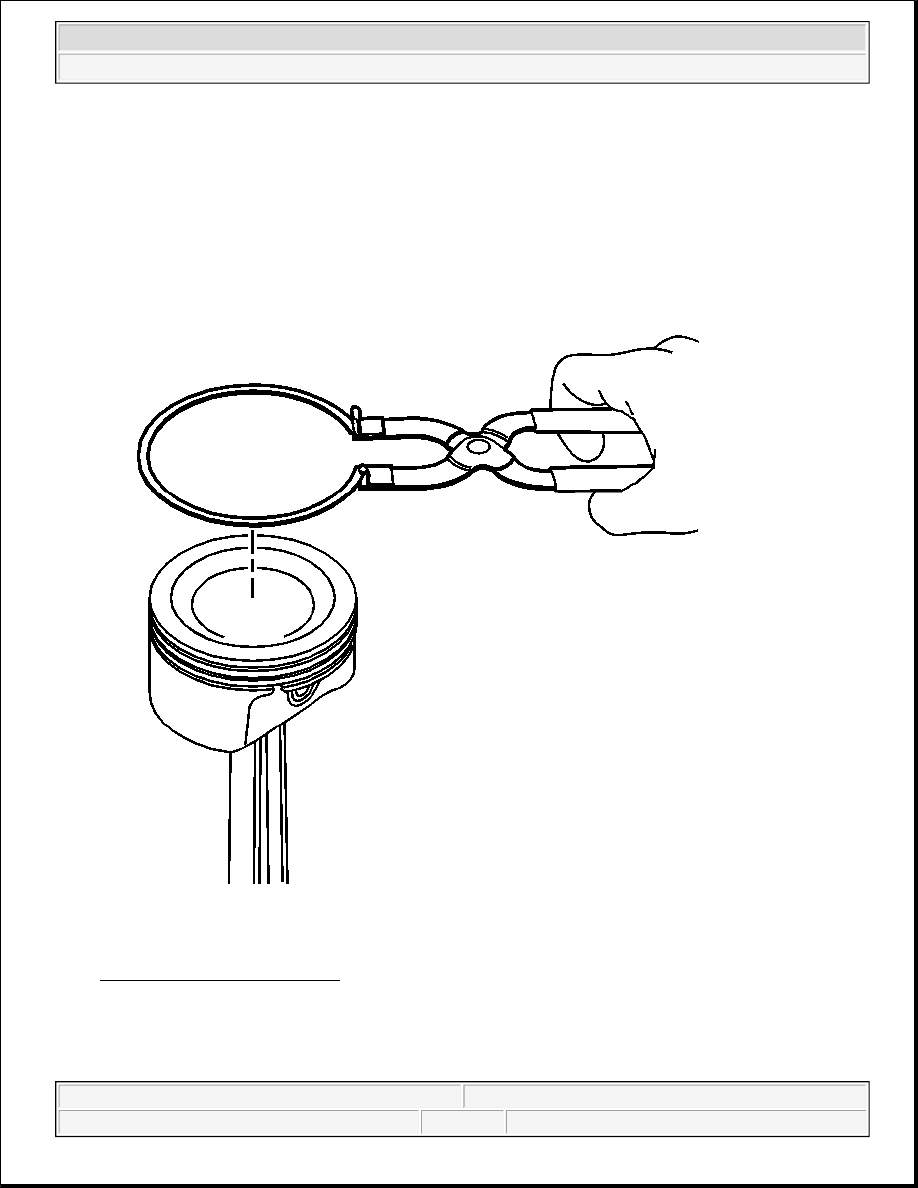

Fig. 405: Piston Rings & Piston
Courtesy of GENERAL MOTORS CORP.

2. Using piston ring pliers, remove the piston rings from the piston.

disassembled, replace the components as an assembly.

z

The disassembly procedure, as shown, is to be used for diagnostic
purposes only.
