Fig. 366: Engine Block Rear Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.

8. Remove the engine block rear oil gallery plug.

9. Inspect the O-ring seal of the rear oil gallery plug.

If the O-ring seal is not cut or damaged, the plug and O-ring seal may be used during assembly.

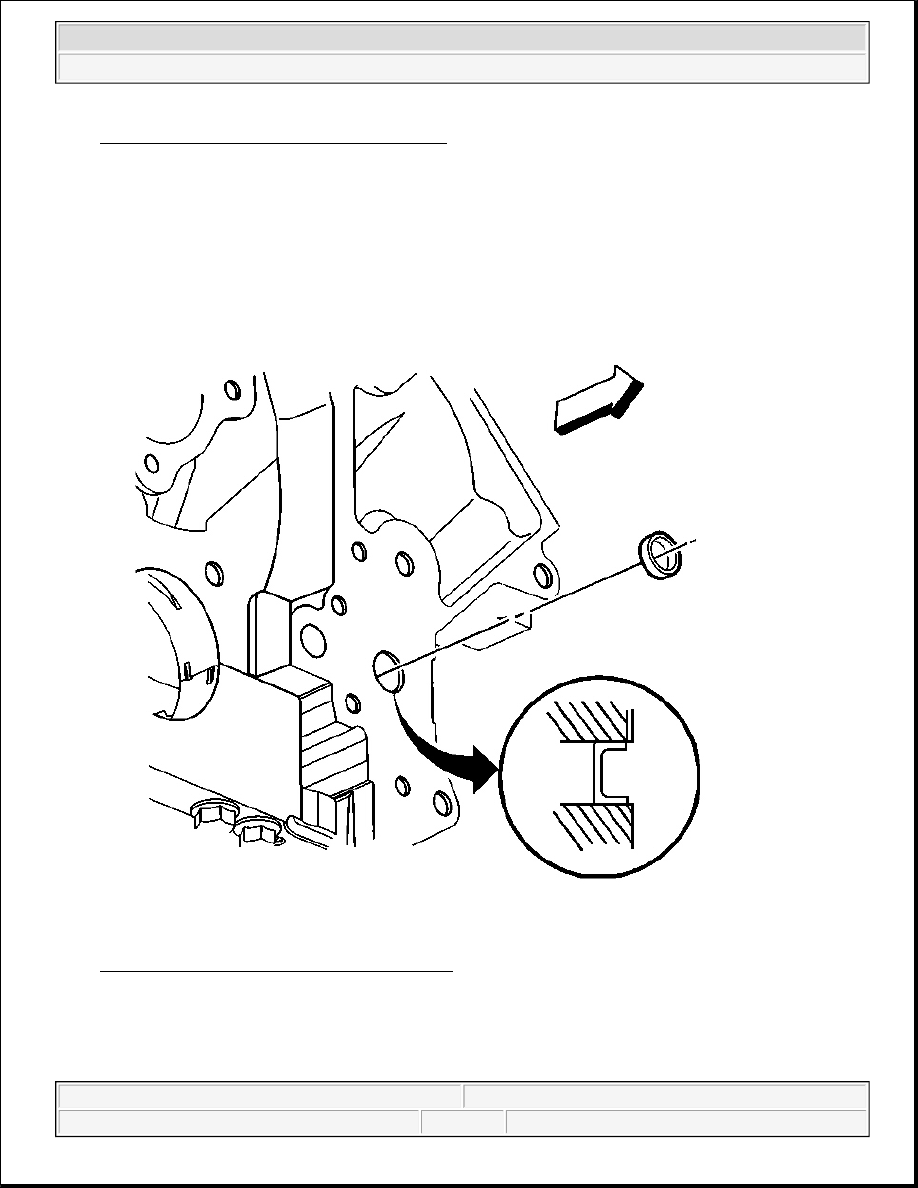

Fig. 367: Engine Block Front Oil Gallery Plug
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

Remove the front oil gallery plug only if service is required.

z

If the front oil gallery plug is removed, a NEW oil gallery plug must



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



10. Remove the engine block front oil gallery plug.

ENGINE BLOCK CLEANING AND INSPECTION

Tools Required

z

J 8087 Cylinder Bore Gauge. See Special Tools and Equipment .

z

J 42385-100 Thread Repair Kit. See Special Tools and Equipment .

1. Clean the following areas:

z

The engine block in the solvent, to remove all sludge, dirt, or debris

Refer to Cleanliness and Care .

z

Dry the block with compressed air.

z

The gasket surfaces

Refer to Replacing Engine Gaskets .

z

The coolant passages

z

The oil galleries

z

The main bearing caps

z

The engine block cylinder head bolt holes for threadlocking material

Thread repair driver tool J 42385-107 may be used to clean the threads of old threadlocking
material.

2. Inspect the following areas:

z

The cylinder walls for excessive scratches, gouging, or ring ridge

z

The cylinder bores for excessive ring ridge at the top of the cylinder

z

The coolant jacket for cracks

be installed.

NOTE:

Do not use a caustic solution to clean the aluminum engine block.

IMPORTANT: When cleaning the engine block in a thermal type oven, do not

exceed 450°F (232°C).

CAUTION: Refer to Safety Glasses Caution in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



z

The valve lifter bores for excessive scoring or wear

z

The crankshaft bearing webs for cracks

z

The gasket sealing surfaces for excessive scratches or gouging

Refer to Replacing Engine Gaskets .

z

The oil galleries for restrictions

z

All threaded bolt holes for damage

3. Measure the following areas:

z

The cylinder bores for taper

z

The cylinder bores for excessive ring ridge at the top of the cylinder

Measuring the Cylinder for Taper, Out-of-Round, and Oversize



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



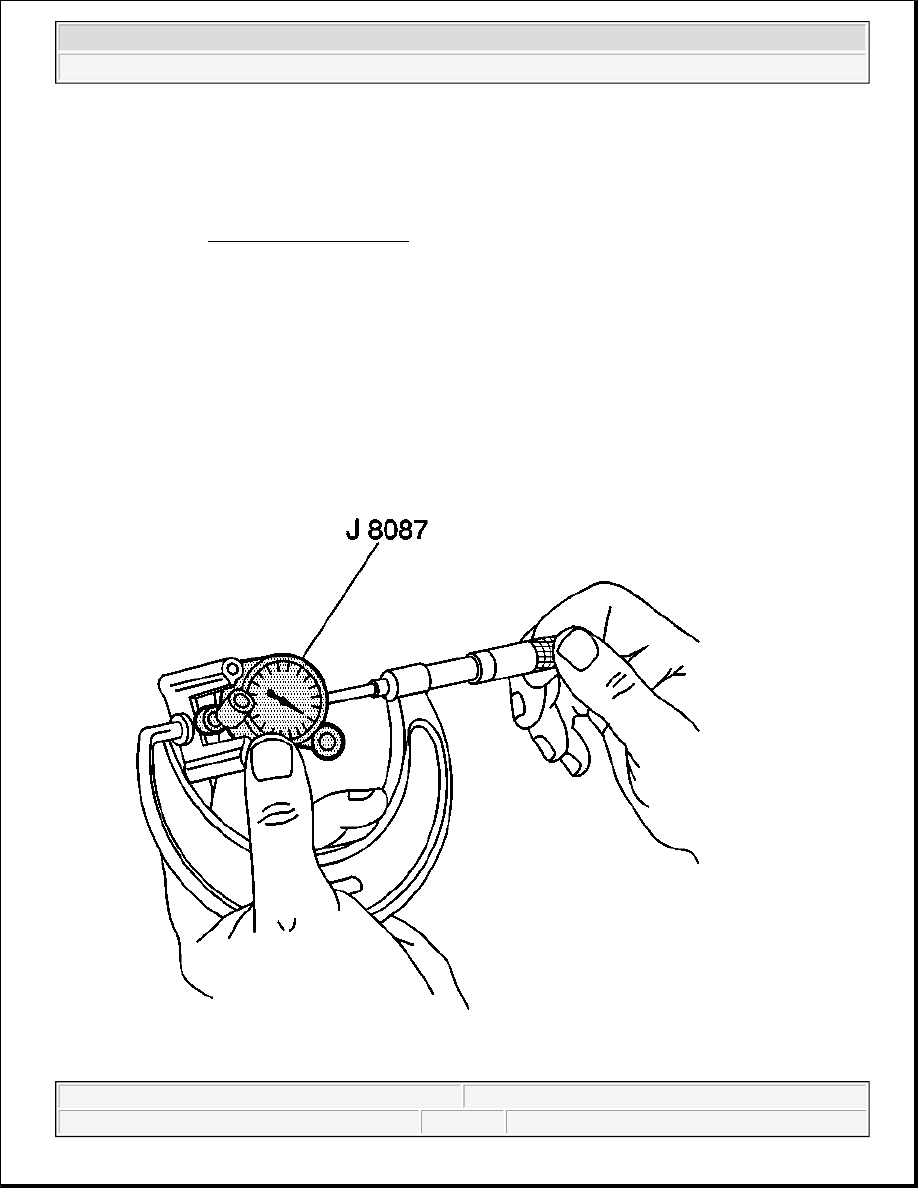

Fig. 368: Measuring J 8087 Dimension
Courtesy of GENERAL MOTORS CORP.

1. Adjust the micrometer to a dimension slightly smaller than the bore size.

Adjust the micrometer to 101.62 mm (4.0 in) for 6.0 liter engines.

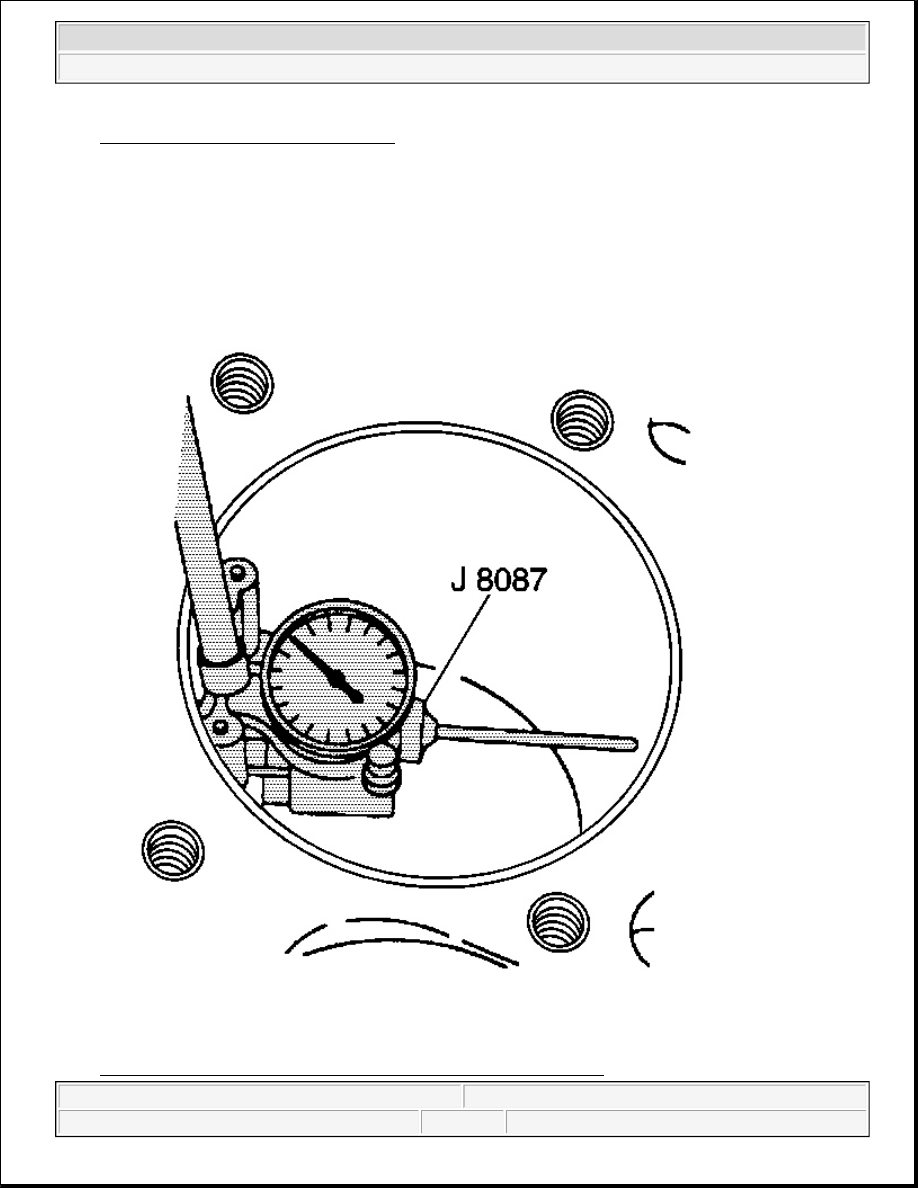

Fig. 369: Determining Cylinder Bore Out-Of-Round Using J 8087
