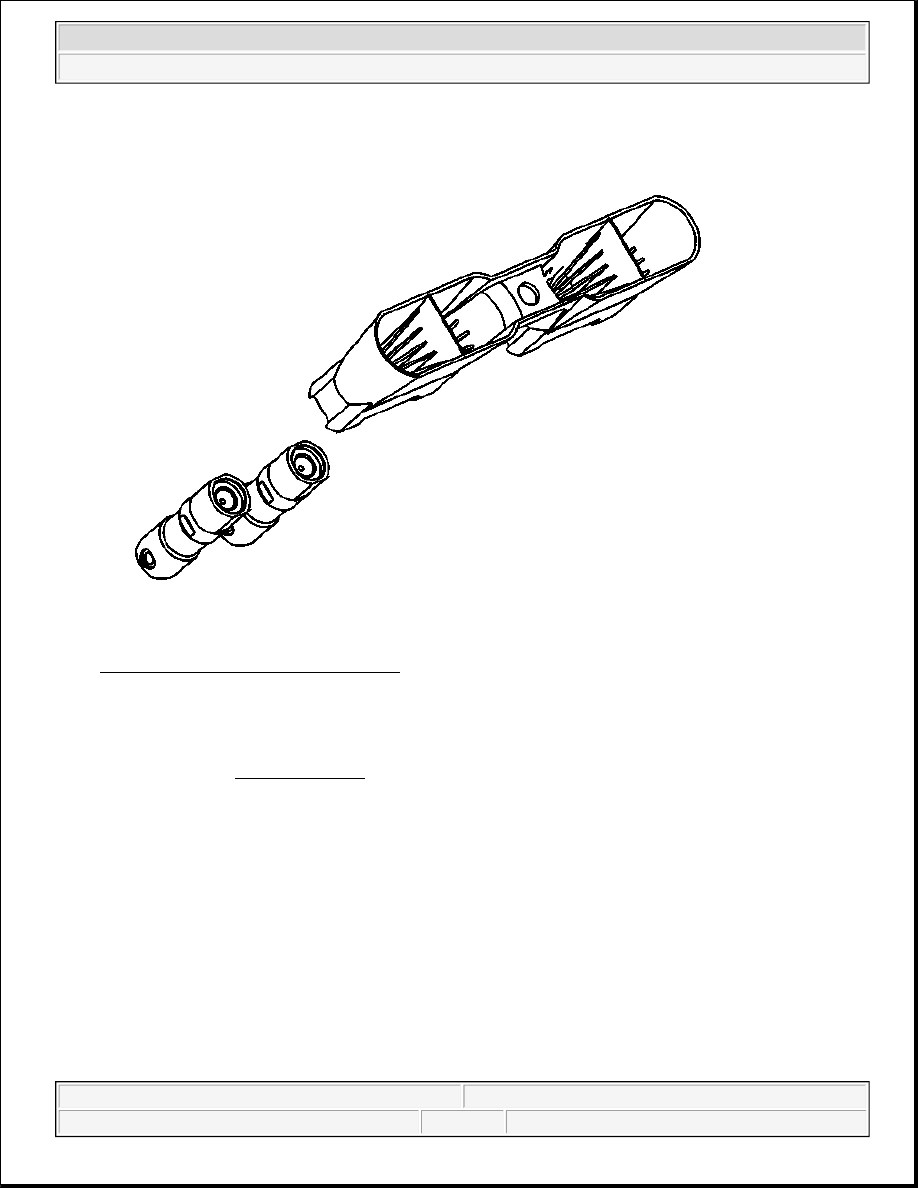

Fig. 324: Valve Lifters & Lifter Guides
Courtesy of GENERAL MOTORS CORP.

4. Remove the valve lifters from the guide.

5. Organize or mark the components so that they can be installed in the same location from which they were

removed. Refer to Separating Parts .

OIL FILTER, ADAPTER AND PAN COVER REMOVAL



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



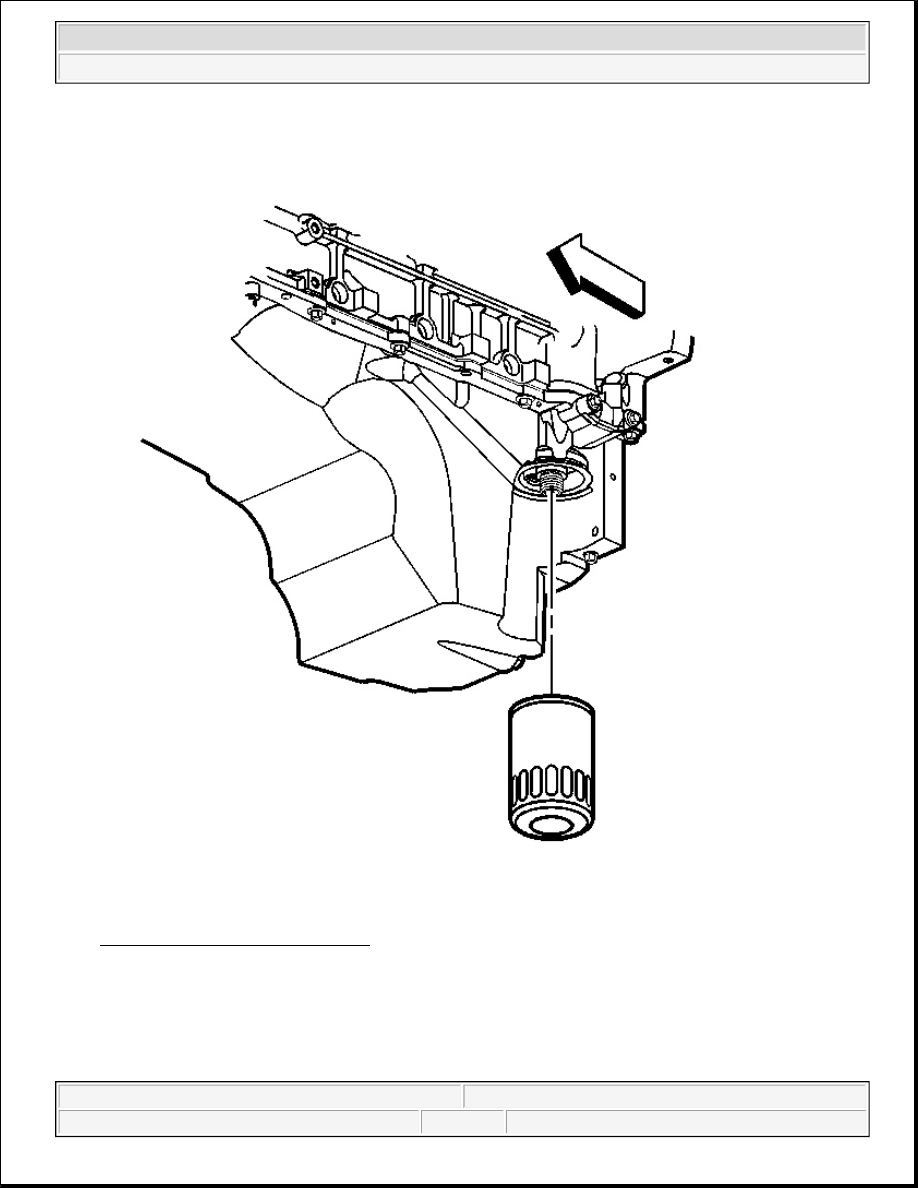

Fig. 325: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.

1. Remove the oil filter.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 326: Oil Pan Cover, Bolts & Gasket
Courtesy of GENERAL MOTORS CORP.

2. Remove the oil pan cover (434), bolts (435), and gasket (433).

3. Discard the gasket.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

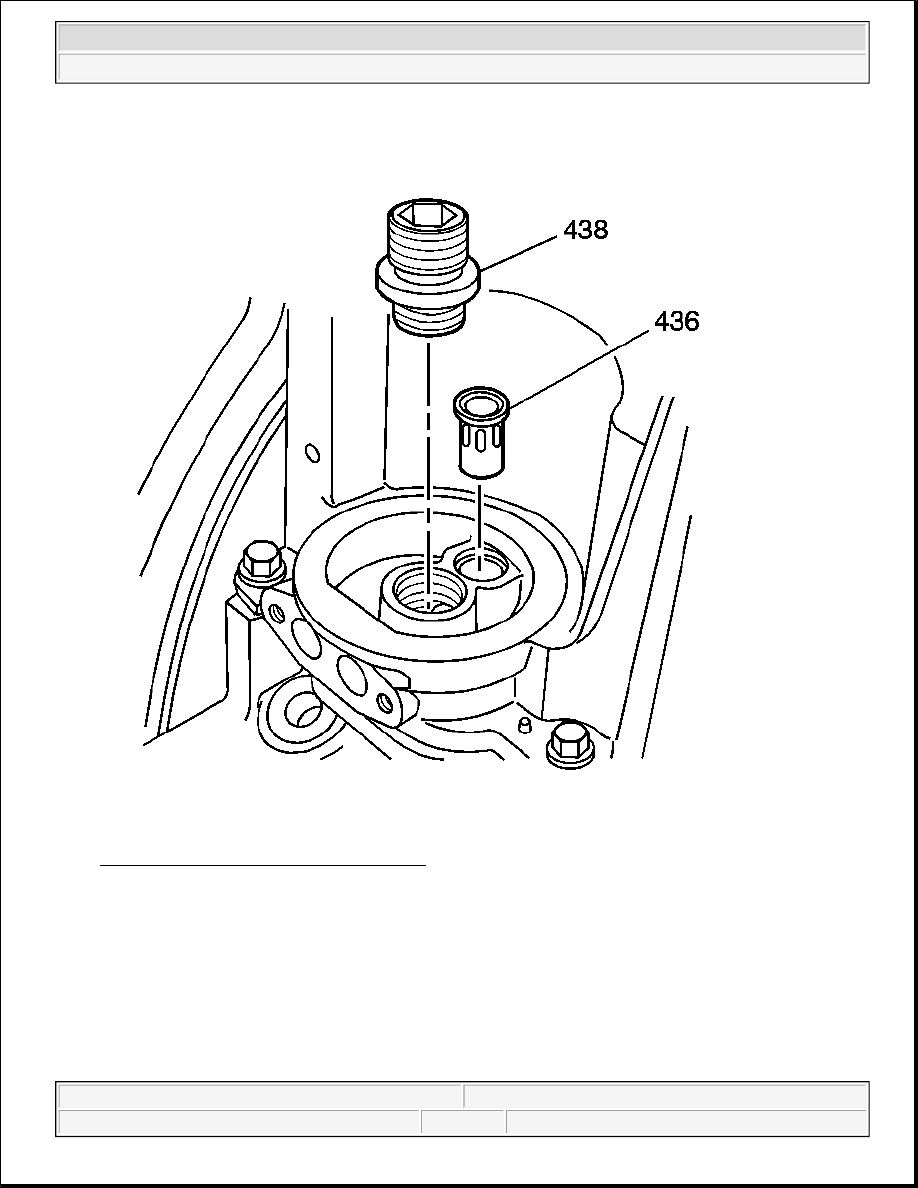

Fig. 327: Oil Filter Fitting & Bypass Valve
Courtesy of GENERAL MOTORS CORP.

4. Remove the oil filter fitting (438) and bypass valve (436), if required.
