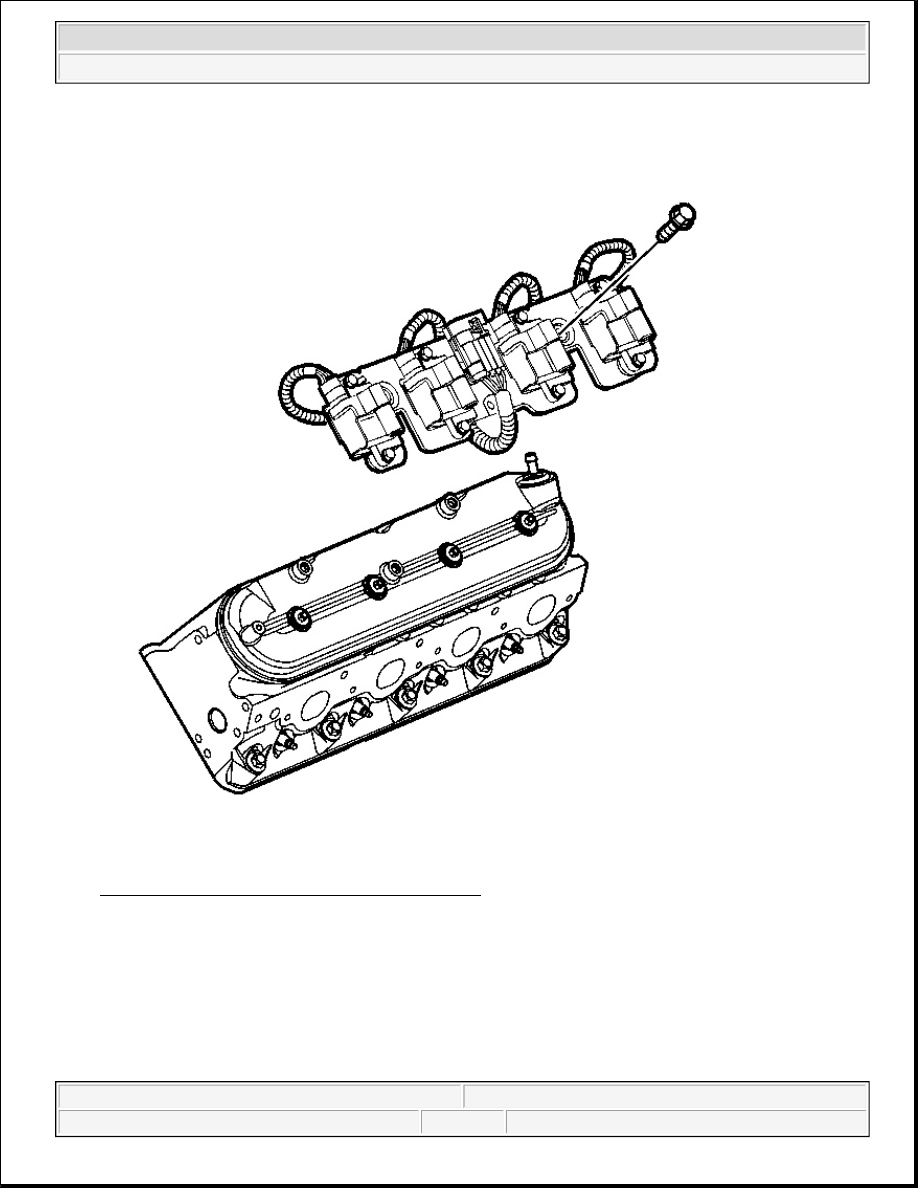

Fig. 308: Ignition Coil & Bracket Assembly (Left)
Courtesy of GENERAL MOTORS CORP.

1. Remove the ignition coil bracket bolts from the rocker arm cover, if required.

2. Remove the ignition coil and bracket assembly from the cover.

IMPORTANT: Do not remove the ignition coils and bracket from the valve rocker arm

cover unless required.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

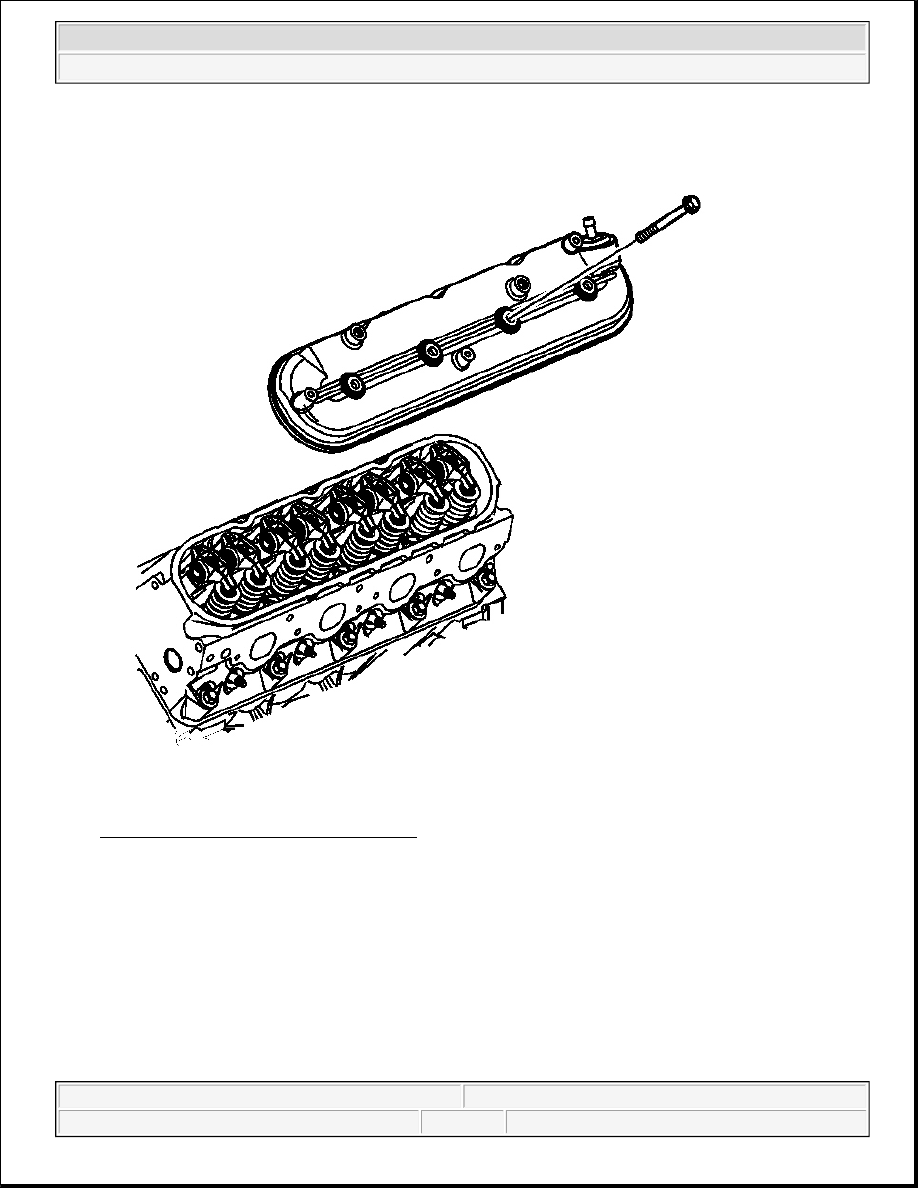

Fig. 309: Valve Rocker Arm Cover (Left)
Courtesy of GENERAL MOTORS CORP.

3. Remove the valve rocker arm cover bolts.

4. Remove the valve rocker arm cover.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

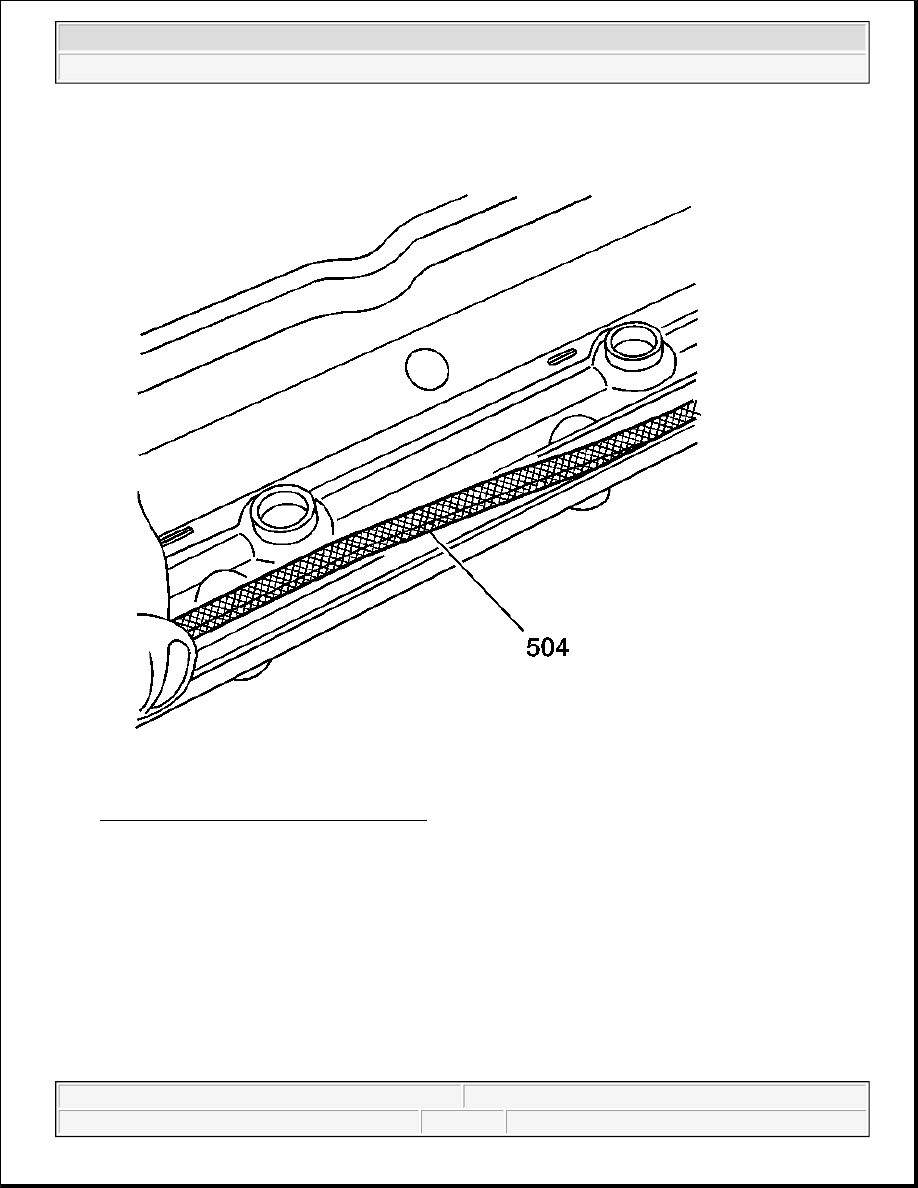

Fig. 310: Valve Rocker Arm Cover Gasket
Courtesy of GENERAL MOTORS CORP.

5. Remove the gasket (504) from the left cover.

6. Discard the gasket.

The bolt grommets may be used again if they are not damaged.

VALVE ROCKER ARM COVER REMOVAL - RIGHT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

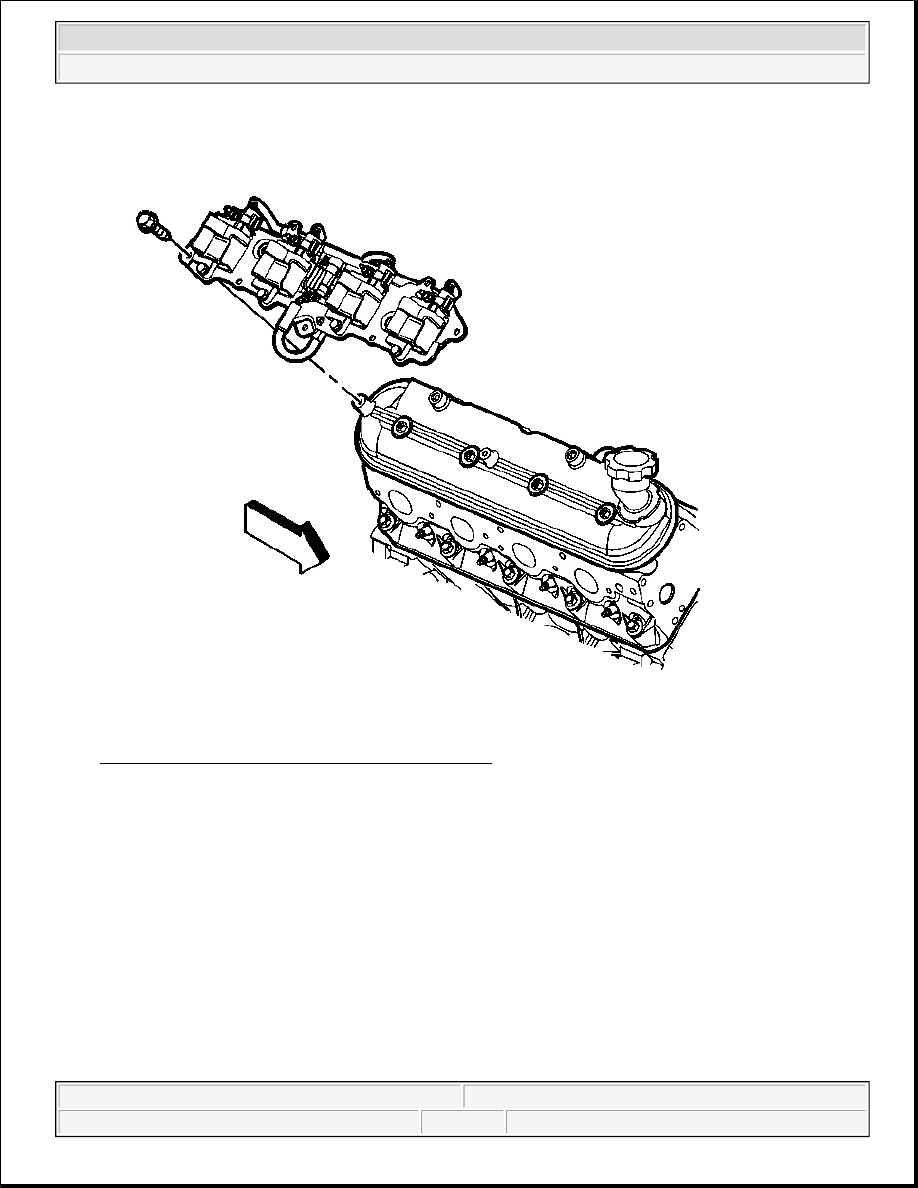

Fig. 311: Ignition Coil & Bracket Assembly (Right)
Courtesy of GENERAL MOTORS CORP.

1. Remove the ignition coil bracket bolts from the rocker arm cover, if required.

2. Remove the ignition coil and bracket assembly from the cover.

IMPORTANT:

z

Do not remove the ignition coils from the valve rocker arm cover
unless required.

z

Do not remove the oil fill tube from the cover unless service is
required.

z

If the oil fill tube has been removed from the cover, install a NEW
tube during assembly.
