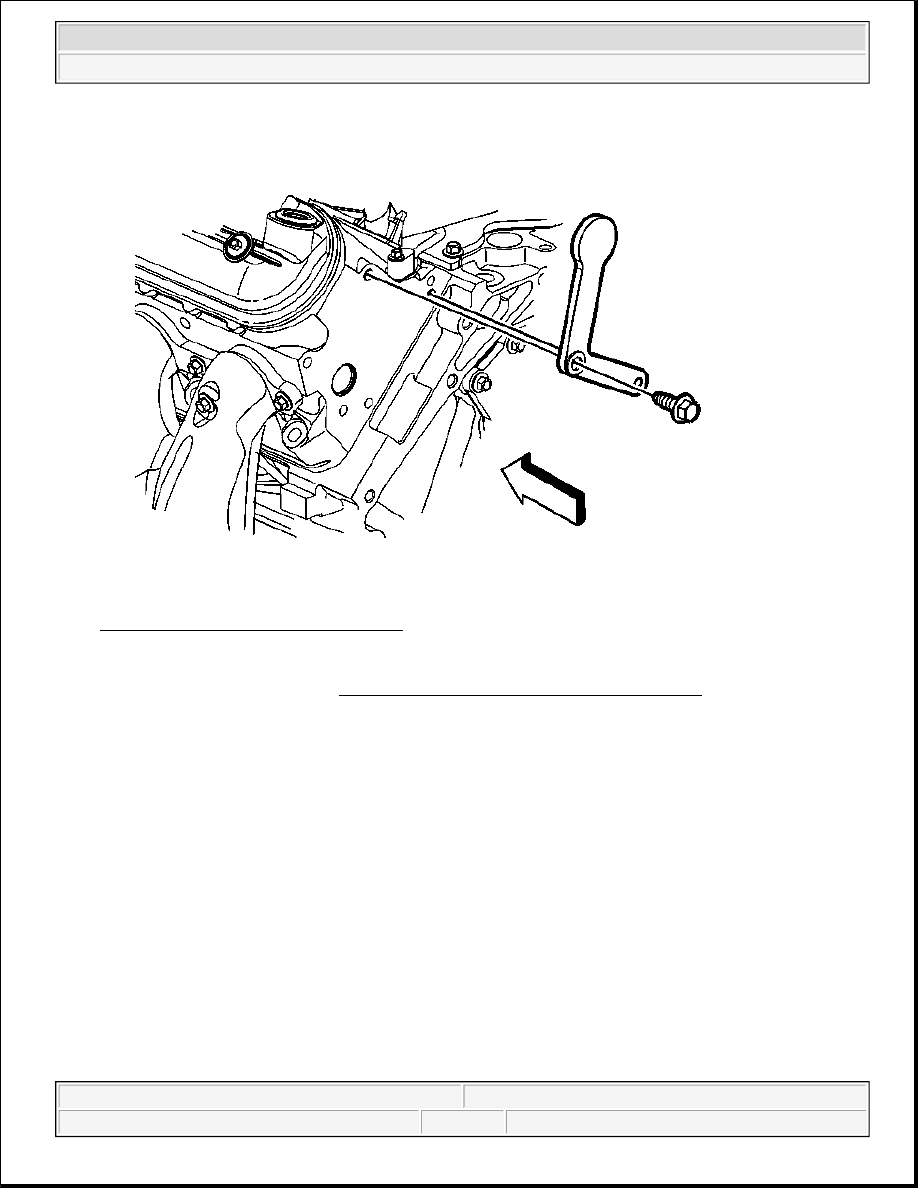

Fig. 293: Fuel Rail Stop Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Remove the fuel rail stop bracket and bolt, if required.

2. Loosen the crossover tube-to-right fuel rail retaining bolt.

CAUTION: Refer to Fuel Rail Stop Bracket Installation Caution in Cautions and

Notices.

NOTE:

z

Remove the fuel rail assembly carefully in order to prevent damage
to the injector electrical connector terminals and the injector spray
tips. Support the fuel rail after the fuel rail is removed in order to
avoid damaging the fuel rail components.

z

Cap the fittings and plug the holes when servicing the fuel system in
order to prevent dirt and other contaminants from entering open
pipes and passages.

IMPORTANT: The intake manifold, throttle body, fuel injection rail and fuel injectors

may be removed as an assembly. If not servicing the individual
components, remove the intake manifold as a complete assembly.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



3. Remove the fuel rail bolts.

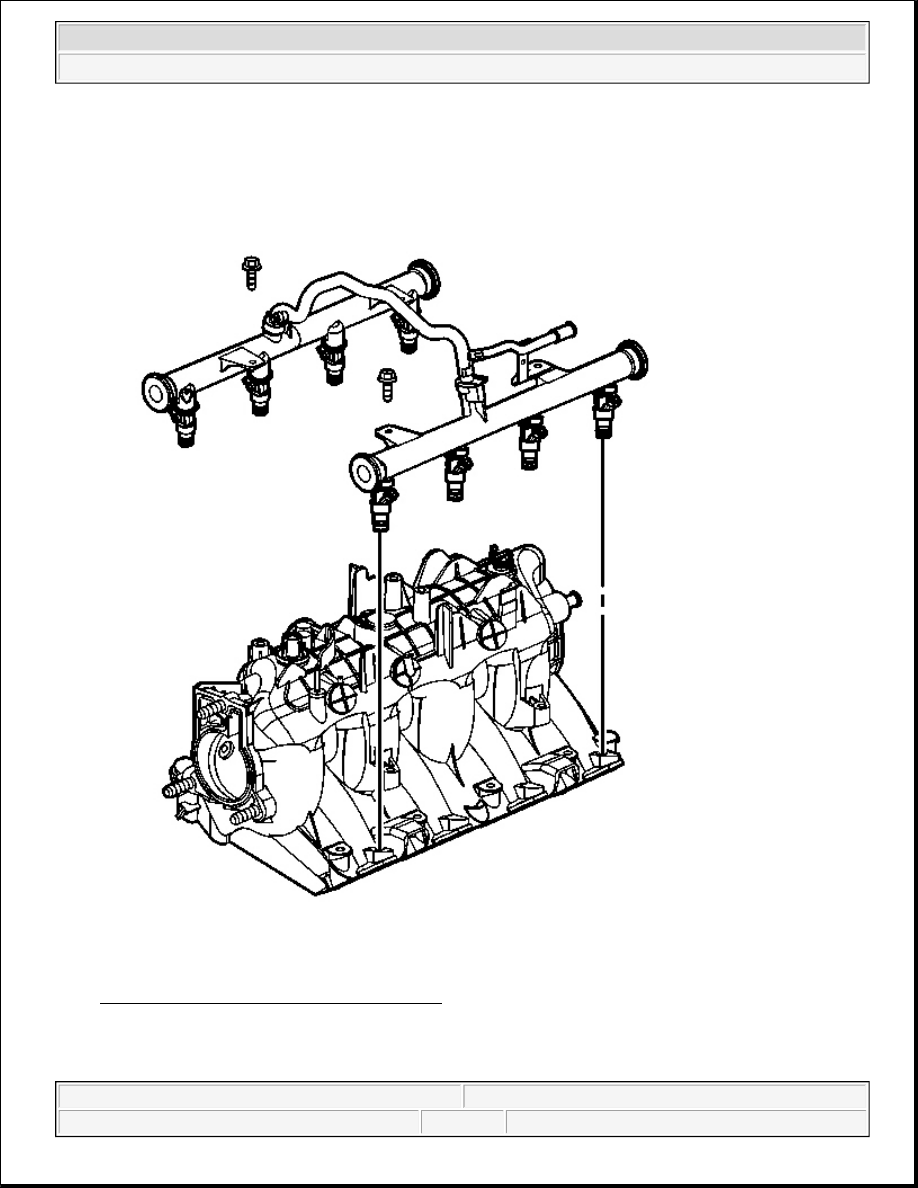

Fig. 294: Removing Fuel Rail With Injectors
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

Do not separate the fuel injectors from the fuel rail unless



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



4. Remove the fuel rail, with injectors, lifting evenly from both sides of the fuel rail until all the injectors

have left their bores.

INTAKE MANIFOLD REMOVAL

component service is required.

z

Use cleanliness and care when handling the fuel system
components.

z

Do not allow dirt or debris to enter the fuel injectors or fuel rail
components. Cap ends as necessary.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



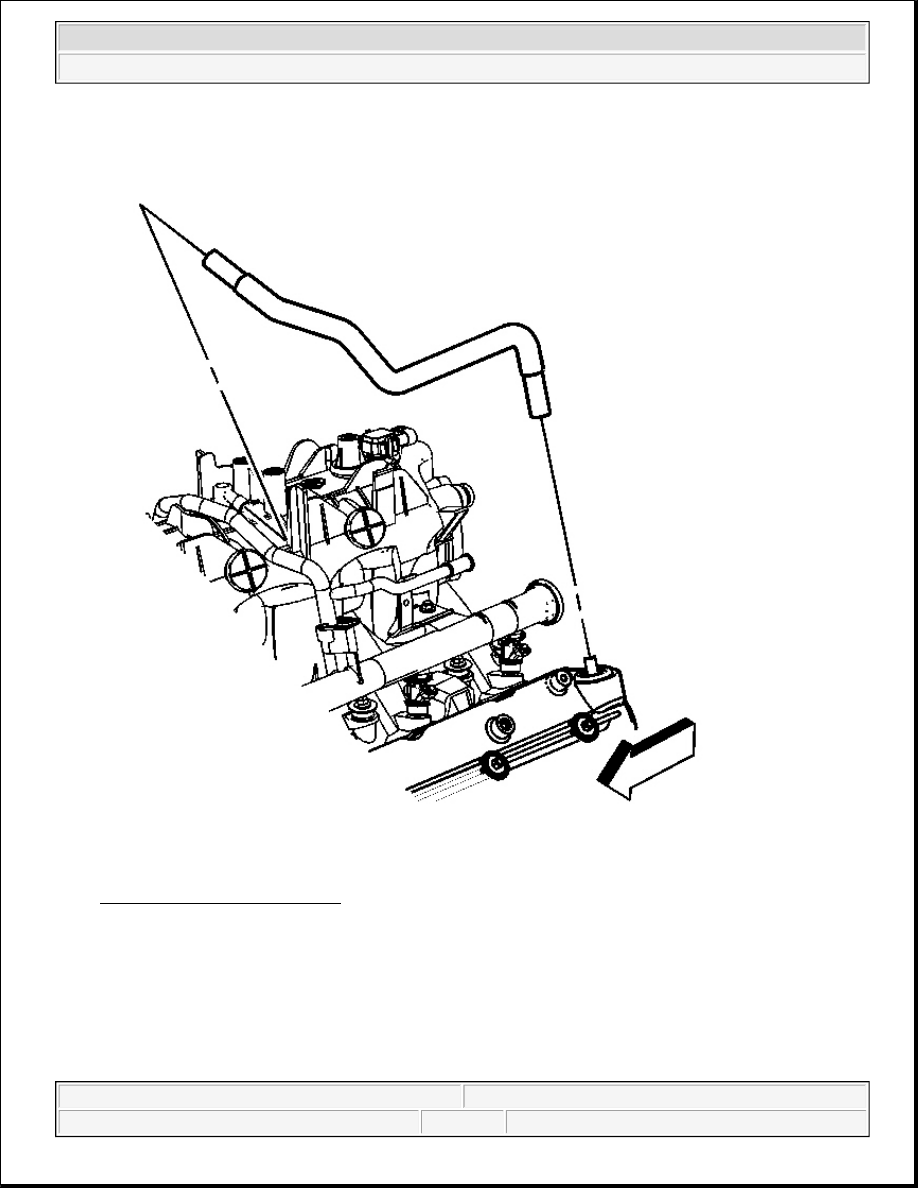

Fig. 295: Identifying PCV Hose
Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

z

The intake manifold, throttle body, fuel injection rail, and fuel
injectors may be removed as an assembly. If not servicing the
individual components, remove the manifold as a complete
assembly.

z

DO NOT use the intake manifold-to-cylinder head gaskets again.
