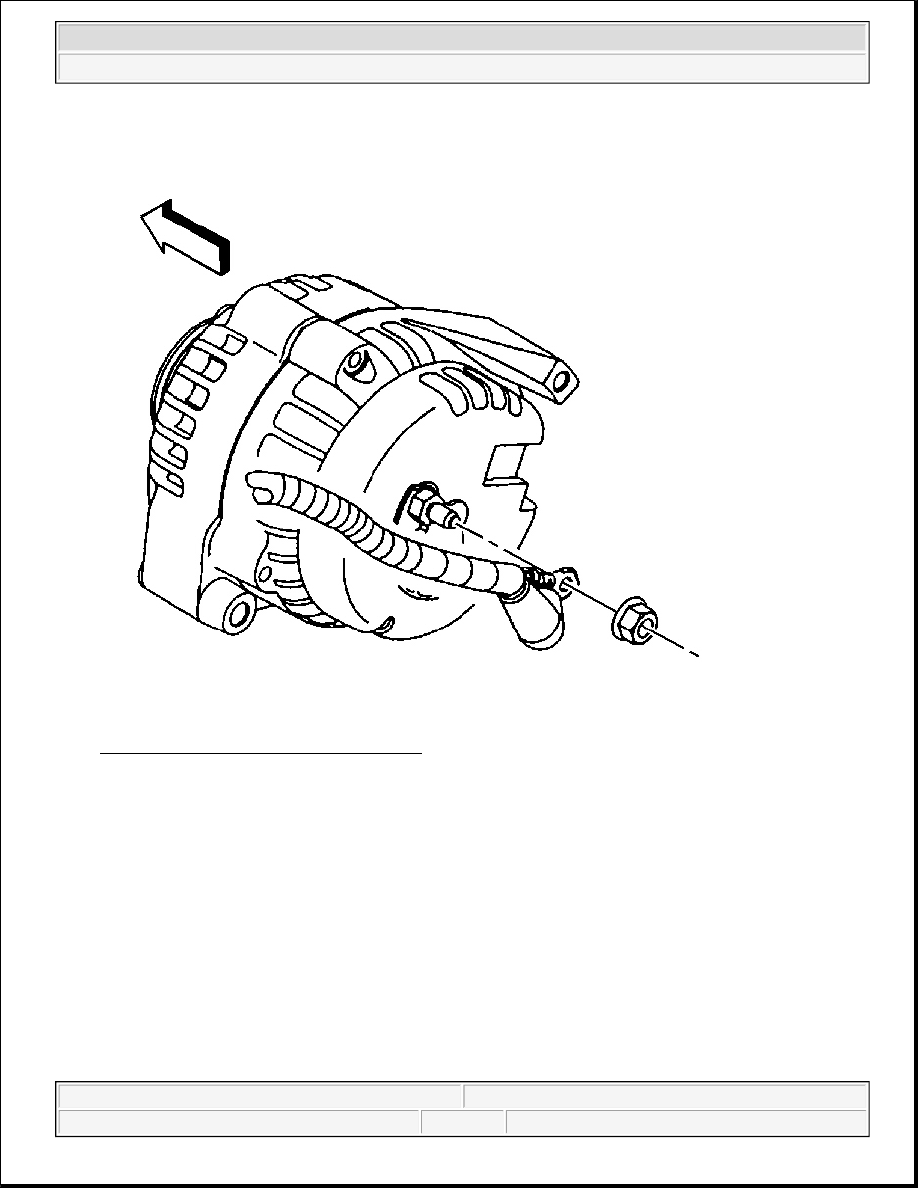

Fig. 263: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

52. Install the generator cable to the generator, perform the following:

1. Install the generator cable.

2. Install the generator cable nut to the terminal stud.

Tighten: Tighten the generator output terminal nut to 9 N.m (80 lb in).

3. Slide the boot over the terminal stud.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



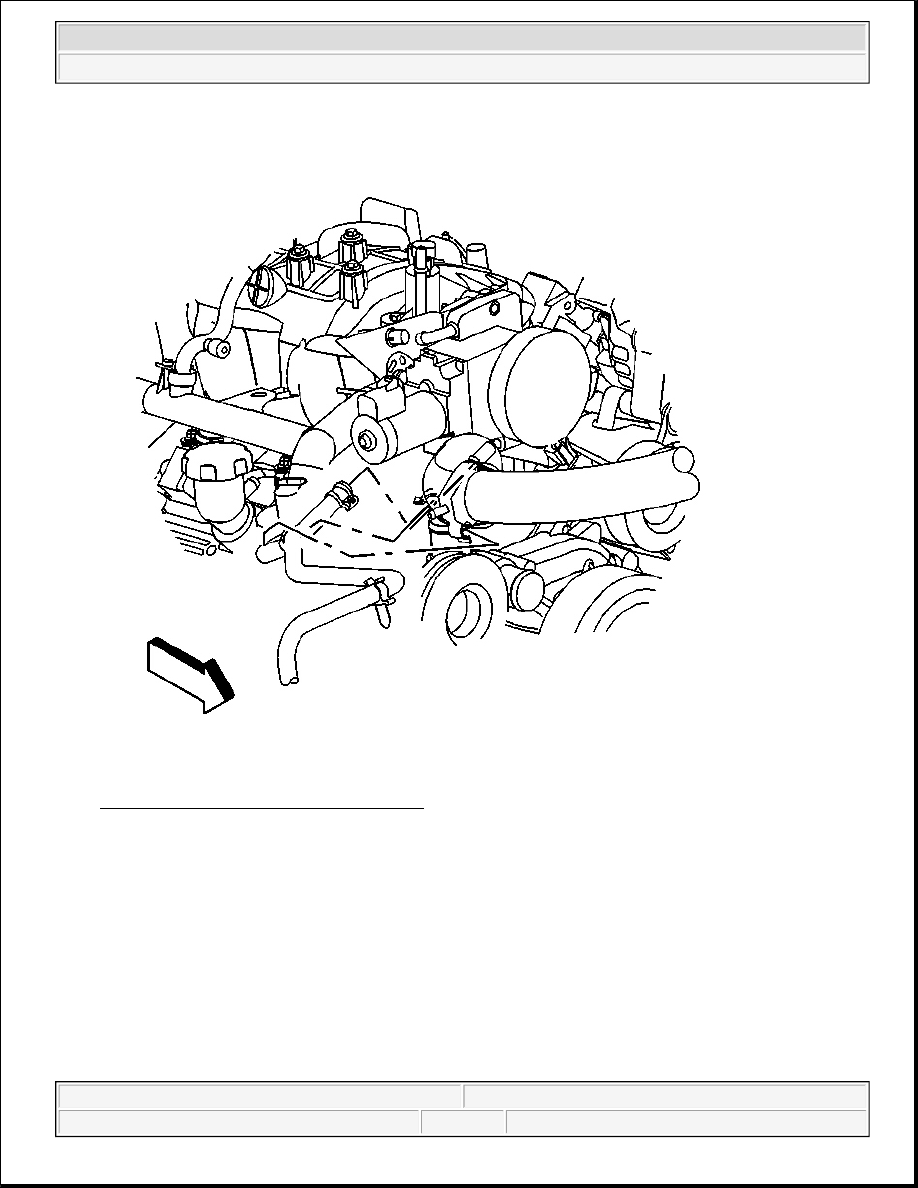

Fig. 264: Vent Inlet Hose & Throttle Body
Courtesy of GENERAL MOTORS CORP.

53. Install the radiator vent inlet hose to the throttle body.

54. Position the vent inlet hose clamp at the throttle body.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



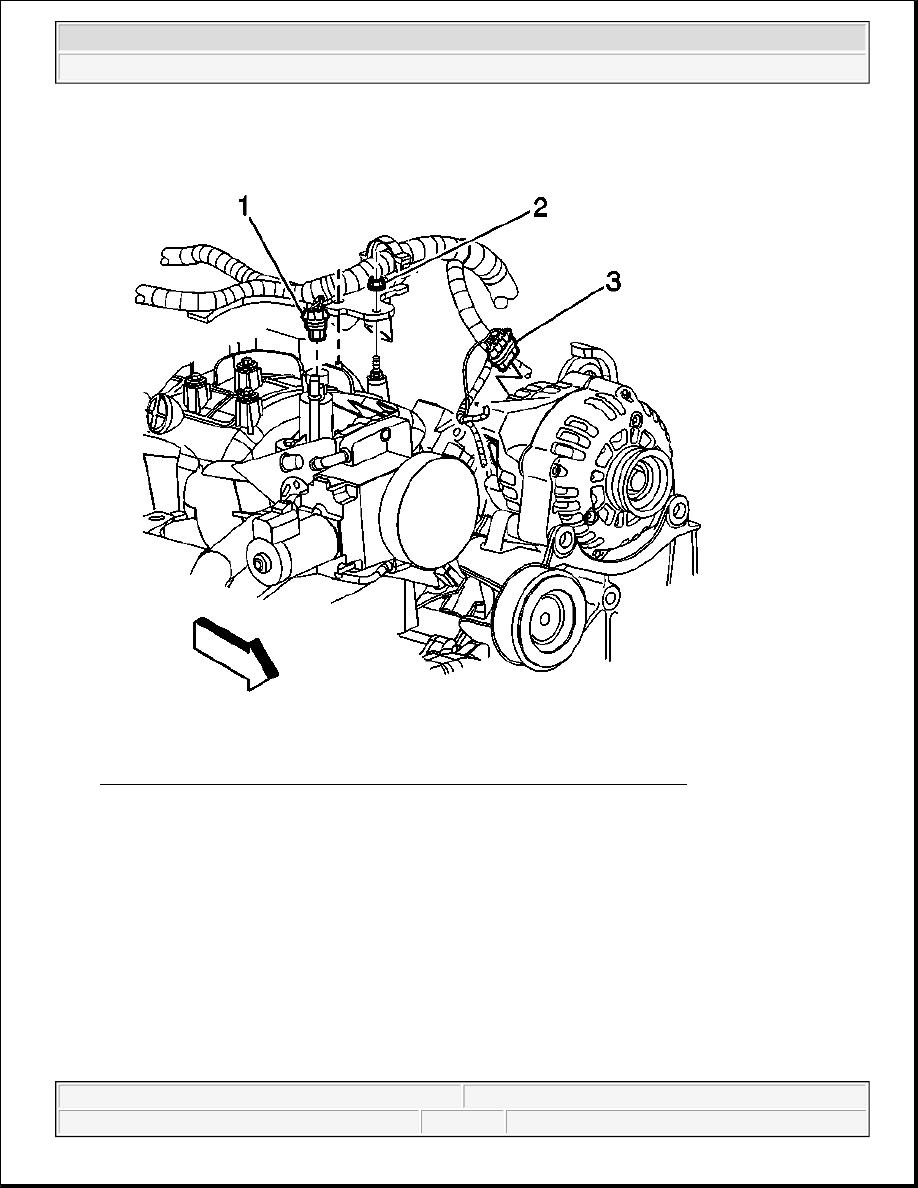

Fig. 265: EVAP Canister Purge Solenoid & Generator Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

55. Install the engine wiring harness bracket and nut (2).

Tighten: Tighten the engine wiring harness bracket nut to 5 N.m (44 lb in).

56. Connect the following electrical connectors:

z

EVAP canister purge solenoid (1)

z

Generator (3)

57. Install the engine sight shield retainer and bolts.

Tighten: Tighten the engine sight shield retainer bolts to 5 N.m (44 lb in).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



58. Install the left fuel rail cover.

59. If equipped with the 6.0L with RPO LQ4, install the engine sight shield to the retainer.

60. Tighten the engine sight shield bolt.

Tighten: Tighten the bolt to 9 N.m (80 lb in).

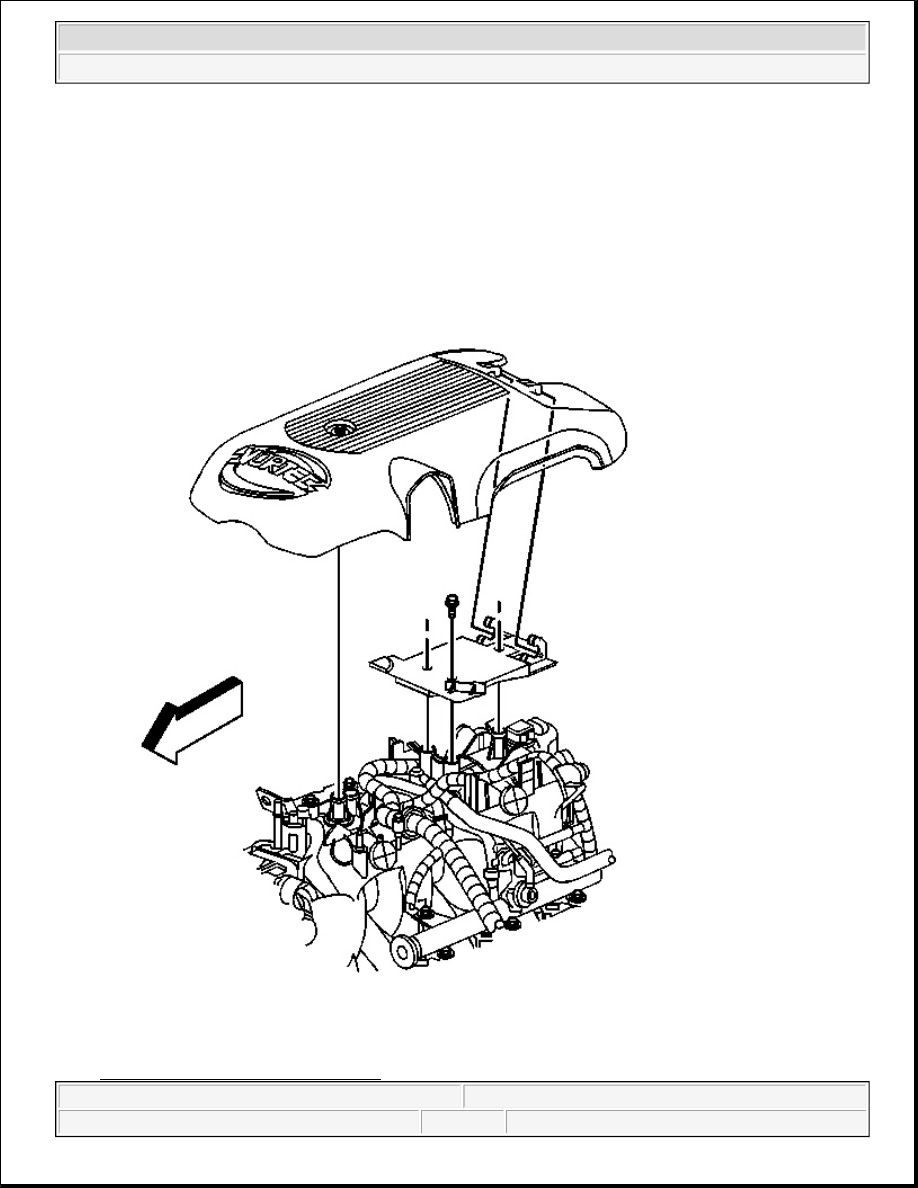

Fig. 266: View Of Top Engine Cover
