Fig. 248: Automatic Transmission Oil Level Indicator Tube (Without RPO HP2)
Courtesy of GENERAL MOTORS CORP.

17. Install the automatic transmission oil level indicator tube.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



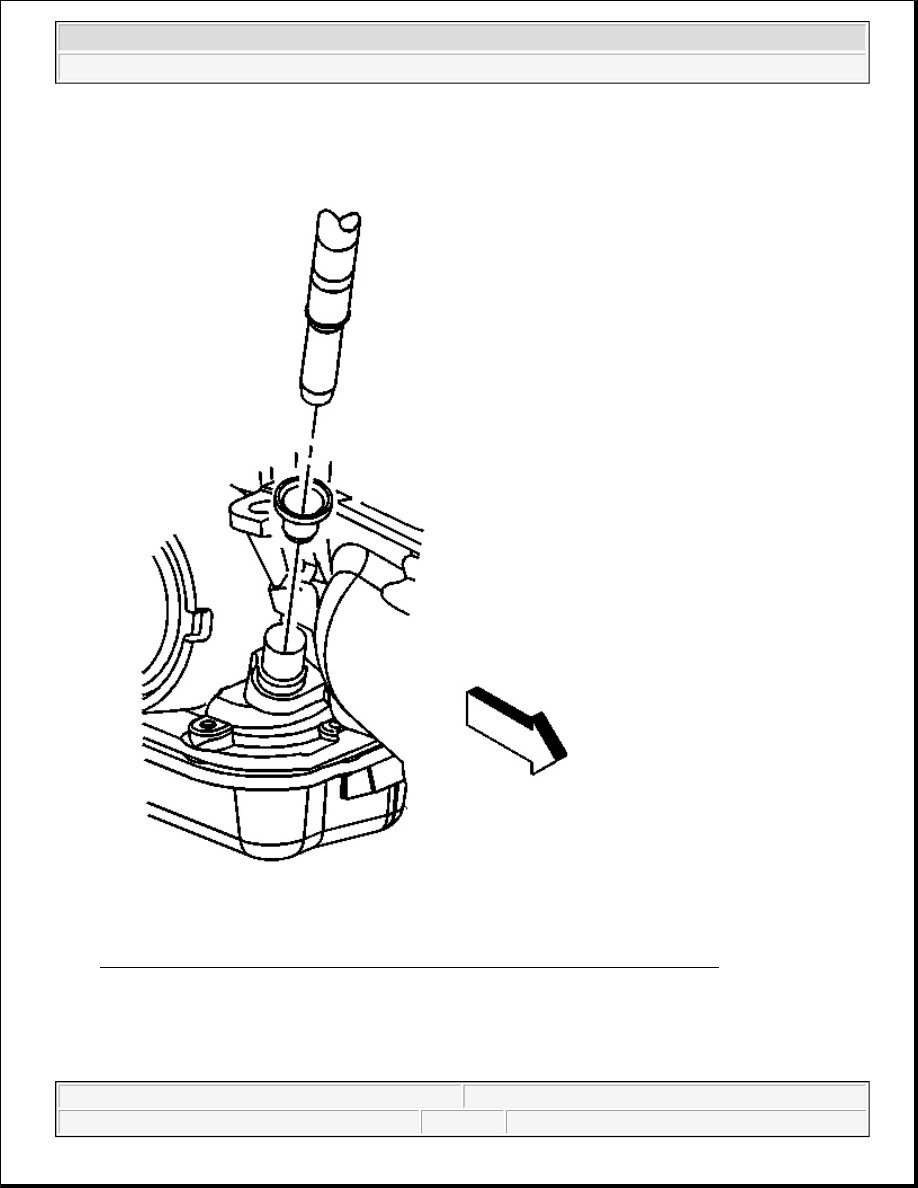

Fig. 249: Automatic Transmission Oil Indicator Tube Nut
Courtesy of GENERAL MOTORS CORP.

18. Install the automatic transmission oil level indicator tube nut.

Tighten: Tighten the automatic transmission oil level indicator tube nut to 18 N.m (13 lb ft).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



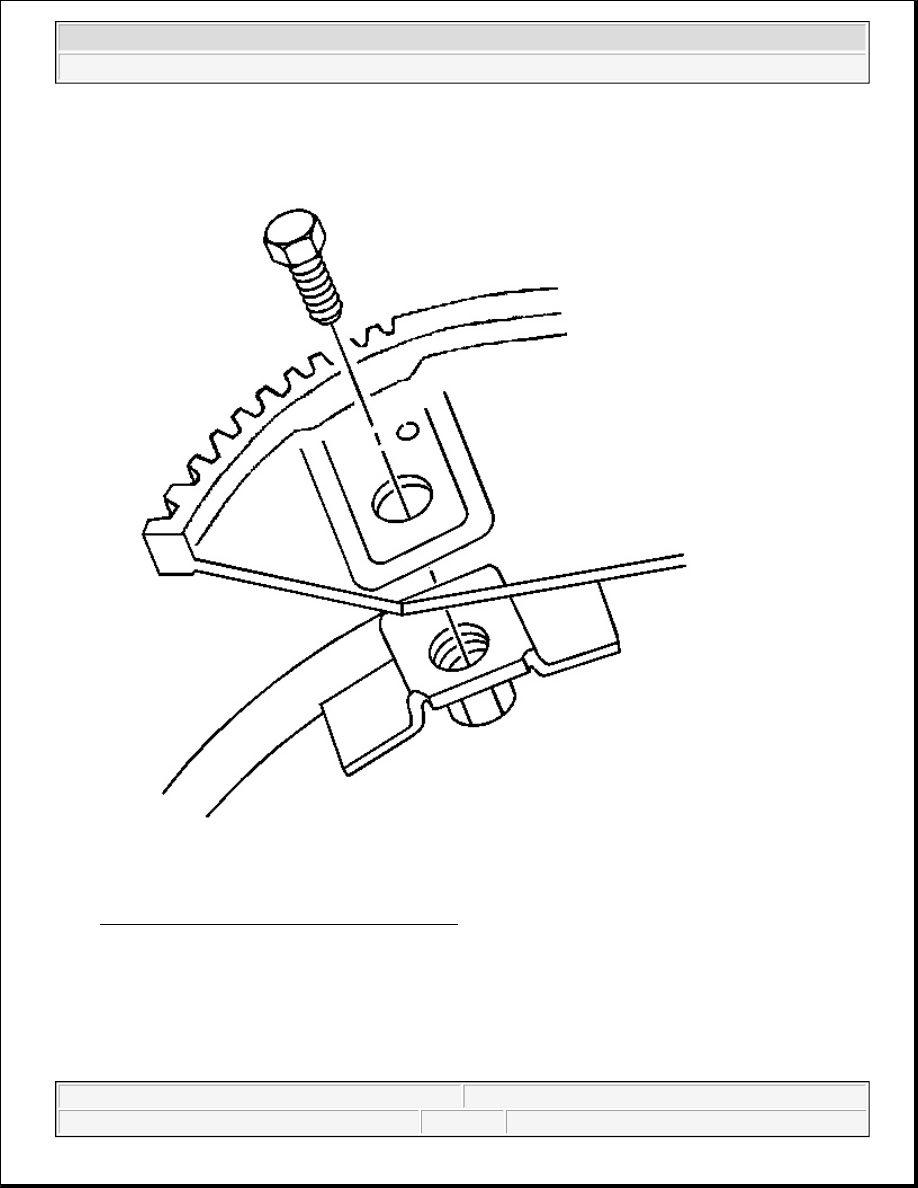

Fig. 250: Flywheel-To-Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.

19. Install the flywheel to torque converter bolts.

Tighten: If equipped with a 4L60E transmission, tighten the bolts to 63 N.m (47 lb ft).

20. Install exhaust pipes to the exhaust manifolds.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



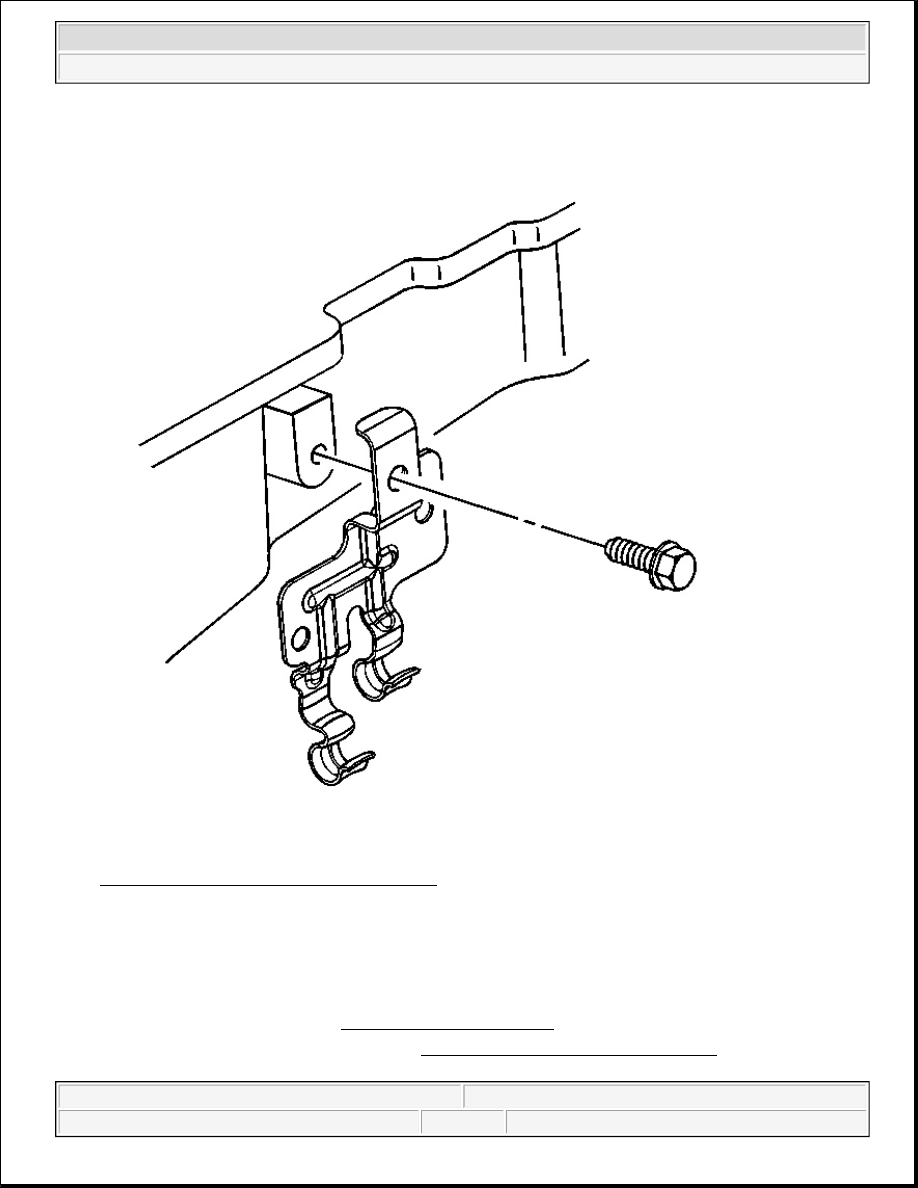

Fig. 251: Positive Battery Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.

21. Install the positive battery cable clip and bolt.

Tighten: Tighten the positive battery cable clip bolt to 9 N.m (80 lb in).

22. Install the starter motor. Refer to Starter Motor Replacement in Engine Electrical.

23. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.
