Hummer H2. Manual - part 1500

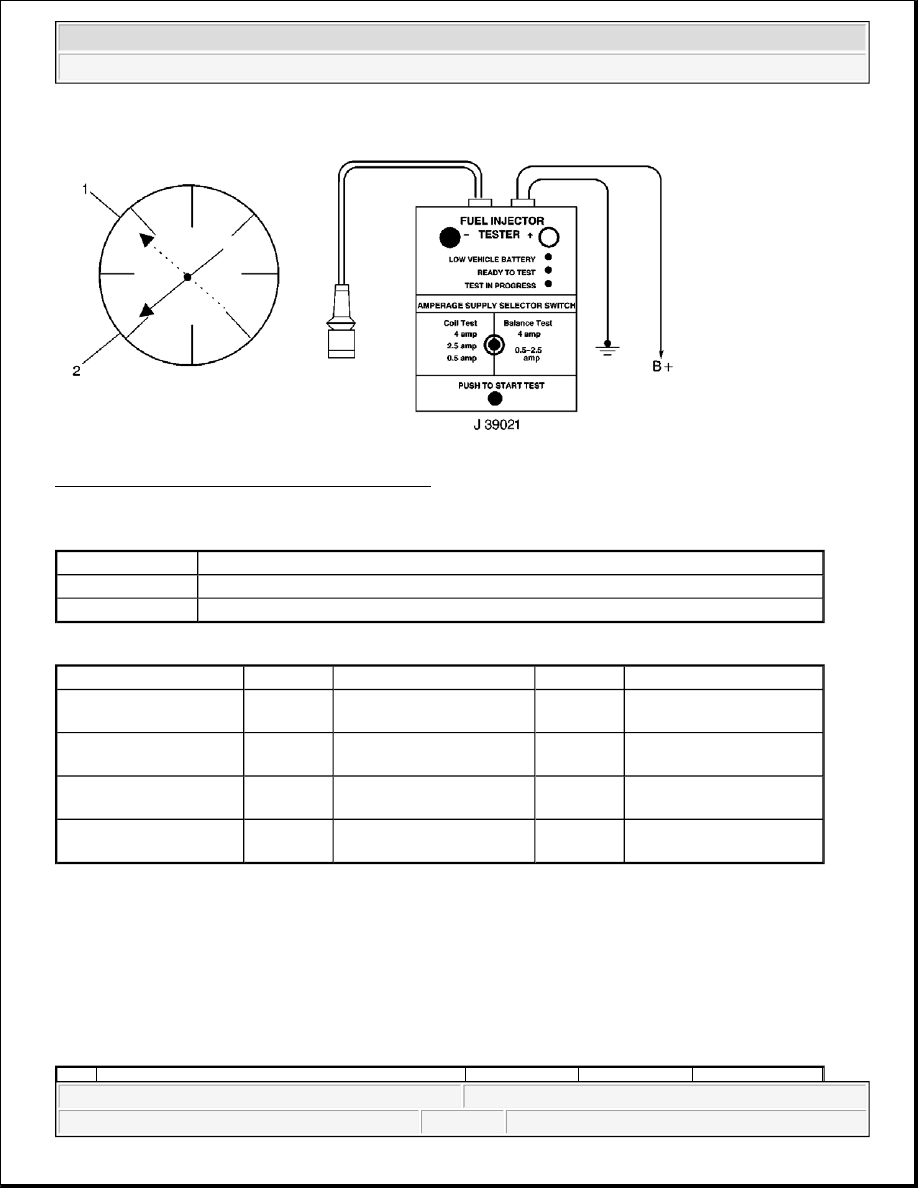

Fig. 1: Fuel Injector Balance Test & Special Tool
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 27

Fuel Injector Balance Test Example (Typical)

Test Description

The numbers below refer to the step numbers on the diagnostic table.

6: If the pressure drop value for each fuel injector is within 10 kPa (1.5 psi) of the average pressure drop
value, the fuel injectors are flowing properly. Calculate the pressure drop value for each fuel injector by
subtracting the second pressure reading from the first pressure reading. Refer to the illustration above.

Fuel Injector Balance Test with Special Tool

Callout

Component Name

1

First Fuel Pressure Gauge Reading

2

Second Fuel Pressure Gauge Reading

Cylinder

1

2

3

4

1st Reading

296 kPa

(43 psi)

296 kPa (43 psi)

296 kPa

(43 psi)

296 kPa (43 psi)

2nd Reading

131 kPa

(19 psi)

117 kPa (17 psi)

124 kPa

(18 psi)

145 kPa (21 psi)

Amount of Drop

165 kPa

(24 psi)

179 kPa (26 psi)

172 kPa

(25 psi)

151 kPa (22 psi)

Average Range: 156-176

kPa (22.5-25.5 psi)

Injector

OK

Replace fuel injector - too

much fuel pressure drop

Injector

OK

Replace fuel injector - too

little fuel pressure drop



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Troubleshooting) - 4.8L, 5.3L, and 6.0L - Hummer H2



Step

Action

Values

Yes

No

Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls Connector End Views or Powertrain Control
Module (PCM) Connector End Views

1

Did you perform the Diagnostic System Check -
Engine Controls?

-

Go to Step 2

Go to

Diagnostic

System Check -

Engine

Controls

2

Did you perform the Fuel Injector Coil Test?

-

Go to Step 3

Go to Fuel

Injector Coil

Test

3

Observe the ECT Sensor parameter with a scan
tool.Is the ECT Sensor parameter less than the
specified value?

IMPORTANT:

Do not perform this test if the engine coolant
temperature (ECT) is above 94°C (201°F).

94°C (201°F)

Go to Step 4

-

4

1. Turn OFF the ignition.

2. Install the fuel pressure gauge. Refer to

Fuel Pressure Gauge Installation and
Removal .

3. Turn ON the ignition, with the engine OFF.

4. Command the fuel pump ON with a scan

tool.

5. Observe the fuel pressure gauge, with the

fuel pump commanded ON.

Is the fuel pressure within the specified range?

IMPORTANT:

Verify there is adequate fuel in the fuel tank
before proceeding with this diagnostic.

IMPORTANT:

z

You may need to command the fuel
pump ON a few times, in order to
obtain the highest possible fuel
pressure.

z

Do not start the engine.

385-425 kPa

(55-62 psi)

VIN: (V, T,

U) Gasoline

335-375 kPa

(48-54 psi)

VIN Z

Ethanol

Go to Step 5

Go to Fuel

System

Diagnosis

IMPORTANT:

The fuel pressure may vary slightly when the



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Troubleshooting) - 4.8L, 5.3L, and 6.0L - Hummer H2



5

Monitor the fuel pressure gauge for 1
minute.Does the fuel pressure drop more than the
specified value?

fuel pump stops operating. After the fuel pump
stops operating, the fuel pressure should
stabilize and remain constant.

34 kPa (5 psi)

Go to Fuel

System

Diagnosis

Go to Step 6

6

1. Connect the J 39021 Fuel Injector Coil and

Balance Tester and the J 39021-380 Fuel
Injector Test Harness to a fuel injector.

2. Set the amperage supply selector switch on

the fuel injector tester to the Balance Test
0.5-2.5 amp position.

3. Command the fuel pump ON and OFF with

a scan tool.

4. Record the fuel pressure indicated by the

fuel pressure gauge after the fuel pressure
stabilizes. This is the first pressure reading.

5. Energize the fuel injector by depressing the

Push to Start Test button on the fuel
injector tester.

6. Record the fuel pressure indicated by the

fuel pressure gauge. This is the second fuel
pressure reading.

7. Repeat steps 1-6 for each fuel injector.

8. Subtract the second pressure reading from

the first pressure reading for one fuel
injector. The result is the pressure drop

NOTE:

Do Not repeat any portion of this test before
running the engine in order to prevent the
engine from flooding.

IMPORTANT:

Refer to the illustration in the supporting text
when performing the following steps.

IMPORTANT:

Record the fuel pressure value
immediately after the fuel injector stops
pulsing. The fuel pressure may rise after
the fuel injector stops pulsing. Do not
record the higher fuel pressure value.

10 kPa (1.5

psi)



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Troubleshooting) - 4.8L, 5.3L, and 6.0L - Hummer H2



FUEL INJECTOR BALANCE TEST WITH TECH 2

Description

The scan tool is first used to energize the fuel pump. The scan tool is then used to pulse each injector for a
precise amount of time, allowing a measured amount of fuel into the manifold. This causes a drop in system
fuel pressure that can be recorded and used to compare the flow through each injector.

Fuel Injector Balance Test Example (Typical)

Test Description

The numbers below refer to the step numbers on the diagnostic table.

5: If the pressure drop value for each fuel injector is within 10 kPa (1.5 psi) of the average pressure drop
value, the fuel injectors are flowing properly. Calculate the pressure drop value for each fuel injector by

value.

9. Obtain a pressure drop value for each fuel

injector.

10. Add all of the individual pressure drop

values. This is the total pressure drop.

11. Divide the total pressure drop by the

number of fuel injectors. This is the
average pressure drop.

Does any fuel injector have a pressure drop value
that is more than the average pressure drop or less
than the average pressure drop by the specified
value?

Go to Step 7

Go to

Symptoms -

Engine

Controls

7

Perform the Fuel Injector Cleaning Procedure .
Did you complete the procedure?

-

Go to Step 8

-

8

Operate the vehicle in order to verify the repair.
Does a driveability condition still exist?

-

Go to

Symptoms -

Engine

Controls

System OK

Cylinder

1

2

3

4

1st Reading

296 kPa

(43 psi)

296 kPa (43 psi)

296 kPa

(43 psi)

296 kPa (43 psi)

2nd Reading

131 kPa

(19 psi)

117 kPa (17 psi)

124 kPa

(18 psi)

145 kPa (21 psi)

Amount of Drop

165 kPa

(24 psi)

179 kPa (26 psi)

172 kPa

(25 psi)

151 kPa (22 psi)

Average Range: 156-176

kPa (22.5-25.5 psi)

Injector

OK

Replace fuel injector - too

much fuel pressure drop

Injector

OK

Replace fuel injector - too

little fuel pressure drop



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Troubleshooting) - 4.8L, 5.3L, and 6.0L - Hummer H2
