1. The fuel injector (1) is stamped with a part number identification (2). A four-digit build date code (3),

which indicates the month (4), day (5), year (6), and the shift (7) that built the fuel injector.

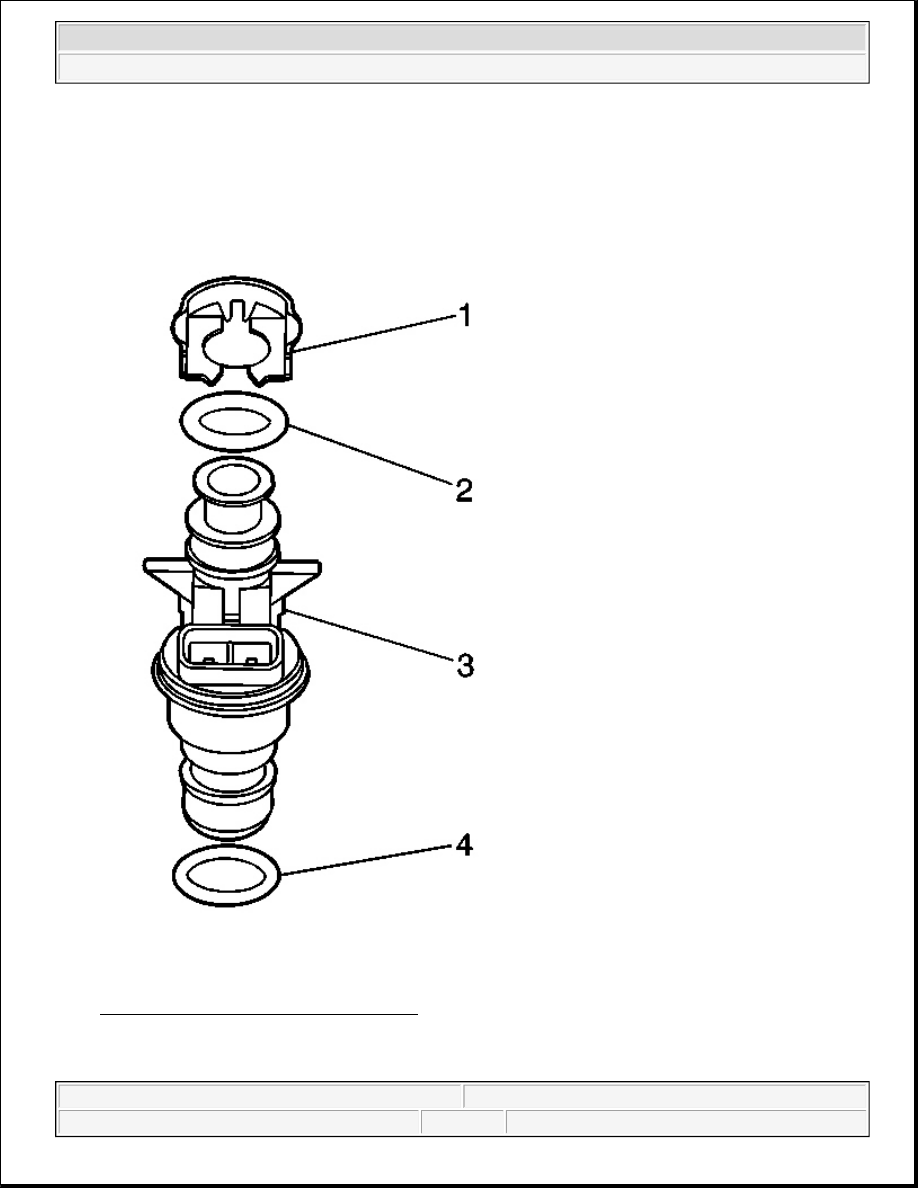

Fig. 126: Exploded View Of Fuel Injector
Courtesy of GENERAL MOTORS CORP.

2. Lubricate the NEW fuel injector O-ring seals (2, 4) with clean engine oil.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



3. Install the NEW fuel injector O-ring seals onto the fuel injector.

4. Install a NEW retainer clip (1) onto the fuel injector.

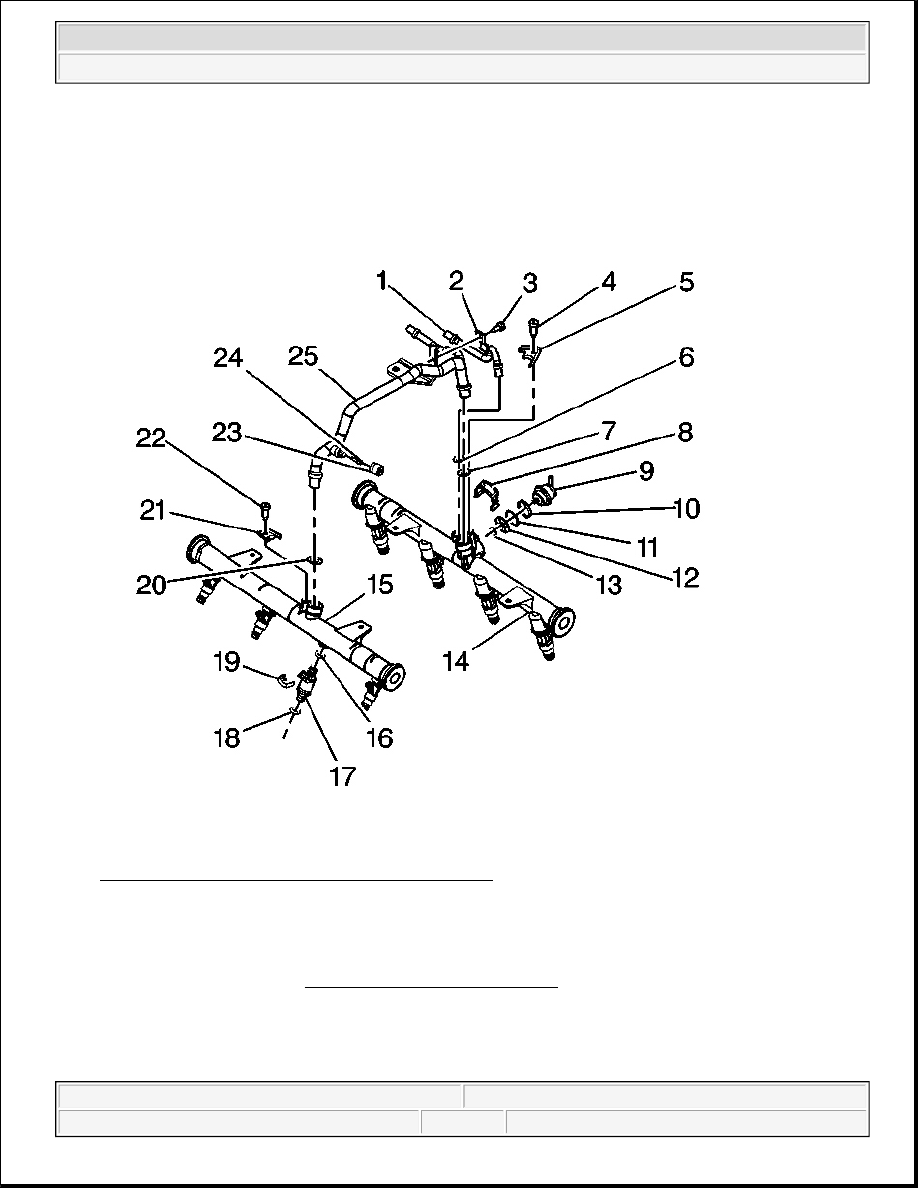

Fig. 127: Expanded View Of Fuel Rails & Injectors
Courtesy of GENERAL MOTORS CORP.

5. Install the fuel injector (17) into the fuel rail injector socket with the electrical connector facing outward.

The retainer clip (19) locks on to a flange on the fuel rail injector socket.

6. Install the fuel rail. Refer to Fuel Rail Assembly Replacement .

FUEL INJECTOR CLEANING PROCEDURE

Tools Required



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



z

J 37287 Fuel Line Shut-Off Adapters. See Special Tools and Equipment .

z

J 35800-A Fuel Injector Cleaner

z

J 42873-1 3/8 Fuel Line Shut-Off Valve

z

J 42873-2 5/16 Return Pipe Shut-Off Valve

z

J 42964-1 3/8 Fuel Pipe Shut-Off Valve

z

J 42964-2 5/16 Fuel Pipe Shut-Off Valve

NOTE:

z

GM Top-Engine Cleaner is the only injector cleaning agent recommended.
Do not use other cleaning agents, as they may contain methanol which
can damage fuel system components.

z

Under NO circumstances should the top engine cleaner be added to the
vehicles fuel tank, as it may damage the fuel pump and other system
components.

z

Do not exceed a 10 percent cleaning solution concentration. Higher
concentrations may damage fuel system components. Testing has
demonstrated that exceeding the 10 percent cleaning solution
concentration does not improve the effectiveness of this procedure.

IMPORTANT: Vehicles with less than 160 km (100 mi) on the odometer should not have the

injectors cleaned. These vehicles should have the injectors replaced.

IMPORTANT: During this procedure you will need a total of 960 ml (32.4 oz) of cleaning

solution. That is 2 tanks of solution for the J 35800-A . Other brands of tools
may have a different capacity and would therefore require more or less tanks to
complete the procedure. You must use all 960 ml (32.4 oz) of solution to ensure
complete injector cleaning.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

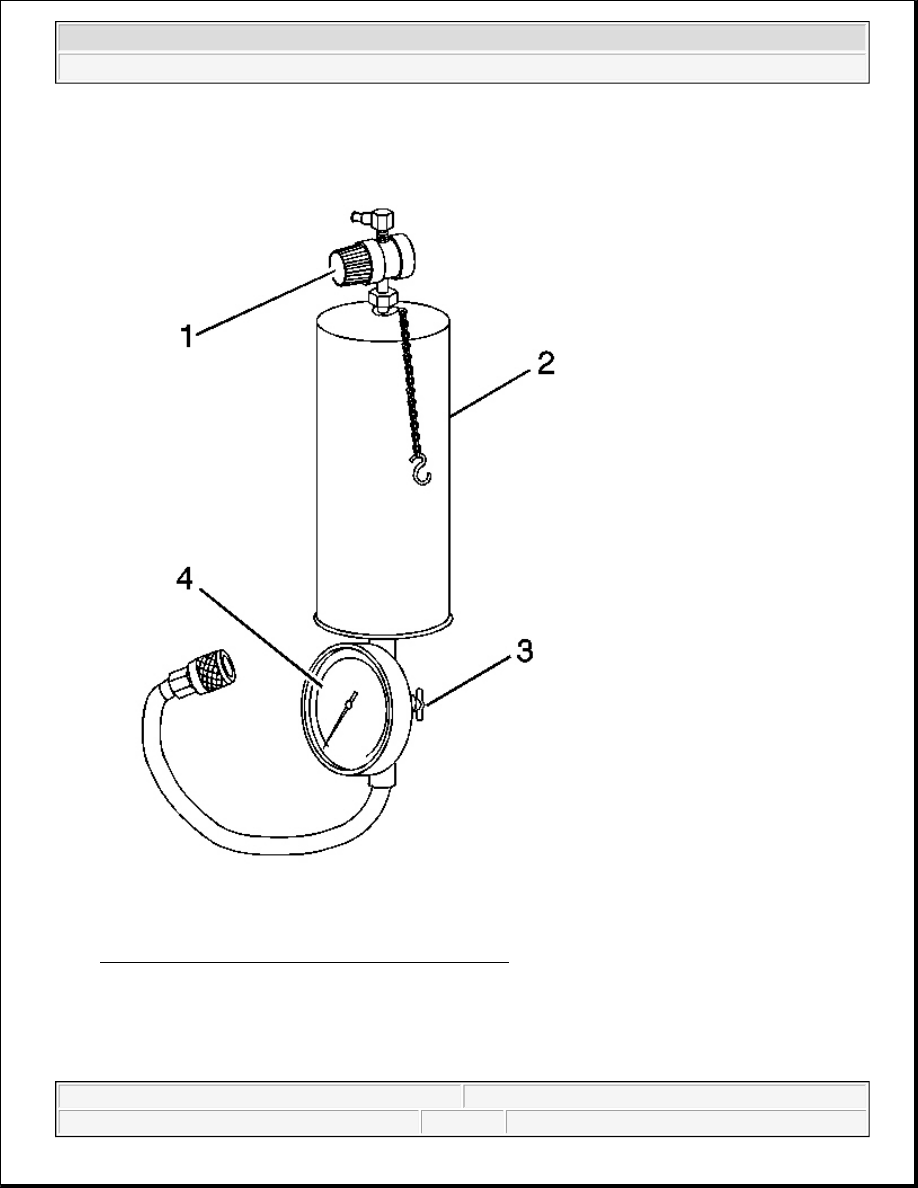

Fig. 128: Identifying Fuel Injector Cleaner J 38500-A
Courtesy of GENERAL MOTORS CORP.

1. Obtain J 35800-A (2).

IMPORTANT: Make sure the valve at the bottom of the canister (3) is closed.
