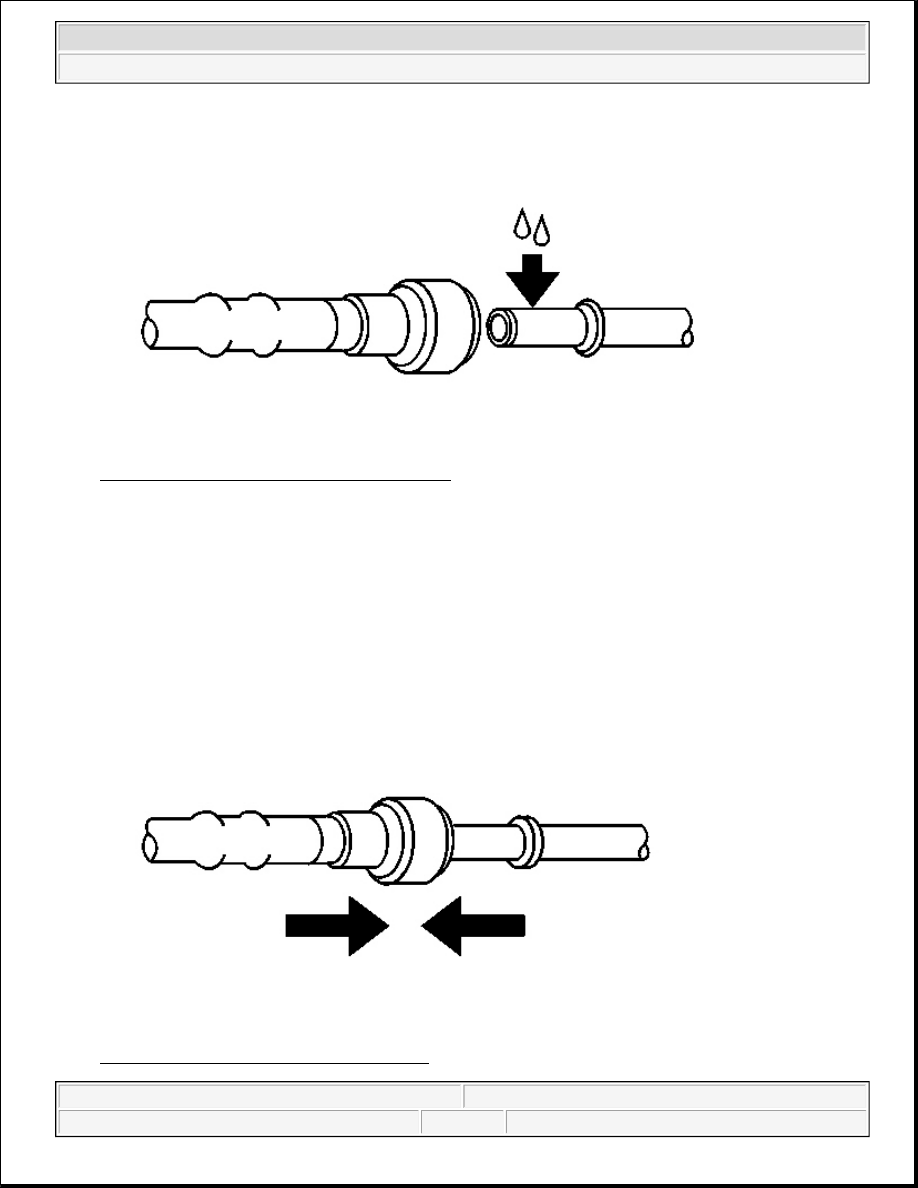

Fig. 65: Oiling Male Pipe Ends (Metal Collar)
Courtesy of GENERAL MOTORS CORP.

1. Apply a few drops of clean engine oil to the male pipe end.

Fig. 66: Connecting Fittings (Metal Collar)
Courtesy of GENERAL MOTORS CORP.

CAUTION: Always apply a few drops of clean engine oil to the male pipe ends

before connecting the fuel pipe fittings in order to reduce the risk of
fire and personal injury. This will ensure proper reconnection and
prevent a possible fuel leak. During normal operation, the O-rings
located in the female connector will swell and may prevent proper
reconnection if not lubricated.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



2. Push both sides of the fitting together in order to snap the retaining tabs into place.

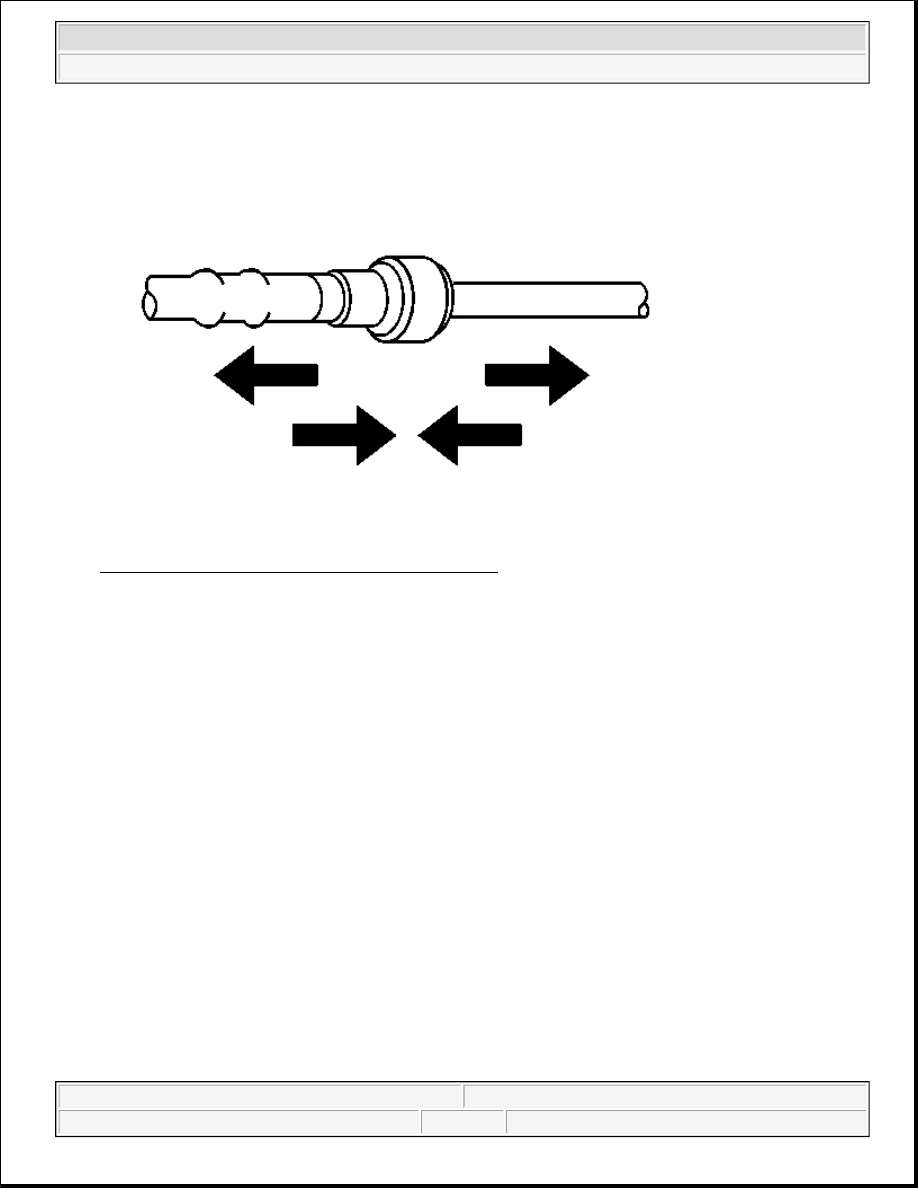

Fig. 67: Ensuring Secure Connection (Metal Collar)
Courtesy of GENERAL MOTORS CORP.

3. Once installed, pull on both sides of the fitting in order to make sure the connection is secure.

4. Install the retainer to the quick-connect fitting.

QUICK CONNECT FITTING(S) SERVICE (PLASTIC COLLAR)

Removal Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



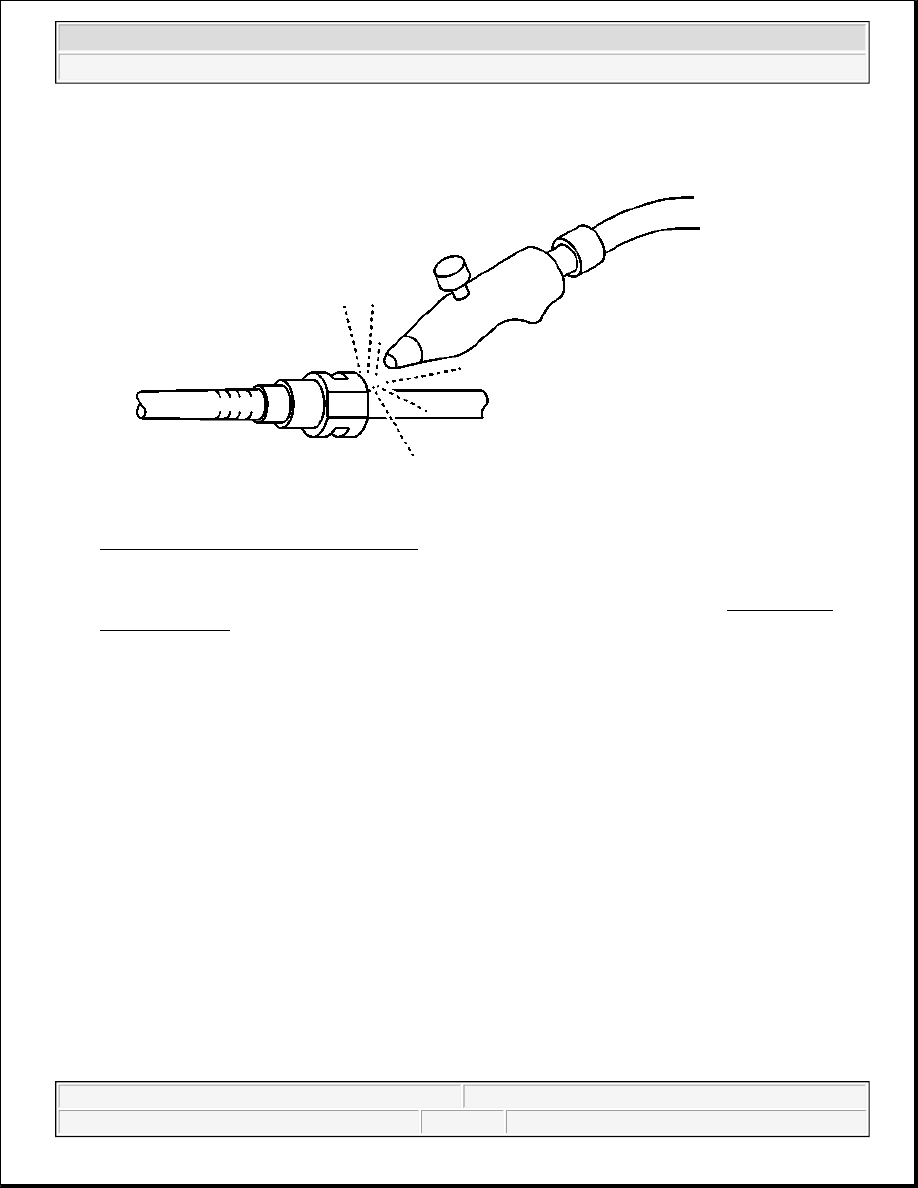

Fig. 68: Blowing Out Dirt (Plastic Collar)
Courtesy of GENERAL MOTORS CORP.

1. Relieve the fuel system pressure before servicing any fuel system connection. Refer to Fuel Pressure

Relief Procedure .

2. Using compressed air, blow any dirt out of the quick-connect fitting.

CAUTION: Refer to Safety Glasses and Compressed Air Caution in Cautions and

Notices.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



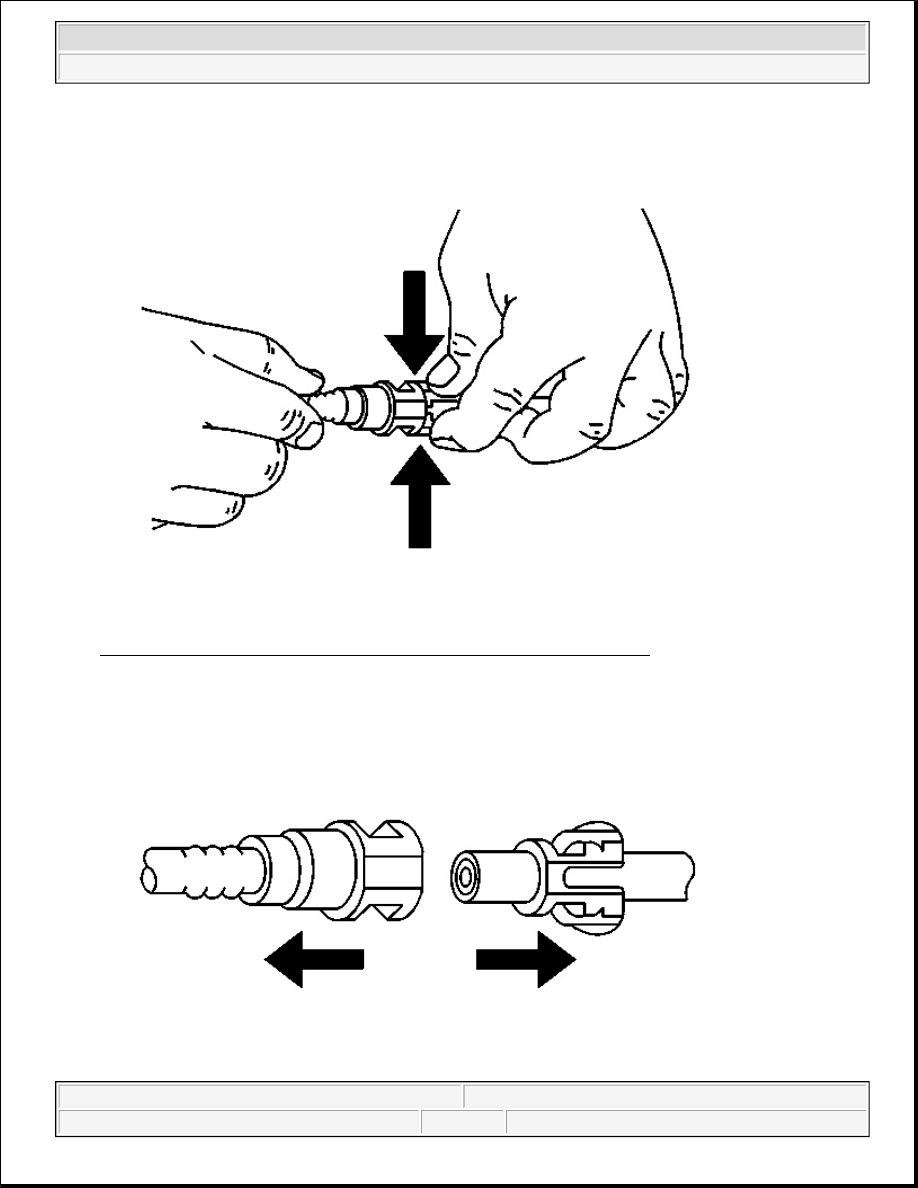

Fig. 69: Squeezing Plastic Tabs Of Male End Connector (Plastic Collar)
Courtesy of GENERAL MOTORS CORP.

3. Squeeze the plastic retainer release tabs.
