Fig. 39: MAF/IAT Sensor & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.

1. Remove air intake resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .

2. Disconnect the MAF/IAT sensor electrical connector.

3. Loosen the clamp securing the MAF/IAT sensor to the air cleaner housing.

4. Remove the MAF/IAT sensor from the air cleaner assembly.

Installation Procedure

IMPORTANT: The embossed arrow on the MAF/IAT sensor indicates the proper air flow

direction. The arrow must point toward the engine.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



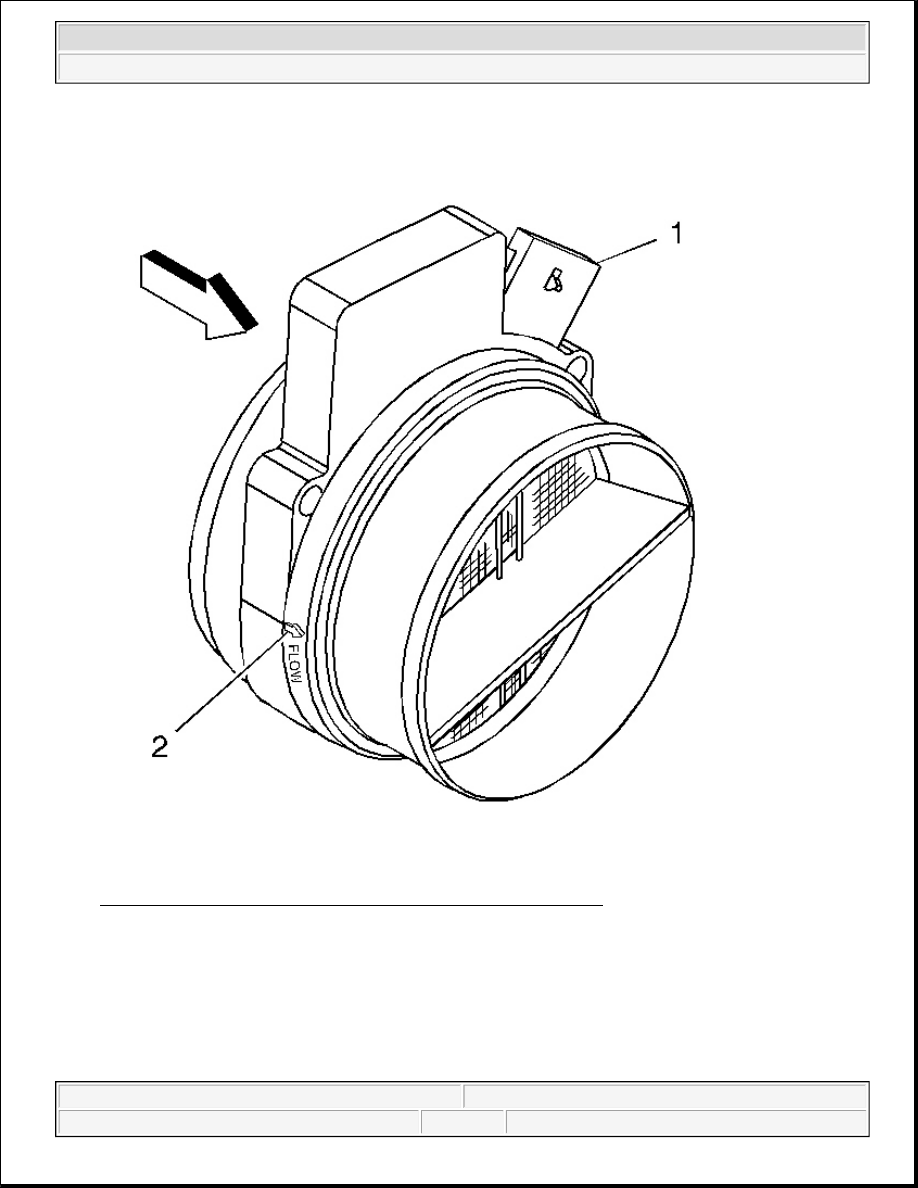

Fig. 40: Locating Air Flow Direction Arrow On MAF/IAT Sensor
Courtesy of GENERAL MOTORS CORP.

1. Locate the air flow direction arrow (2) on the MAF/IAT sensor.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

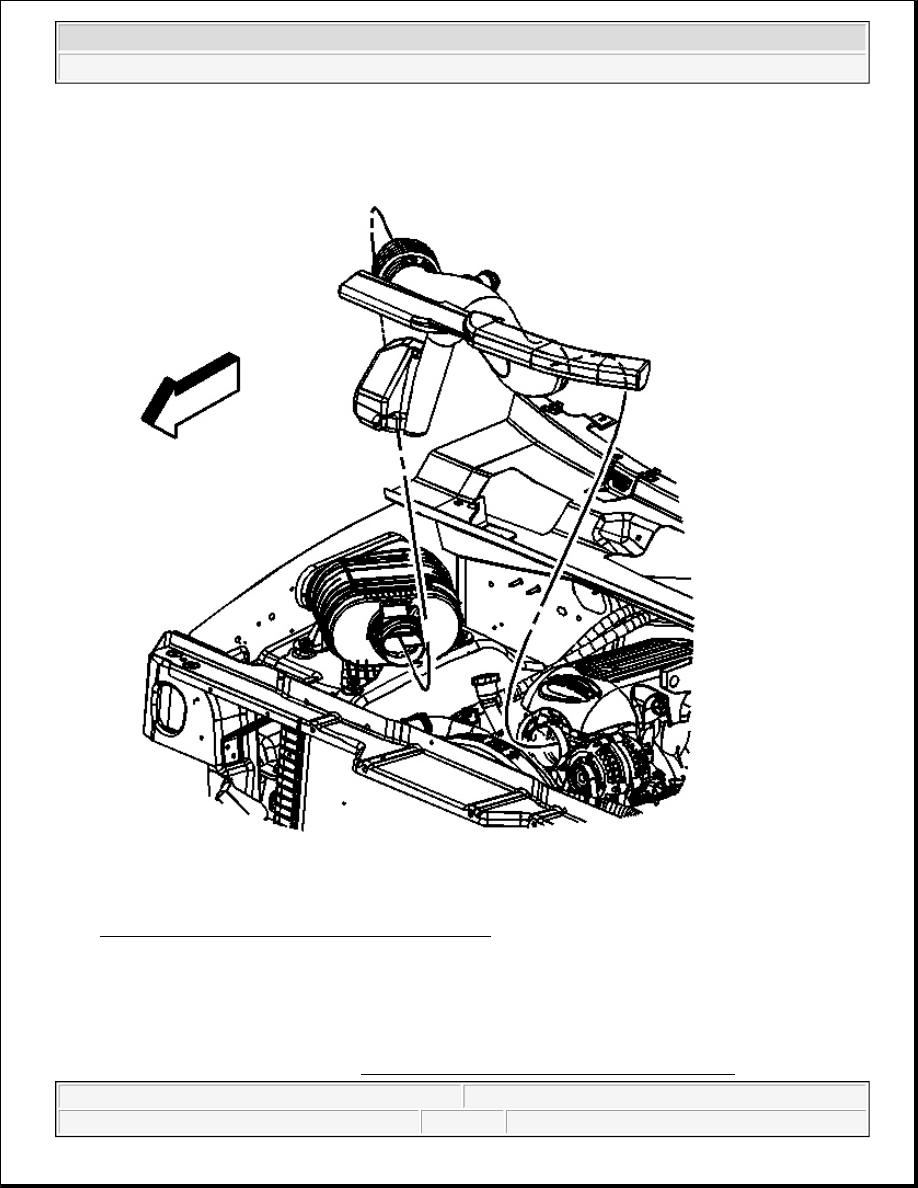

Fig. 41: MAF/IAT Sensor & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.

2. Install the MAF/IAT sensor on to the air cleaner housing.

3. Tighten the clamp securing the MAF/IAT sensor to the air cleaner housing.

4. Connect the MAF/IAT electrical connector.

5. Install air intake resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT

Removal Procedure

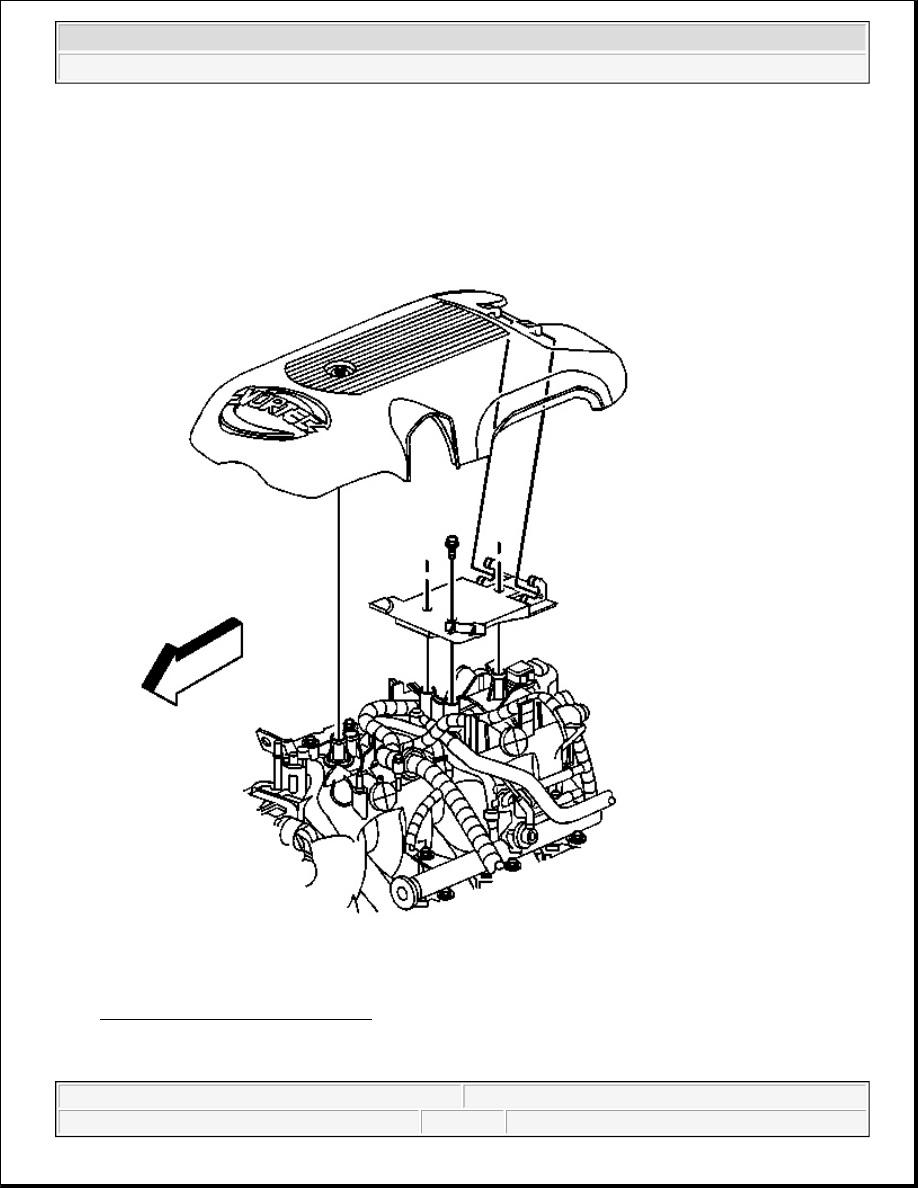

Fig. 42: View Of Top Engine Cover
Courtesy of GENERAL MOTORS CORP.

1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) in Engine
