J 46406

Fan Clutch Remover and Installer

J 24460-1

Cooling System Pressure Tester

J 26568

Coolant and Battery Tester

J 38185

Hose Clamp Pliers



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



J 42401

Radiator Cap/Surge Tank Test Adapter

J 43181

Heater Line Quick Connect Release Tool



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



2003-04 ENGINE COOLING

Specifications & Drive Belt Routing - H2

ADJUSTMENTS

BELT ADJUSTMENT

DRIVE BELT ROUTING

Application

Specification

Serpentine Belt

(1)

(1)

Serpentine belt is automatically adjusted by tensioner.

NOTE:

For serpentine belt routing, see underhood label or Fig. 1 .



2004 Hummer H2

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - H2





2004 Hummer H2

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - H2

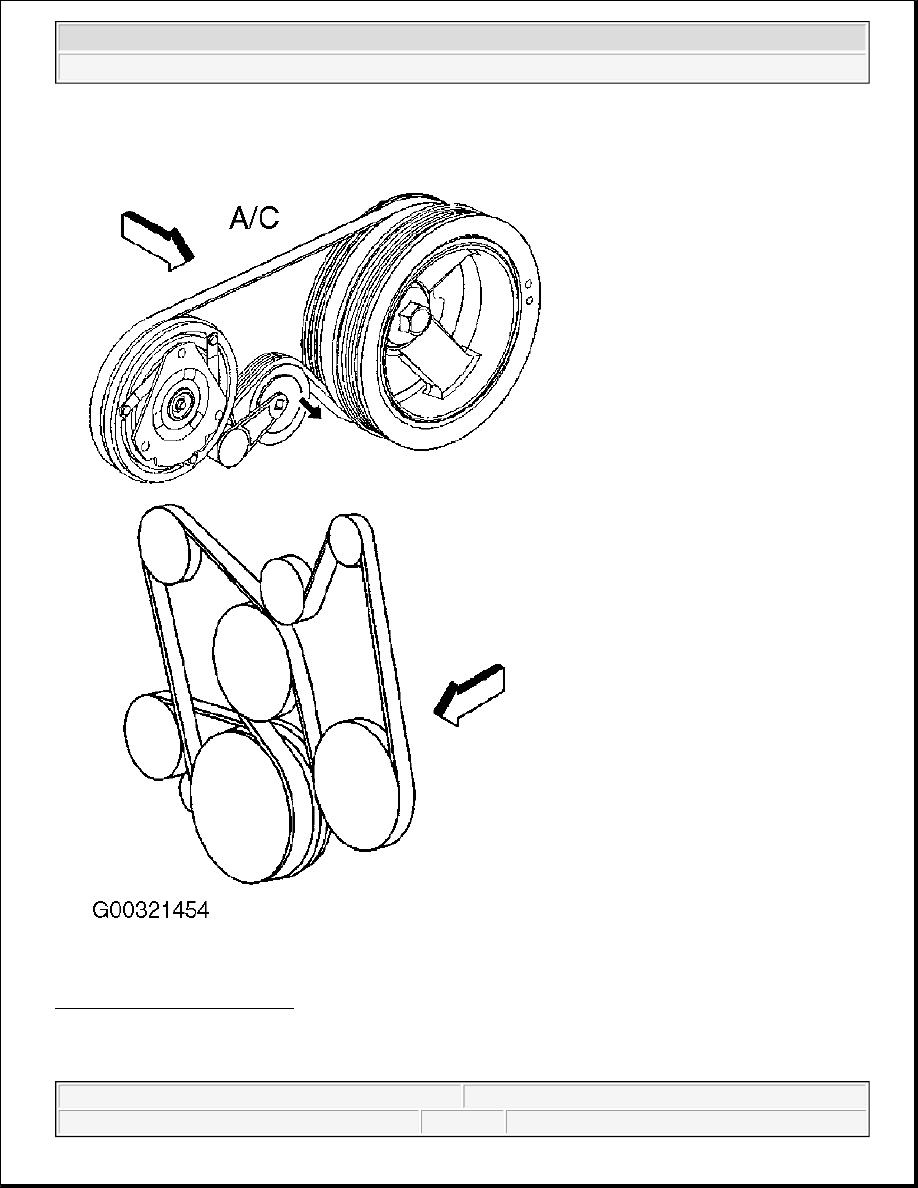

Fig. 1: Serpentine Belt Routing
Courtesy of GENERAL MOTORS CORP.

COOLING SYSTEM SPECIFICATIONS



2004 Hummer H2

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - H2
