Fig. 101: Radiator Hose & Radiator (Inlet)
Courtesy of GENERAL MOTORS CORP.

12. Install the radiator inlet hose (4) to the radiator (6).

13. Position the radiator inlet hose clamp (5) to the radiator (6).

14. Fill the cooling system. Refer to Draining and Filling Cooling System .

RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS

Removal Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



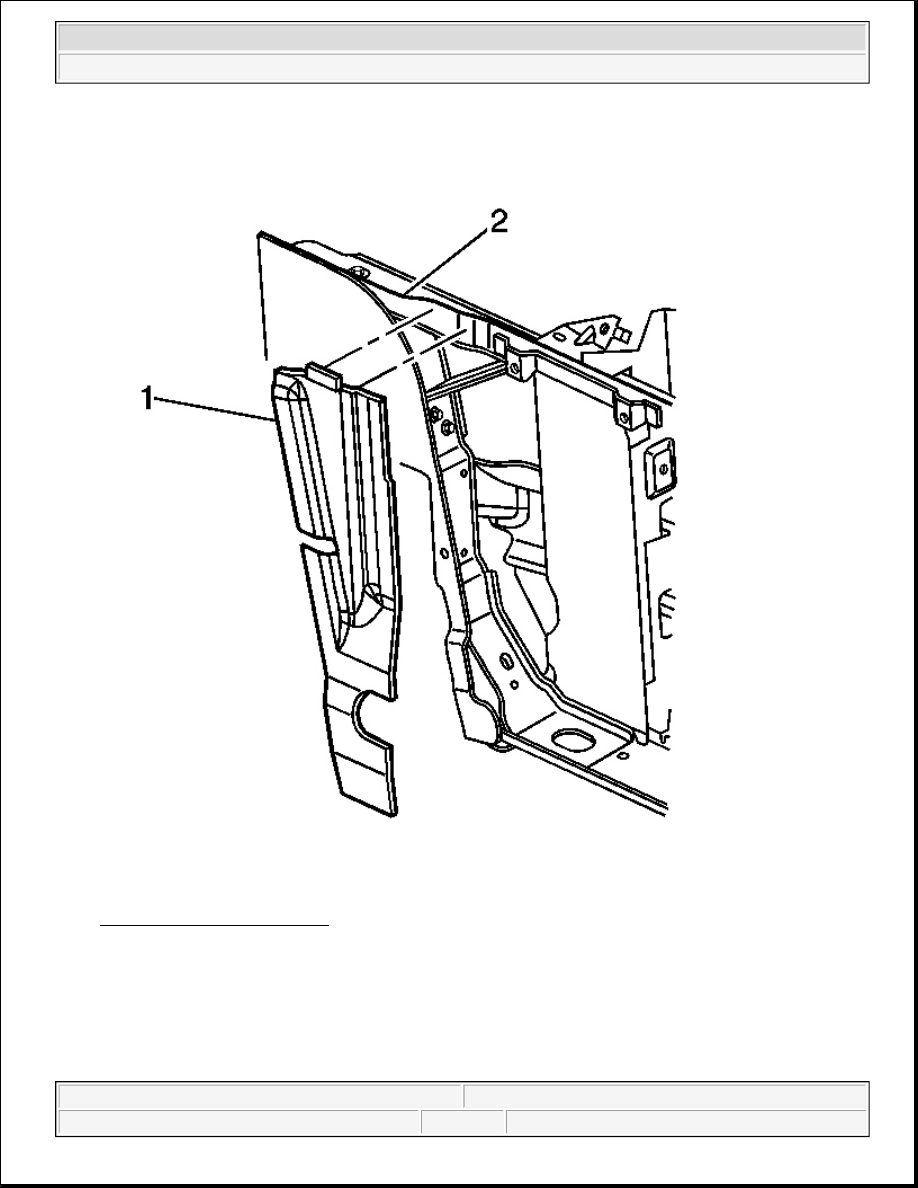

Fig. 102: Radiator Air Baffles
Courtesy of GENERAL MOTORS CORP.

1. Remove the radiator air baffle retainers.

2. Remove the radiator air baffles (1) from the vehicle (2).

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Fig. 103: Radiator Air Baffles
Courtesy of GENERAL MOTORS CORP.

1. Install the radiator air baffles (1) to the vehicle (2).

2. Install the radiator air baffle retainers.

COOLANT HEATER REPLACEMENT



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Dealer Installation Only

1. Drain the cooling system/engine block. Refer to Draining and Filling Cooling System .

2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

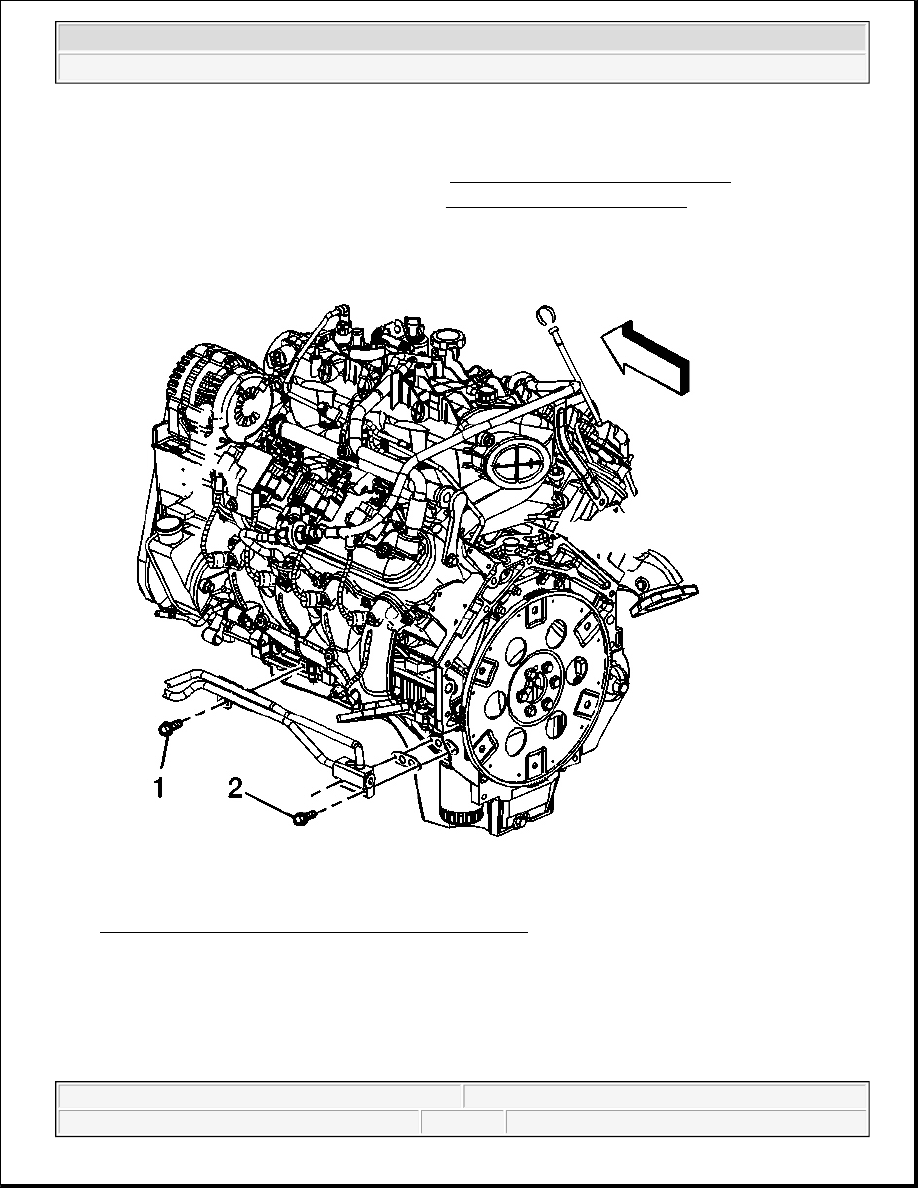

Fig. 104: Oil Cooler Hose Bracket Bolt & Adapter Bolts
Courtesy of GENERAL MOTORS CORP.

3. Remove the oil cooler hose bracket bolt (1).

4. Remove the oil cooler hose adapter bolts (2).

5. Remove and discard the oil cooler hose adapter gasket.

6. Position the oil cooler hose adapter end out of the way.
