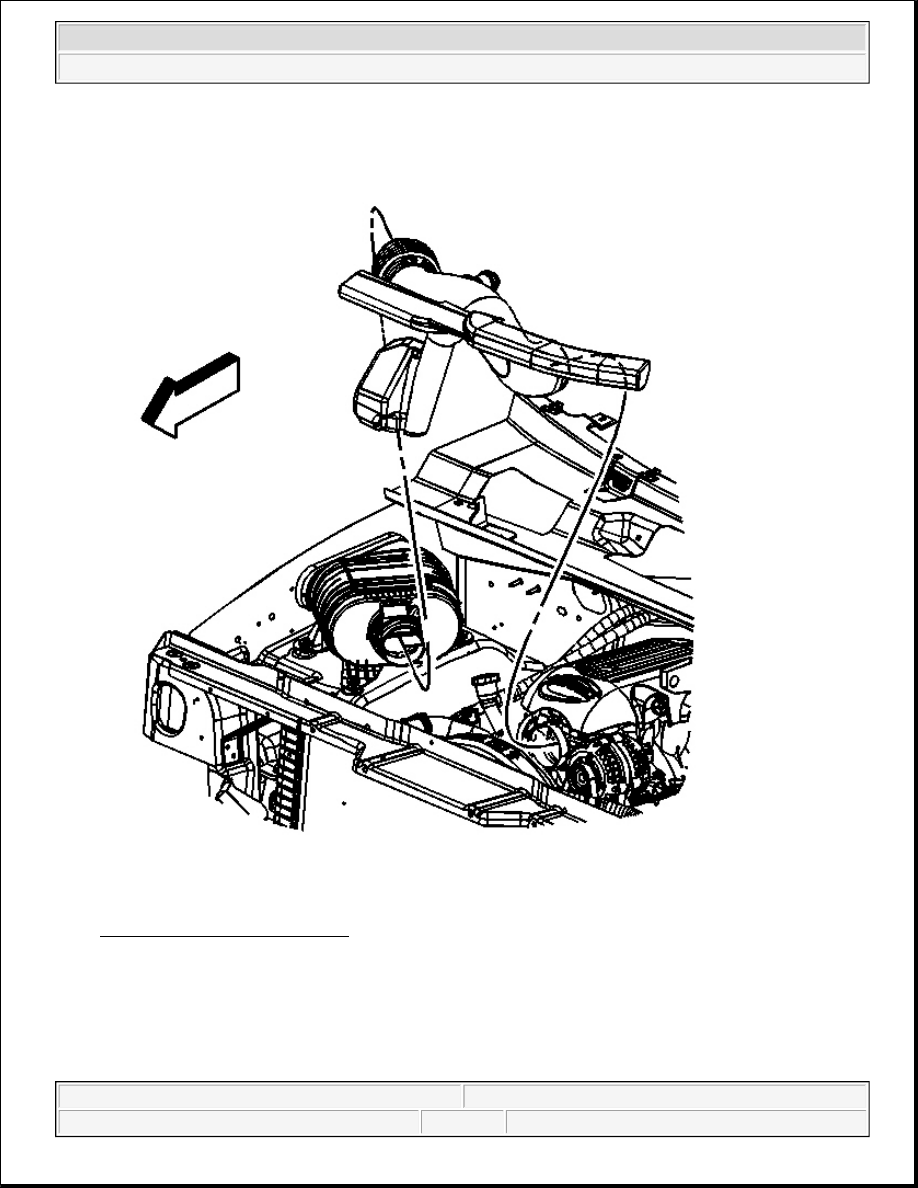

Fig. 85: Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.

14. Install the air cleaner outlet duct.

IMPORTANT: Align the arrow at the throttle body end of the duct with the throttle body

attaching stud.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



15. Install the radiator inlet hose clip to the outlet duct.

16. Tighten the air cleaner outlet duct clamps at the following locations:

z

Throttle body

z

MAF/IAT sensor

Tighten: Tighten the air cleaner outlet duct clamp screws to 7 N.m (62 lb in).

17. Fill the cooling system. Refer to Draining and Filling Cooling System .

DRAIN COCK REPLACEMENT

Removal Procedure

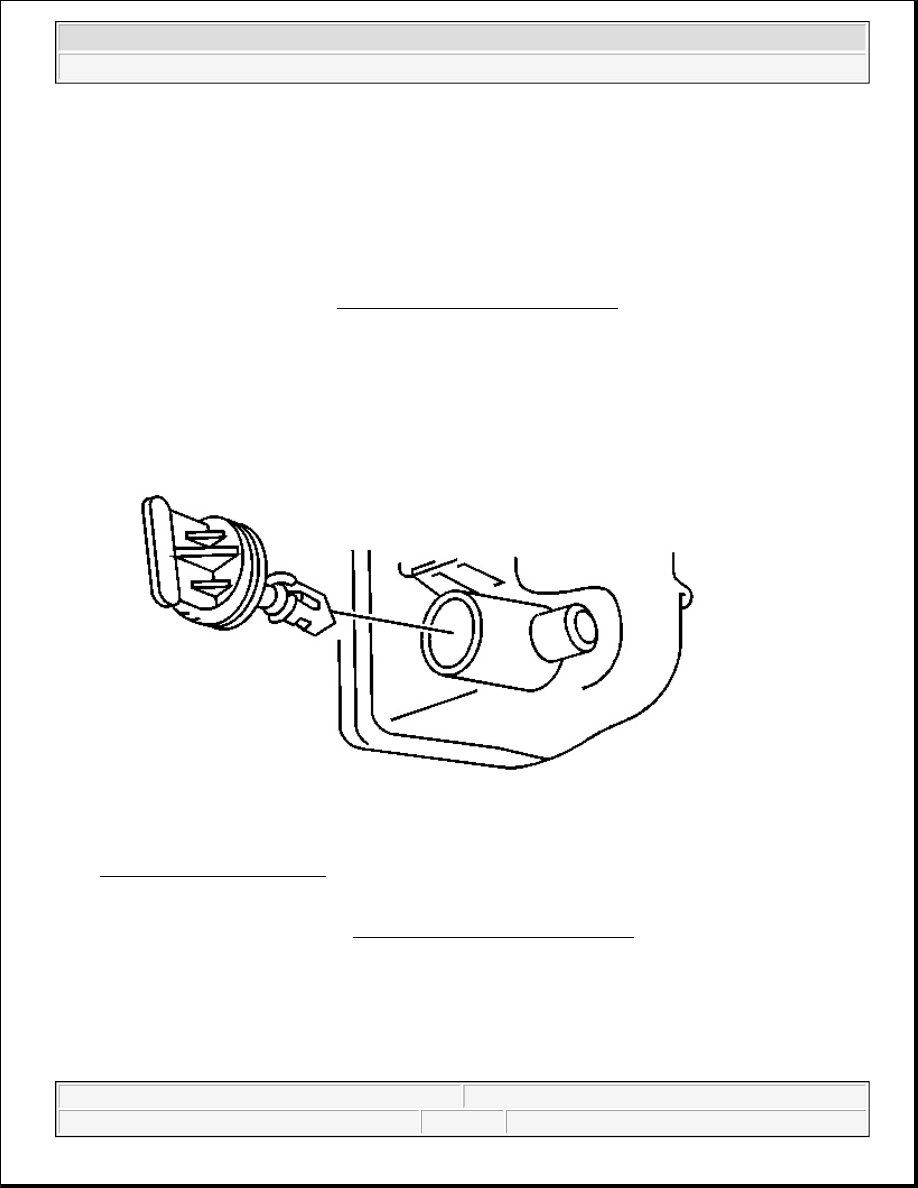

Fig. 86: Radiator Drain Cock
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system. Refer to Draining and Filling Cooling System .

2. Remove the radiator drain cock.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



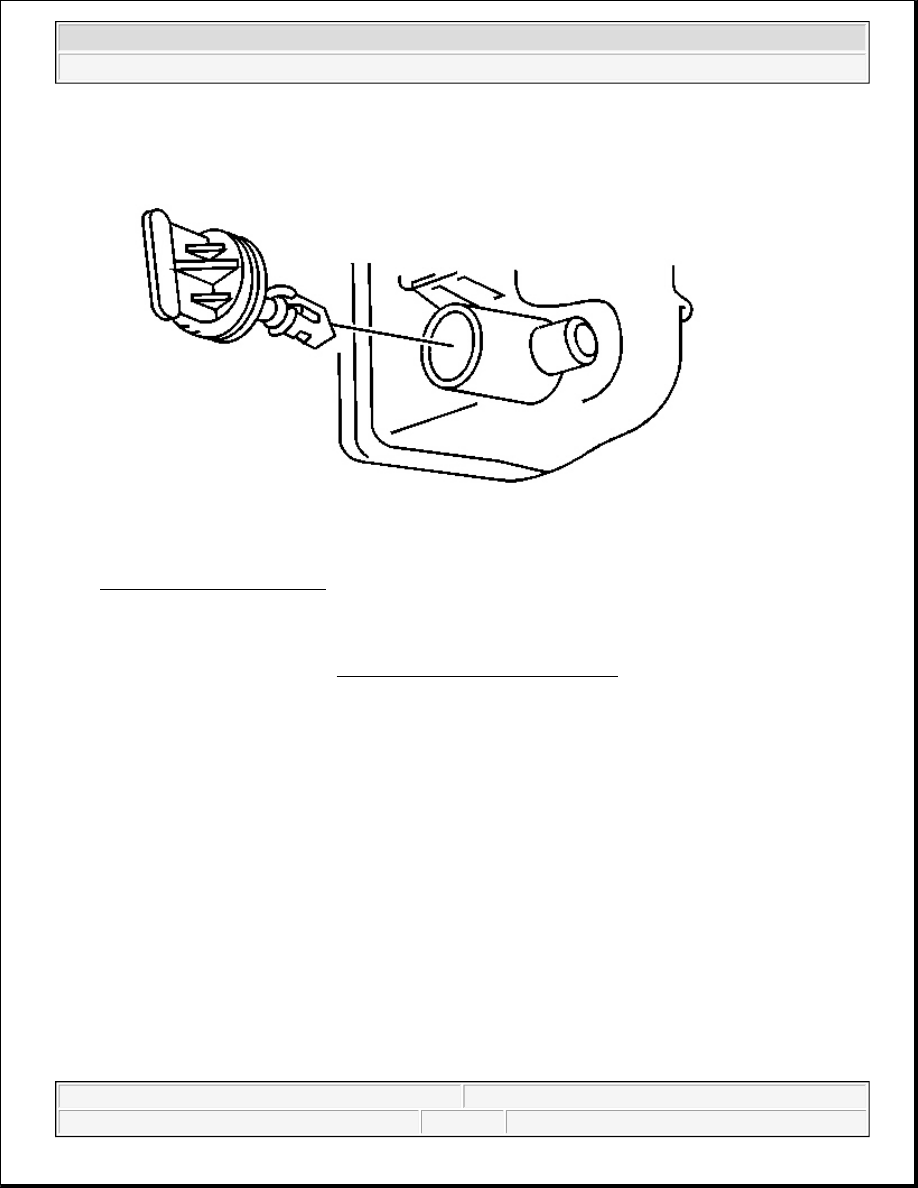

Fig. 87: Radiator Drain Cock
Courtesy of GENERAL MOTORS CORP.

1. Install the radiator drain cock.

2. Fill the cooling system. Refer to Draining and Filling Cooling System .

FAN SHROUD REPLACEMENT

Removal Procedure

1. Loosen the air cleaner outlet duct clamps from the throttle body.

2. Loosen the air cleaner outlet duct clamps from the mass airflow sensor.

3. Remove the air cleaner outlet duct.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



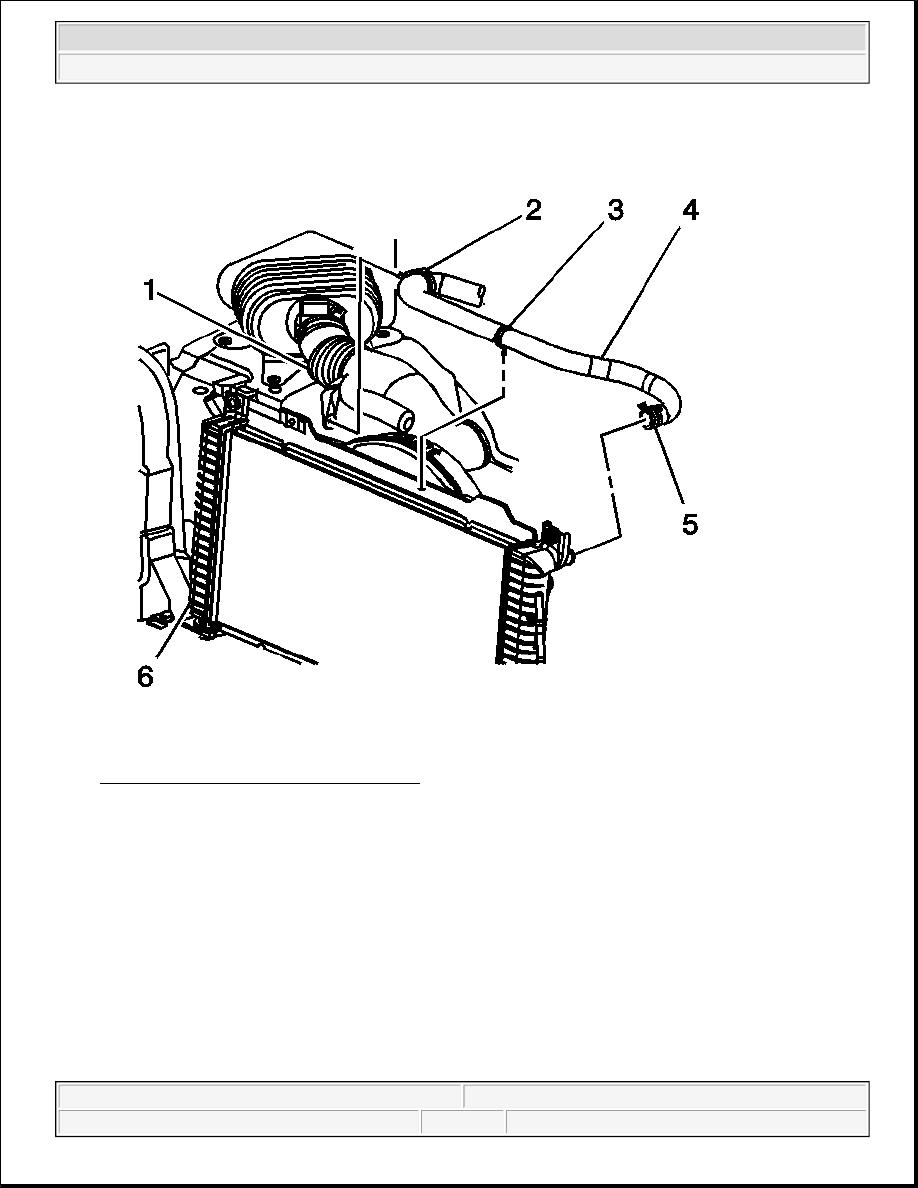

Fig. 88: Radiator Hose & Radiator (Inlet)
Courtesy of GENERAL MOTORS CORP.

4. Remove the radiator inlet hose from the fan shroud retainer (3).

5. Remove the bolt (5) from the fan shroud (3).

6. Remove the transmission oil cooler line from the fan shroud retainer.

7. Rotate the slip ring from under the fan shroud.
