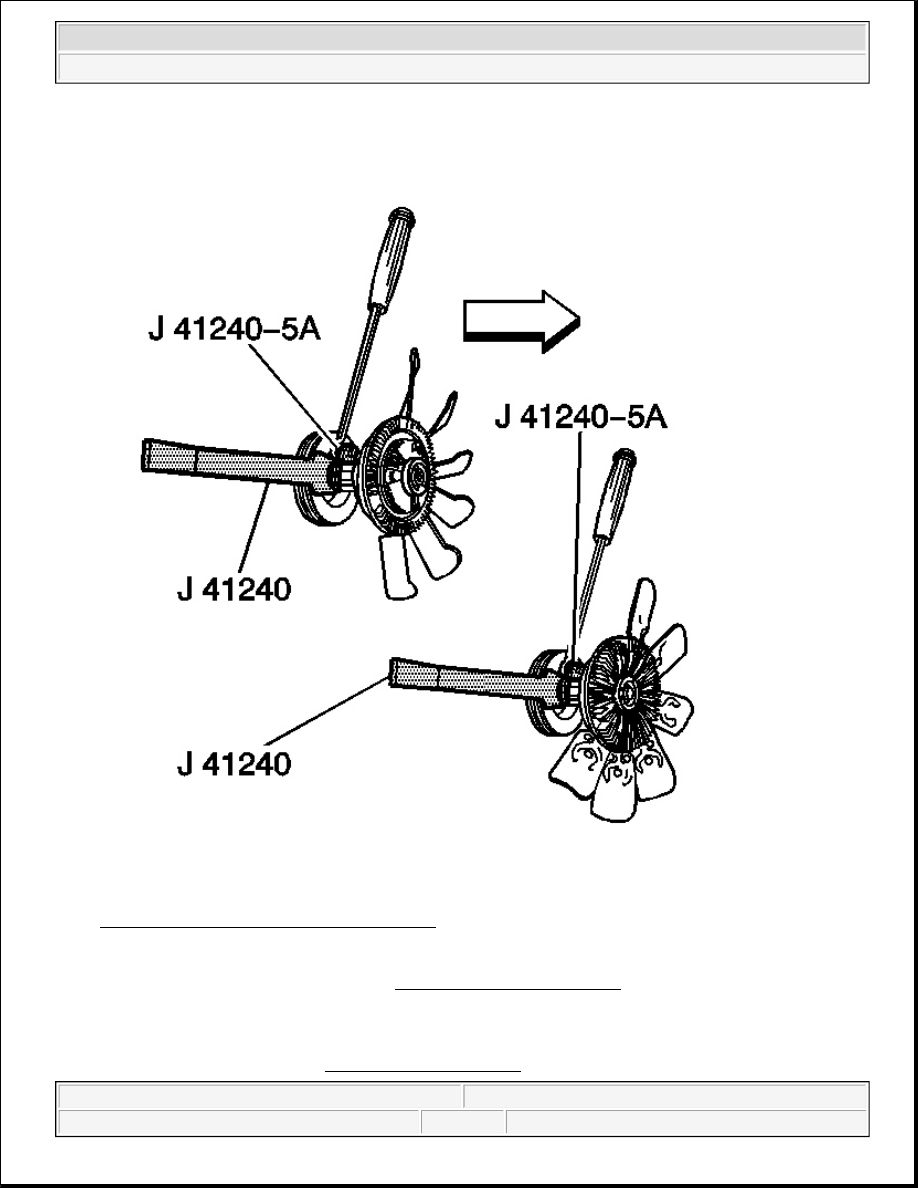

Fig. 57: Using Special Tools For Fan Clutch
Courtesy of GENERAL MOTORS CORP.

4. Install the J 46406 to the fan clutch. See Special Tools and Equipment .

Tighten: Tighten the nut clockwise to 59 N.m (44 lb ft).

5. Install the fan shroud. Refer to Fan Shroud Replacement .



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



THERMOSTAT HOUSING REPLACEMENT

Removal Procedure

IMPORTANT: The thermostat is not serviceable separately. The thermostat housing (water

pump inlet) and thermostat must be replaced as an assembly.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

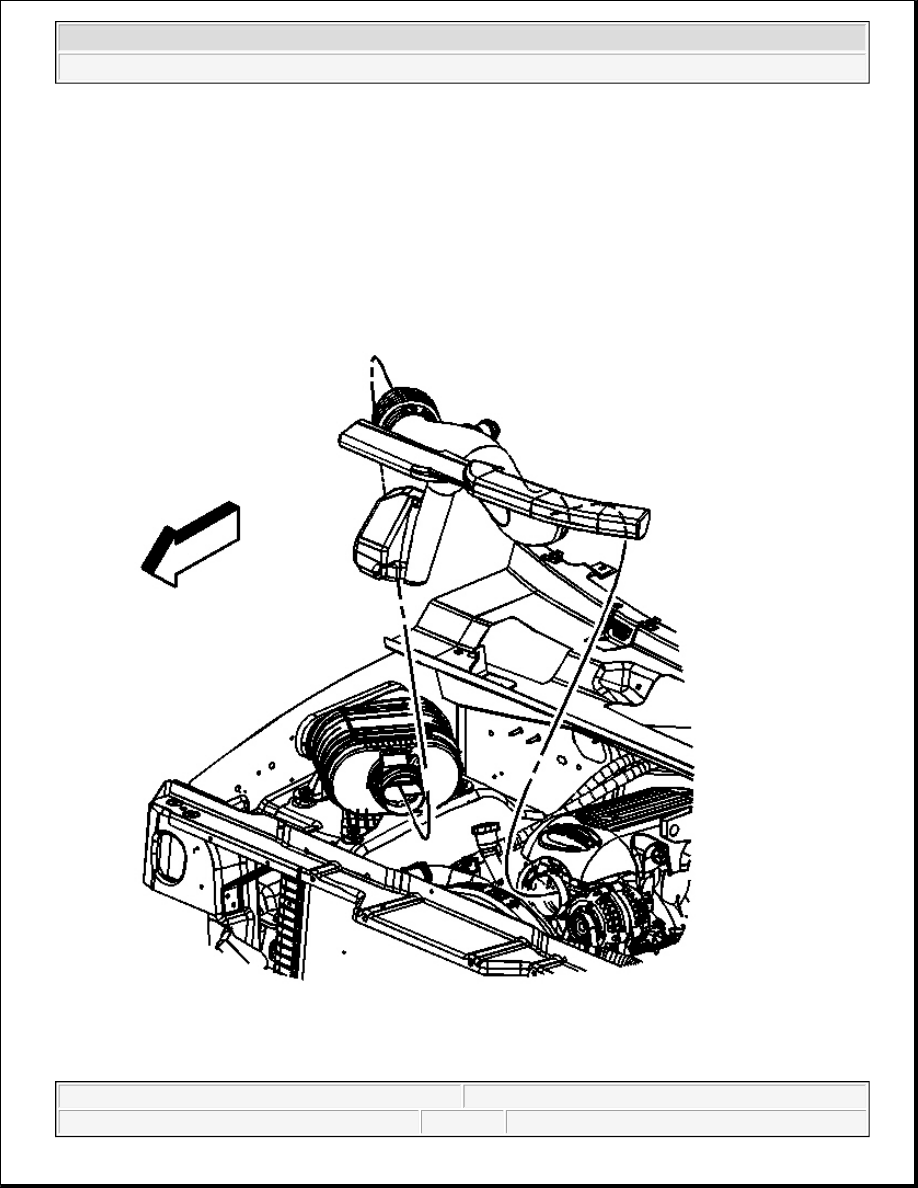

Fig. 58: Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system/engine block. Refer to Draining and Filling Cooling System .

2. Loosen the air cleaner outlet duct clamps at the throttle body and at the Mass airflow (MAF) sensor.

3. Remove the air cleaner outlet duct.

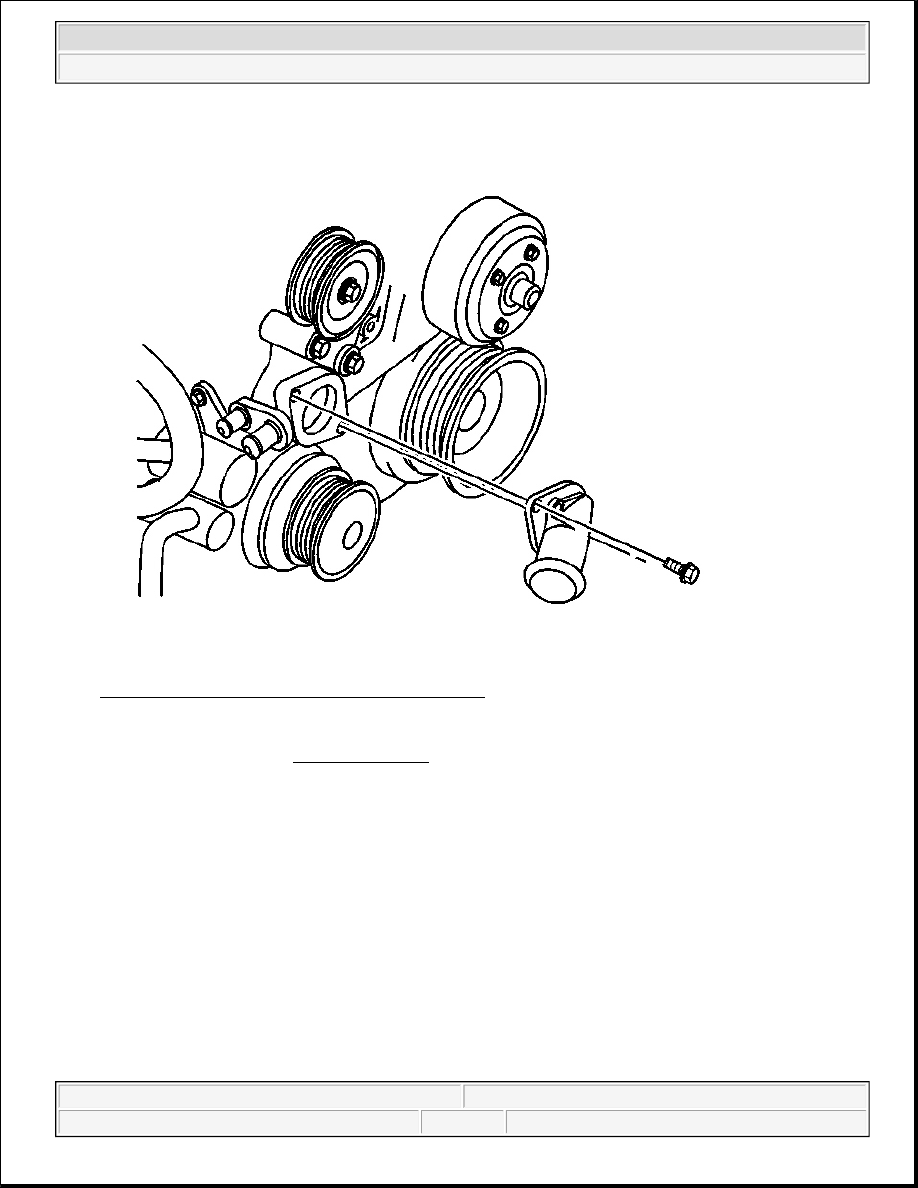

Fig. 59: Water Pump Inlet & Thermostat Housing
Courtesy of GENERAL MOTORS CORP.

4. Remove the radiator outlet hose.

5. Remove the thermostat housing bolts.

6. Remove the thermostat housing from the water pump.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

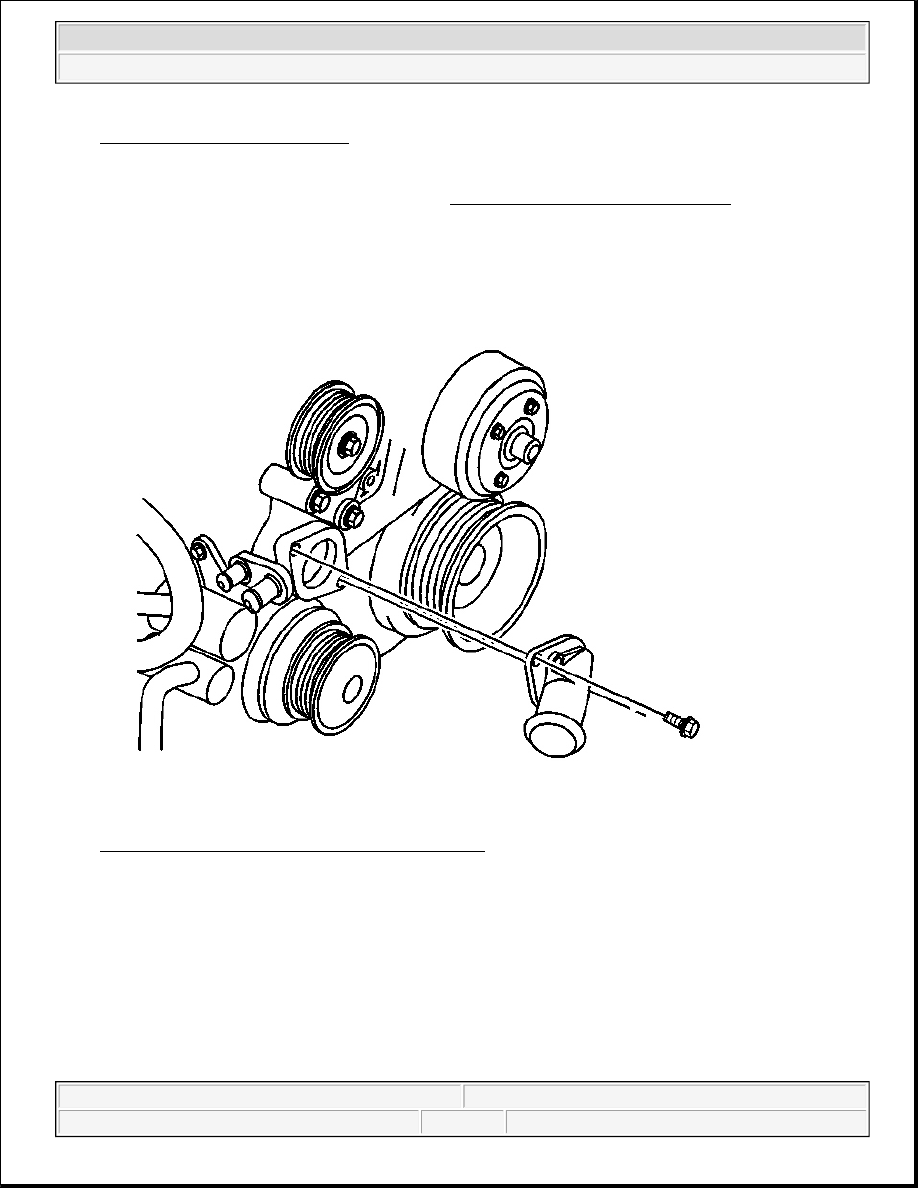

Fig. 60: Water Pump Inlet & Thermostat Housing
Courtesy of GENERAL MOTORS CORP.

1. Install the thermostat housing to the water pump.

2. Install the thermostat housing bolts.

Tighten: Tighten the bolts to 15 N.m (11 lb ft).

3. Install the radiator outlet hose.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
