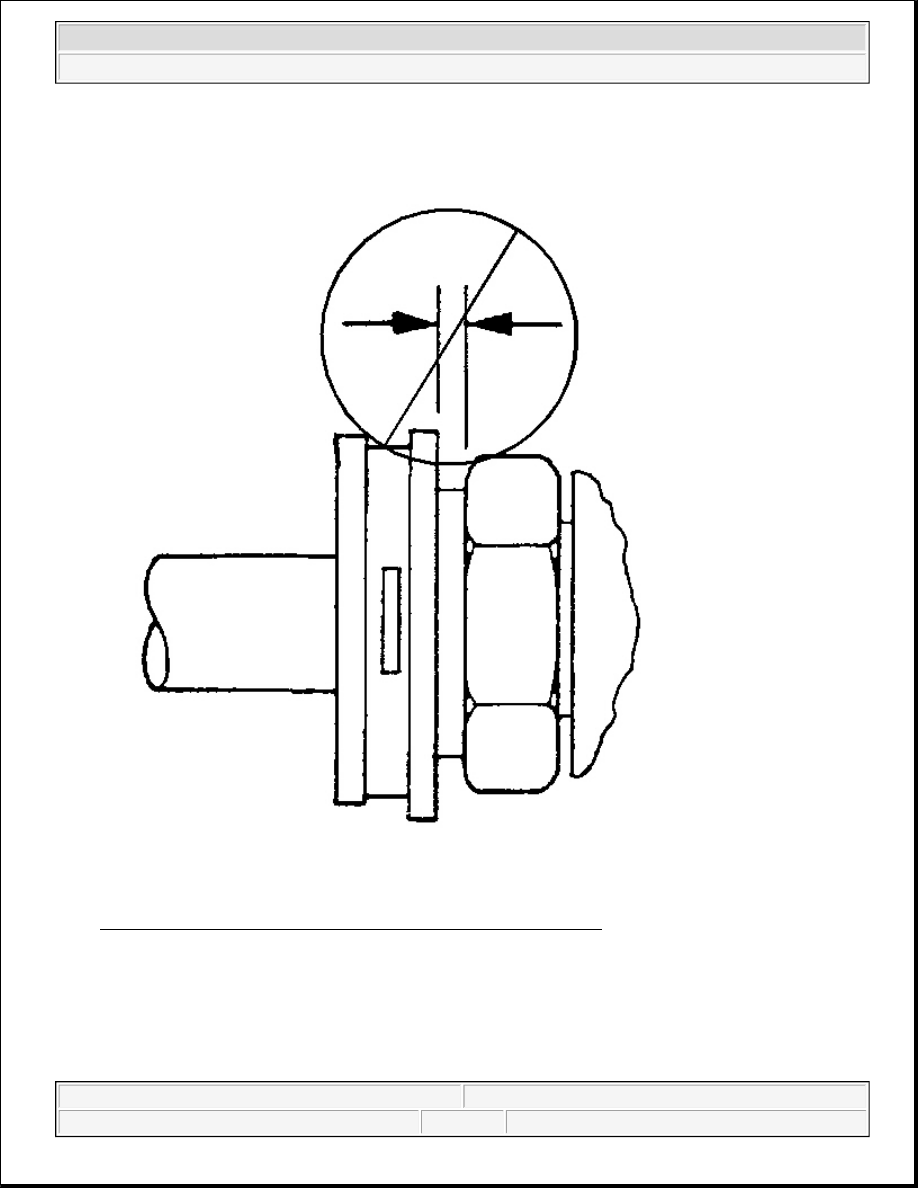

Fig. 41: Ensuring That No Gap Is Present Between Cap & Fitting
Courtesy of GENERAL MOTORS CORP.

8. Ensure that no gap is present between the cap and the fitting.

9. Inspect and fill the engine oil to the proper level.

ENGINE OIL COOLER HOSE/PIPE REPLACEMENT



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Removal Procedure

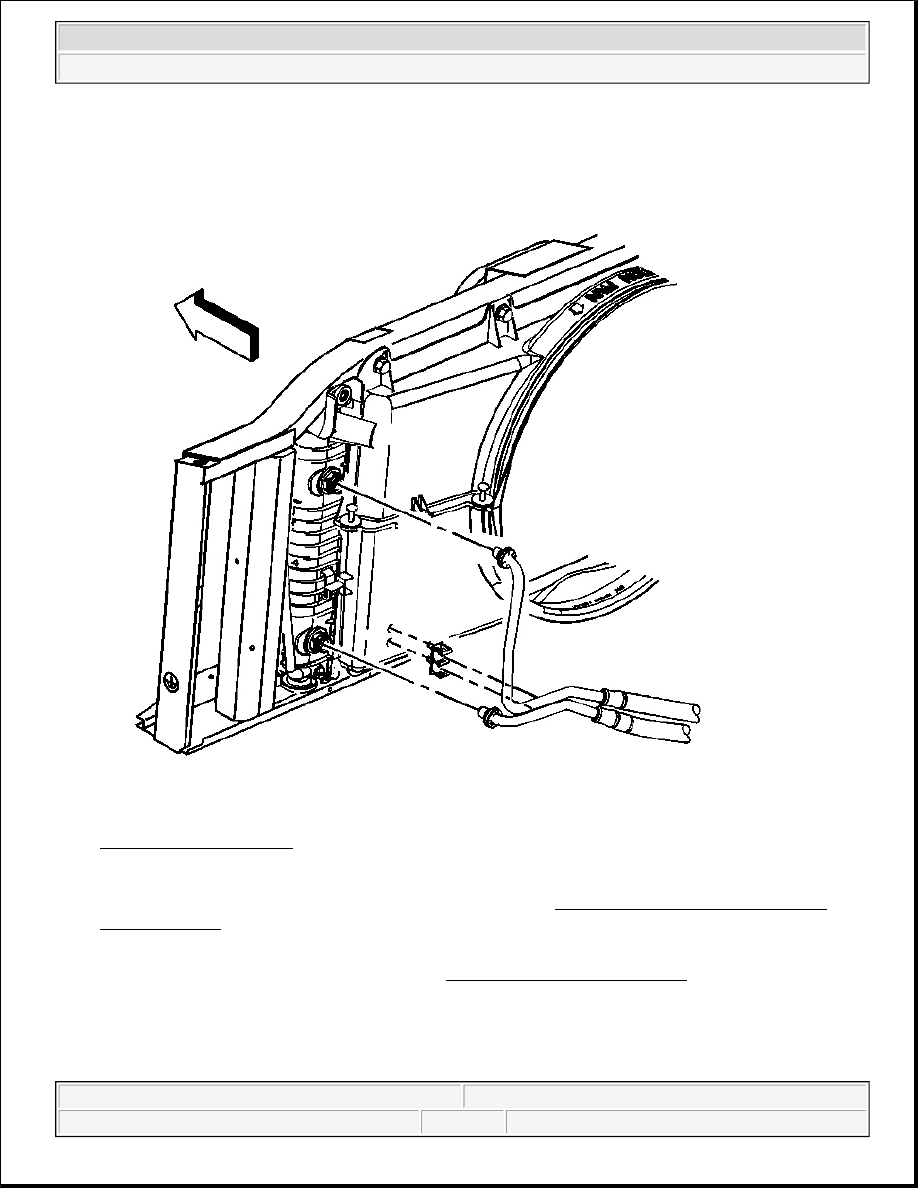

Fig. 42: Oil Cooler Hoses
Courtesy of GENERAL MOTORS CORP.

1. Remove the engine oil cooler hoses from the radiator. Refer to Engine Oil Cooler Pipe/Hose Quick

Connect Fitting .

2. Remove the engine oil cooler hoses from the fan shroud.

3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

4. Remove the engine protection shield bolts.

5. Remove the engine shield.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

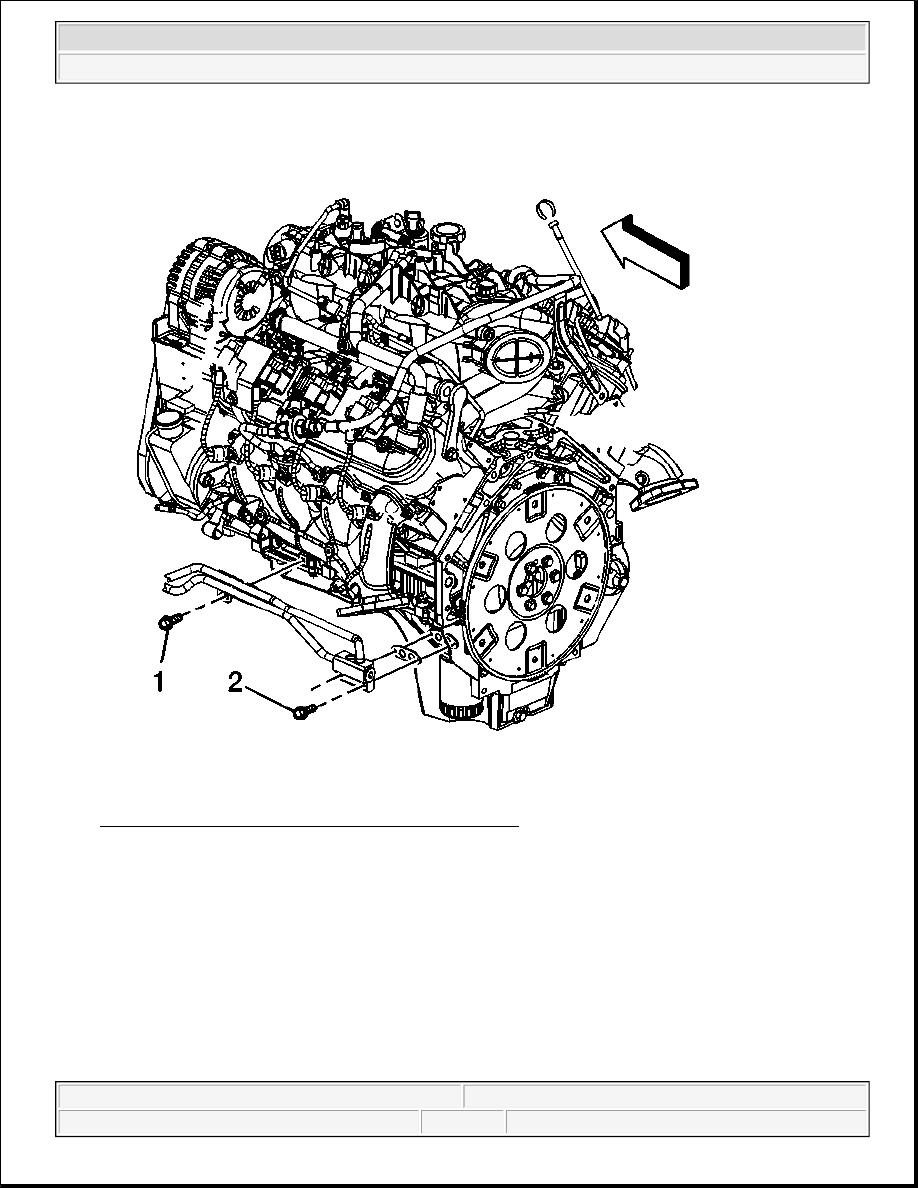

Fig. 43: Oil Cooler Hose Bracket Bolt & Adapter Bolts
Courtesy of GENERAL MOTORS CORP.

6. Remove the engine oil cooler hose bracket bolt (1).

7. Remove the engine oil cooler hose adapter bolts (2).

8. Remove the engine oil cooler hose assembly and gasket.

Discard the gasket.

9. Inspect the fittings, connectors and cooler hoses for damage or distortion.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

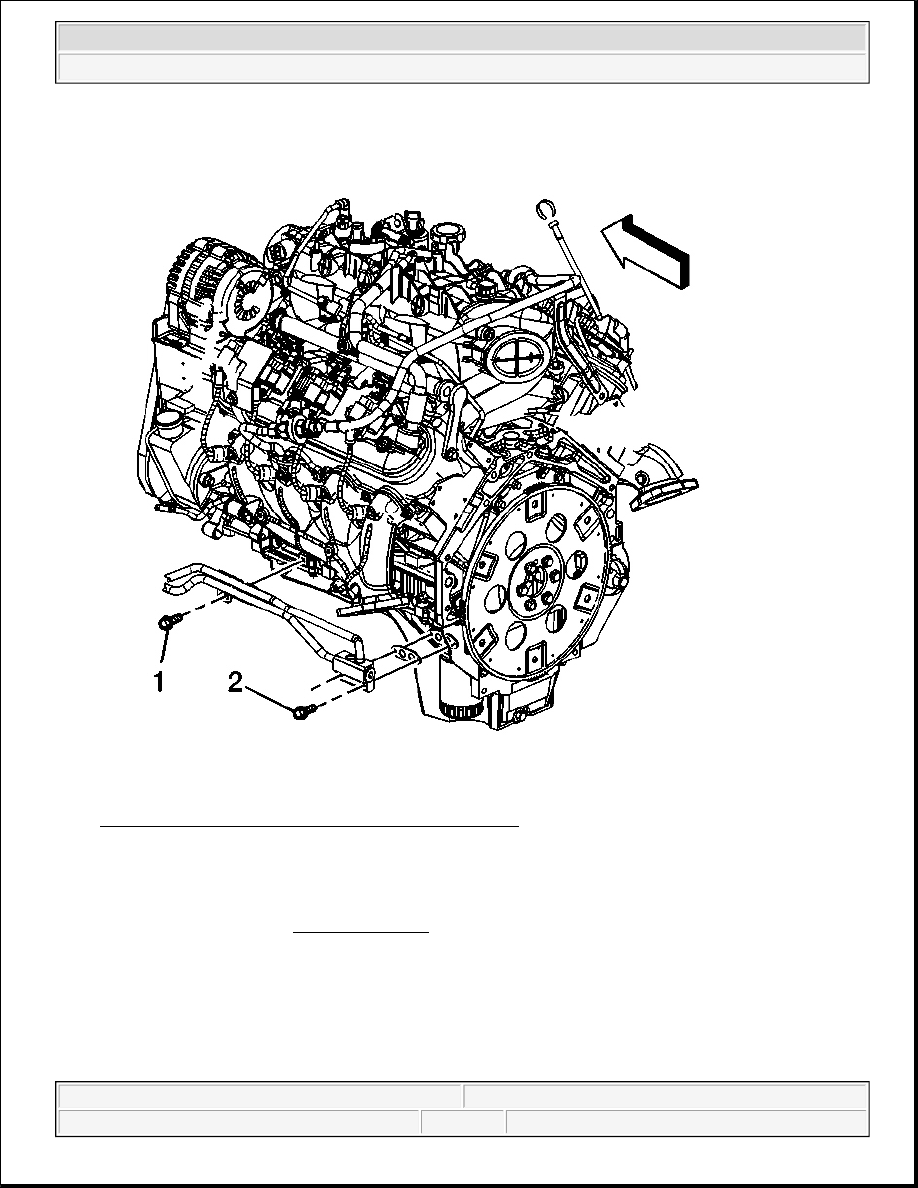

Fig. 44: Oil Cooler Hose Bracket Bolt & Adapter Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the engine oil cooler hose assembly and a new gasket.

2. Install the engine oil cooler hose adapter bolts (2).

Tighten: Tighten the bolts to 12 N.m (106 lb in).

3. Install the engine oil cooler hose bracket bolt (1).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
