1. Install the surge tank (4) to the vehicle (5).

2. If equipped connect the electrical connector to the low coolant level switch.

3. Install the bolt (1) to the surge tank (4).

Tighten: Tighten the bolt to 9 N.m (80 lb in).

4. Install the nut (3) to the surge tank (4).

Tighten: Tighten the nut to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



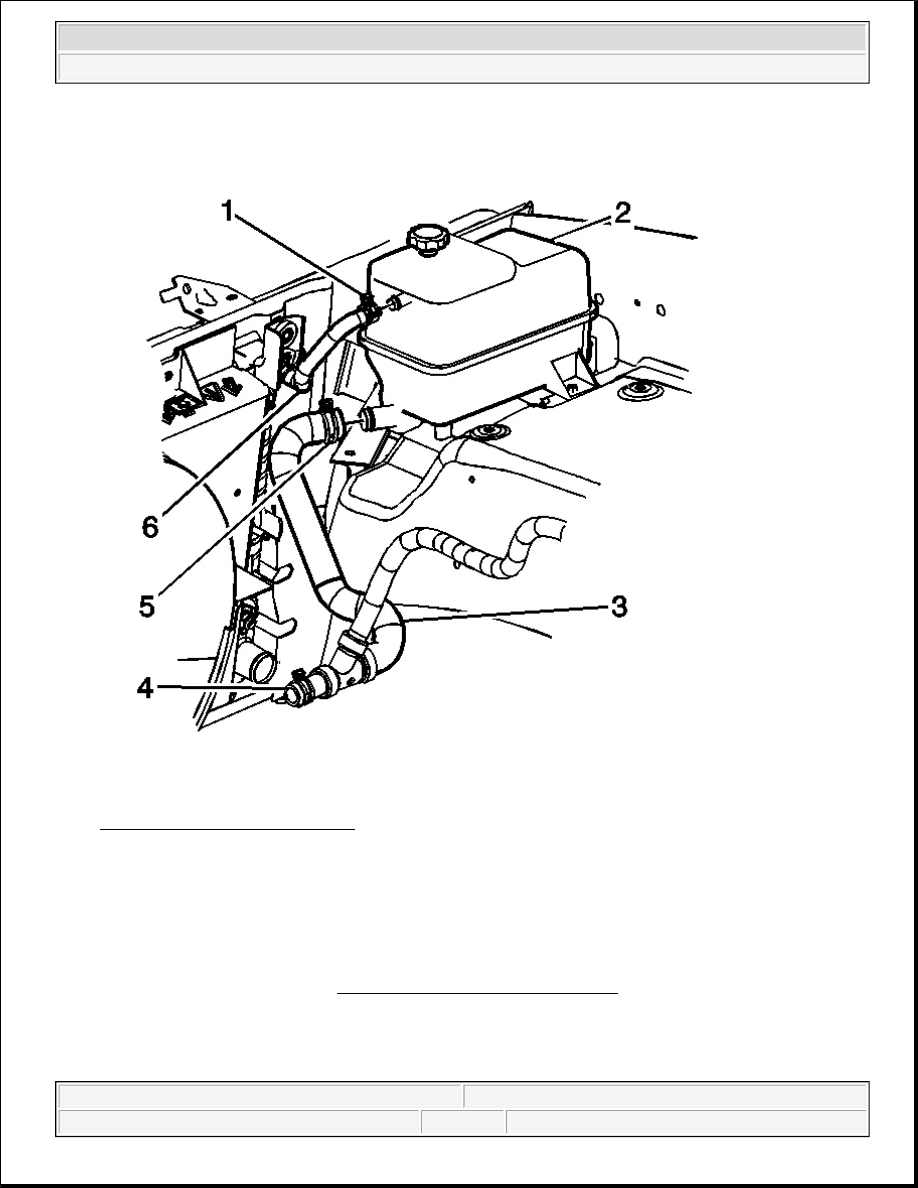

Fig. 10: Surge Tank Components
Courtesy of GENERAL MOTORS CORP.

5. Install the surge tank outlet hose (3) to the surge tank (2).

6. Position the surge tank outlet hose clamp (5) to the surge tank (2).

7. Install the surge tank inlet hose (6) to the surge tank (2).

8. Position the surge tank inlet hose clamp (1) to the surge tank (2).

9. Fill the cooling system. Refer to Draining and Filling Cooling System .

SURGE TANK HOSE/PIPE REPLACEMENT - INLET

Removal Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



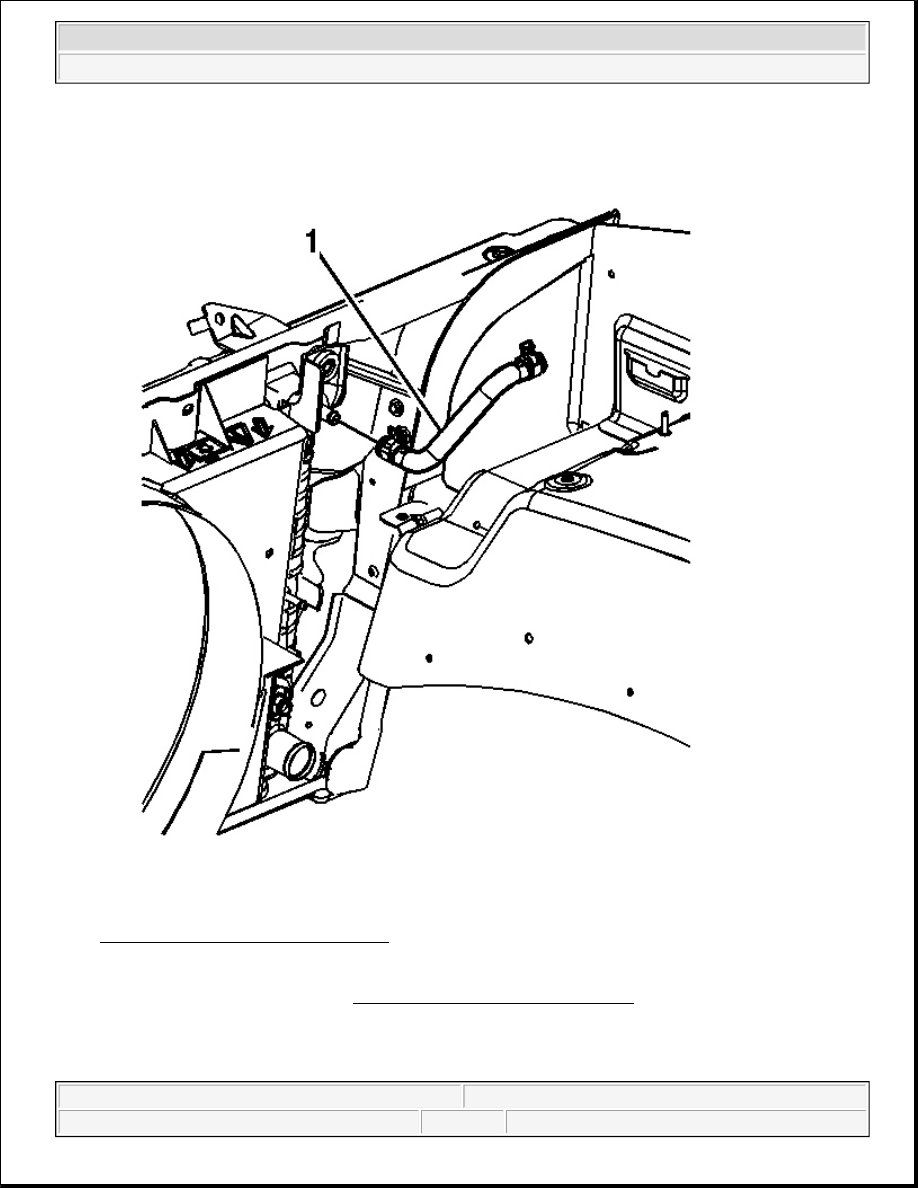

Fig. 11: Surge Tank Hose & Radiator
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system. Refer to Draining and Filling Cooling System .

2. Reposition the surge tank inlet hose clamp from the radiator.

3. Remove the surge tank inlet hose (1) from the radiator.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Fig. 12: Surge Tank Components
Courtesy of GENERAL MOTORS CORP.

4. Reposition the surge tank inlet hose clamp (1) at the surge tank (2).

5. Remove the surge tank inlet hose (6) from the surge tank (2).

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2
