Hummer H2. Manual - part 1310

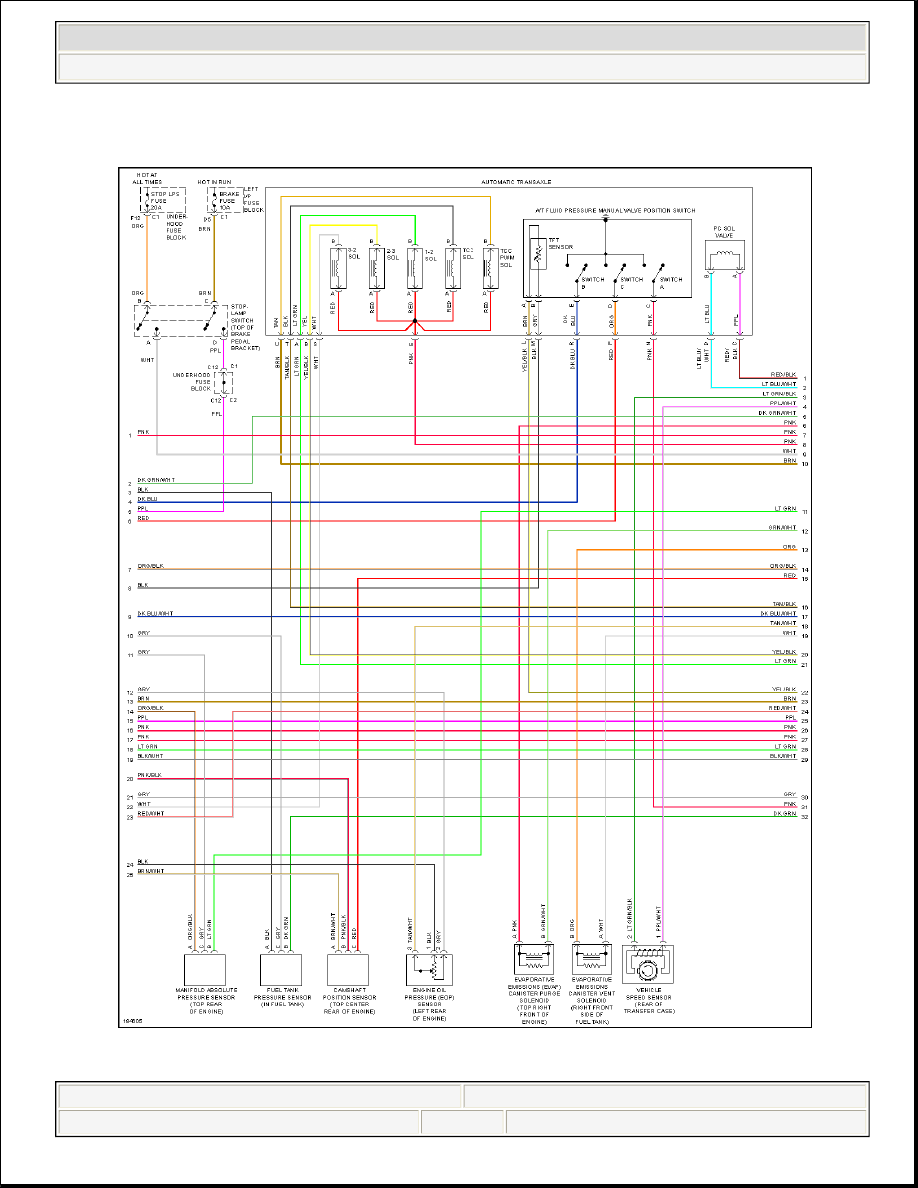

Fig. 14: 6.0L VIN U, Engine Performance Circuit (2 of 5)

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

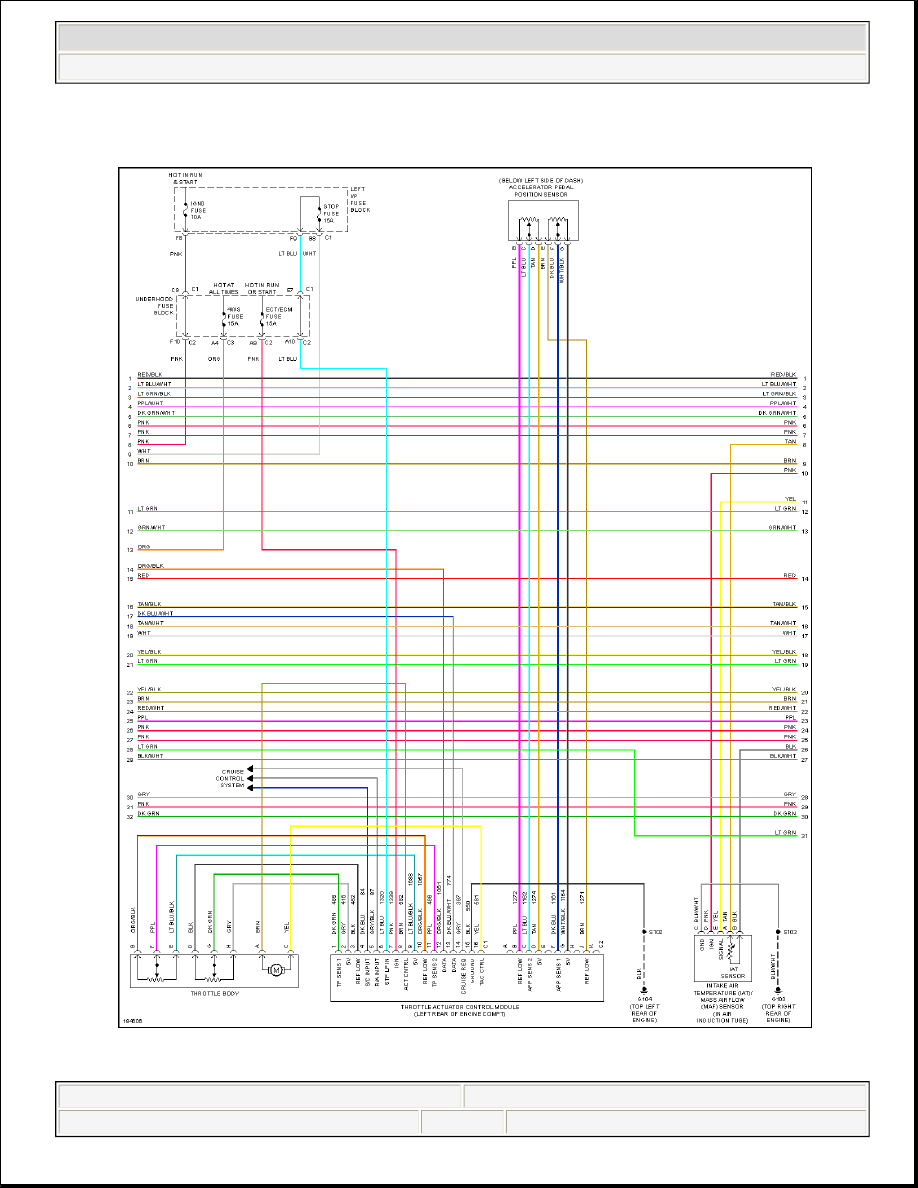

Fig. 15: 6.0L VIN U, Engine Performance Circuit (3 of 5)

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2
