Hummer H2. Manual - part 1218

C210 Terminal Identification Headliner Harness to I/P Harness

Connector

Part

Information

z

12186991

z

2-Way F Metri-Pack 150 Series
(YE)

Connector

Part

Information

z

15358601

z

2-Way M Metri-Pack 280
Series (YE)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

BN

347

Steering Wheel Module -
High Control

A

WH

347

Steering Wheel Module -
High Control

B

BK

348

Steering Wheel Module -
Low Control

B

D-GN

348

Steering Wheel Module -
Low Control

Connector

Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



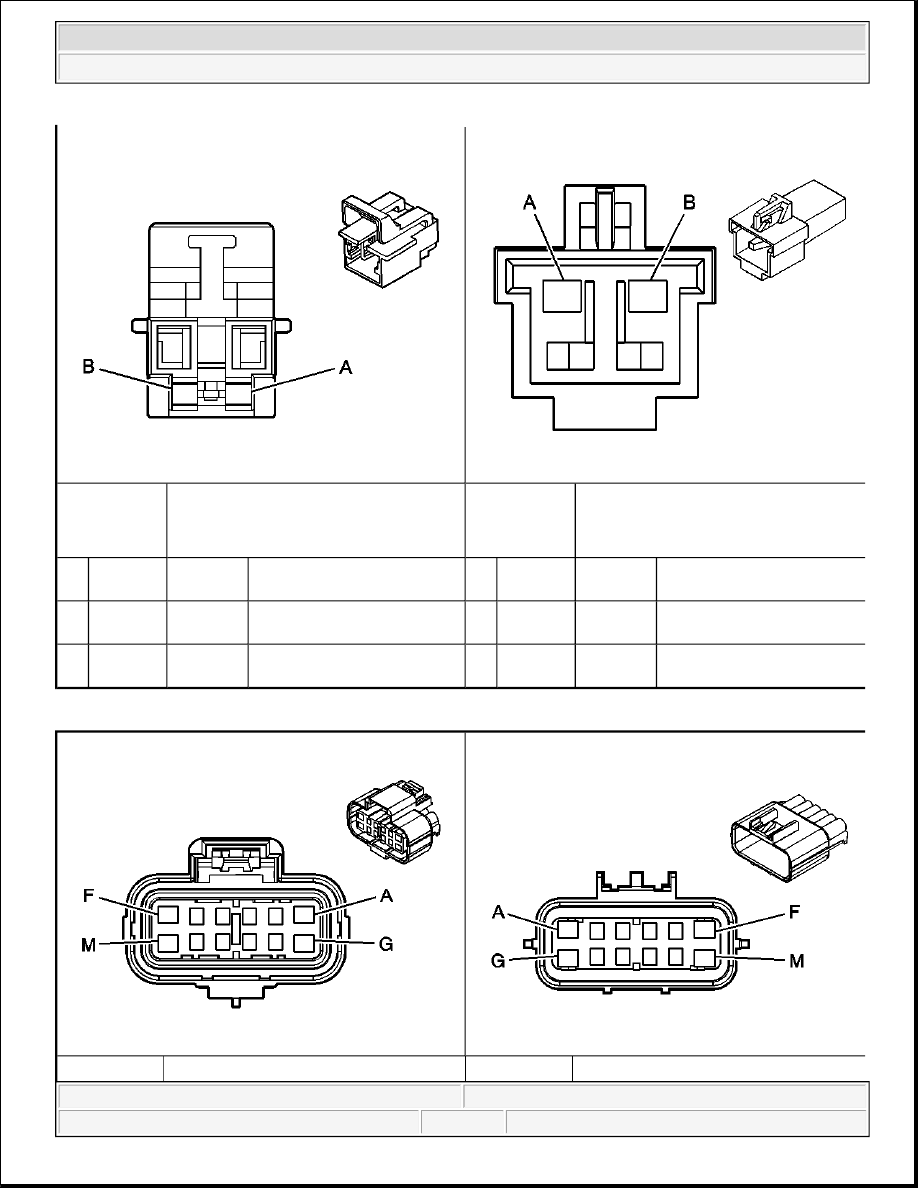

C212 Terminal Identification Upfitter Off-Road Lamps Harness

Part

Information

z

15336205

z

12-Way F GT Mixed (BK)

Part

Information

z

15336209

z

12-Way M GT Mixed (BK)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

OG

3840

Battery Positive Voltage

A

OG

3840

Battery Positive Voltage

B

-

-

Not Used

B

-

-

Not Used

C

D-BU

1353

RAP Supply Voltage

C

D-BU

1353

RAP Supply Voltage

D

GY

655

Cellular Microphone Signal (-
EXP)

D

GY

655

Cellular Microphone Signal (-
EXP)

E

BARE

514

Ground (-EXP)

E

BARE

514

Ground (-EXP)

F

BK

1050

Ground

F

BK

1050

Ground

G

-

-

Not Used

G

-

-

Not Used

H

D-GN

1488

Noise Reduction Microphone
Signal w/ Class 2 Amplifier

H

D-GN

1488

Noise Reduction Microphone
Signal w/ Class 2 Amplifier

J

L-

GN/BK

1354

Noise Reduction Microphone
Supply Voltage w/ Class 2
Amplifier

J

L-

GN/BK

1354

Noise Reduction Microphone
Supply Voltage w/ Class 2
Amplifier

K-

M

-

-

Not Used

K-

M

-

-

Not Used

Connector

Part

Information

z

12147503

z

2-Way F Metri-Pack 480 Series
Sealed (BK)

Connector

Part

Information

z

12147517

z

2-Way M Metri-Pack 280 Series
Sealed (BK)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



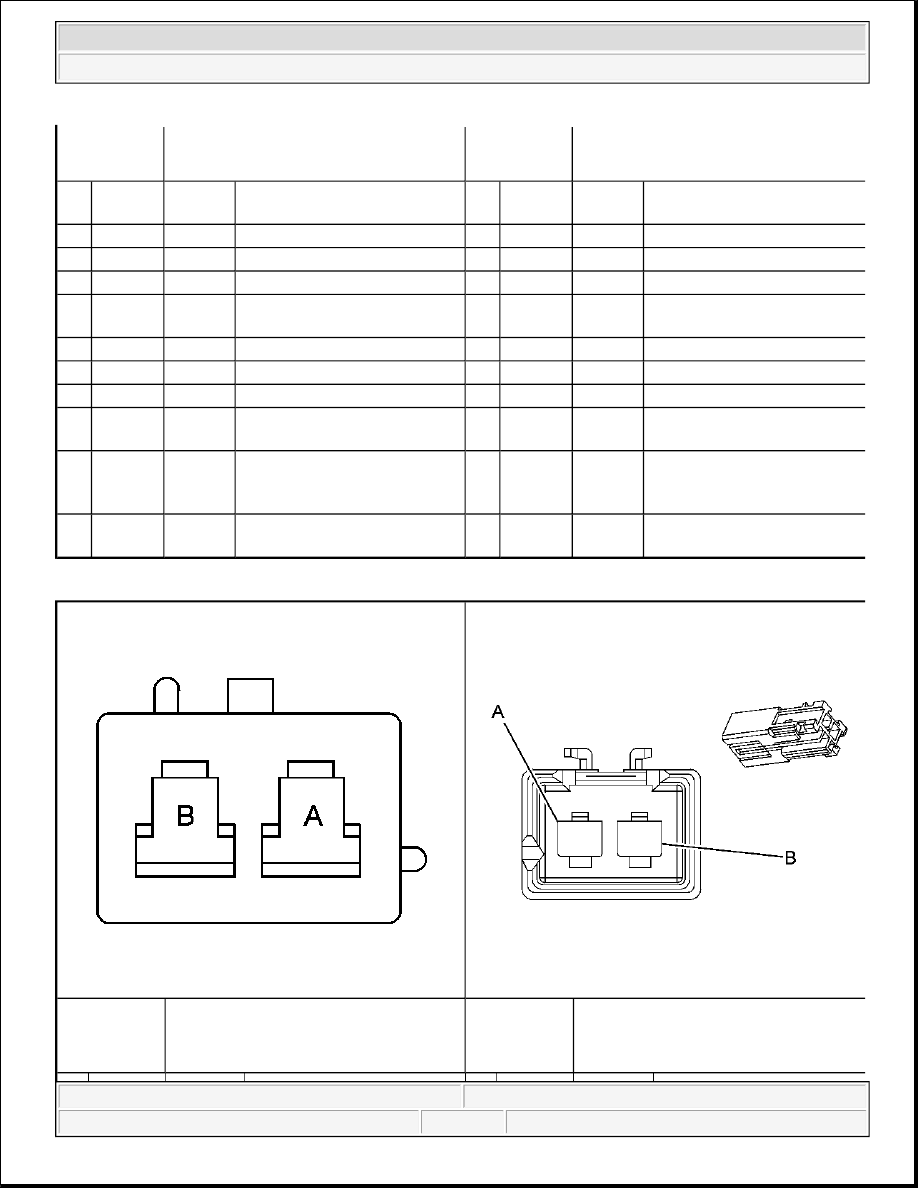

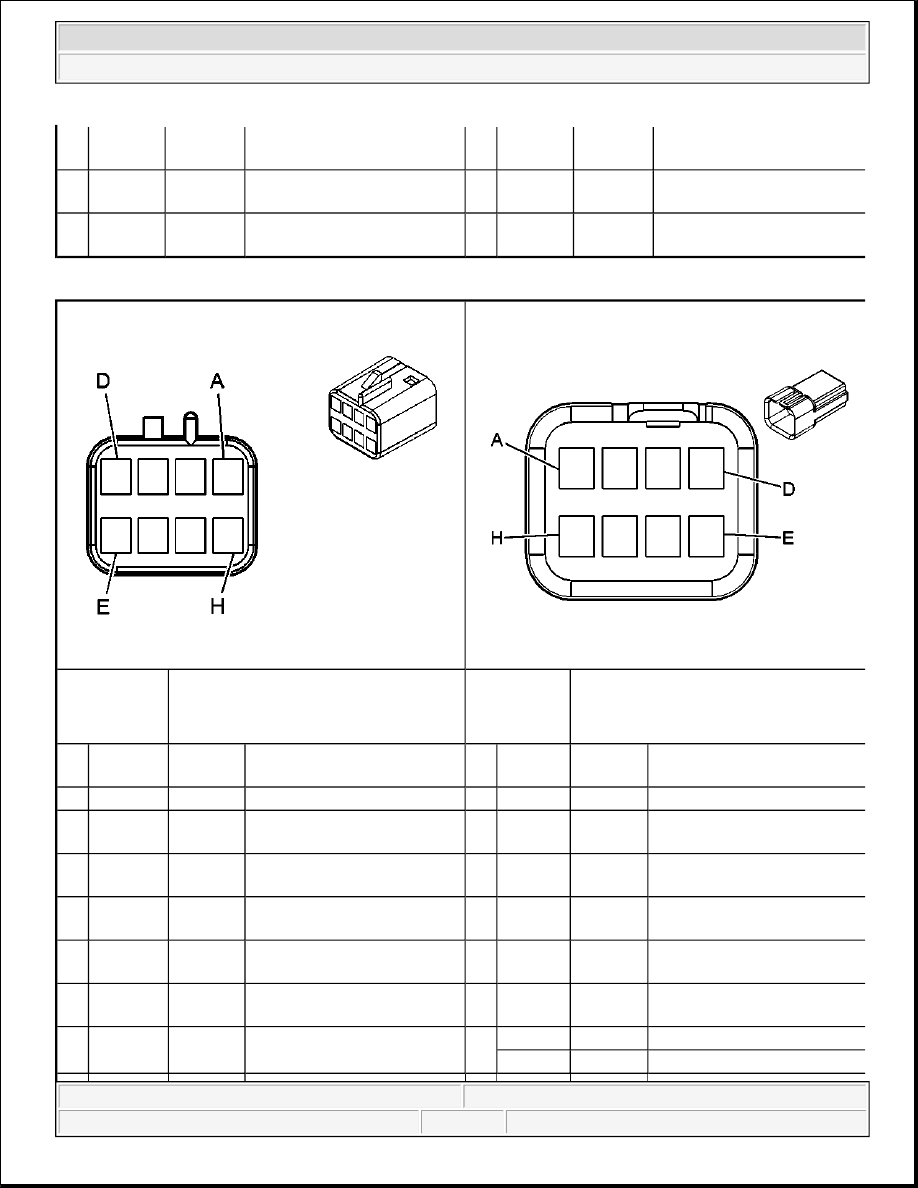

C277 Terminal Identification Steering Column Harness to Steering Wheel Harness

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

PU

34

Roof Off - Road Lamps
Supply Voltage 2

A

PU

34

Roof Off - Road Lamps
Supply Voltage 2

B

RD

122

Roof Off - Road Lamps
Supply Voltage 1

B

RD

122

Roof Off - Road Lamps
Supply Voltage 1

Connector

Part

Information

z

12047886

z

8-Way F Metri-Pack 150 Series
(BK)

Connector

Part

Information

z

12045688

z

8-Way M Metri-Pack 150 Series
(BK)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

YE

1327

DIC Fuel Signal

A

YE

1327

DIC Fuel Signal

B

D-BU

894

DIC Toggle Switch Signal
(Trip)

B

D-BU

894

DIC Toggle Switch Signal
(Trip)

C

PU

1358

DIC Switch Signal
(Personalization)

C

D-GN

1358

DIC Switch Signal
(Personalization)

D

OG/BK

1816

DIC Set/Reset Switch Signal
(Select)

D

OG

1816

DIC Set/Reset Switch Signal
(Select)

E

PK

1796

Steering Wheel Controls
Supply Voltage

E

WH

1796

Steering Wheel Controls
Supply Voltage

F

BN/WH

230

Steering Wheel Lamps
Dimming Control

F

BN

230

Steering Wheel Lamps
Dimming Control

G

L-GN

1011

Remote Radio Control
Signal

G

L-GN

1011

Remote Radio Control Signal

L-GN

1011

Remote Radio Control Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



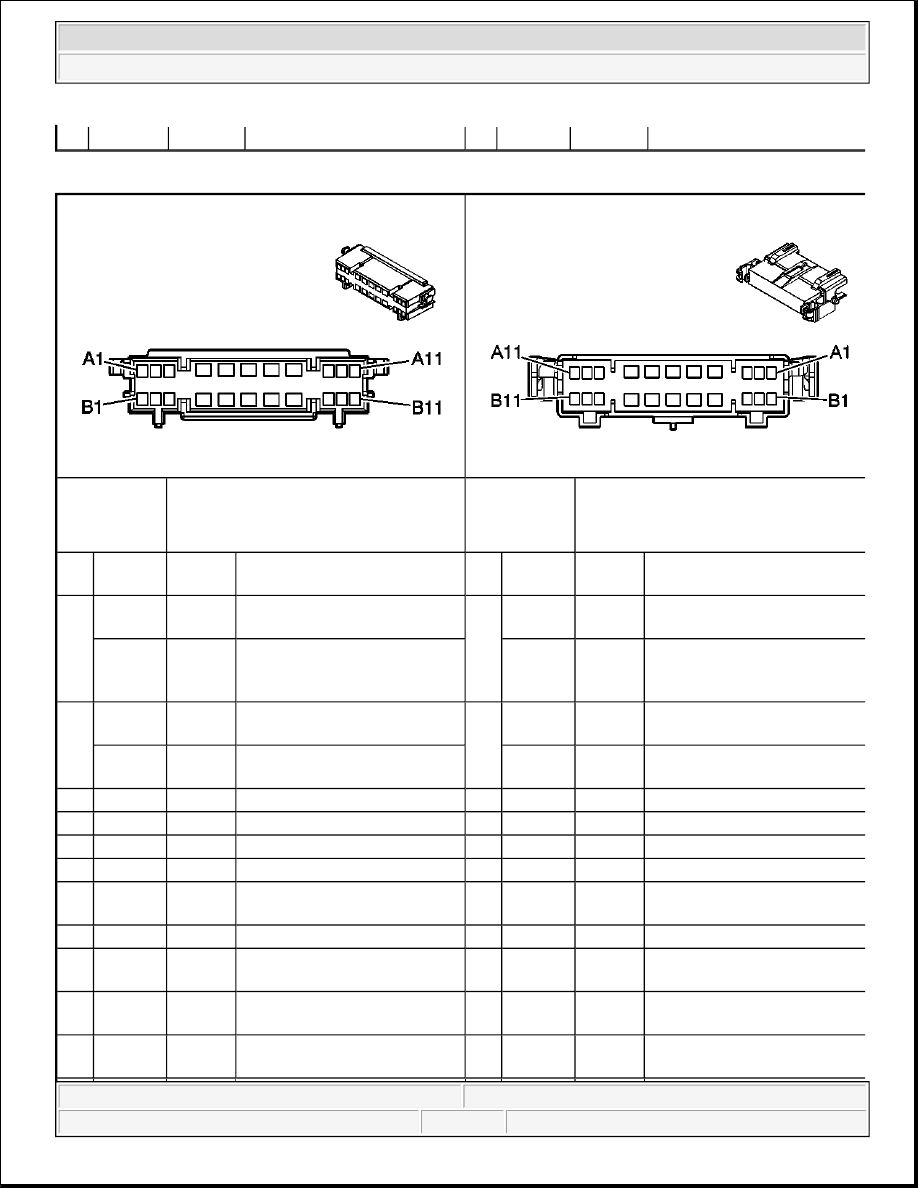

C298 Terminal Identification Body Harness to I/P Harness

H

BK

1851

Ground

H

BK

1851

Ground

Connector

Part

Information

z

15317325

z

22-Way F GT 150 280 (LT GY)

Connector

Part

Information

z

15317322

z

22-Way M GT 150 280 (LT
GY)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A1

GY/BK

2334

Radio Mute Signal-w/o Class
2 Amplifier

A1

GY/BK

2334

Radio Mute Signal-w/o Class
2 Amplifier

L-

GN/BK

1354

Noise Reduction Microphone
Supply Voltage-w/Class 2
Amplifier

L-

GN/BK

1354

Noise Reduction Microphone
Supply Voltage-w/Class 2
Amplifier

A2

PU

493

Rear Seat Audio Enable
Signal-w/o Class 2 Amplifier

A2

PU

493

Rear Seat Audio Enable
Signal-w/o Class 2 Amplifier

D-GN

1488

Noise Reduction Microphone
Signal-w/Class 2 Amplifier

D-GN

1488

Noise Reduction Microphone
Signal-w/Class 2 Amplifier

A3

TN

201

Left Front Speaker Output (+) A3

TN

201

Left Front Speaker Output (+)

A4 BK/WH

1851

Ground

A4 BK/WH

1851

Ground

A5

-

-

Not Used

A5

-

-

Not Used

A6

OG

3040

Battery Positive Voltage

A6

OG

3040

Battery Positive Voltage

A7

WH

1304

Liftgate Door Lock Relay
Control

A7

WH

1304

Liftgate Door Lock Relay
Control

A8

OG

3740

Battery Positive Voltage

A8

OG

3740

Battery Positive Voltage

A9

L-GN

200

Right Front Speaker Output
(+)

A9

L-GN

200

Right Front Speaker Output
(+)

A10

TN

511

Left Front Low Level Audio
Signal (+)

A10

TN

511

Left Front Low Level Audio
Signal (+)

A11

D-GN

1947

Left Front Low Level Audio
Signal (-)

A11

D-GN

1947

Left Front Low Level Audio
Signal (-)
