Hummer H2. Manual - part 1213

GM P/N 12303040

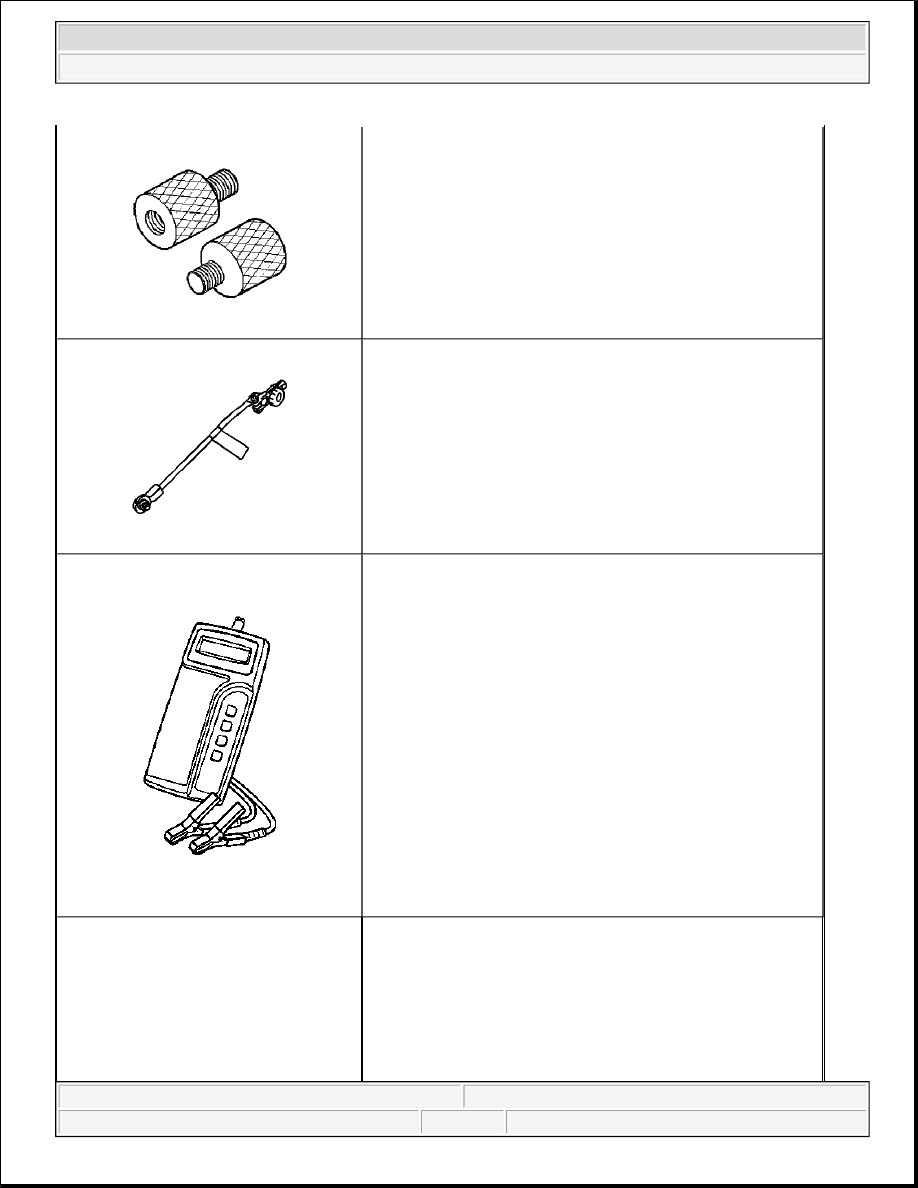

Battery Side Terminal Adapters

J 38758

Parasitic Draw Test Switch

J 42000

Battery Tester

J 42634

Battery Module Charger (HP2)



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



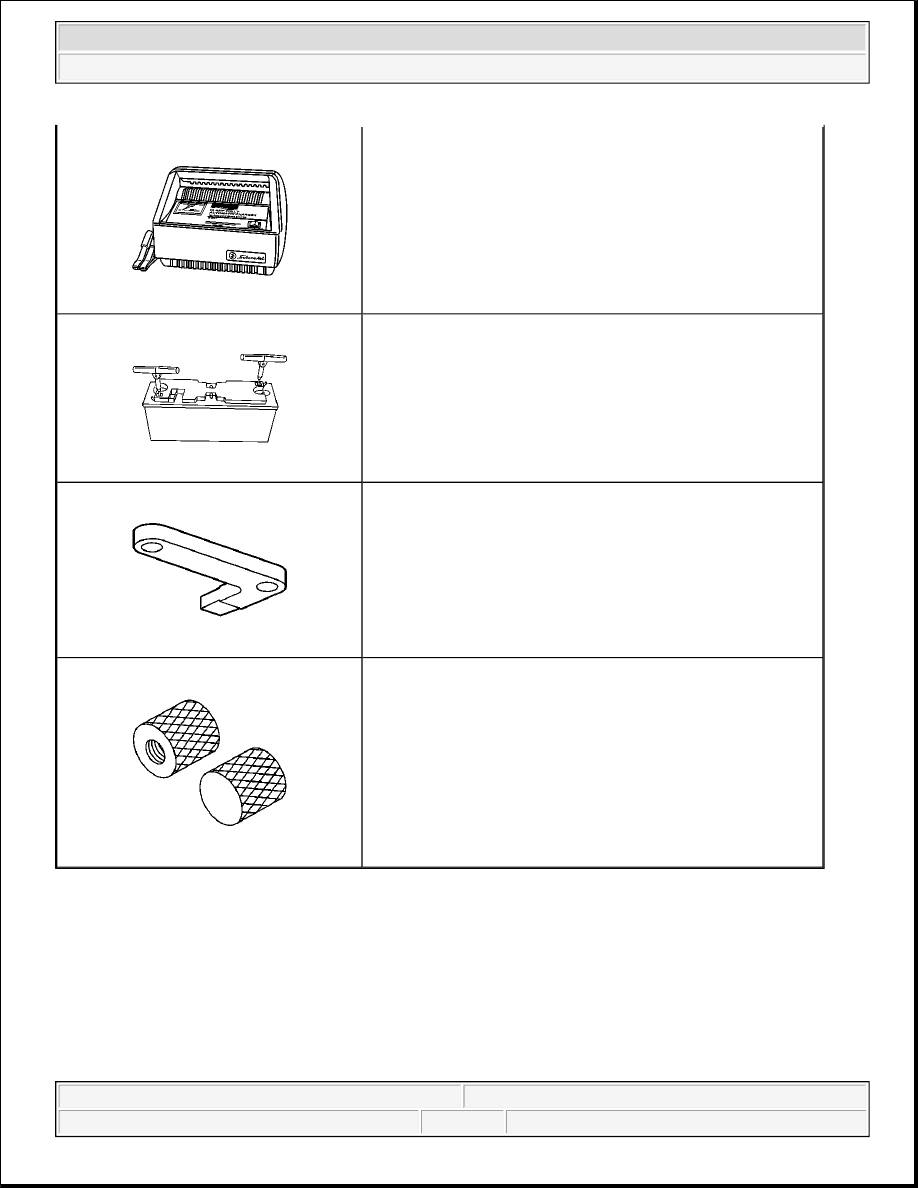

J 43679

Panasonic Battery Removal Tool (HP2)

J 46093

Rotor and Flexplate Holding Tool (HP2)

Panasonic Battery Test Terminals (HP2)



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



2004 ACCESSORIES & EQUIPMENT

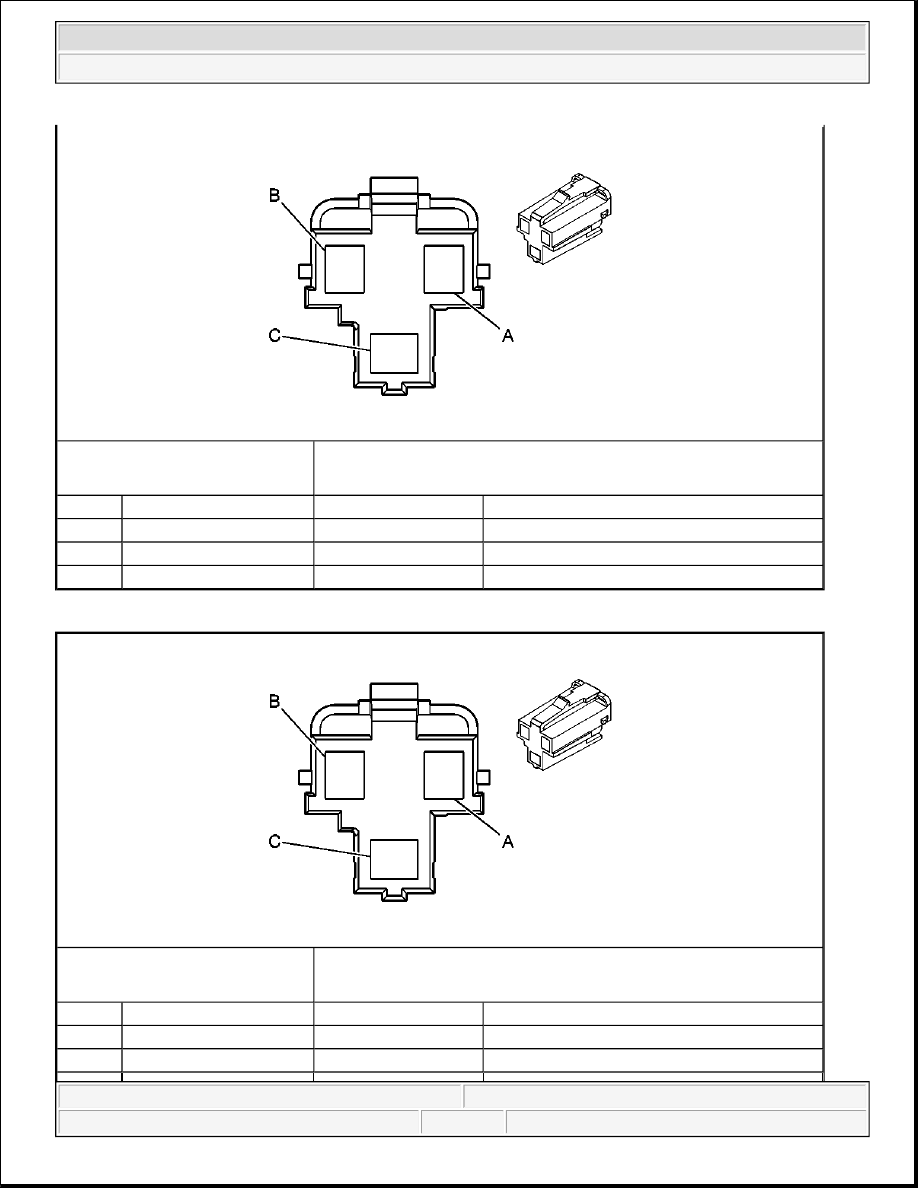

Wiring Systems (Connector End Views) - Hummer H2

CONNECTOR END VIEWS

POWER AND GROUNDING CONNECTOR END VIEWS

Accessory Power Outlet Terminal Identification - Console

Accessory Power Outlet Terminal Identification - Left

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1040

Battery Positive Voltage

B

-

-

Not Used

C

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



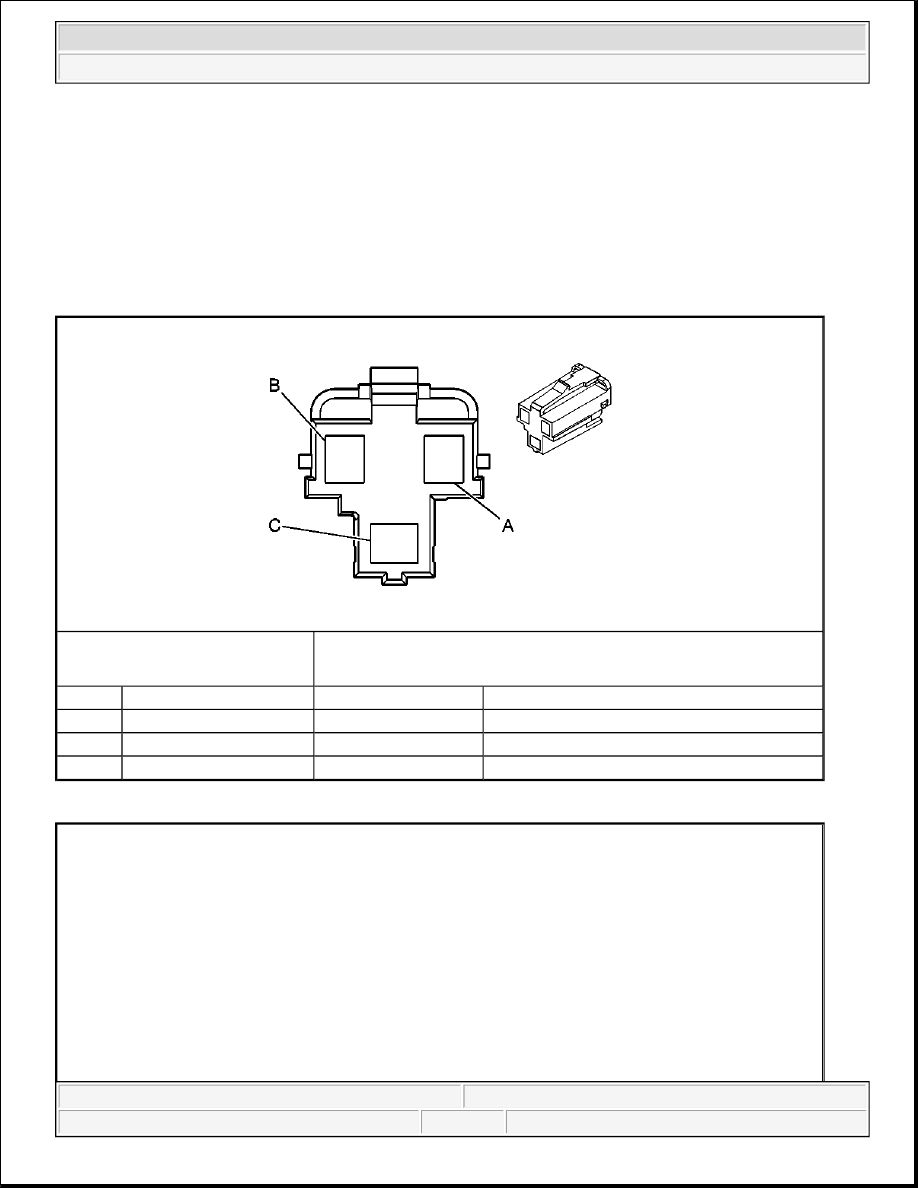

Accessory Power Outlet Terminal Identification - Rear

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

3040

Battery Positive Voltage

B

-

-

Not Used

C

BK

1050

Ground

Connector Part Information

z

12176446

z

3-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

3040

Battery Positive Voltage

B

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2
