5. Remove the positive battery cable bolt at the UBEC.

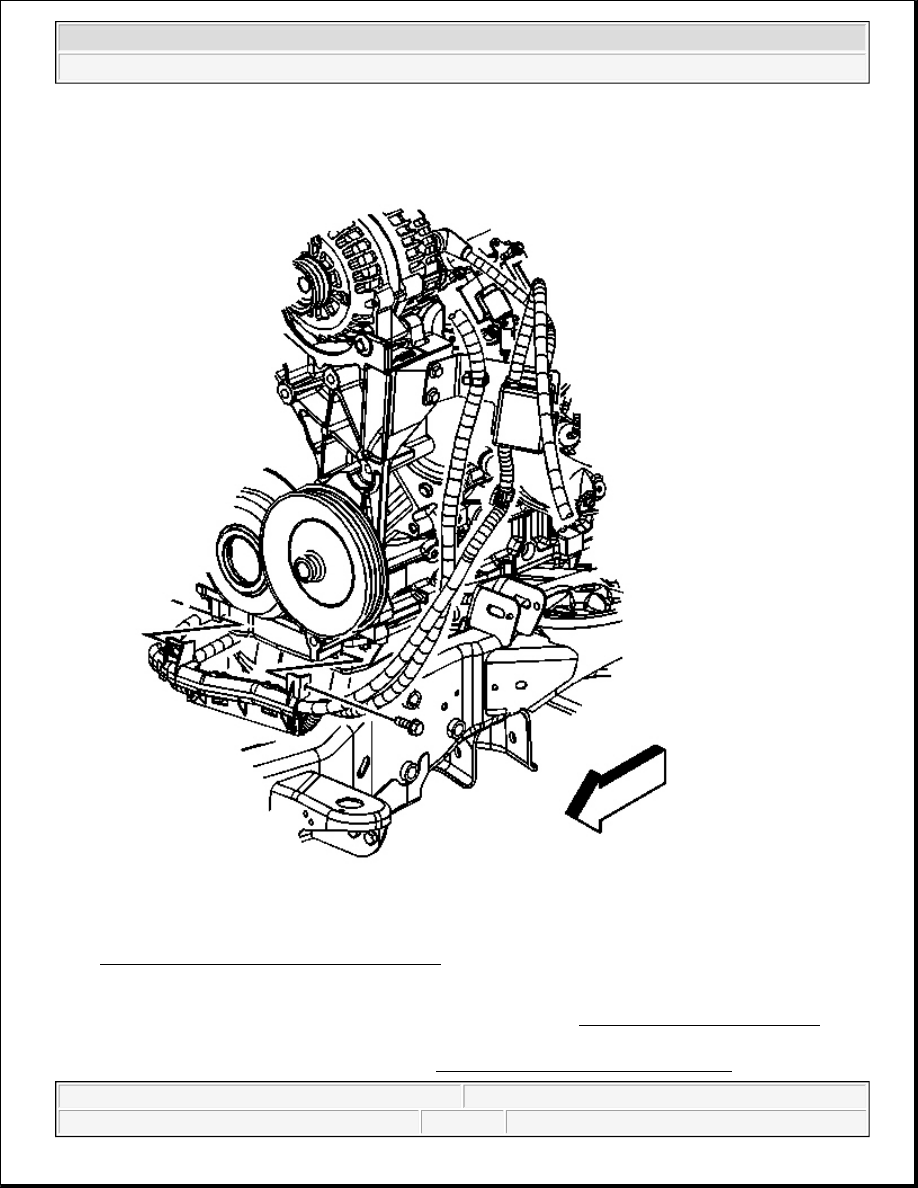

Fig. 15: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

6. Unsnap the junction block cover.

7. Remove the positive battery cable (1) from the junction block.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 16: Positive Battery Cable Channel Bolt
Courtesy of GENERAL MOTORS CORP.

8. Raise and suitably support the vehicle with safety stands. Refer to Lifting and Jacking the Vehicle in

General Information.

9. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Underbody.

10. Remove the positive battery cable channel bolt.

11. Slide the channel pin out of the oil pan tab.

12. Remove the positive battery cable from the channel.

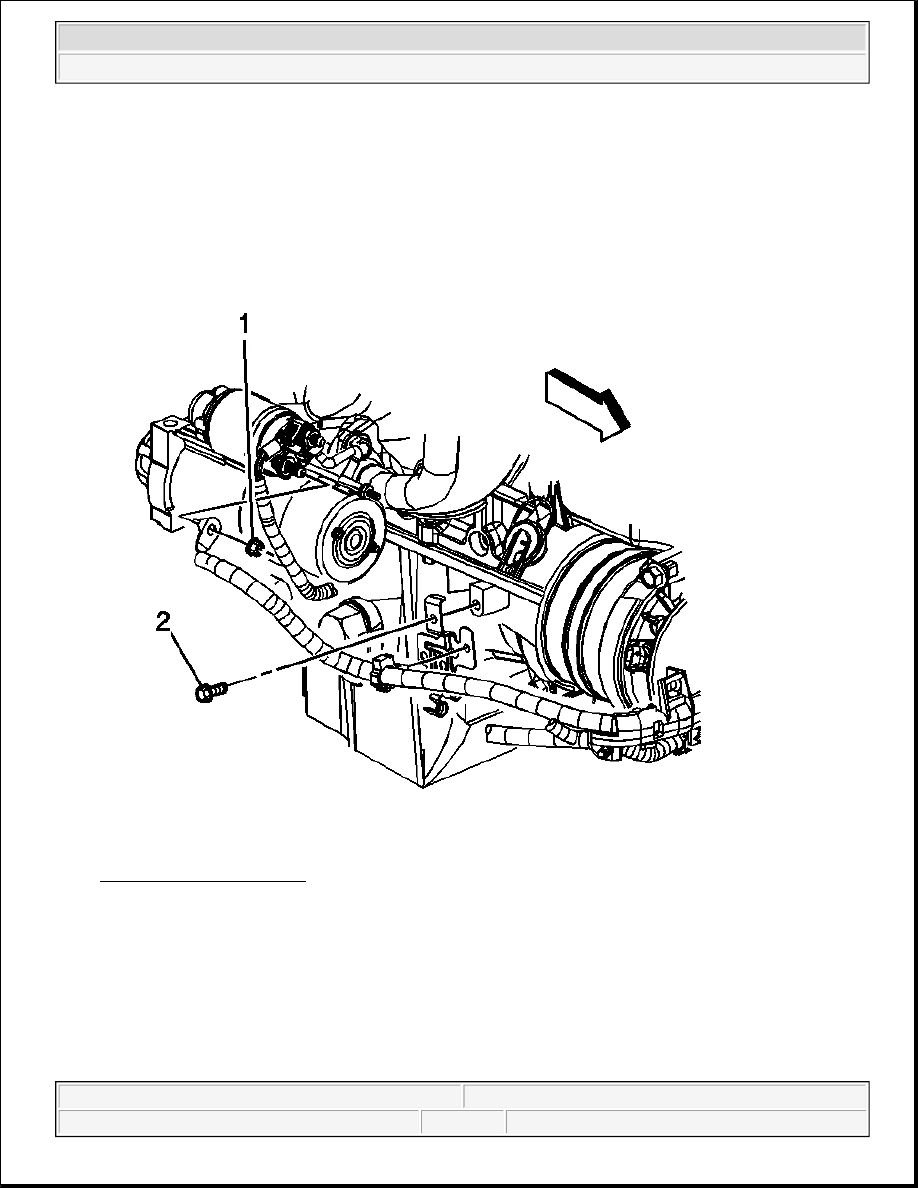

Fig. 17: Positive Cable Nut
Courtesy of GENERAL MOTORS CORP.

13. Remove the positive cable nut (1).

14. Remove the positive cable from the starter.

15. Remove the positive cable clip from the clip on the oil pan.

16. Remove the positive cable from the clip on the oil pan.

17. Remove the positive battery cable.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

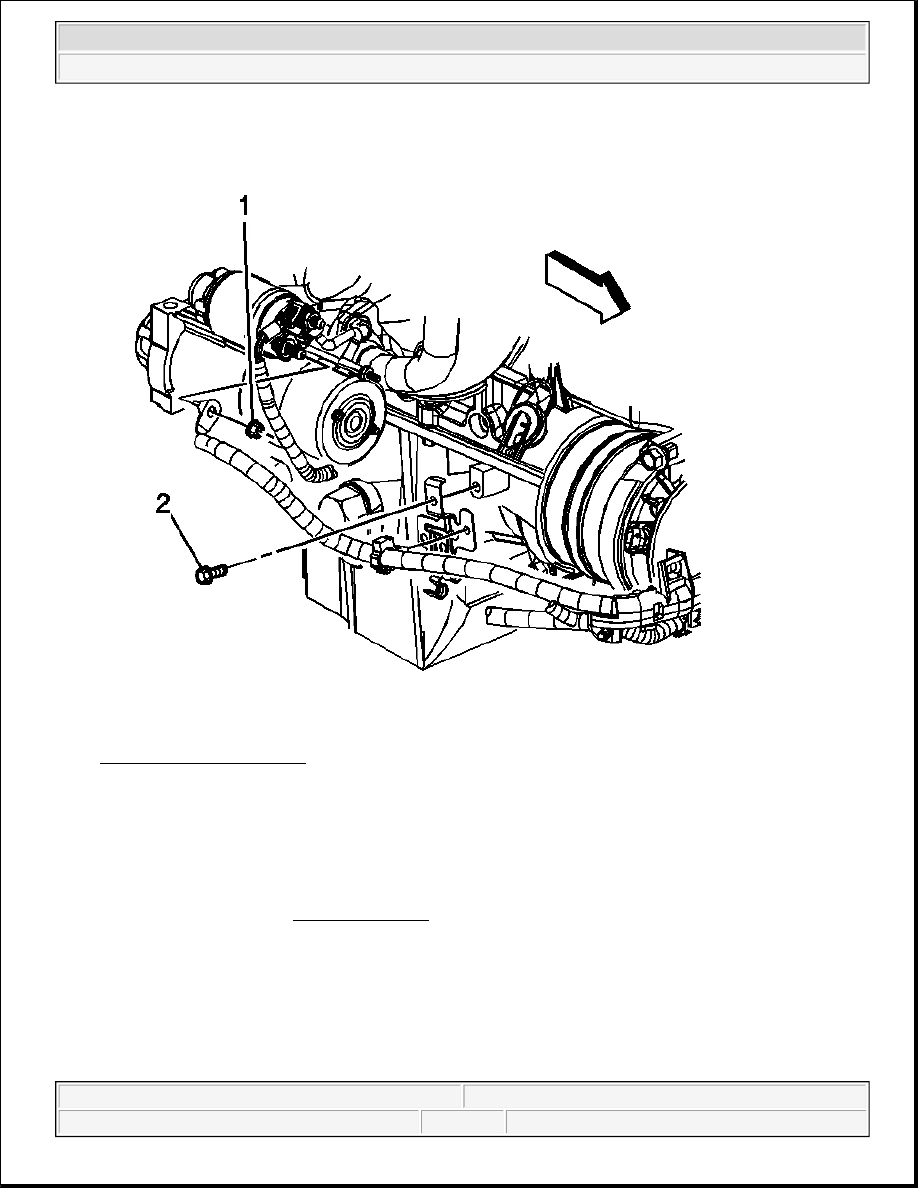

Fig. 18: Positive Cable Nut
Courtesy of GENERAL MOTORS CORP.

1. Install the positive battery cable.

2. Install the positive cable to the clip on the oil pan.

3. Install the positive cable to the starter.

4. Install the positive cable nut (1).

Tighten: Tighten the nut to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
