Removal Procedure

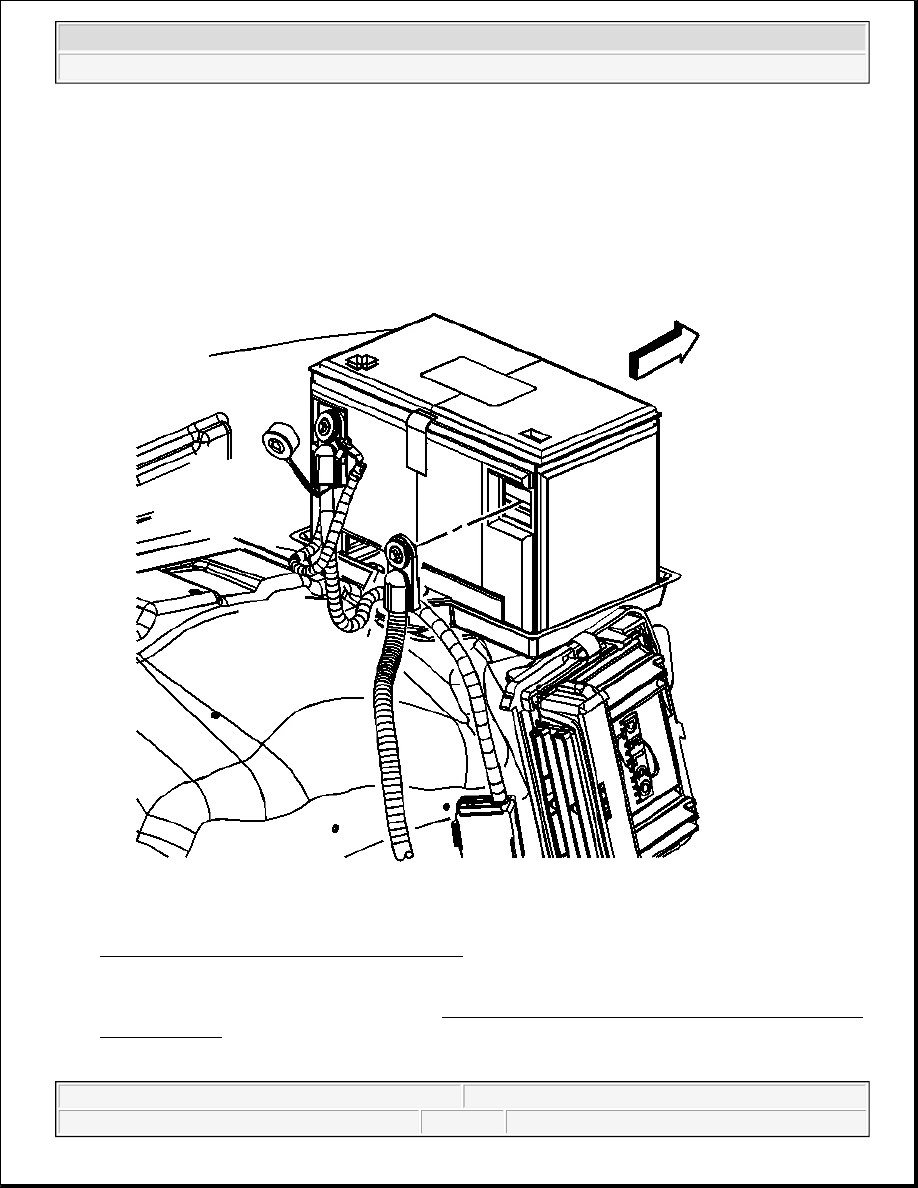

Fig. 23: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

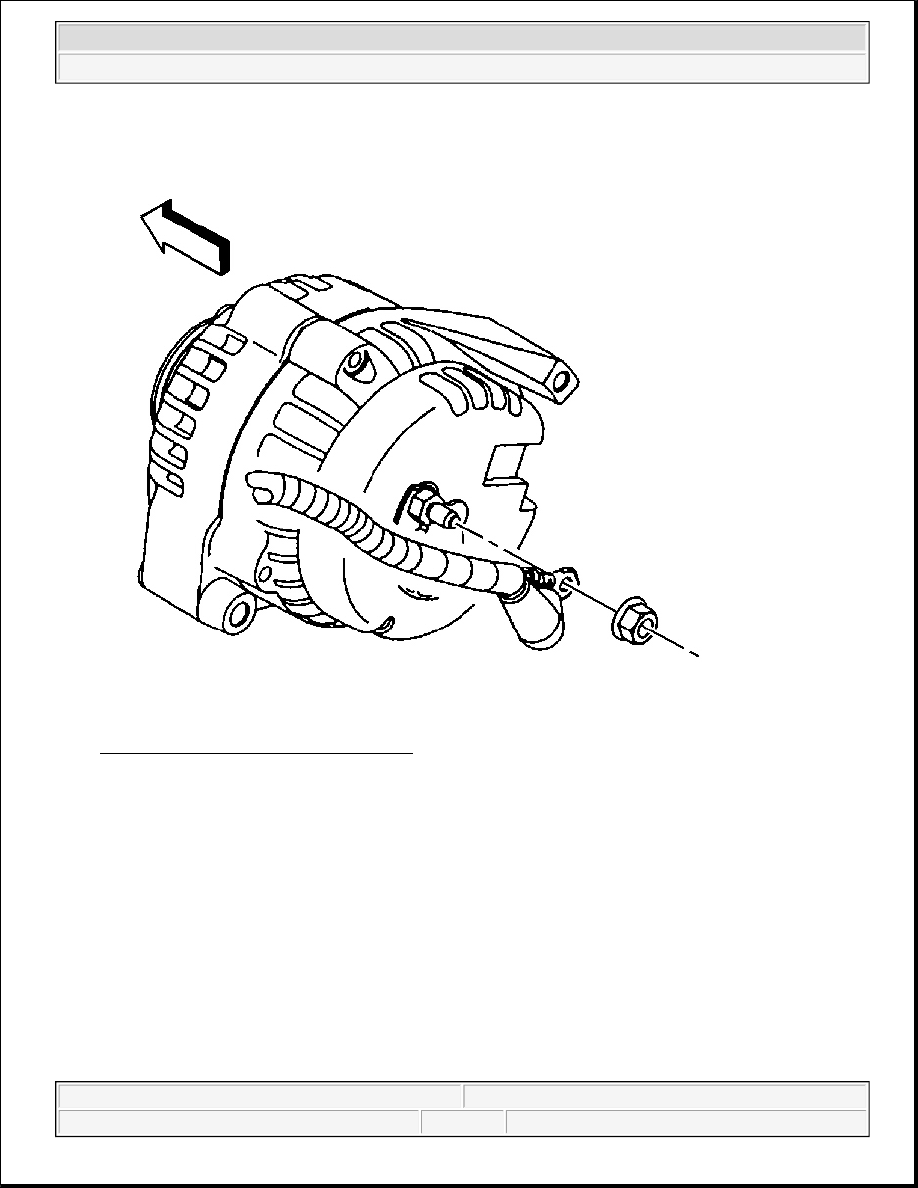

Fig. 24: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

2. Remove the generator cable from the generator, perform the following:

1. Reposition the boot to expose the stud.

2. Remove the generator cable nut.

3. Remove the generator cable from the stud.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

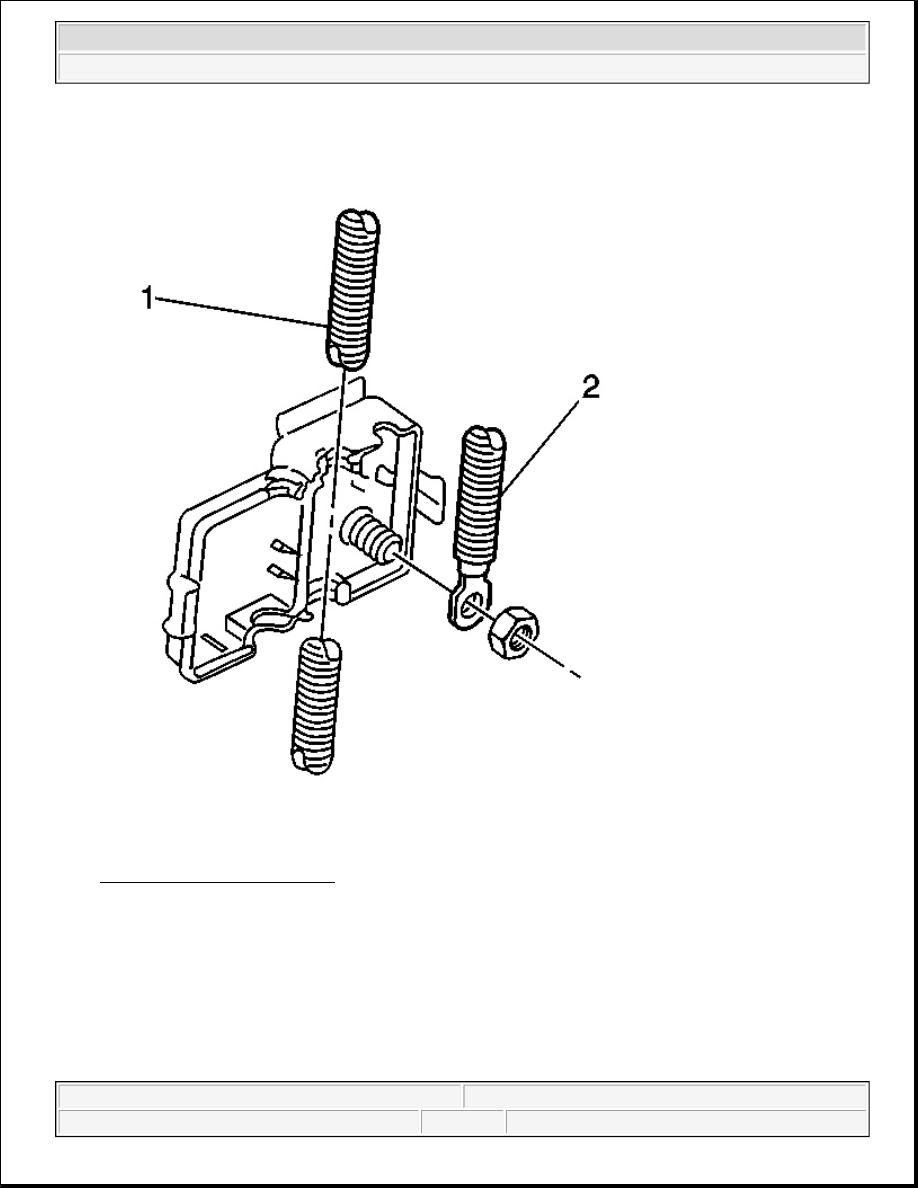

Fig. 25: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

3. Open the positive cable junction block.

4. Remove the generator cable nut.

5. Remove the generator cable (2) from the junction block.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 26: Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the generator cable (2) to the junction block.

2. Install the generator cable nut.

Tighten: Tighten the nut to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
