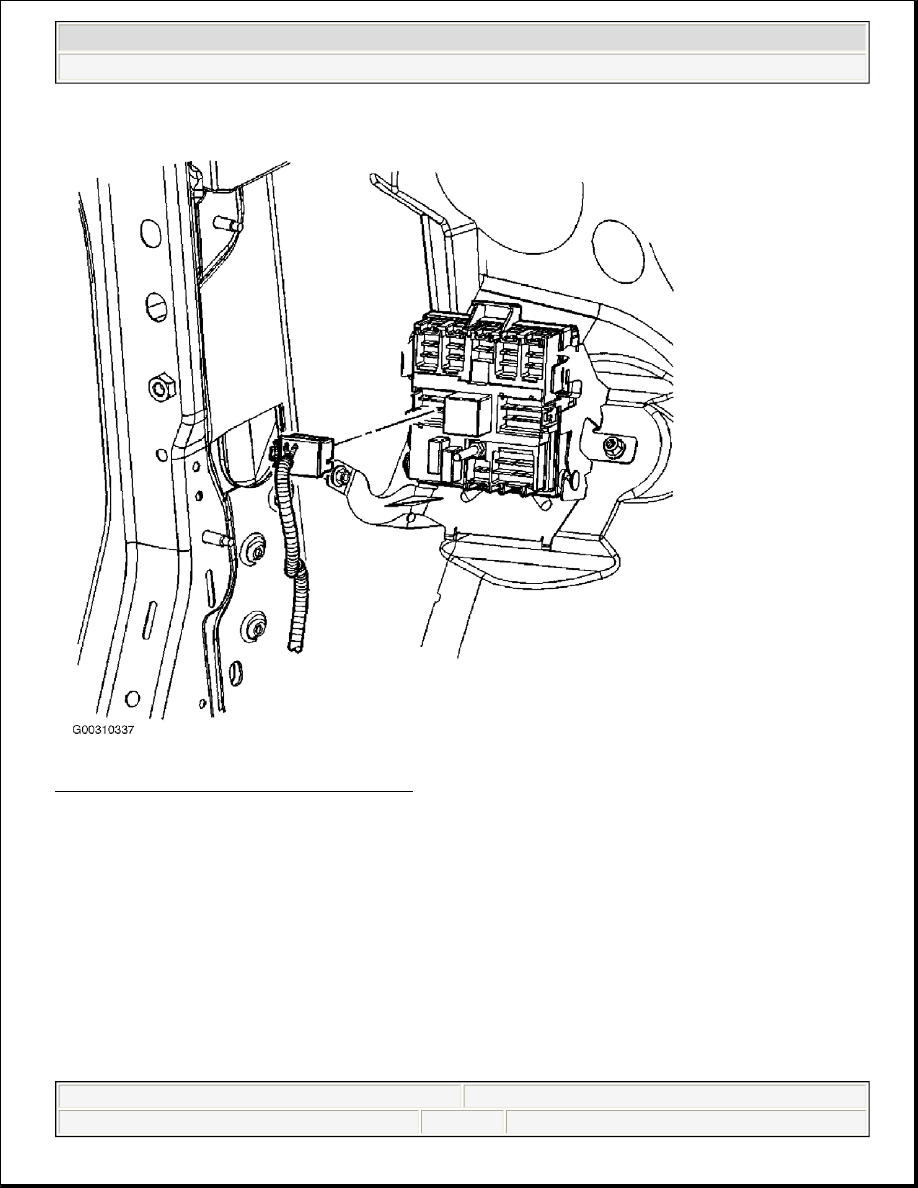

Fig. 7: Locating Instrument Panel Relay Block
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

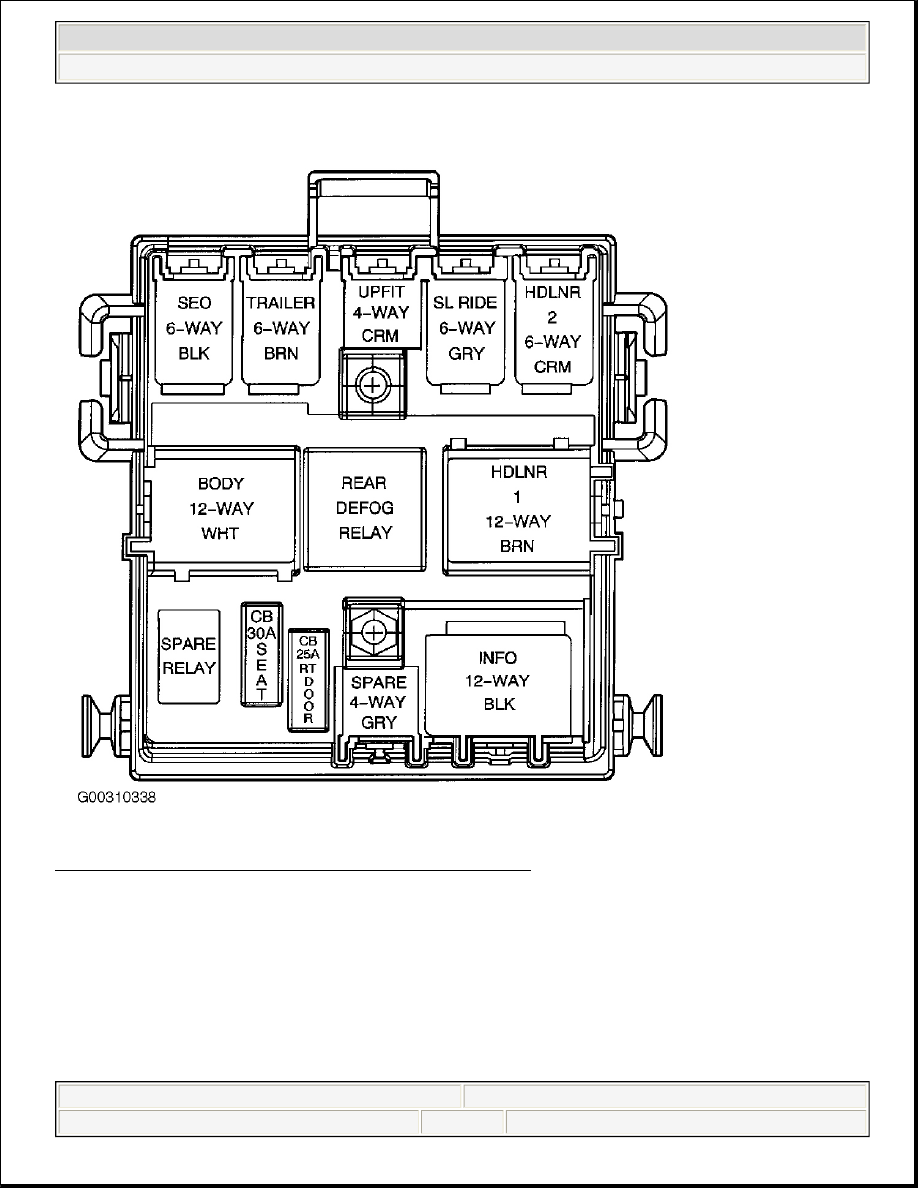

Fig. 8: Identifying Instrument Panel Relay Block Components
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

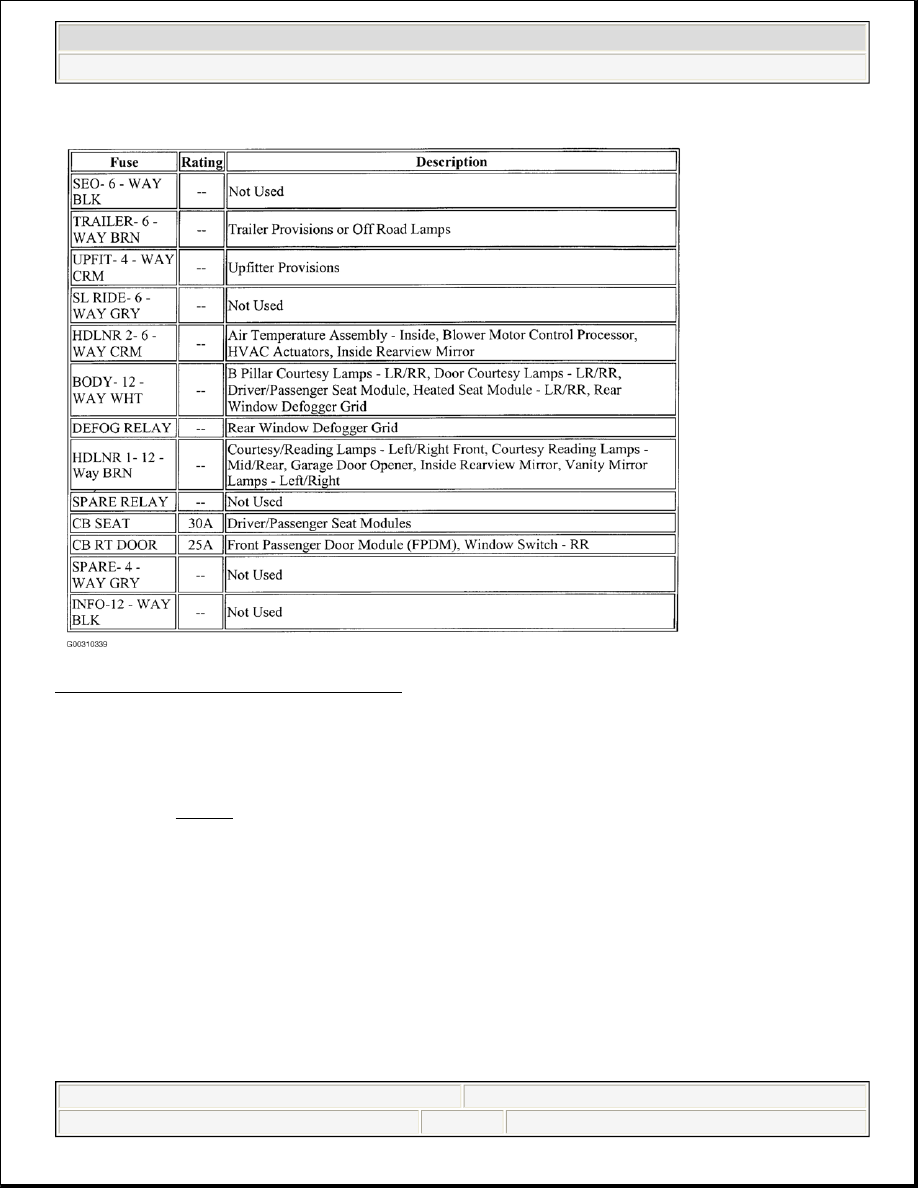

Fig. 9: Instrument Panel Relay Block Legend
Courtesy of GENERAL MOTORS CORP.

UNDERHOOD FUSE BLOCK

NOTE:

Underhood fuse block is located at left front corner of engine compartment. See
Fig. 10 .



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

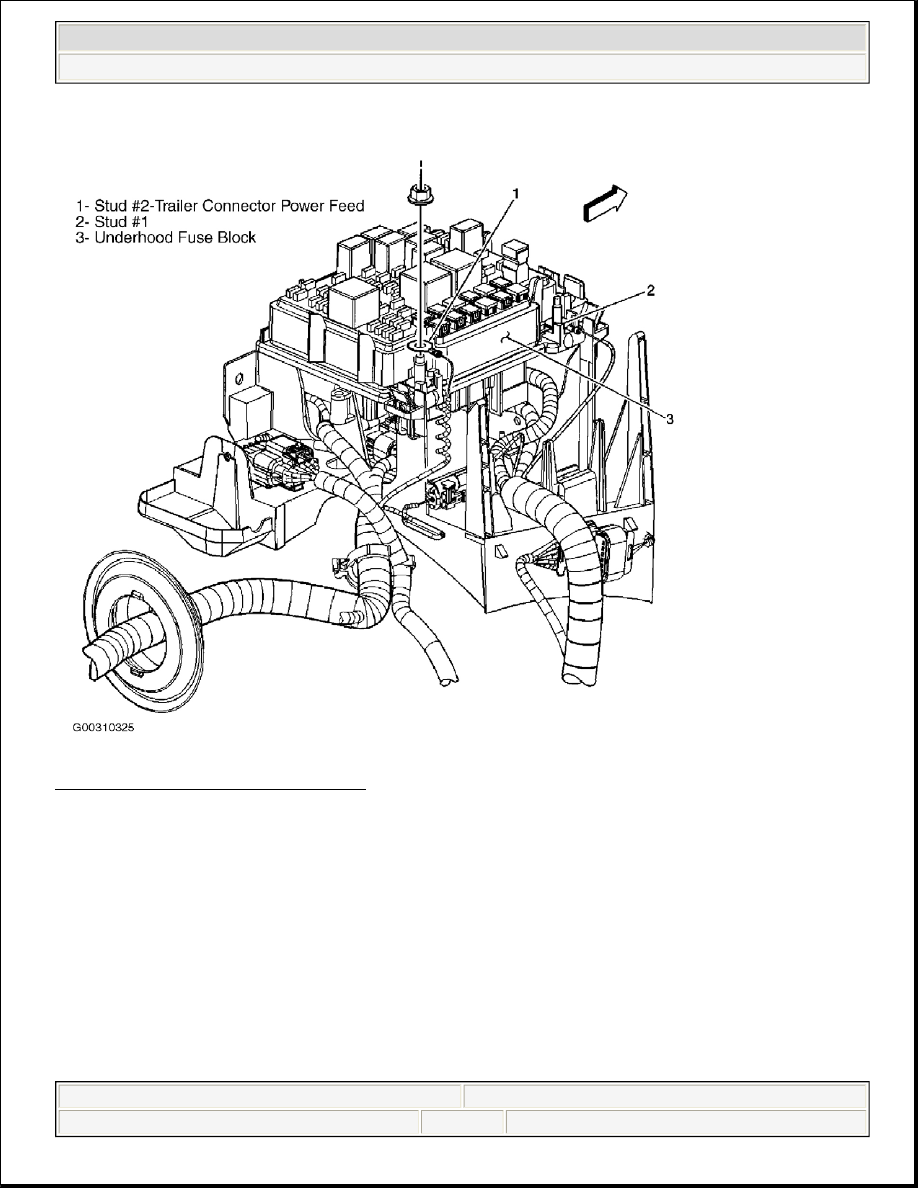

Fig. 10: Locating Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
