Junction Block Terminal Identification - I/P C2

4F

PU/WH

760

Blower Motor Speed Control

4G-4H

-

-

Not Used

4J

L-BU/BK

1688

5-Volt Reference

4K

-

-

Not Used

4L

YE

1791

Low Reference

4M

-

-

Not Used

5A

-

-

Not Used

5B

L-GN

2275

Mode Door Position Signal

5C

TN

2273

Mode Door Control

5D

D-BU

1199

Left Air Temperature Door Control

5E

L-BU

733

Left Air Temperature Door Position Signal

5F

-

-

Not Used

6A

-

-

Not Used

6B

BN

2409

Interior Park Lamps Supply Voltage

6C

BK

1050

Ground

6D-6F

-

-

Not Used

7A

-

-

Not Used

7B

TN

1047

PDM Class 2 Serial Data

7C

OG

4240

Battery Positive Voltage

7D

-

-

Not Used

7E

OG

1340

Battery Positive Voltage

7F

-

-

Not Used

8A

WH/BK

2339

Lower Left Air Temperature Sensor Signal

8B

-

-

Not Used

8C

BN

341

Ignition 3 Voltage

8D

D-BU

1646

Right Air Temperature Door Position Signal

8E

WH/BK

1236

Right Air Temperature Door Control

8F

D-GN

1614

Recirculation Door Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



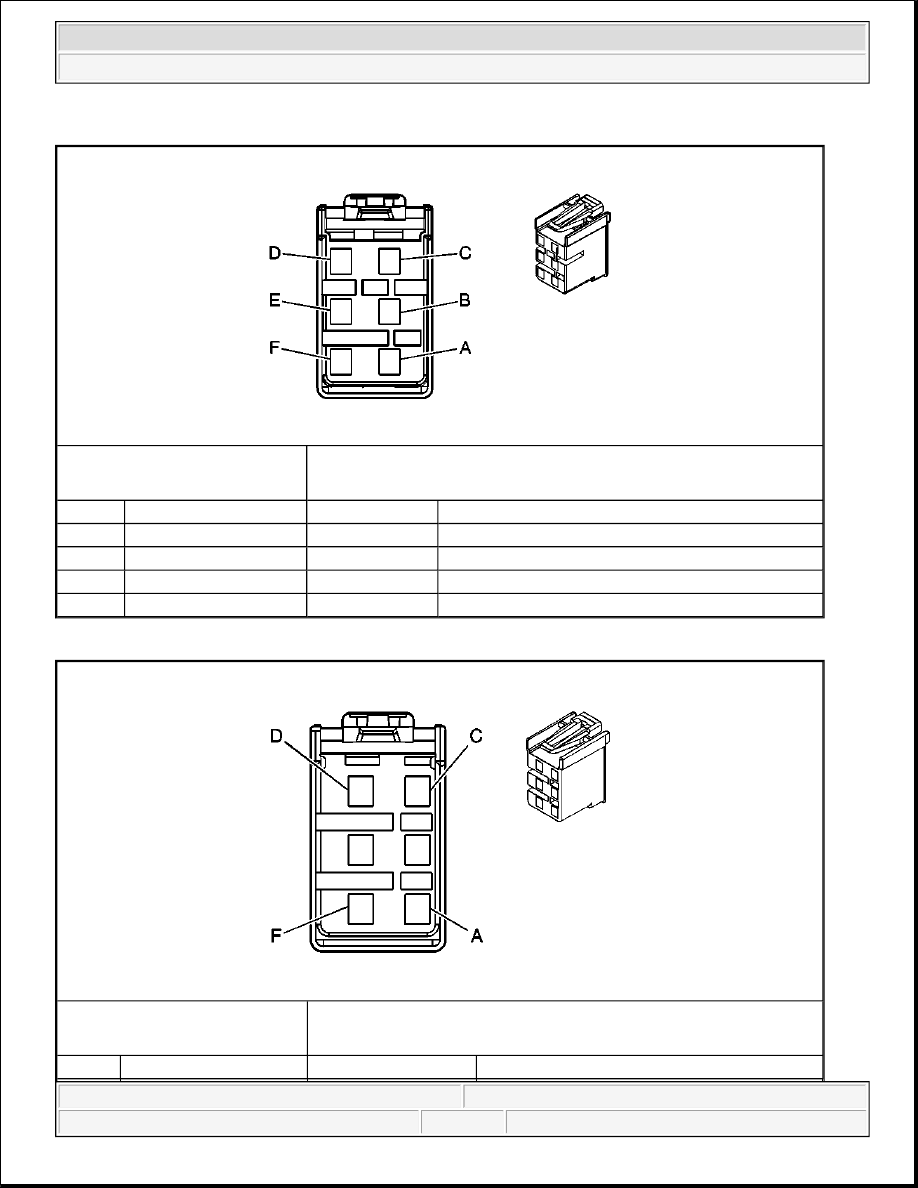

Junction Block Terminal Identification - I/P C4

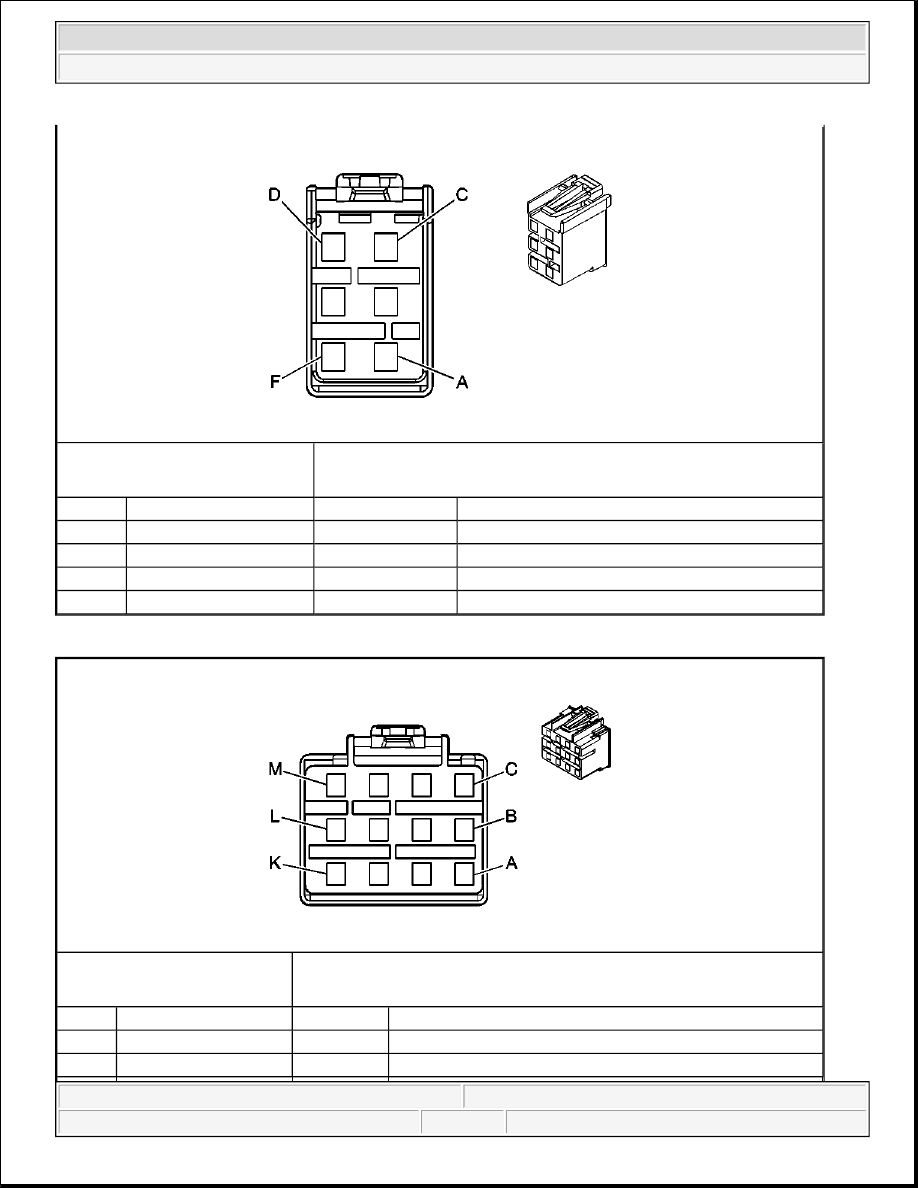

Connector Part Information

z

12193930

z

6-Way F Metri-Pack 280 Series Flexlock (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN

117

Right Front Speaker Output (-)

B

L-GN

200

Right Front Speaker Output (+)

C-E

-

-

Not Used

F

BK

1050

Ground

Connector Part Information

z

12194037

z

12-Way F Metri-Pack 280 Series Flexlock (BN)

Pin

Wire Color

Circuit No.

Function

A

BK

1050

Ground

B

GY/BK

2337

Lower Right Air Temperature Sensor Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



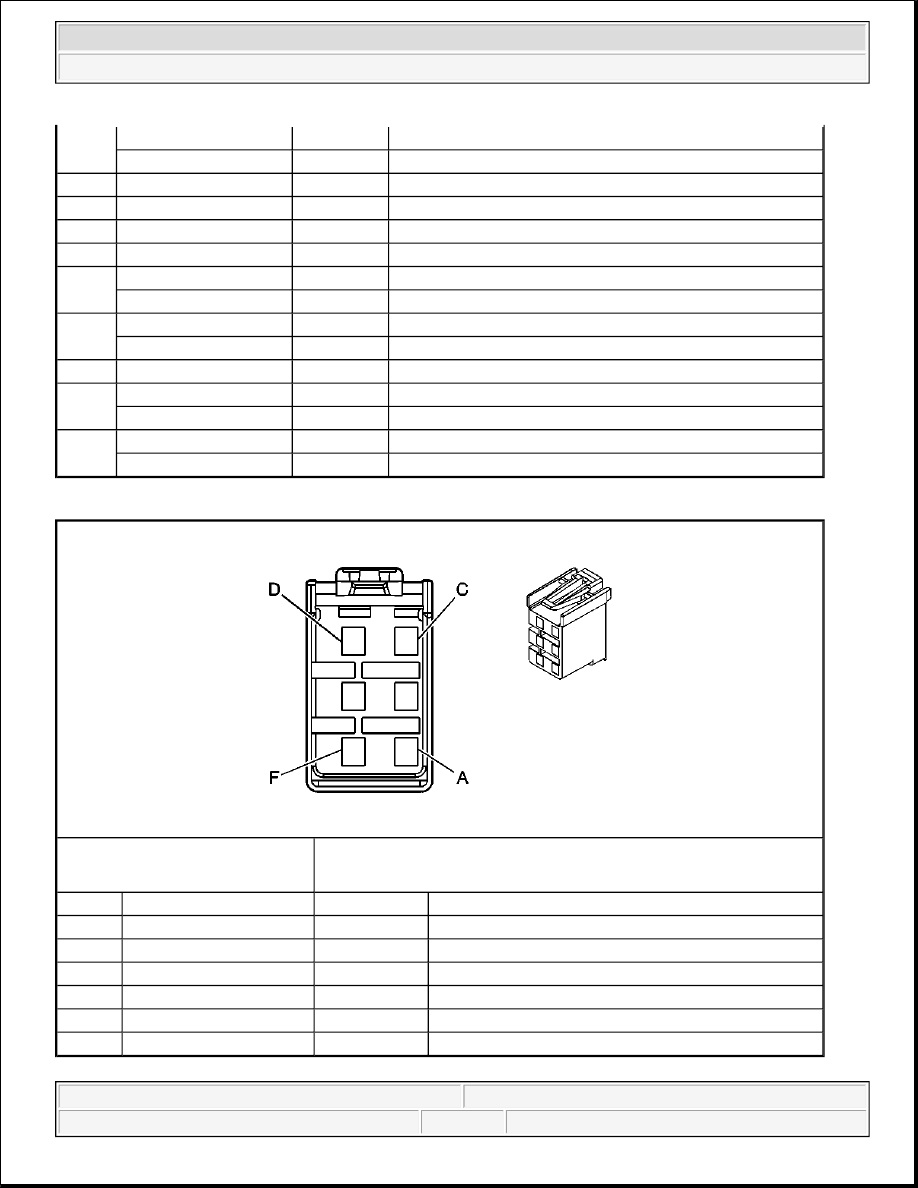

Junction Block Terminal Identification - I/P C5
