Fig. 26: G405 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 26

Callout

Component Name

1

Chassis Harness

2

G405

3

Body Mount - RH

4

Air Suspension Inflator Switch Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



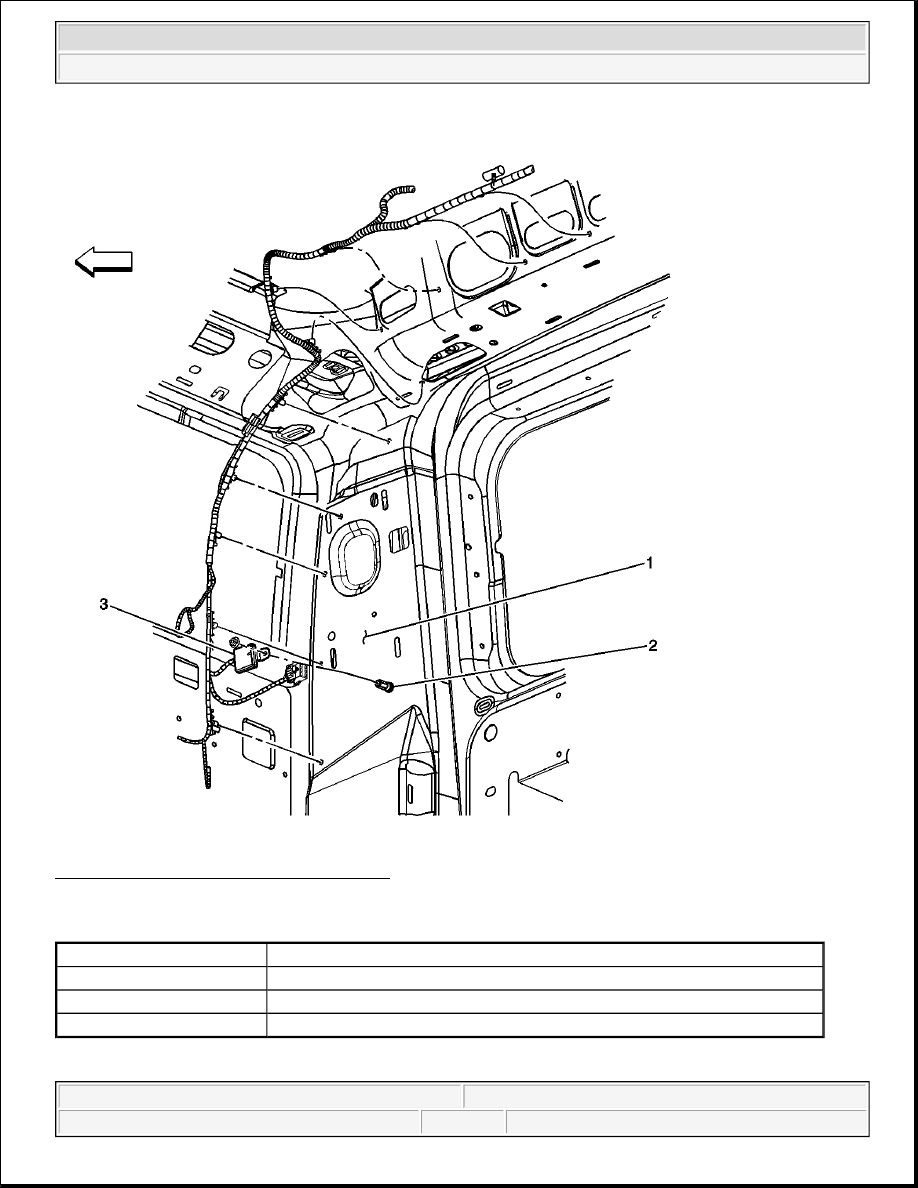

Fig. 27: G410 and SP410 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 27

Callout

Component Name

1

Inner Side Panel - RH

2

G410

3

SP410



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 28: Trailer Receptacle Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 28

ELECTRICAL CENTER IDENTIFICATION VIEWS

Fuse Block - Underhood Label

Callout

Component Name

1

Trailer Receptacle

2

Rear Bumper Fascia



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



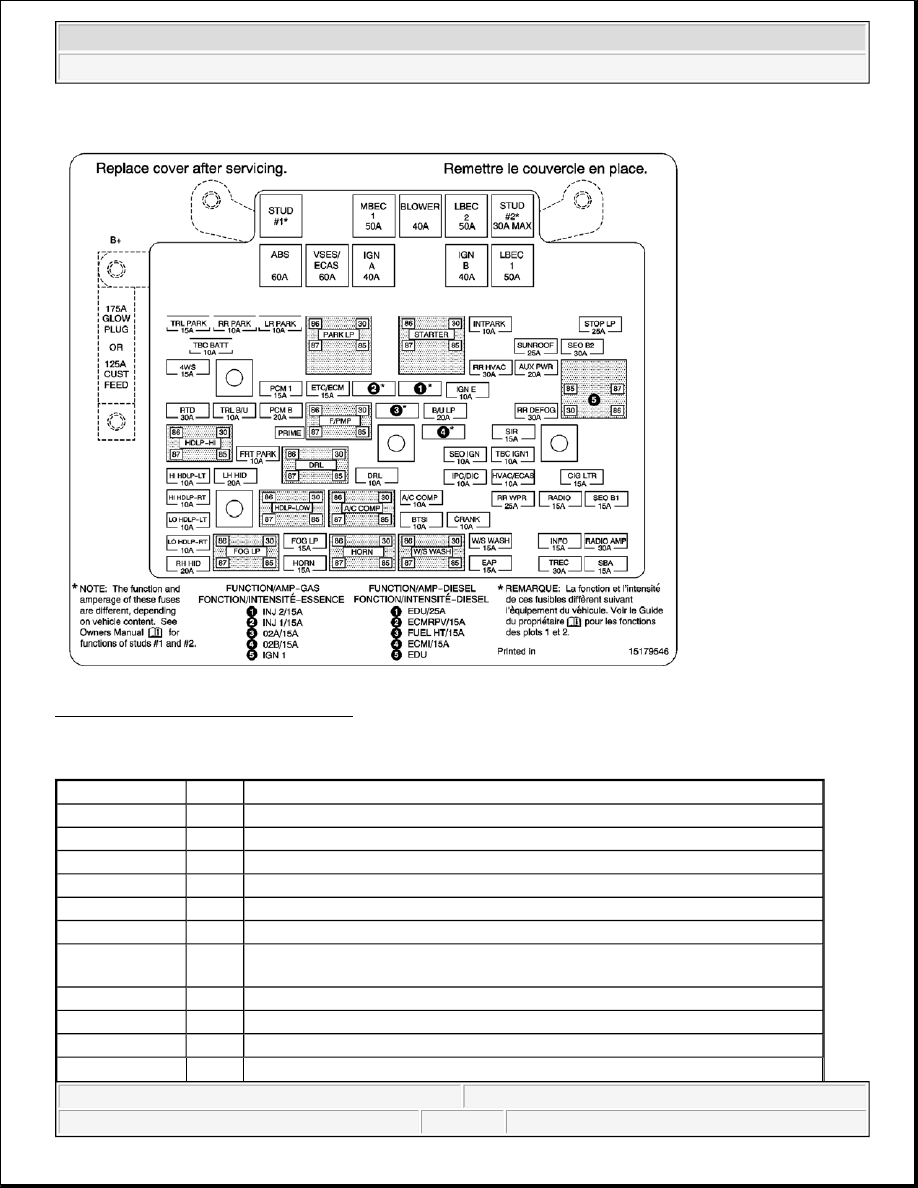

Fig. 29: Fuse Block - Underhood Label
Courtesy of GENERAL MOTORS CORP.

Fuse Block - Underhood Label Usage

Fuse

Rating

Description

STUD 1 Fuse

40A

Trailer Wiring

MBEC Fuse

50A

SEAT CB, RT DOOR CB

BLOWER Fuse

40A

HVAC Blower Motor - High Speed

LBEC 2 Fuse

50A

LOCKS Fuse, DDM Fuse, PDM Fuse, AUX PWR 2 Fuse

STUD 2 Fuse

30A

Trailer Wiring, Off Road Lamps

ABS Fuse

60A

Electronic Brake Control Module (EBCM)

VSES/ECAS
Fuse

60A

ECAS Relay

IGN A Fuse

40A

Ignition Switch RUN, START, RUN/START/ACCY, STARTER Relay

IGN B Fuse

40A

Ignition Switch RUN/ACC, RUN/START

LBEC 1 Fuse

50A

FLASH Fuse, TBC 2A Fuse, TBC 2B Fuse, TBC 2C Fuse, LT DOORS Fuse

TRL PARK
