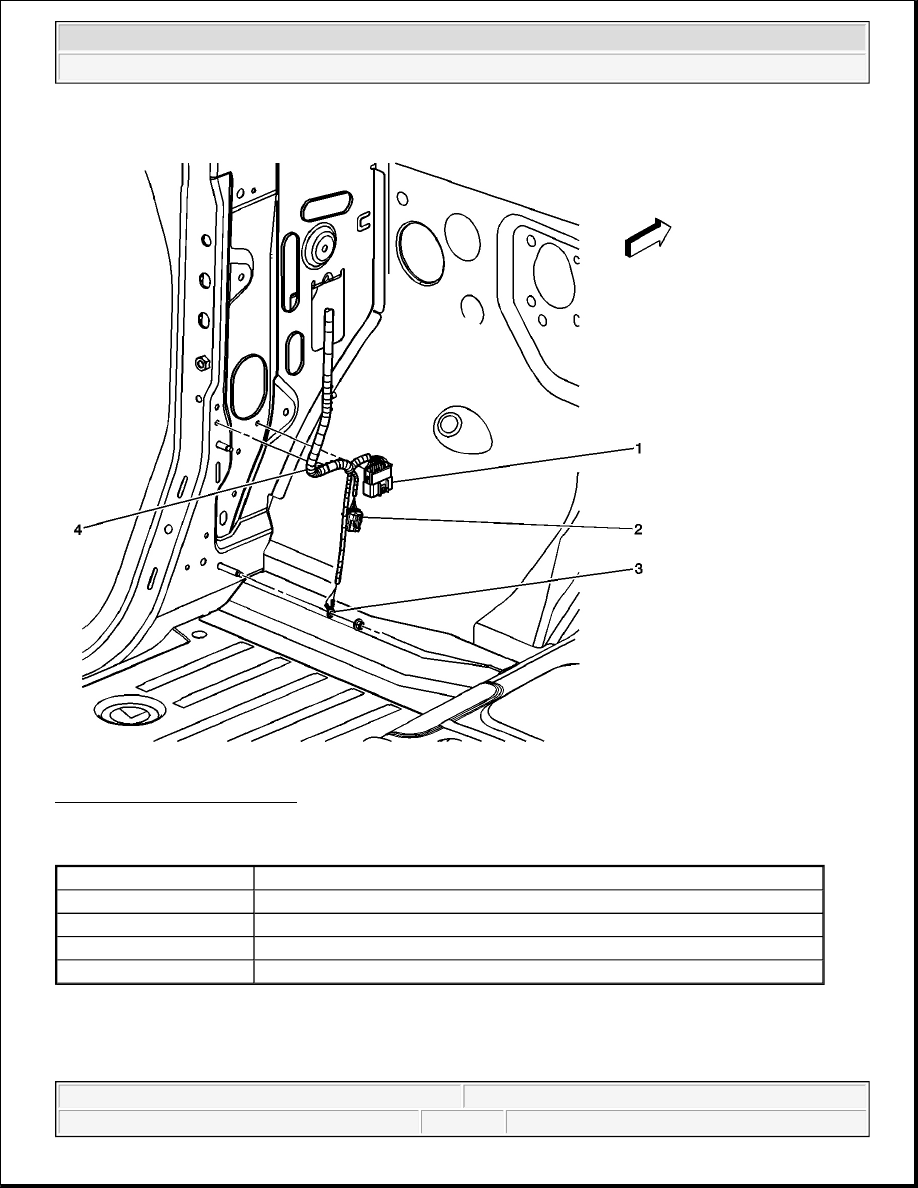

Fig. 14: G200 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 14

Callout

Component Name

1

C200 - I/P Harness Side

2

C201 - I/P Harness Side

3

G200

4

I/P Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



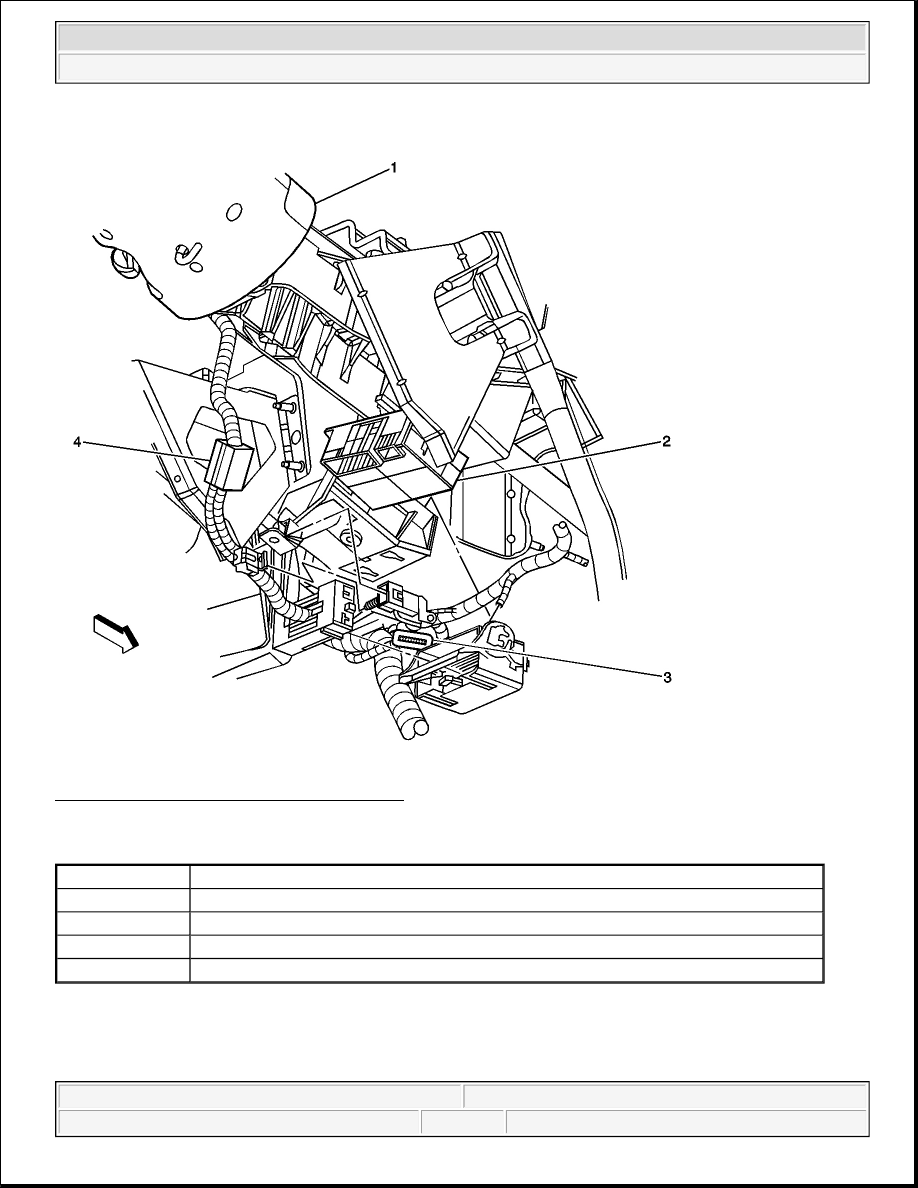

Fig. 15: G203 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 15

Callout

Component Name

1

Cowl Panel Insulator

2

G203

3

HVAC Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



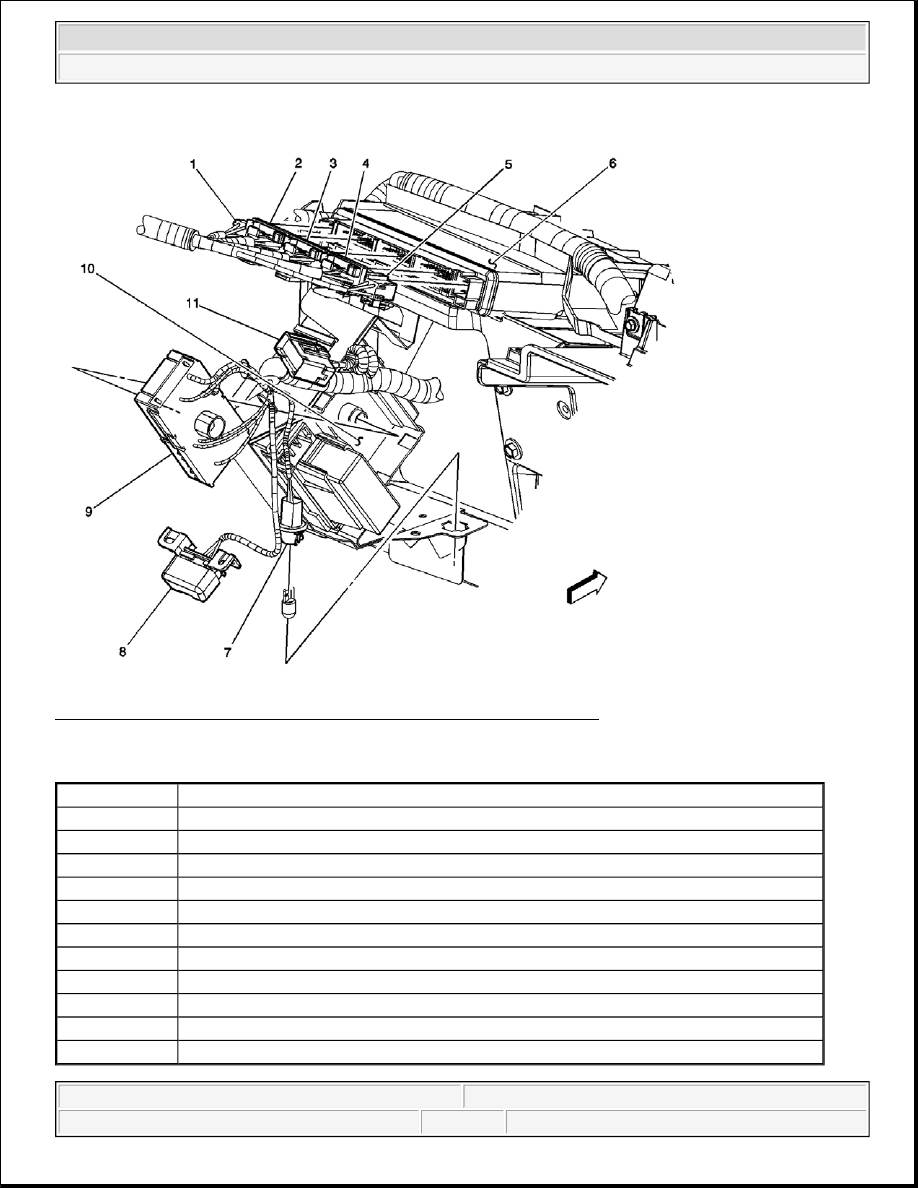

Fig. 16: Data Link Connector and Splice Pack SP205 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 16

Callout

Component Name

1

BCM - C1

2

BCM - C2

3

BCM - C3

4

BCM - C4

5

BCM - C5

6

Body Control Module (BCM)

7

Footwell Courtesy Lamp - Left (If Equipped)

8

Data Link Connector (DLC)

9

Fuse Block - IP - C1

10

Fuse Block - IP Center Block

11

Splice Pack SP205



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Fig. 17: Splice Pack SP206 Component Views
