Hummer H2. Manual - part 1027

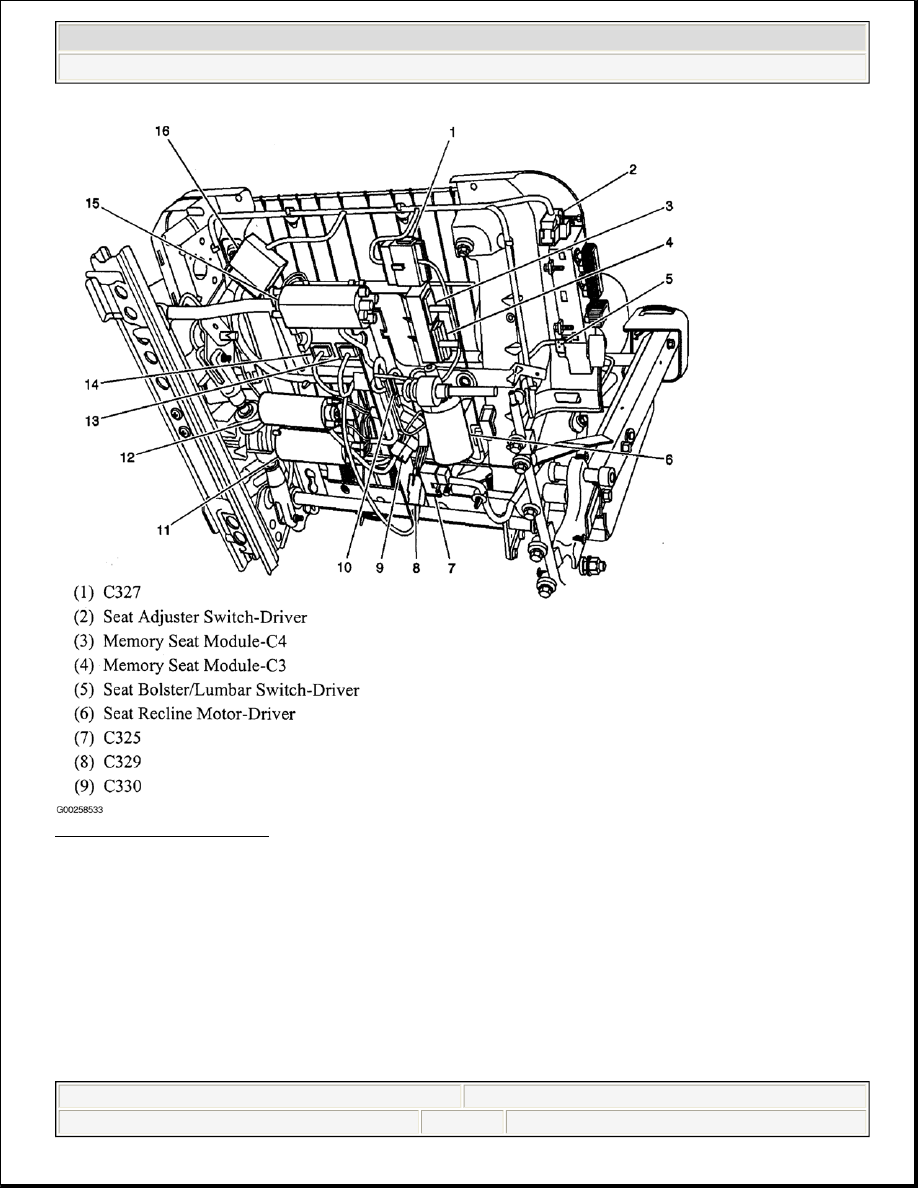

Fig. 101: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 GENERAL MOTORS Hummer H2



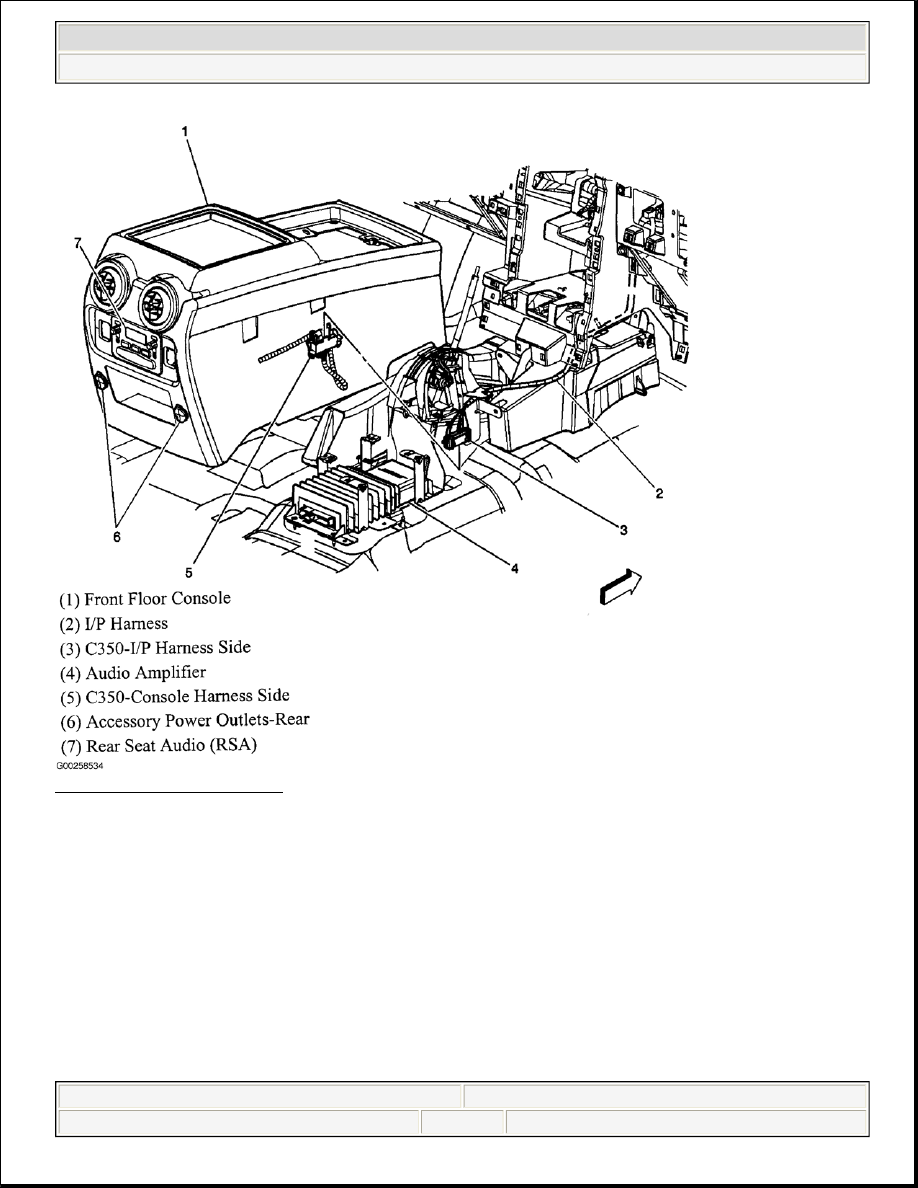

Fig. 102: Front Floor Console
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 GENERAL MOTORS Hummer H2



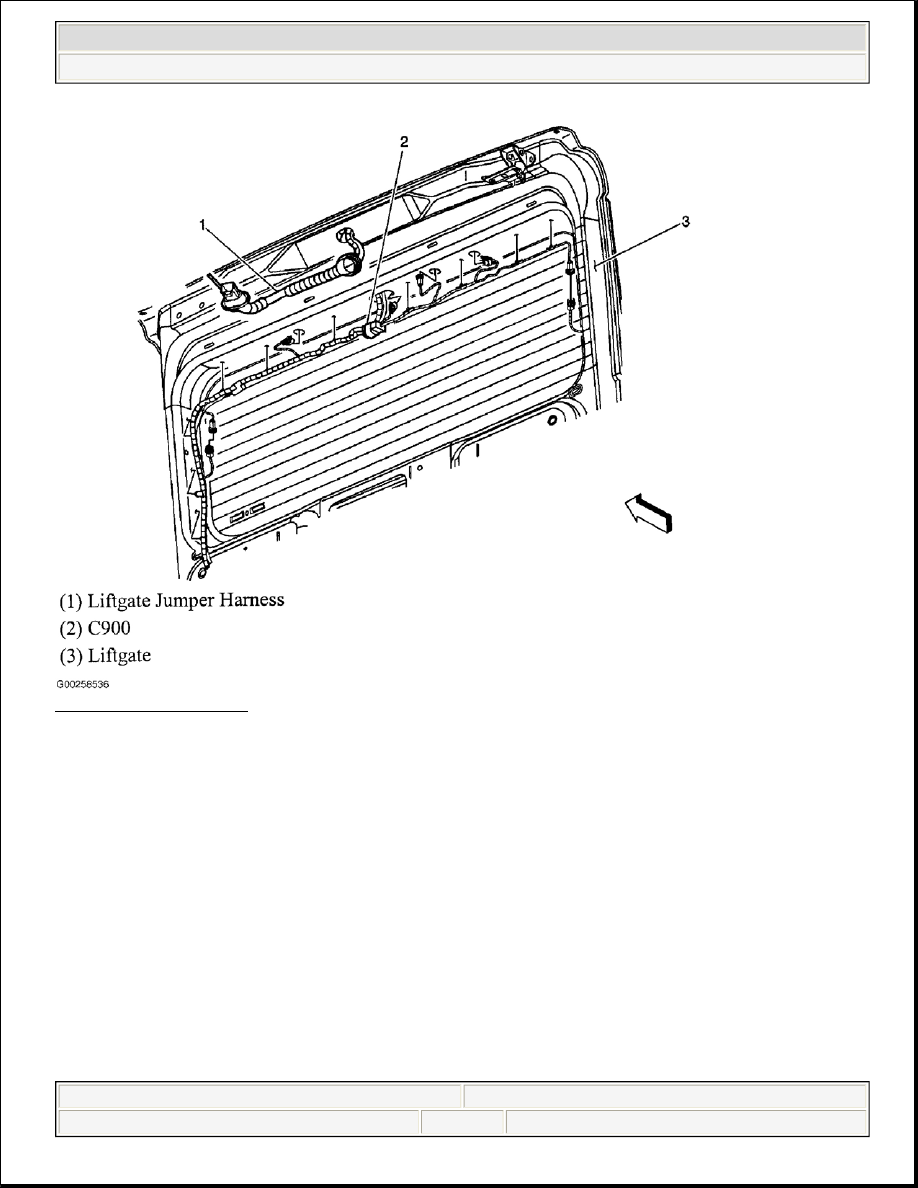

Fig. 103: Top Of Liftgate
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 GENERAL MOTORS Hummer H2



2004 ACCESSORIES & EQUIPMENT

Wiring Systems (Component List) - Hummer H2

COMPONENT LIST

MASTER ELECTRICAL COMPONENT LIST

Master Electrical Component List

Name

Location

Locator View

Connector End View

1-2 Shift Solenoid (1-2

SS) Valve (4L60-E)

In the automatic
transmission

Component Location

in Automatic

Transmission - 4L60-E

Automatic

Transmission Internal

Connector End Views

in Automatic

Transmission - 4L60-E

2-3 Shift Solenoid (2-3

SS) Valve (4L60-E)

In the automatic
transmission

Component Location

in Automatic

Transmission - 4L60-E

Automatic

Transmission Internal

Connector End Views

in Automatic

Transmission - 4L60-E

3-2 Shift Solenoid (3-2

SS) Valve (4L60-E)

In the automatic
transmission

Component Location

in Automatic

Transmission - 4L60-E

Automatic

Transmission Internal

Connector End Views

in Automatic

Transmission - 4L60-E

A/C Compressor Clutch RT front lower engine area

HVAC Component

Views in HVAC

Systems - Automatic

HVAC Connector End

Views in HVAC

Systems - Automatic

A/C Refrigerant Pressure

Sensor

RT front lower engine
compartment on high
pressure line near
compressor

HVAC Component

Views in HVAC

Systems - Automatic

HVAC Connector End

Views in HVAC

Systems - Automatic

A/C Low Pressure

Switch

On the right side of the A/C
accumulator at rear of
engine compartment

HVAC Component

Views in HVAC

Systems - Automatic

HVAC Connector End

Views in HVAC

Systems - Automatic

A/C Compressor Clutch

Relay

In the fuse block -
underhood

Electrical Center

Identification Views

-

A/T Shift Lock Control

Solenoid

Part of the floor shift
assembly under front floor
console

Automatic

Transmission Shift

Lock Control

Component Views in

Shift Lock Control

Automatic

Transmission Shift

Lock Control

Connector End Views

in Shift Lock Control

Accelerator Pedal

Position (APP) Sensor

Above the accelerator pedal
assembly

Engine Controls

Component Views in

Engine Controls - 6.0L

Engine Controls

Connector End Views

in Engine Controls -
