Hummer H2. Manual - part 1010

Fig. 32: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

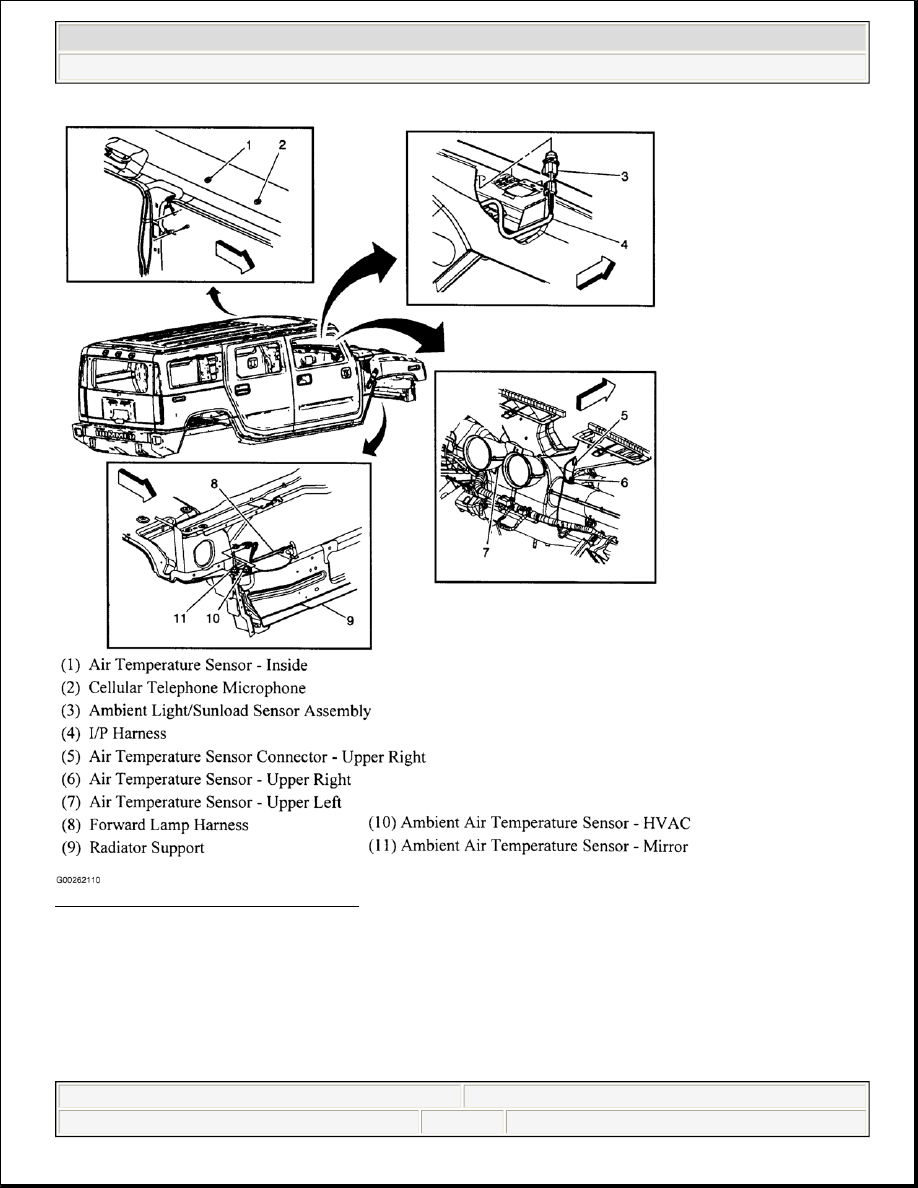

Fig. 33: HVAC Subsystem Components
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

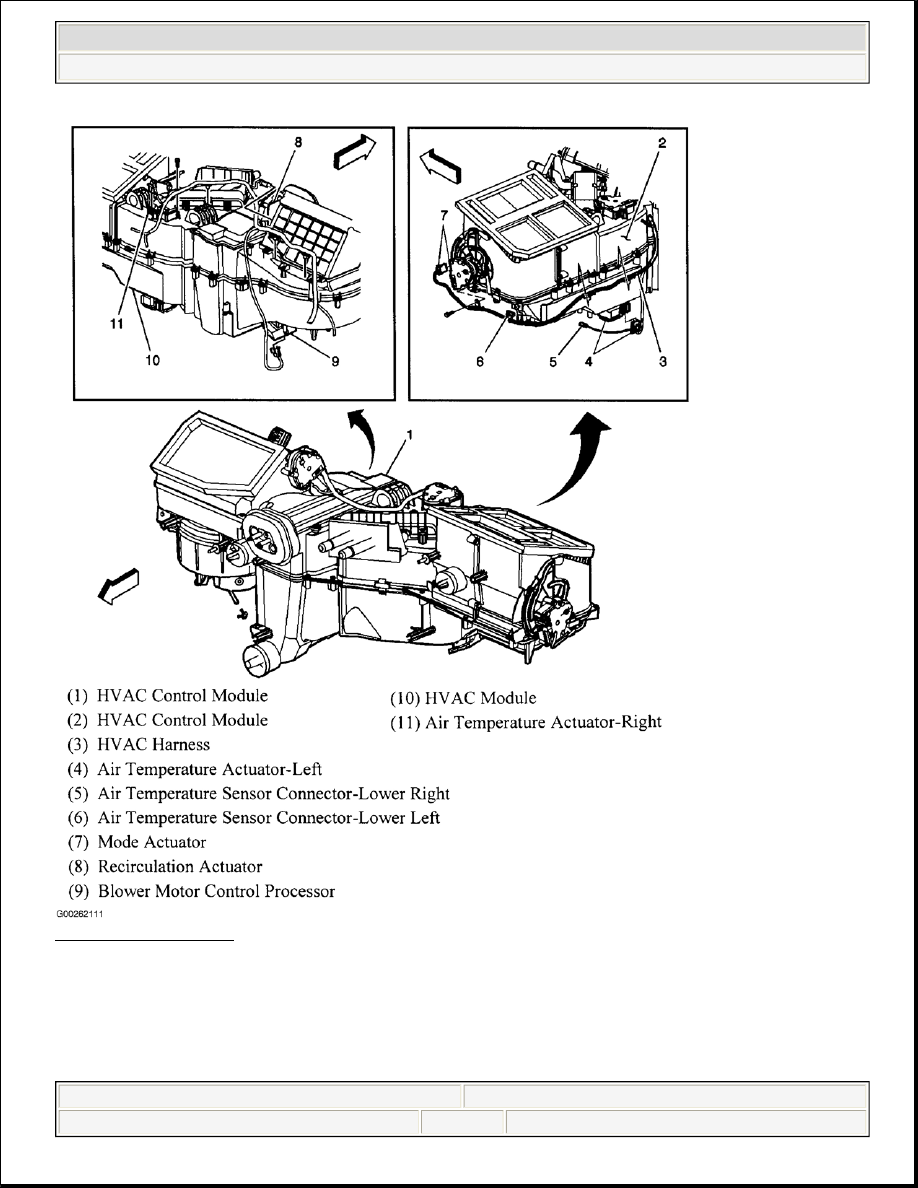

Fig. 34: HVAC Module
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

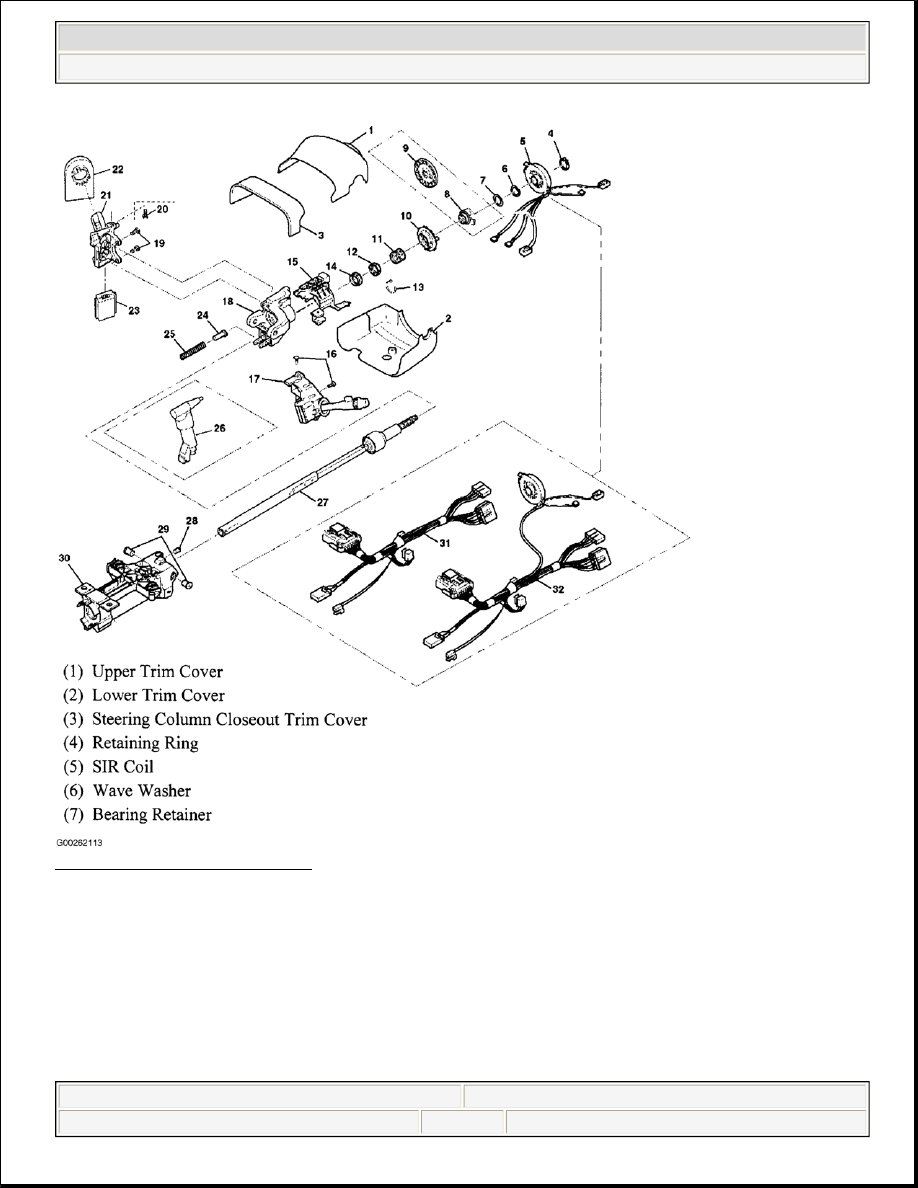

Fig. 35: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2
