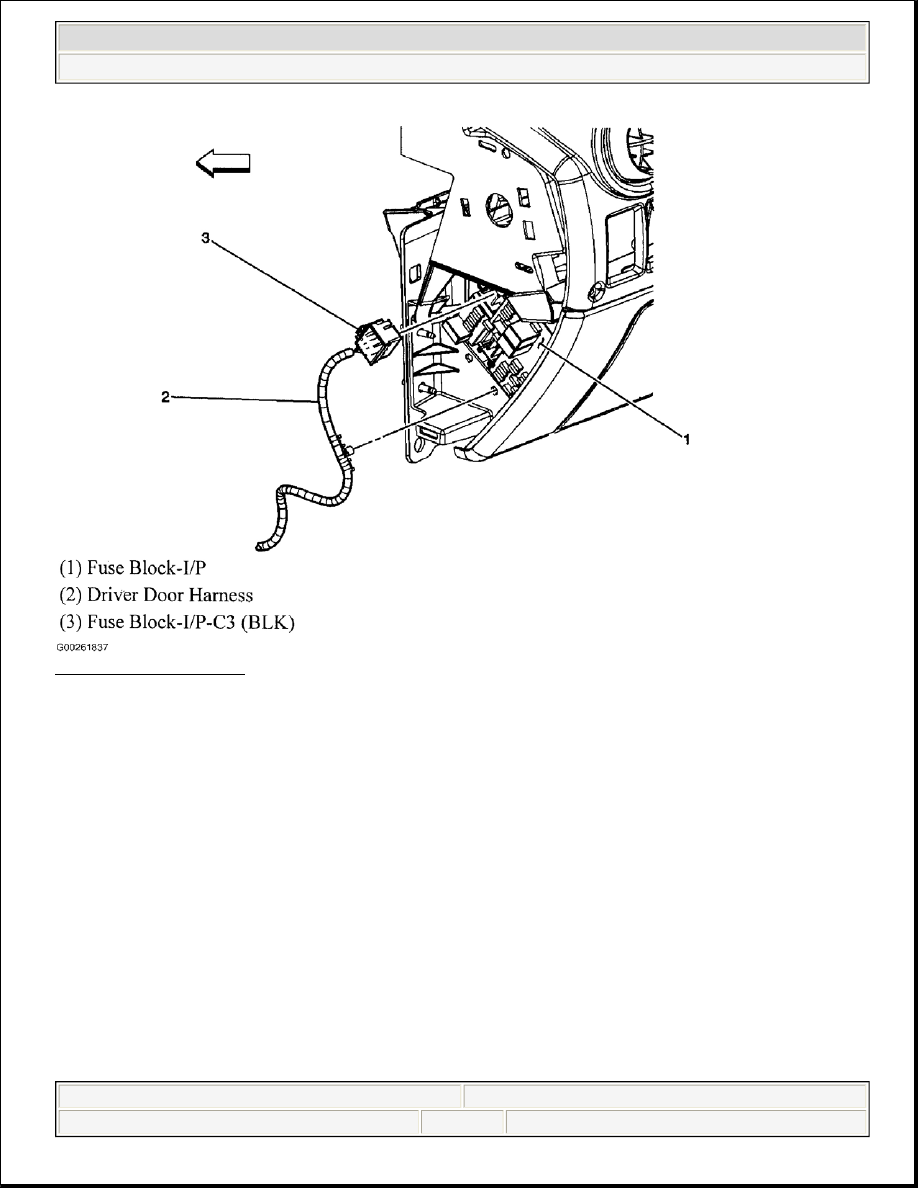

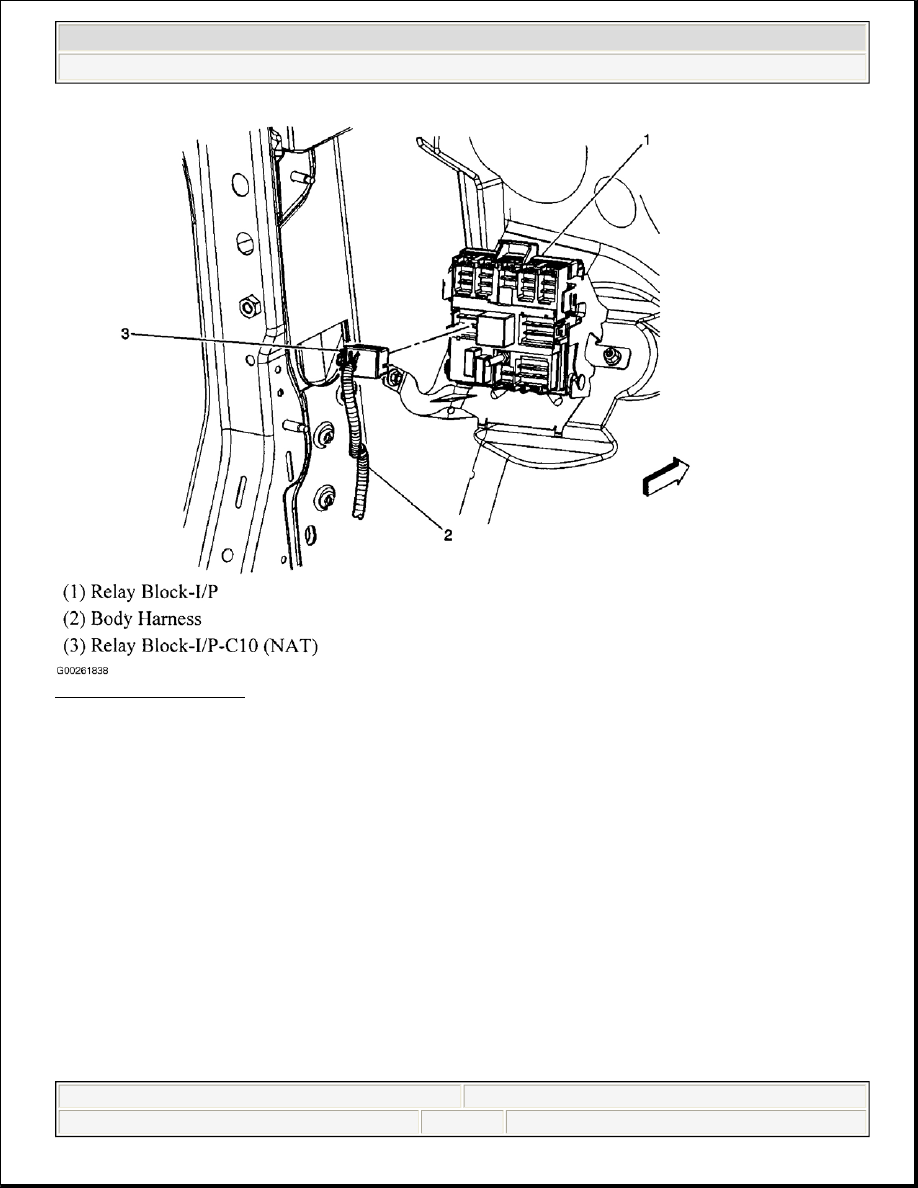

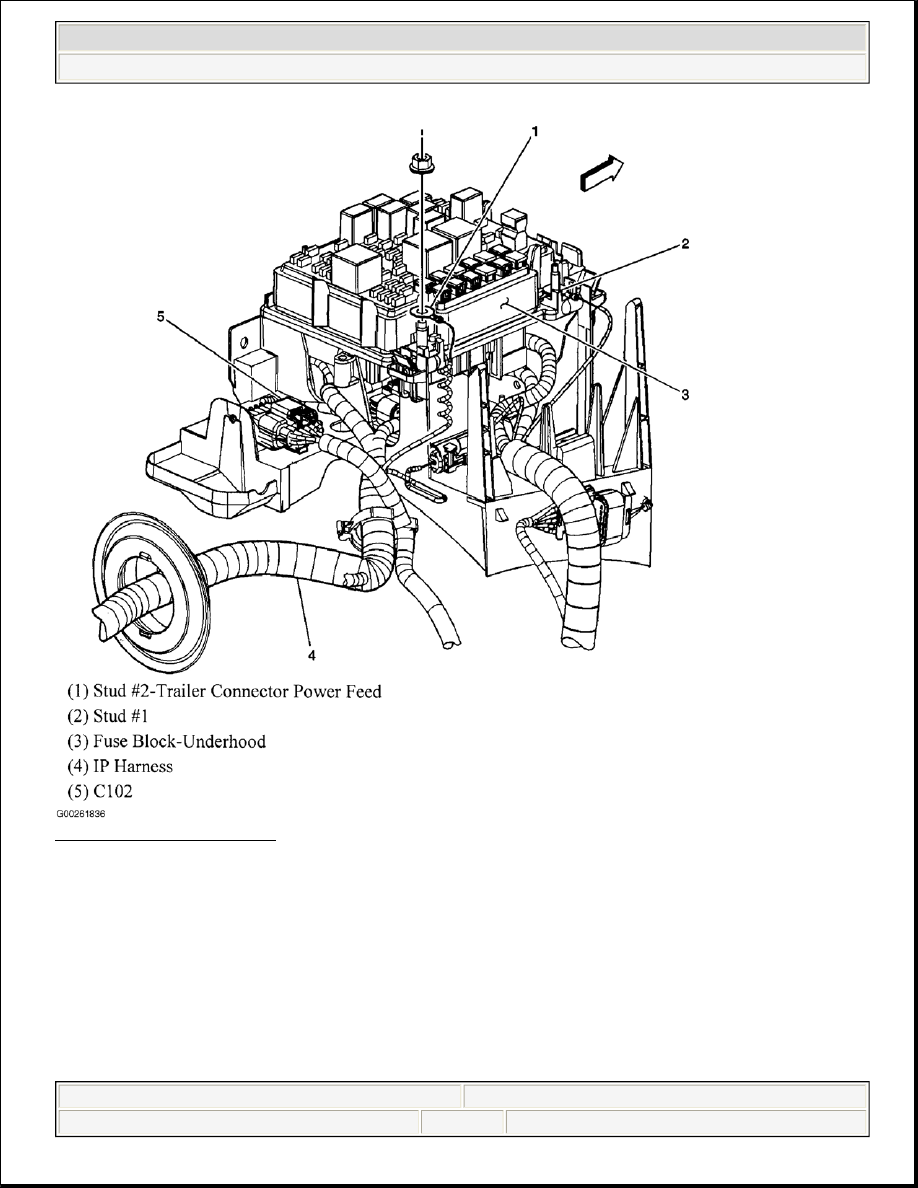

COMPONENT LOCATION GRAPHICS
S376
In chassis harness, 63.5 cm from rear differential lock actuator, on chassis
harness.
S380
In passenger seat harness, 21 cm from seat adjuster switch, between lumbar
bolster switch & seat adjuster switch, on right side of seat.
S381
In passenger seat harness, 16 cm from lumbar bolster switch.
S390
In body harness, 18.5 cm from junction of SIR module. See Fig. 93 .
S391
In chassis harness, 15 cm from junction of right rear air suspension sensor.
See Fig. 91 .
S392
In chassis harness, 30 cm from junction of right rear air suspension harness
to chassis harness. See Fig. 91 .
S393
In right rear seat harness, 34 cm from heated seat module.
S411
In body harness, 15.2 cm from junction of left rear marker lamp to body
harness. See Fig. 92 .
S412
In body harness, 27.5 cm from junction of left rear side marker lamp to
body harness. See Fig. 92 .
S413
At rear underside of vehicle, in air suspension harness.
S414
At rear underside of vehicle, in air suspension harness.
S480
In body harness, 28 cm from junction of C420.
S720
In right rear door harness, 12 cm from junction of speaker connector
harness to door harness.
S820
In left door harness, 11.5 cm from junction of door courtesy lamp connector
harness to door harness.
S900
At left side of liftgate, near junction of right rear defogger connector to
liftgate harness. See Fig. 76 .
S901
At lower right side of liftgate, 10 cm from junction of rear wiper motor
connector to liftgate harness. See Fig. 76 .
S902
At lower right side of liftgate, 6.5 cm from right liftgate ajar switch junction
to liftgate harness. See Fig. 76 .
NOTE:
Figures may show multiple component locations. Refer to appropriate table for
proper figure references.
