13-50

Accessories

_____________________________________________________________

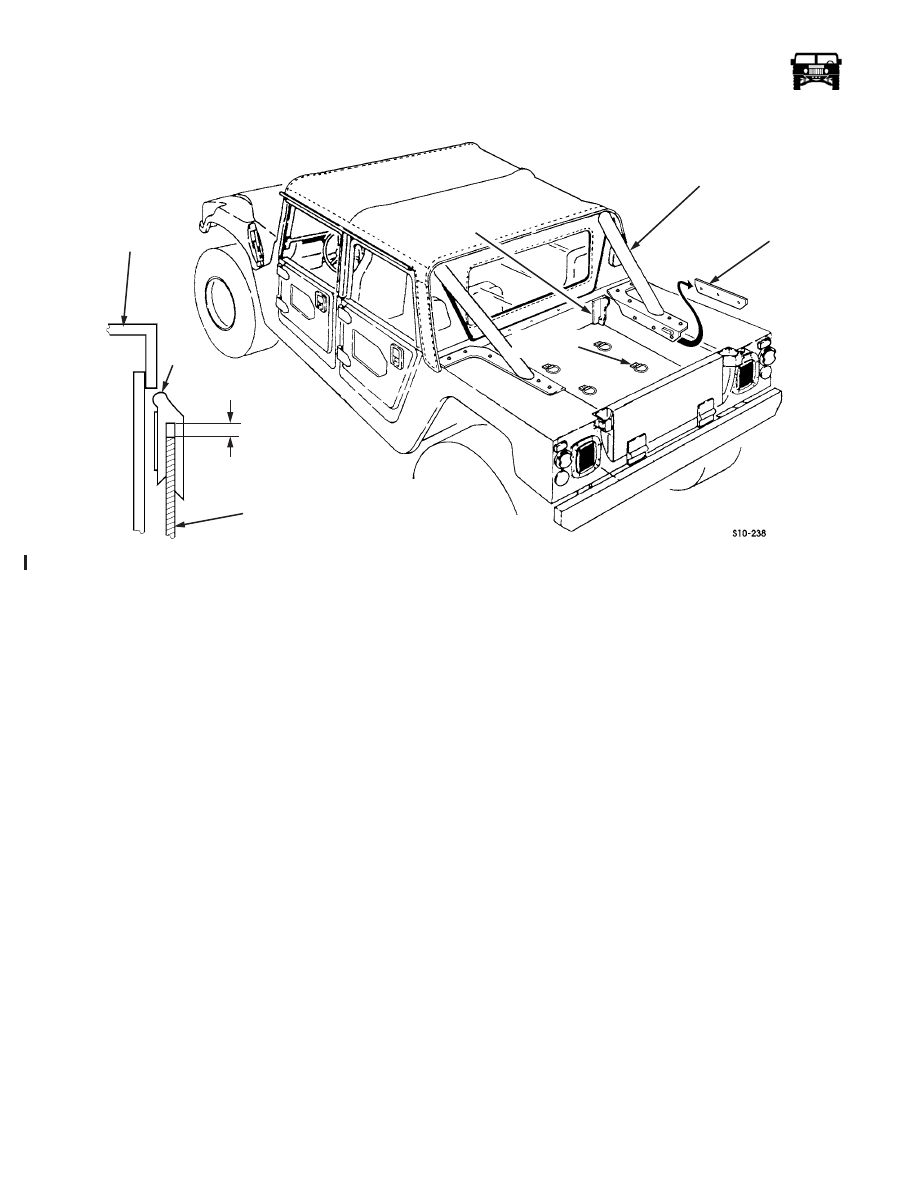

Figure 13-64:   Bedliner Installation In Soft top vehicle.

CARGO AREA LINER

1.

Lay the cargo liner loosely in the rear cargo area (See Figure 13-65).

2.

Remove the removable load barrier from the retaining brackets.

3.

Remove the backing strip from the hook and loop at the lower portion of the load barrier coverage area (it should line up with
the bottom of the load barrier).

4.

Secure the hook and loop to the bottom of the load barrier.

5.

Reinstall the load barrier.

6.

Remove the backing strip from the hook and loop at the upper portion of the load barrier coverage area and install it on the top
edge of the load barrier.

7.

Peel the cargo area carpet back from under the side windows, exposing the hook and loop that retains the carpet.

8.

Install the hook on the cargo area liner to the loop on the back of the carpet.

9.

Place the carpet back under the side windows securing the loop on the cargo area liner to the hook on the wheel house.

10. Secure the plastic retainers on the vertical door end of the cargo liner to the edge of the cargo area carpet.

11. Remove the original vertical door liners from the vertical doors (not shown).

12. Remove the hook and loop from the doors.

13. Peel the backing strip from the hook and loop on the replacement vertical door liners.

14. Install the replacement vertical door liners on the vertical doors in the same position as the originals.

Cleaning and Maintenance

NOTE: Most spills can be wiped down quickly and easily with common household detergent or a general purpose upholstery
cleaner. Grease and oil stains should be spot cleaned with a citrus based degreaser.

“C” PILLAR REAR

SUPPORT BAR

ANGLE

BRACKET

SHIM

TIEDOWN

LINER

EDGE

TRIM

WHEEL

HOUSE

1/8"

GAP

6-1-05

____________________________________________________________

 Accessories  13-51

5745804

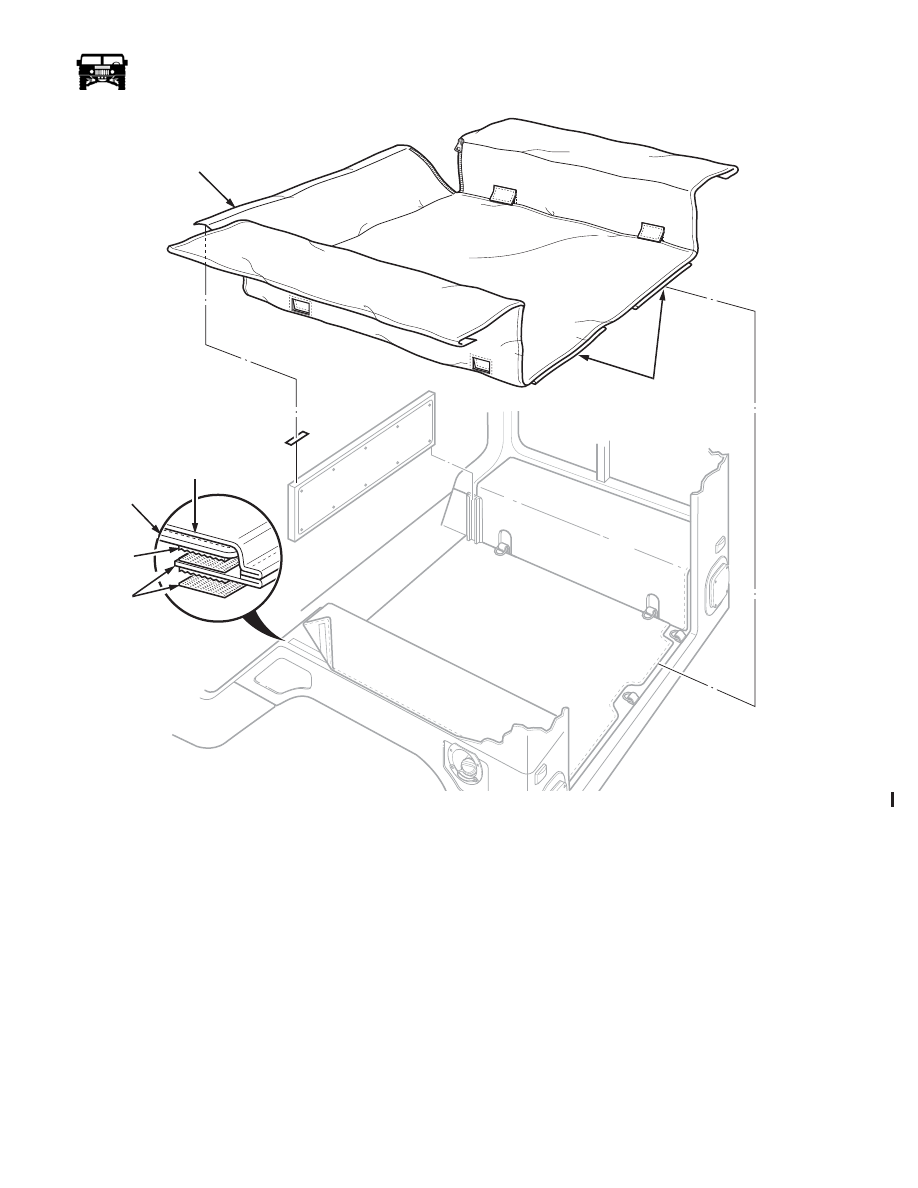

Figure 13-65:   Cargo Area Liner installation.

CENTER TUNNEL RACK

Installation

1.

Remove all four 1/2" bolts and cargo tie down rings located between the rear seats on top of the driveline tunnel (do not
remove the spacers under the tie down rings).

2.

Place the tunnel rack on the driveline tunnel (See Figure 13-66) and align the holes in the tunnel rack mount plates with the
holes in the driveline tunnel.

3.

If you prefer not to use the cargo tie down rings, use the original bolts to secure the tunnel rack and torque to 27-30 lb-ft (36-
40 N•m).

4.

If you would like to use the cargo tie down rings, use the longer supplied bolts and cargo tie down rings to secure the rack and
torque to 27-30 lb-ft (36-40 N•m).

03-P13-001

CARGO

AREA

LINER

CARGO

AREA
LINER

HOOK

LOOP

PLASTIC

RETAINERS

CARPET

6-1-05

13-52

Accessories

_____________________________________________________________

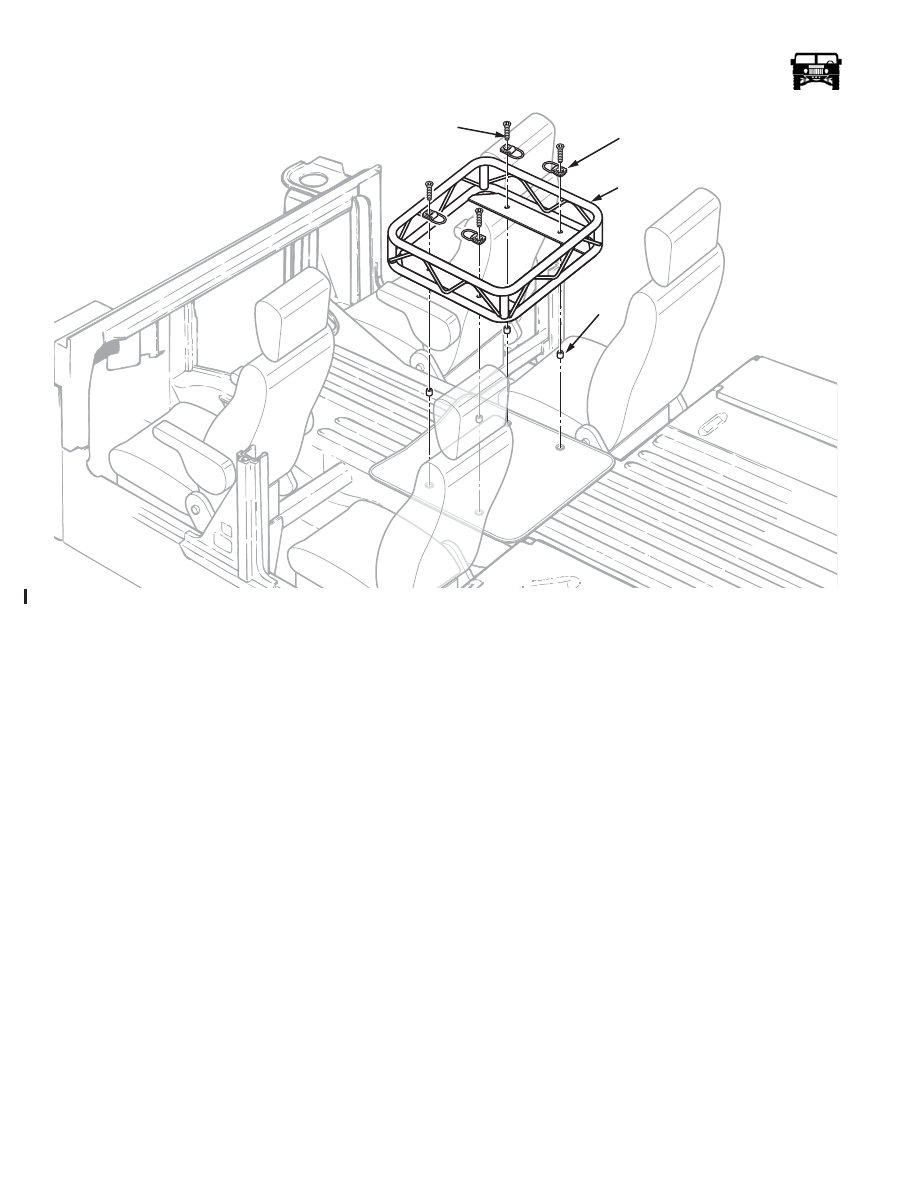

Figure 13-66:   Center Tunnel Rack Installation.

WHEEL HOUSE RACK

Installation

NOTE: The Wheel House Rack is intended for use on the driver’s side wheel house only. Installation on the passenger side wheel
house may obstruct the driver’s view through the window.

1.

Position the rack on the driver’s side rear wheel house flush with the inside edge and centered front to rear.

2.

Using the four  holes in the bottom of the rack as a template, mark the carpet and drill 1/4” holes through the carpet and the
wheel house (See Figure 13-67).

3.

Mount the rack by installing four 1/4” bolts , retainer plates and gaskets from the rack side through the wheel house and four
gaskets, retainer plates and locknuts  on the wheel side.

4.

Torque all the fasteners to 12 lb ft.

CARGO TIE

DOWN RING

TUNNEL

RACK

SPACER

SUPPLIED FLAT

SOCKET HEAD BOLT

02-P13-004

6-1-05

____________________________________________________________

 Accessories  13-53

5745804

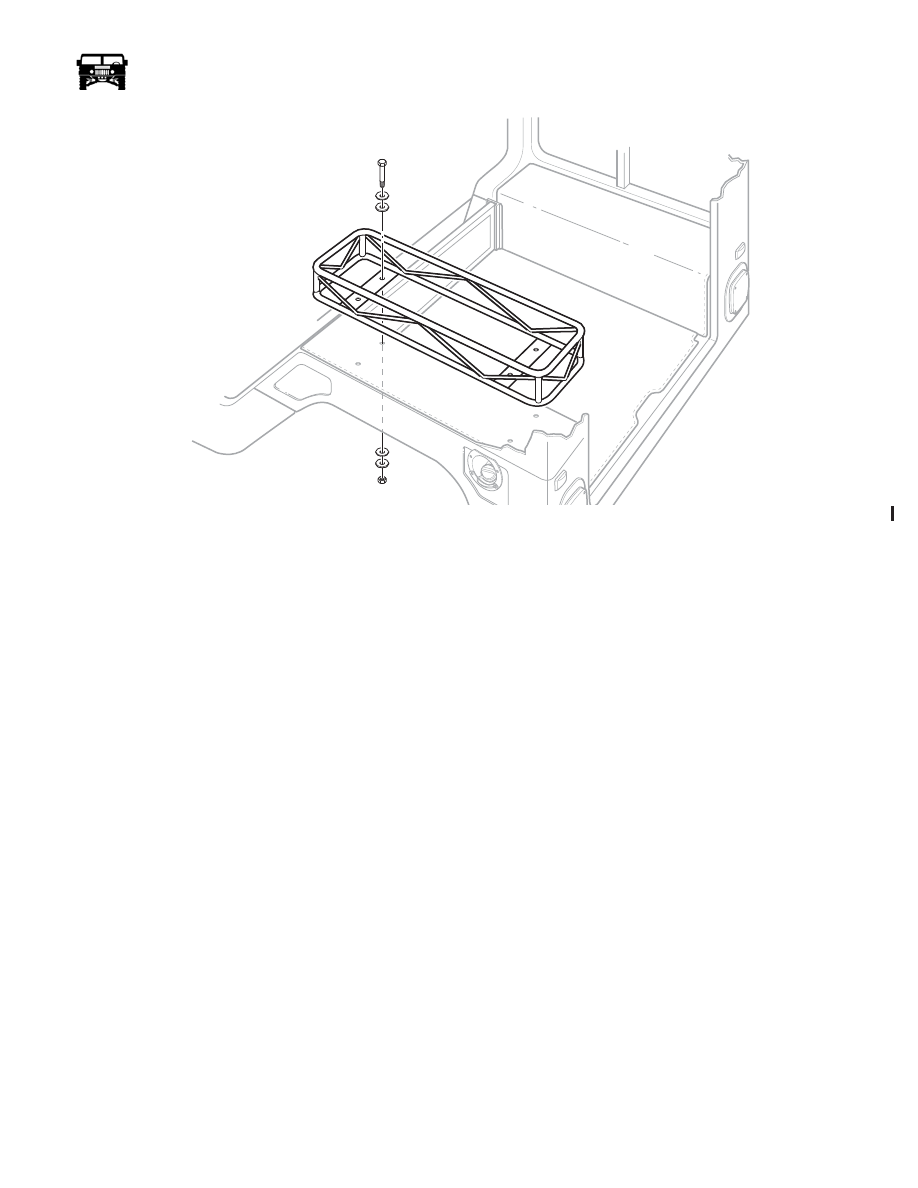

Figure 13-67:   Wheel House Rack Installation.

03-S13-011
