9-110 Axles, Suspension and Frame
_________________________________________
Rear Bumper Outer Mounting Bracket and Tie Down Bracket Replacement
Removal
1.
Remove the rear body mount (Refer to section 10).
2.
Remove the two locknuts, washers, bolts and the washers securing the tie down bracket and the outer mounting bracket to the
mounting bracket and the rear bumper (Figure 9-162).
3.
Remove the two bolts and the washers securing the outer mounting bracket to the mounting bracket.
4.
Remove the four locknuts, washers, bolts, washers, outer mounting bracket and the spacer from the frame rail and the inner
mounting bracket.
Installation
NOTE: Ensure the spacer on the inner side of the frame rail is in position before installing the spacer and the outer mounting
bracket.
1.
Install the spacer and the outer mounting bracket on the frame rail and the inner mounting bracket with the four washers, bolts,
washers and the locknuts. Do not tighten the locknuts (Figure 9-162).
2.
Secure the outer mounting bracket to the mounting bracket with the two washers and the bolts. Do not tighten the bolts.
3.
Install the tie down bracket on the rear bumper and secure the tie down bracket and the outer mounting bracket to the mounting
bracket and the rear bumper with the two washers, bolts, washers and the locknuts.
4.
Tighten all the locknuts and the bolts to 90 lb-ft. (122 N•m).
5.
Install the rear body mount (Refer to section 10).

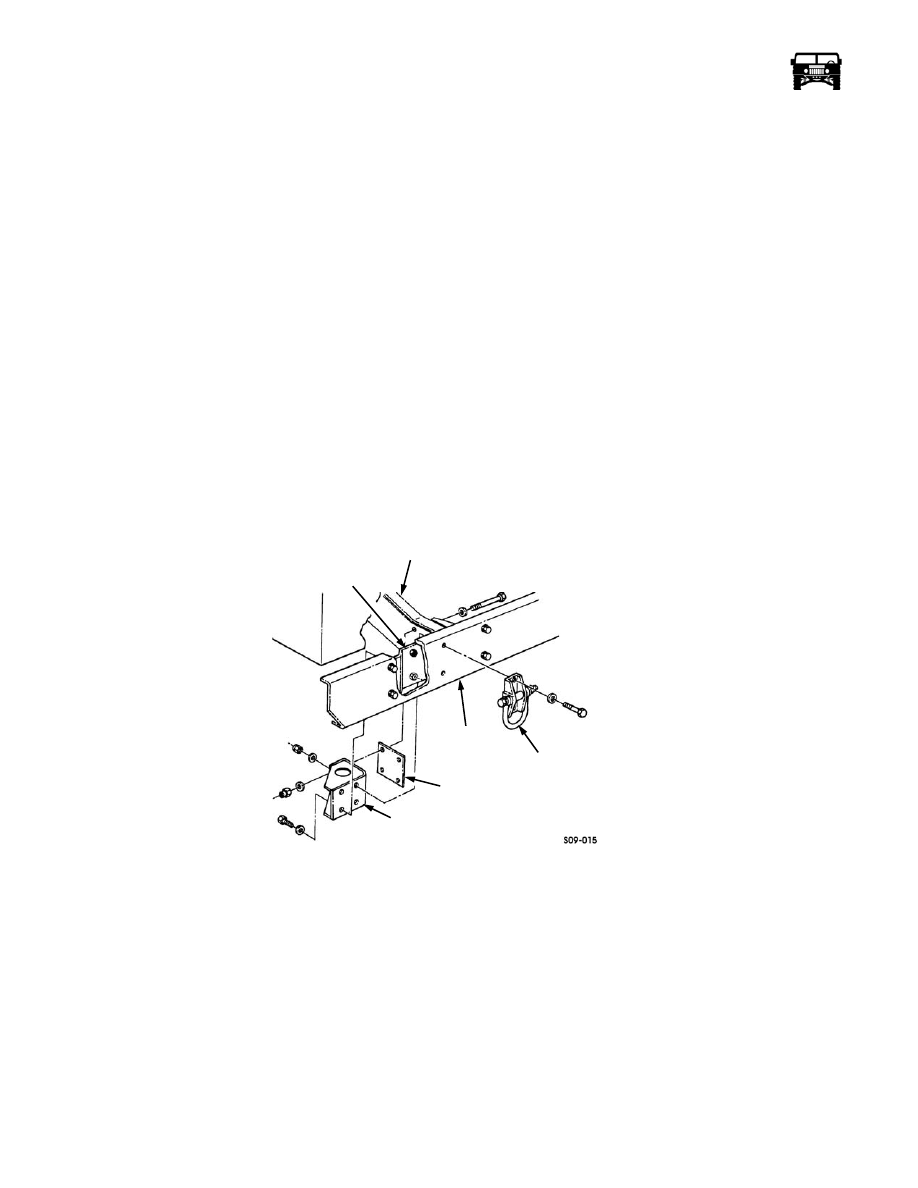

Figure 9-162: Rear Bumper Mounting Bracket Replacement
Lifting Shackle Replacement
Removal
Remove the cotter pin, slotted nut, bolt, spring washer and the shackle from the tie down bracket. Discard the cotter pin (Figure
9-163).
Installation
1.
Install the shackle on the tie down bracket with spring washer, bolt and the slotted nut. Tighten the slotted nut enough to allow
movement of the shackle (Figure 9-163).
2.
Install the cotter pin in the slotted nut.
MOUNTING
BRACKET
FRAME
RAIL
TIEDOWN BRACKET
REAR
SPACER
BUMPER
OUTER MOUNTING
BRACKET
