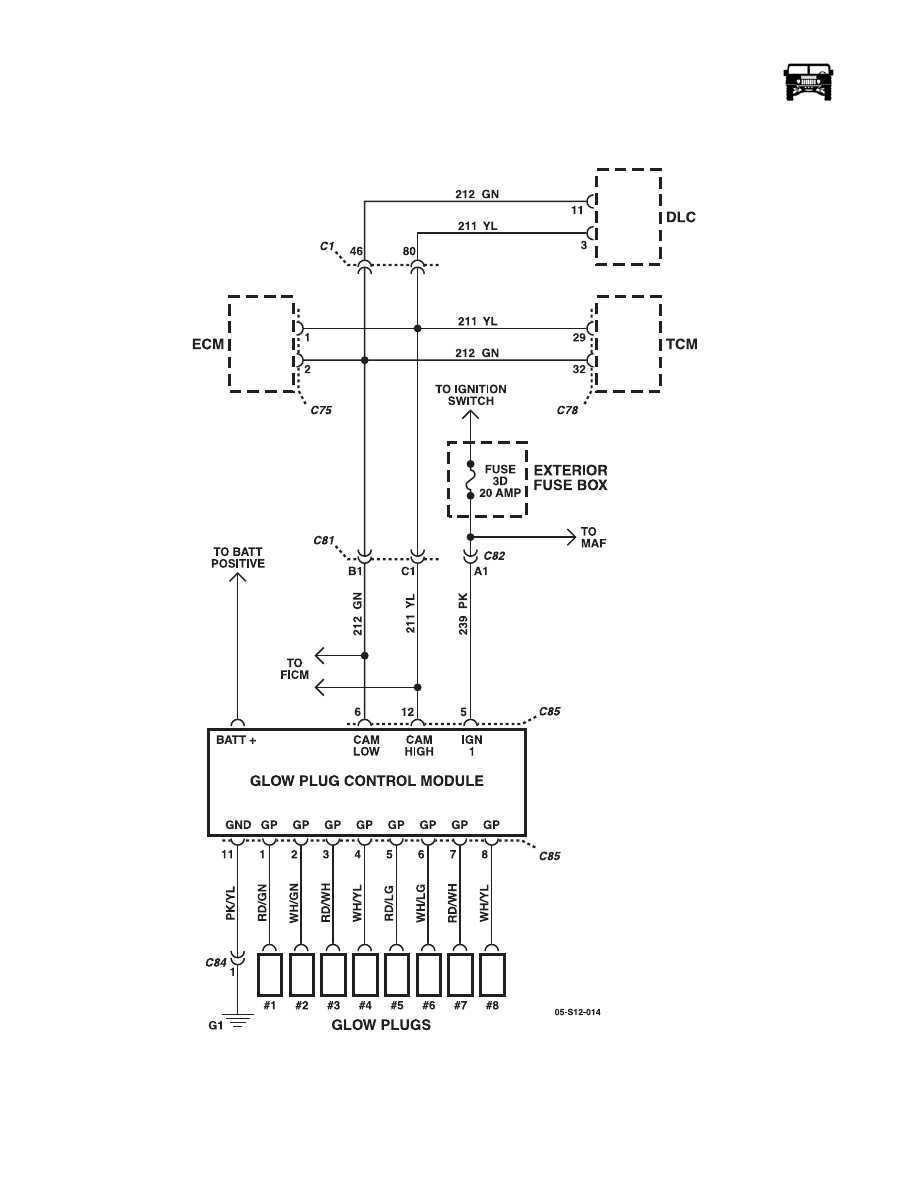

Figure OBD-7:   Glow Plug Control Module

11-1-05

______________________________________________

 On-Board Diagnostics  OBD-41

5745804

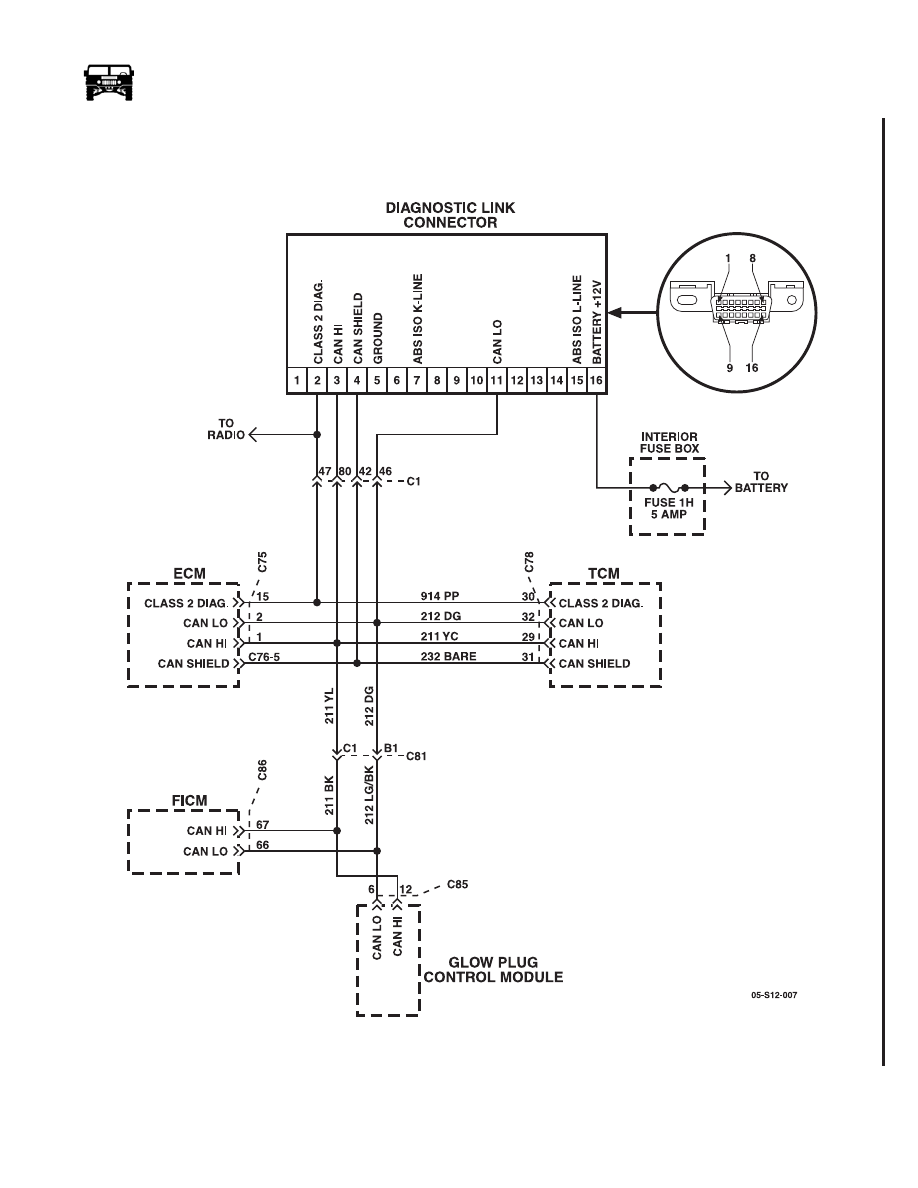

Figure OBD-8:   Diagnostic Link Connector

OBD-42

On-Board Diagnostics

_______________________________________________

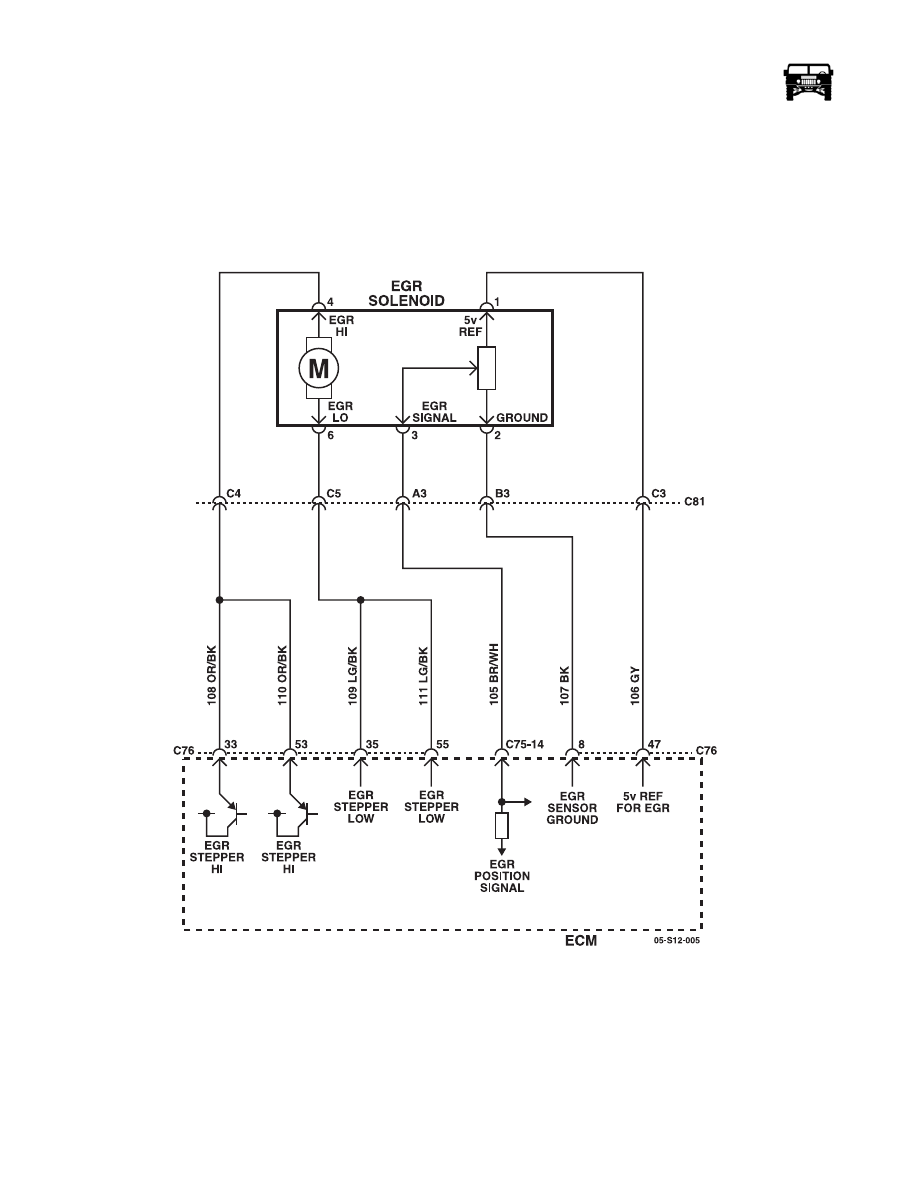

Figure OBD-9:   EGR Solenoid

______________________________________________

 On-Board Diagnostics  OBD-43

5745804

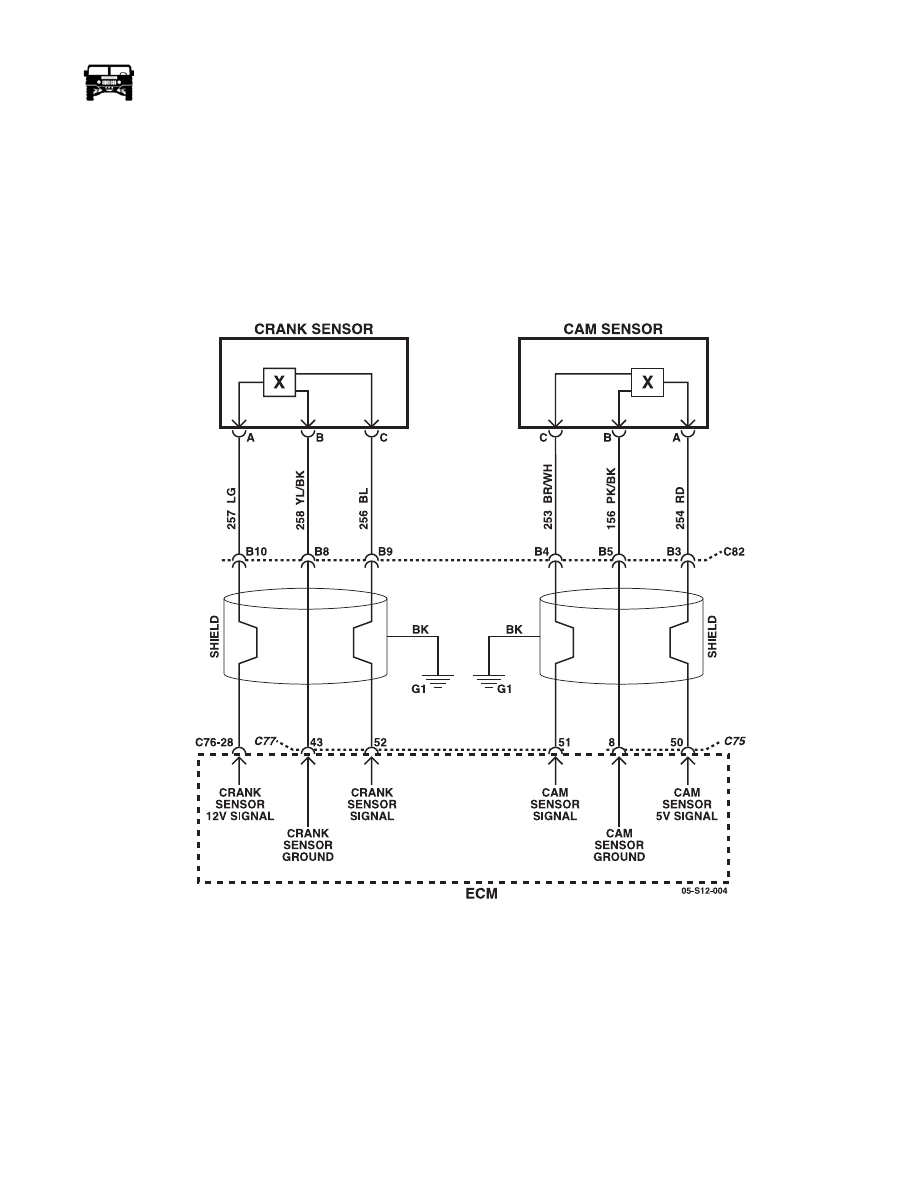

Figure OBD-10:   Camshaft and Crankshaft Sensors
