 Electrical System  12-129





®



05745159



AUTO-DIMMING REAR VIEW MIRROR WITH
ELECTRONIC COMPASS AND TEMPERATURE
(OPTION)



Description



The Auto-Dimming rear view mirror has the capability to
change the opacity of the mirror glass to prevent glare. When a
following vehicles head lamps hit the rear light detection sen-
sor, the mirror’s opacity will lessen. The now translucent mir-
ror will allow light to pass through it. This effectively lessens
the glare on the driver, much like moving the angle on a man-
ual mirror.



Removal



1.

Disconnect mirror jumper harness from the rear of the
mirror assembly (See Figure 2-126).

2.

Gently push upward on the mirror head and the compass
pod together until the mirror assembly is free of the
windshield button.



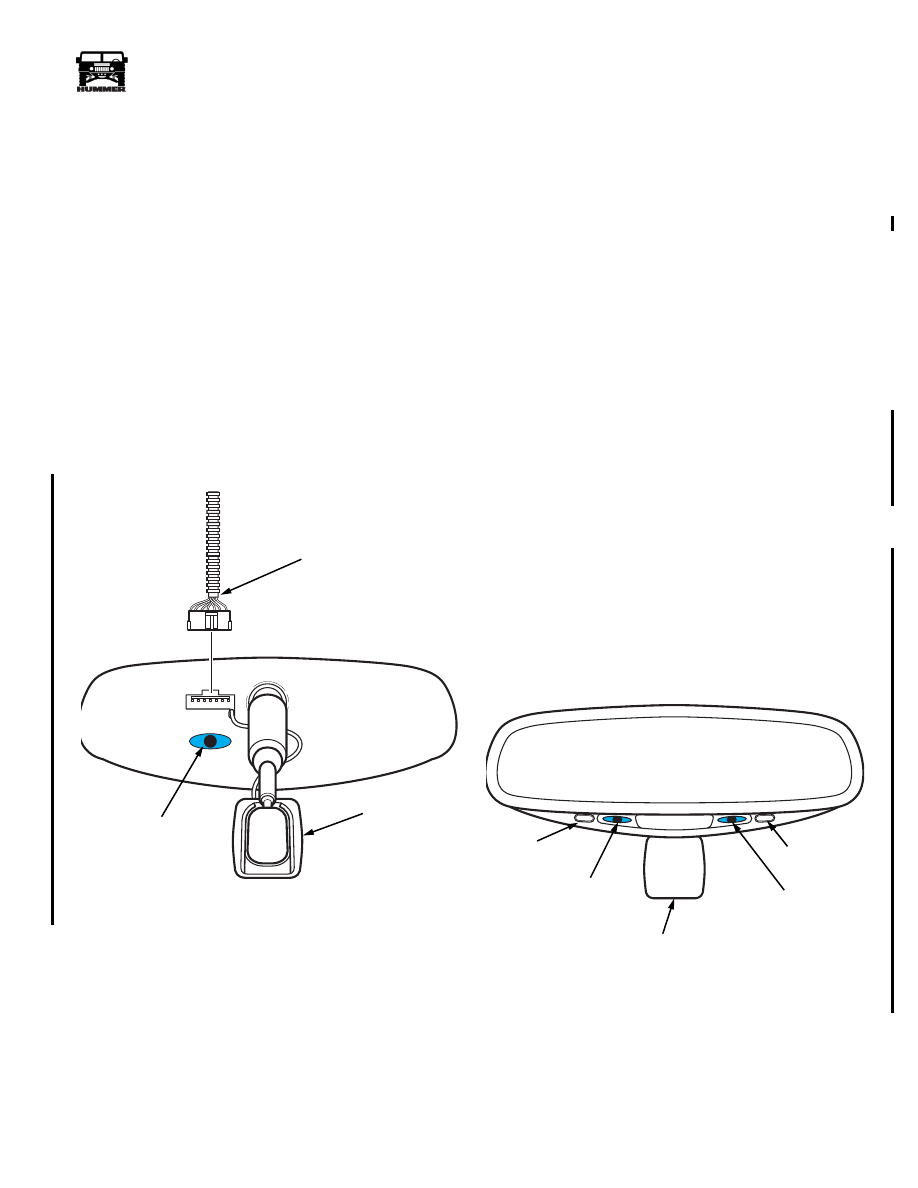

Figure 2-126:   Auto-Dimming Mirror Jumper

Harness Connection



Installation



1.

Grasp the mirror head with both hands

2.

Slide the mirror down onto the window mount and gently
rock side to side until mirror base is seated. Do not force
the mirror onto the mount.

3.

Connect the mirror jumper harness to the rear of the newly
installed mirror.

4.

Set calibration and zone adjustments. (Refer to Auto-
Dimming compass mirror calibration and zone
adjustment).



AUTO-DIMMING COMPASS MIRROR CALI-
BRATION AND ZONE ADJUSTMENTS



Calibration Adjustment



1.

Start the engine.

2.

Press and hold the auto-dimming power button until
“CAL” appears in the display and release (Figure 2-127).

3.

Drive



slowly



 in a circle away from large metal buildings

and power lines until the “CAL” disappears.



Zone Adjustment



1.

Press and hold the mode button until “ZONE” appears in
the display (See Figure 2-127).

2.

Each depression of the mode button will change the zone
number in sequence. Refer to the zone chart below for the
zone number of your area of operation (Figure 2-128).

3.

When the desired zone is reached, allow the mirror to go
to normal mode then turn off the ignition.



Figure 2-127:   Auto-Dimming Rear View Mirror

9-OM2-035.2

MIRROR JUMPER

HARNESS

AMBIENT

LIGHT SENSOR

COMPASS

POD

9-OM2-033.2

COMPASS

POD

AUTO-DIMMING

POWER BUTTON

AUTO-DIMMING

POWER L.E.D

REAR LIGHT

DETECTION

SENSOR

MODE

BUTTON



4-1-00



12-130

Electrical System



______________________________________________________





®

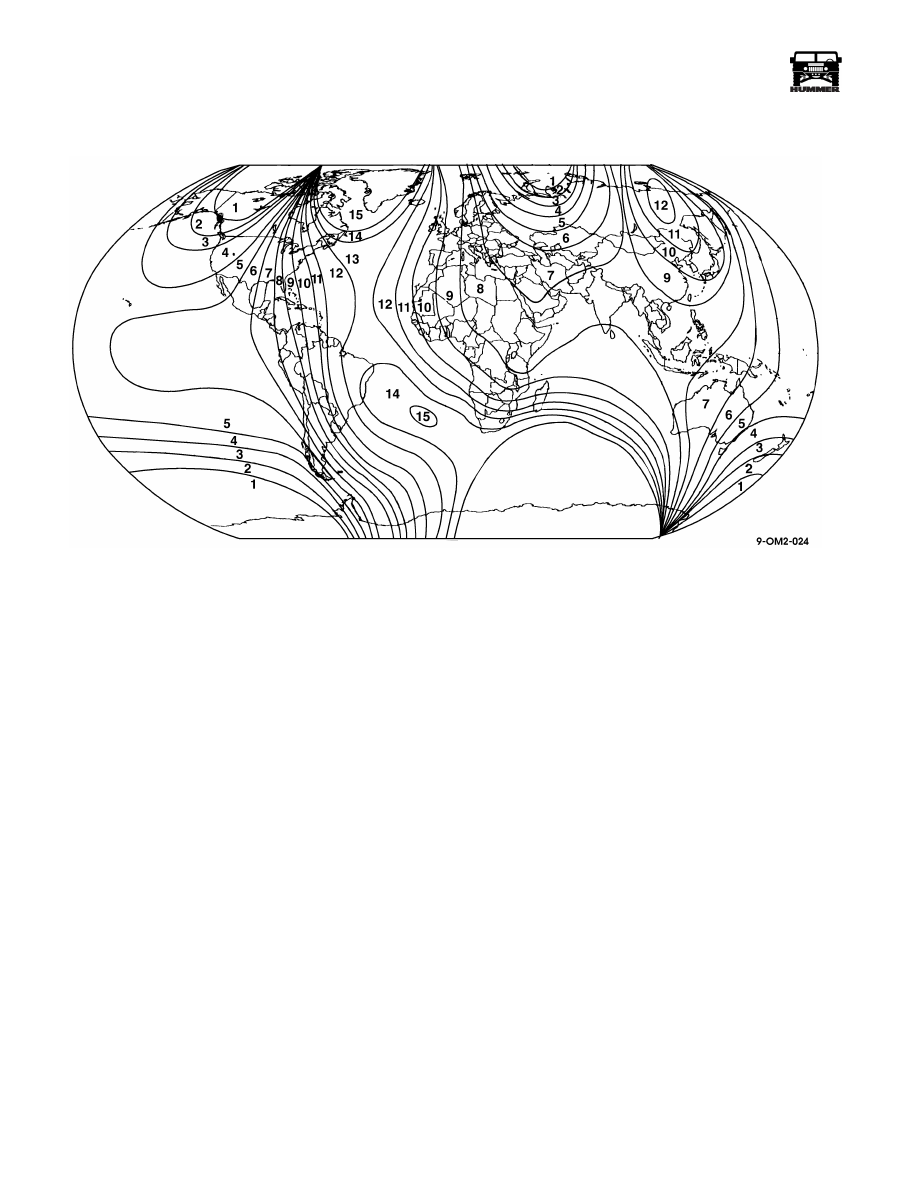

Figure 2-128:   Magnetic Zone Chart



4-1-00



_____________________________________________________



 Electrical System  12-131





®



05745159



AMBIENT TEMPERATURE SENSOR



Removal



1.

Remove existing nut, cushioned clamp, and ambient tem-
perature sensor jumper harness from the body harness
(Figure 12-129).

2.

Disconnect the ambient temperature sensor jumper
harness from the sensor.

3.

Remove self-tapping screw and ambient temperature
sensor from the frame.



Installation



1.

Install ambient temperature sensor to the frame with self-
tapping screw (Figure 12-129).

2.

Connect the ambient temperature sensor harness to the
sensor.

3.

Connect the ambient temperature sensor harness to the
body harness.

4.

Using cushioned clamp, secure jumper harness to body
harness mounting clamp with existing nut and bolt.



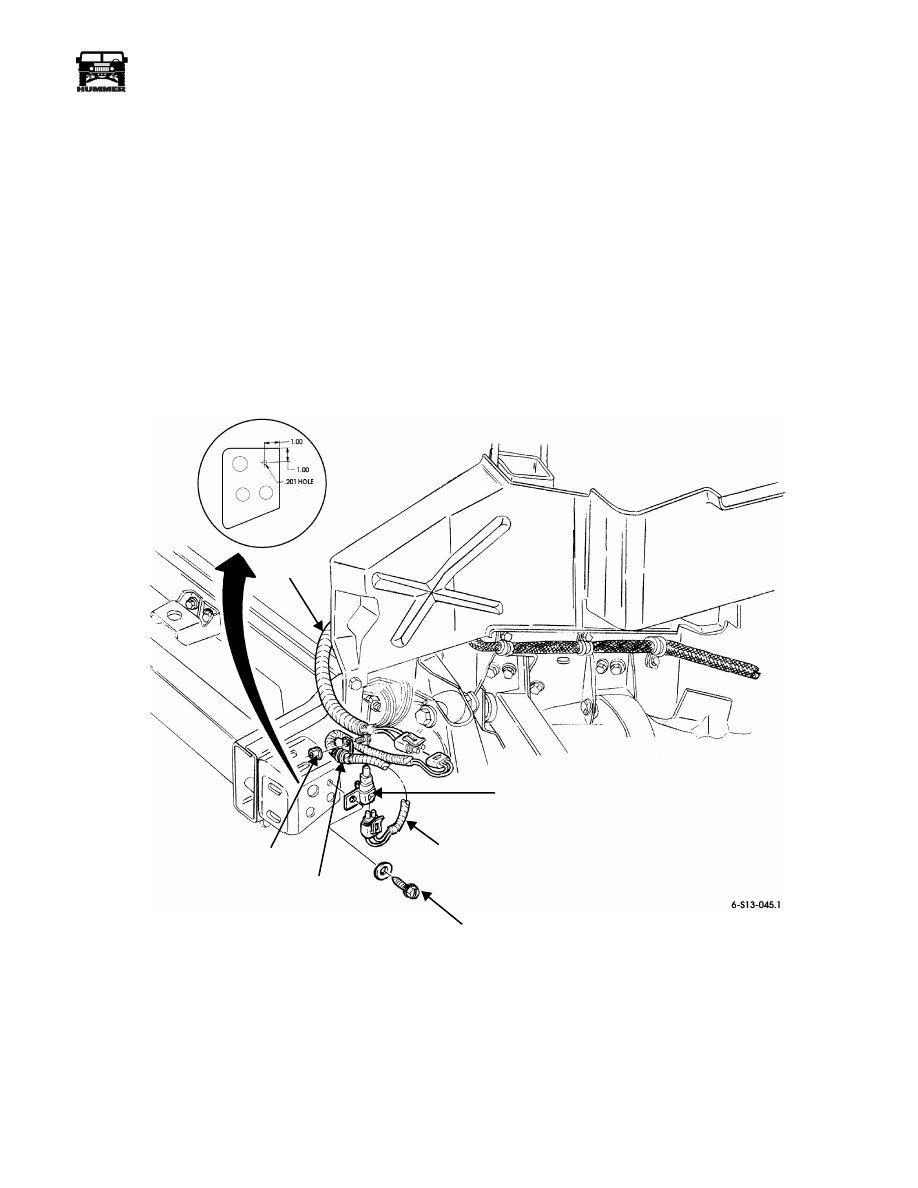

Figure12-129: Ambient Temperature Sensor

AMBIENT

BODY

 JUMPER

TEMPERATURE

SENSOR

 HARNESS

 HARNESS

EXISTING

NUT

SELF-TAPPING

SCREW

CUSHIONED

CLAMP



4-1-00



Section 12   Electrical System



12-132

Electrical System



______________________________________________________





®



 Compass Mirror Display Inoperative



Step

Action

Value(s)

Yes

No



1

Turn the ignition to the ON position, and heated
windshields OFF.
Is compass mirror display operating?

No problem

found, or inter-

mittent.

Go to step 2.

2

Gain access to C13, with the ignition ON measure
voltage at pin B. Is voltage present?

Approximate

battery voltage

Go to step 4.

Go to step 3.

3

Check for open, or short to ground in CKT 407
between compass cutout relay and compass mir-
ror, and CKT 400 between compass cutout relay
and fuse 2C in the interior fuse box.
Are any problems found?

Repair open or

short to ground

in CKT 407 and

CKT 400.

Replace mirror

cutout relay.

4

Check continuity to ground at C13 pin A, is resis-
tance to ground below specified?

>.2



Ω



Replace com-

pass mirror

Go to step 5.

5

Check for open or bad connection in CKT 59
between compass mirror and G4.
Are any problems found?

Repair open or

bad connection

in CKT 59.

No problem

found, go to

step 1.



 Compass Mirror Temperature Display Showing OC, SC or Wrong Temp



Step

Action

Value(s)

Yes

No



1

Does compass mirror display show “OC” or “SC”
in place of the temperature?

Go to step 3.

Go to step 2.

2

Gain access to C13, measure resistance between pin
D and ground. With the vehicle at room temperature
(70°F), does resistance measured match specifica-
tions?

Approx.12 K



Ω



 Replace

com-

pass mirror.

Go to step 3.

3

Measuring resistance to ground at C13 Pin D,
does meter display open?

OL

Go to step 4.

Repair bad con-

nection at C13.

4

Disconnect temperature sensor from underbody
harness. Measure resistance between the two pins
of the sensor. With the vehicle at room tempera-
ture (70°F), is resistance in range specified?
Higher temperature gives lower resistance read-
ings.

Approx.12 K



Ω





Go to step 5.

Replace the

temperature

sensor.

5

Measure resistance to ground at temperature sen-
sor connector pin A. Is resistance below speci-
fied?

<.2



Ω



Go to step 6.

Repair open or

bad connection

in CKT 58

between tem-

perature sensor

and G2.

6

Check for open, bad connection, or short to
ground in CKT 767 between temperature sensor
and compass mirror. Are any problems found?

Repair open,

bad connection,

or short to

ground in CKT

767.

Replace the

compass mirror.



4-1-00
