 Body  10-83





®



05745159



Domelight Replacement (Model 90)



Removal



1.

Using a screwdriver, snap the dome light assembly from
its base  (Figure 10-165)

2.

Remove two screws securing domelight base and the
support structure.

3.

Slowly pull the light base until the connector for the roof
harness is exposed.

4.

Disconnect the roof harness from the dome light base.

5.

Remove the dome lamp.



Installation



1.

Connect roof harness to dome light base.

2.

Install two screws through base and support and attach
base to the roof structure.

3.

Install light assembly into base.

4.

Verify operation.



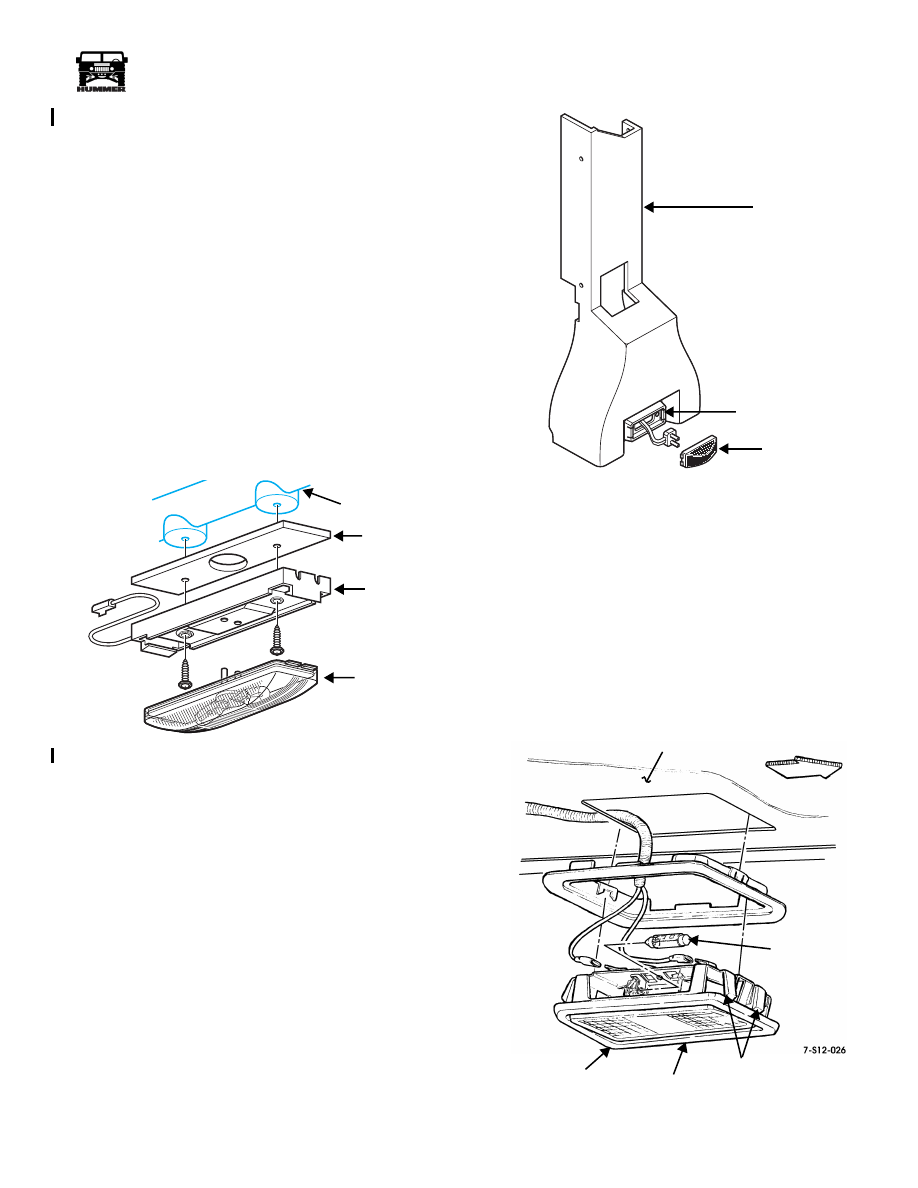

Figure 10-165:   Domelight Replacement (Model 90)



Rear Seat Courtesy Light Replacement



Removal



1.

Carefully pry courtesy light from mounting bracket
(Figure 10-166).

2.

Disconnect light from electrical connector.



Installation



1.

Connect courtesy light to the electrical connector
(Figure 10-166).

2.

Snap courtesy light into mounting bracket.



Figure 10-166:   Rear Seat Courtesy Light

Replacement



Maplight Replacement



NOTE:



The maplight will illuminate when the optional remote

entry feature is activated.



Removal



Remove maplight assembly from bezel (Figure 10-167).



Installation



Install maplight assembly into bezel.



Figure 10-167:   Optional Maplight Replacement

8-S10-005

DOME LIGHT
ASSEMBLY

DOME LIGHT
BASE

SUPPORT

ROOF STRUCTURE

S10-212.3

MOUNTING

COURTESY

 BRACKET

LOWER

B-PILLAR

 TRIM

 LIGHT

HEADLINER

BEZEL

BEZEL

MAPLIGHT
ASSEMBLY

RETAINING

CLIPS

BULB

FRONT OF

VEHICLE



 4-1-00



10-84

Body



______________________________________________________________________





®



Lighted Visor Mirror Replacement



Removal



1.

Pull mirror assembly from visor (Figure 10-168).

2.

Remove lamp.



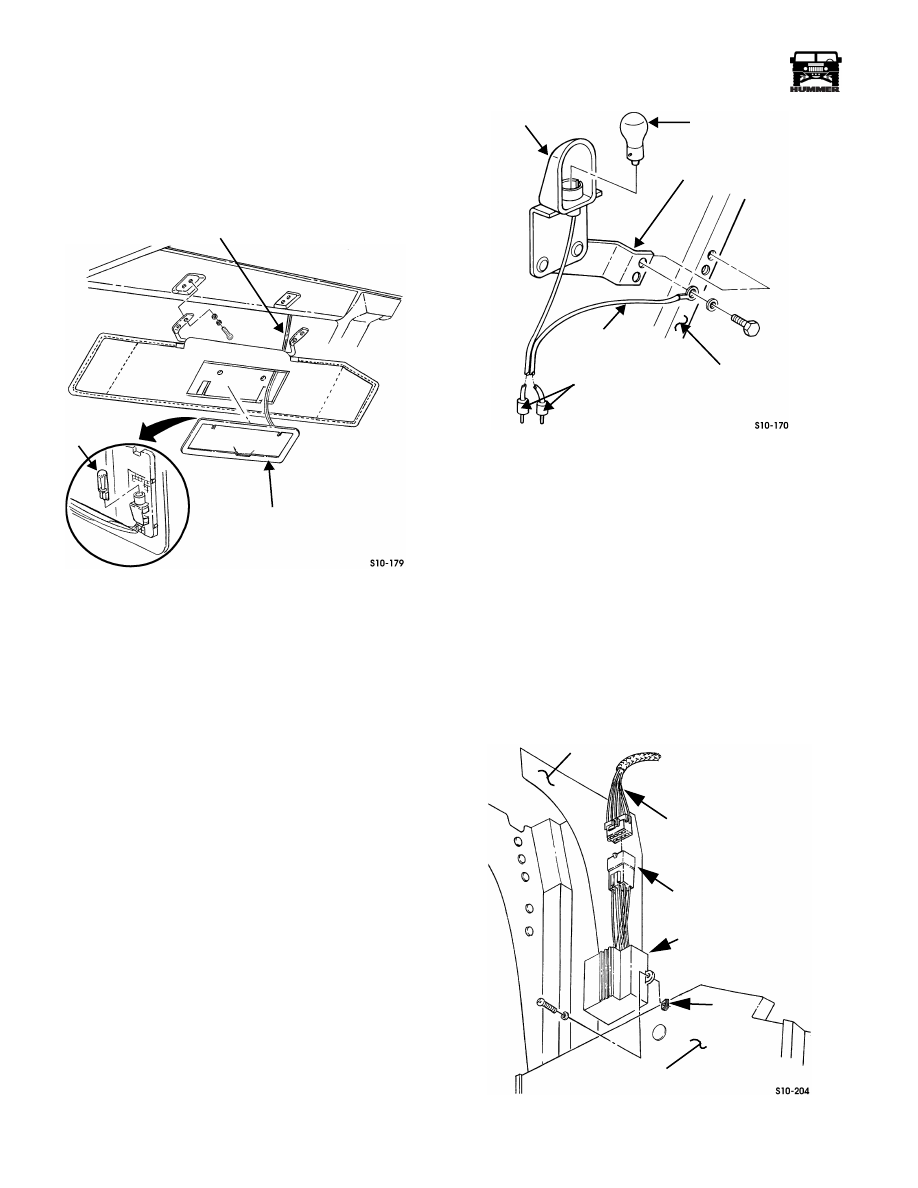

Figure 10-168:   Lighted Visor Mirror Replacement



Installation



1.

Install lamp (Figure 10-168).

2.

Install mirror assembly by pressing it into the visor.



Underhood Light Replacement



Removal



1.

Disconnect two connectors from wiring harness
(Figure 10-169).

2.

Remove two screws, washers, ground lead, bracket, and
light from hood.

3.

Remove lamp from light.



Installation



1.

Install lamp in light (Figure 10-169).

2.

Secure light, bracket, and ground lead to hood with two
washers and capscrews.

3.

Connect two connectors to wiring harness.



Figure 10-169:   Underhood Light Replacement



Daytime Running Lights (DRL) Module
Replacement (Canada Only)



Removal



1.

Disconnect the Daytime Running Lights (DRL) connector
from the harness assembly (Figure 10-170).

2.

Remove two screws, washers, nuts, and DRL module from
the kick panel.



Installation



1.

Secure DRL module to kick panel with two screws, wash-
ers, and nuts (Figure 10-170).

2.

Connect the DRL connector to the harness assembly.



Figure 10-170:   Daytime Running LIghts Module

VISOR MIRROR

ASSEMBLY

VISOR MIRROR LEAD

MIRROR ASSEMBLY

REAR VIEW

LAMP

LIGHT

LAMP

BRACKET

HOOD

GROUND LEAD

CONNECTORS

A-PILLAR

DAYTIME RUNNING

LIGHTS CONNECTOR

DAYTIME RUNNING

LIGHTS MODULE

LEFT OUTER

 KICK PANEL

HARNESS ASSEMBLY

NUT

SPEED

_____________________________________________________________________

 Body  10-85

®

05745159

Front Driver and Passenger Courtesy Light
Replacement

Removal

1.

Carefully pry courtesy light from mounting bracket
(Figures 10-171 and 10-172).

2.

Disconnect light from wiring harness.

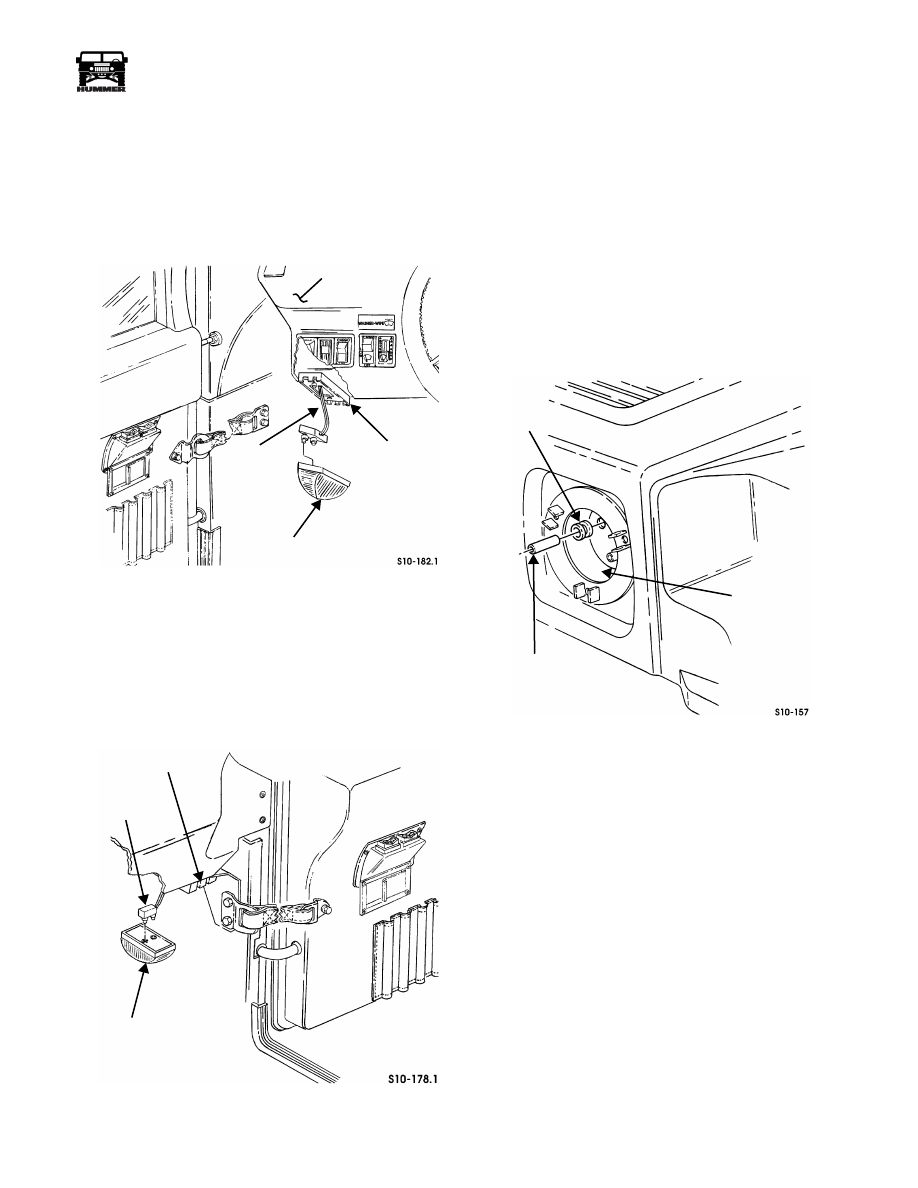

Figure 10-171:   Front Driver Side Courtesy Light

Replacement

Installation

1.

Connect courtesy light to wiring harness  (Figures 10-171
and 10-172).

2.

Snap light into mounting bracket.

Figure 10-172:   Front Passenger Side Courtesy Light

Replacement

Headlight Electrical Connector and
Grommet Replacement

Removal

1.

Remove headlight and jumper harness.

2.

Remove connector from grommet (Figure 10-173).

3.

Remove grommet from headlight housing.

Installation

1.

Install grommet in headlight housing (Figure 10-173).

2.

Install connector in grommet.

3.

Install jumper harness and headlight.

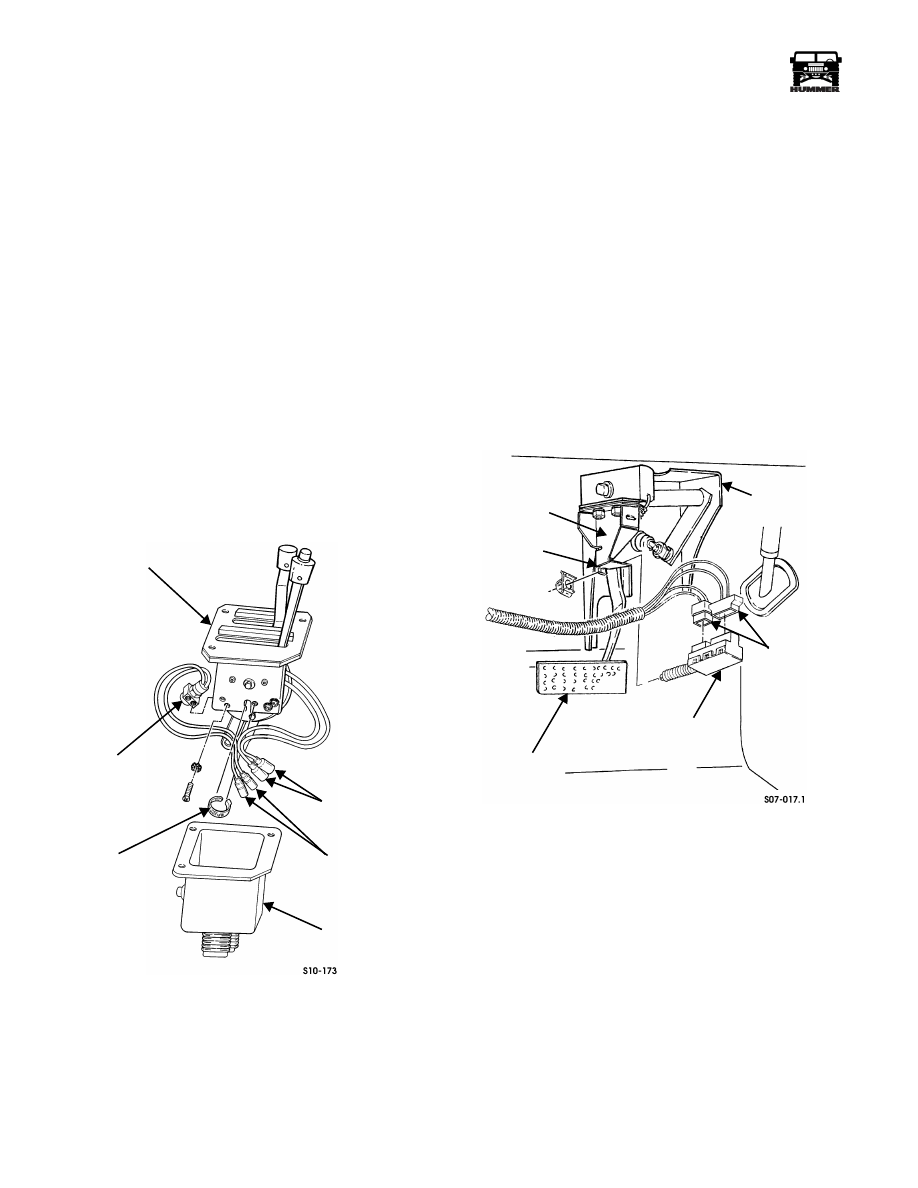

Figure 10-173:   Headlight Electrical Connector
