Steering System 8-35

05745159

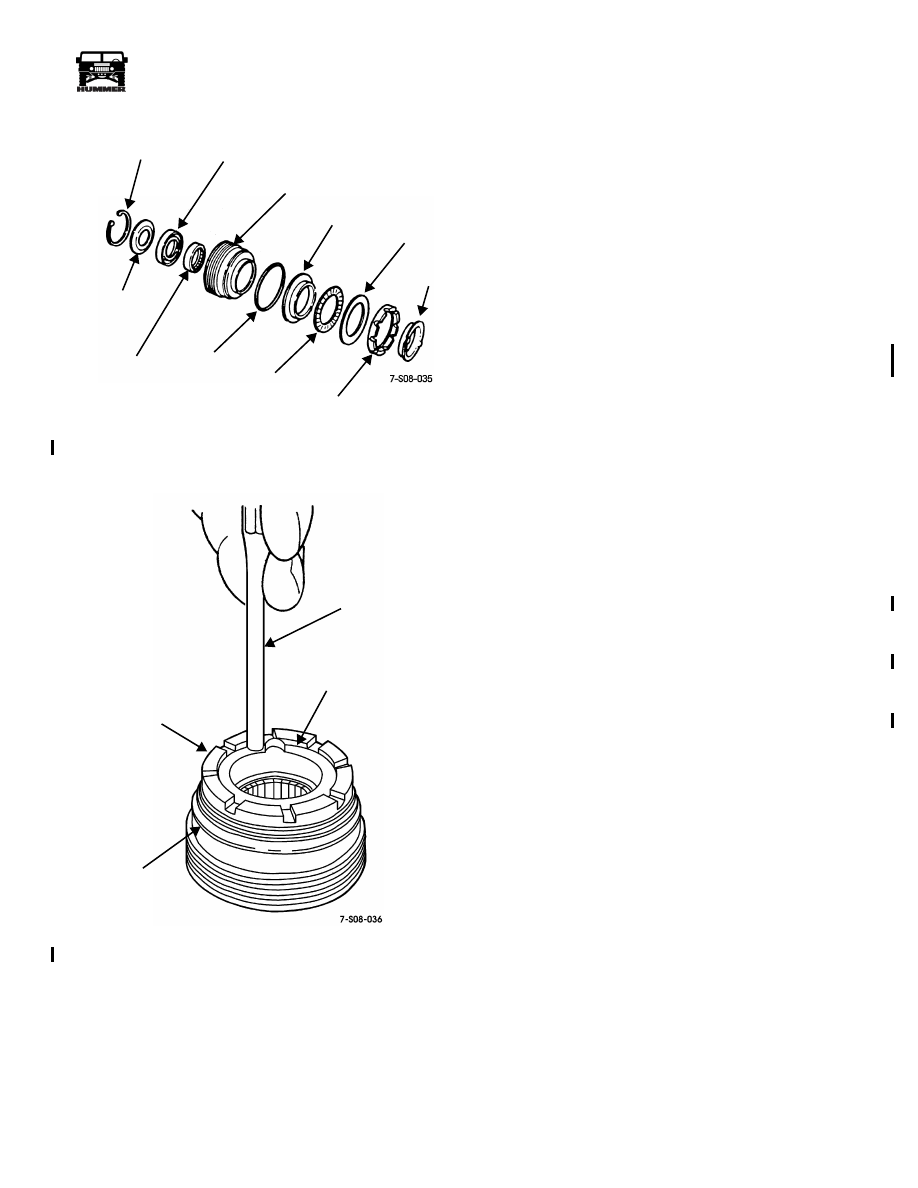

Figure 8-62: Adjuster Plug Assembly Sequence

Figure 8-63: Seating Adjuster Plug Retainer

Gear Housing Assembly

Lubricate wormshaft, stub shaft-valve body, rack piston,
and adjuster plug with power steering fluid.

Install wormshaft and stub shaft/valve body assembly in
gear housing. Be sure wormshaft thrust bearings are not
displaced during installation.

Install adjuster plug in gear housing. Tighten plug only
enough to secure it in housing (2-3 threads).

Install rack piston as follows:

Place socket and ratchet on stub shaft.

Insert rack piston into housing until wormshaft
contacts arbor tool previously installed in rack piston
(Figure 8-40). Hold arbor tool firmly in place during
installation.

Turn stub shaft clockwise to feed wormshaft into rack
piston. Wormshaft will push arbor tool out as it
engages piston and recirculating balls.

NOTE: Maintain pressure on the arbor tool at all times during
installation. The rack piston will have to be removed and com-
pletely reassembled if even one bearing falls out during assem-
bly.

Continue turning stub shaft until wormshaft is fully
engaged in rack piston.

Install plug in rack piston (Figure 8-39). Tighten plug to
111 lb-ft (150 N•m) torque.

Install end plug O-ring in gear housing and install housing
end plug (Figure 8-33).

Install end plug retaining ring. Position ring ends so
neither one is aligned with punch access hole in gear
housing (Figure 8-64).

Position new gasket on side cover and assemble cover and
pitman shaft.

10. Lubricate pitman shaft and sector teeth with power

steering fluid.

11. Center rack piston in housing by turning stub shaft as

needed.

12. Insert pitman shaft into housing. Be sure that shaft sector

teeth are centered in rack piston teeth.

13. Align and seat side cover on gasket and housing.

14. Install and tighten side cover bolts to 44 lb-ft (60 N•m)

torque.

15. Install but do not fully tighten adjuster screw lock nut (nut

will be tightened during gear adjustment).

16. Adjust steering gear as described in following adjustment

procedures.

SNAP

STUB SHAFT

O-RING

INNER

THRUST

OUTER

RETAINER

SPACER

ADJUSTER

STUB

RACE

PLUG

SHAFT

BEARING

SEAL

OIL SEAL

DUST SEAL

RING

SPACER

PIN PUNCH

RETAINER

O-RING

4-1-00

8-36

Steering System

__________________________________________________________

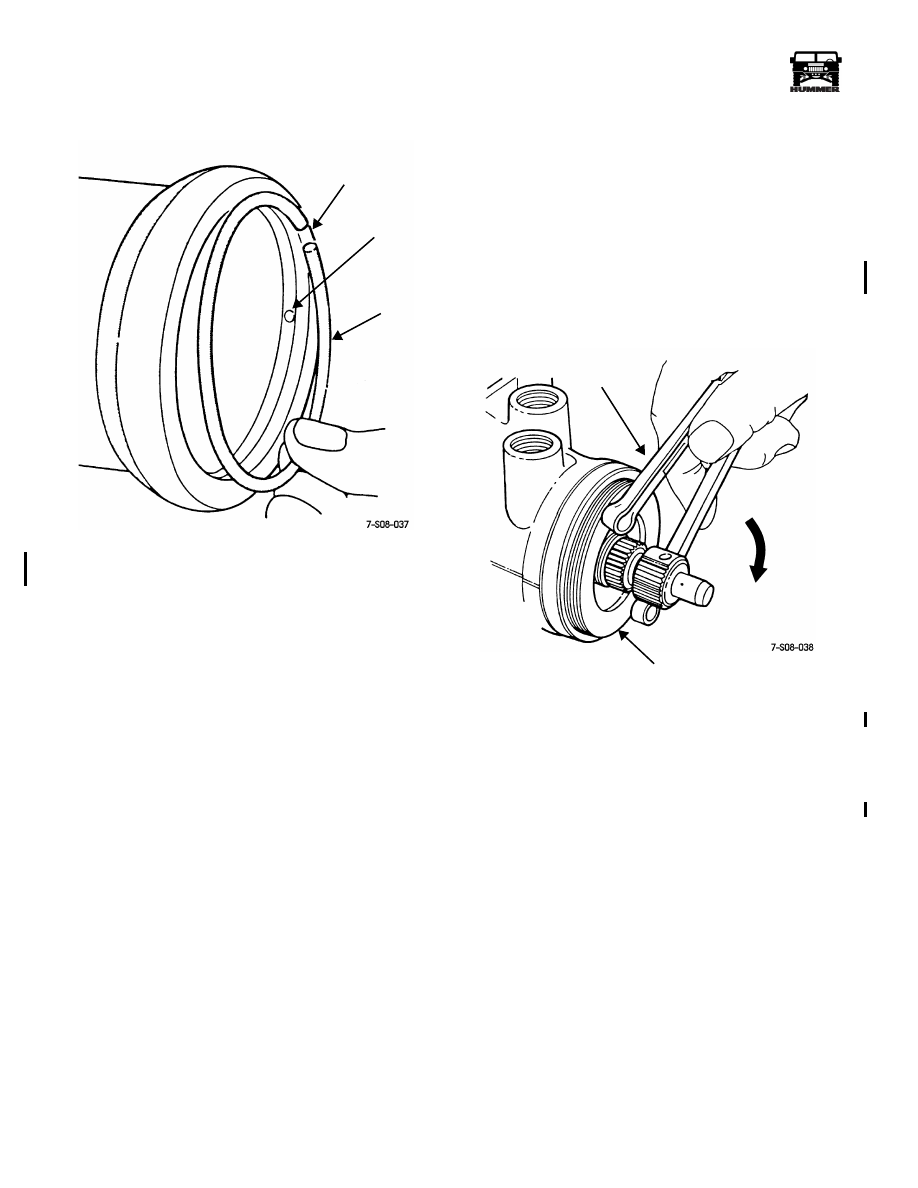

Figure 8-64: Positioning End Plug Retaining Ring

in Housing

POWER STEERING GEAR ADJUSTMENTS

There are two steering gear adjustments which are: wormshaft
bearing preload and pitman shaft overcenter preload. The ad-
justments must be performed in the correct sequence which is,
bearing preload first and overcenter preload last.

The gear adjustments can be performed on the bench, or with
the gear mounted in the vehicle. If adjustment is performed
with the gear in the vehicle, the pitman arm and intermediate
shaft must be disconnected beforehand.

Wormshaft Bearing Preload Torque
Adjustment

Mount gear in vise equipped with protective vise jaws.
Position gear so adjuster plug is accessible and wormshaft
is horizontal.

If adjuster plug locknut is installed, loosen nut with punch
and hammer and remove it from adjuster plug.

Tighten adjuster plug with spanner wrench J–7624
(Figure 8-65). Tighten plug until it and wormshaft bearing
and races are fully seated (bottomed) in housing.

Figure 8-65: Seating Adjuster Plug

Tap spanner wrench with mallet to tighten plug to
approximately 22 lb-ft (30 N•m) torque.

Scribe an index mark on gear housing in line with one of
the adjuster plug spanner wrench holes (Figure 8-66).
This will be the first index mark.

RING GAP

PUNCH

END PLUG

ACCESS

HOLE

RETAINING

RING

SPANNER

ADJUSTER

PLUG

WRENCH

J–7624

4-1-00

_________________________________________________________

Steering System 8-37

05745159

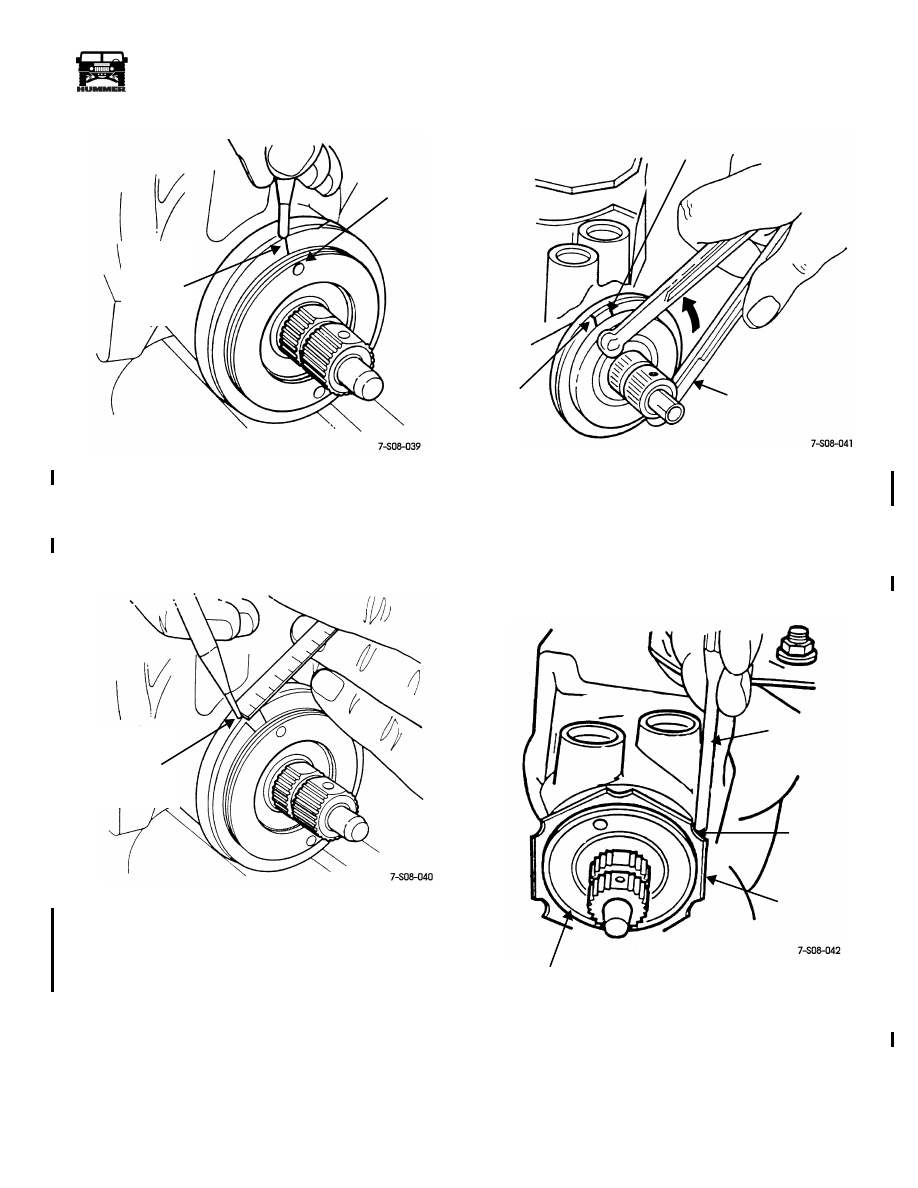

Figure 8-66: Placing First Index Mark On Housing

Measure back counterclockwise 1/2 inch (13 mm) from
first index mark and scribe a second index mark on gear
housing (Figure 8-67).

Figure 8-67: Placing Second Index Mark

On Housing

Back off adjuster plug to second index mark
(Figure 8-71). Be sure hole in adjuster plug is aligned with
second mark before proceeding.

Figure 8-68: Backing Off Adjuster Plug To Second

Index Mark

Install adjuster plug locknut. Hold adjuster plug from
turning with spanner wrench while tightening locknut. Tap
locknut with hammer to tighten. Then use punch to secure
nut (Figure 8-69).

Figure 8-69: Securing Adjuster Plug Locknut

Verify that adjuster plug position remained unchanged
during installation. Loosen locknut and reset plug position
if necessary.

SPANNER

WRENCH

HOLE IN

ADJUSTER

PLUG

FIRST

INDEX

MARK

(ON

HOUSING)

SECOND

(1/2" FROM

INDEX

MARK

FIRST MARK)

FIRST

SECOND

SPANNER

WRENCH

J–7624

MARK

ADJUSTER

PUNCH

NOTCH

LOCK NUT

PLUG

4-1-00

8-38

Steering System

__________________________________________________________

Pitman Shaft Overcenter Preload Torque
Adjustment

Loosen locknut on pitman shaft adjuster screw.

Turn adjuster screw counterclockwise until fully extended.
Then turn screw one full turn clockwise.

Rotate stub shaft from stop-to-stop and count number of
turns. Then turn stub shaft back 1/2 number of turns. This
will center rack piston and pitman shaft.

Verify that gear is centered. Flat on stub shaft should face
upward and be parallel with side cover. In addition, master
spline on pitman shaft should be parallel with adjuster
screw (Figure 8-70). If gear is not centered, number of
turns counted in step 3 may be incorrect, or pitman shaft
sector teeth are not centered in rack piston. Make
necessary corrections before proceeding.

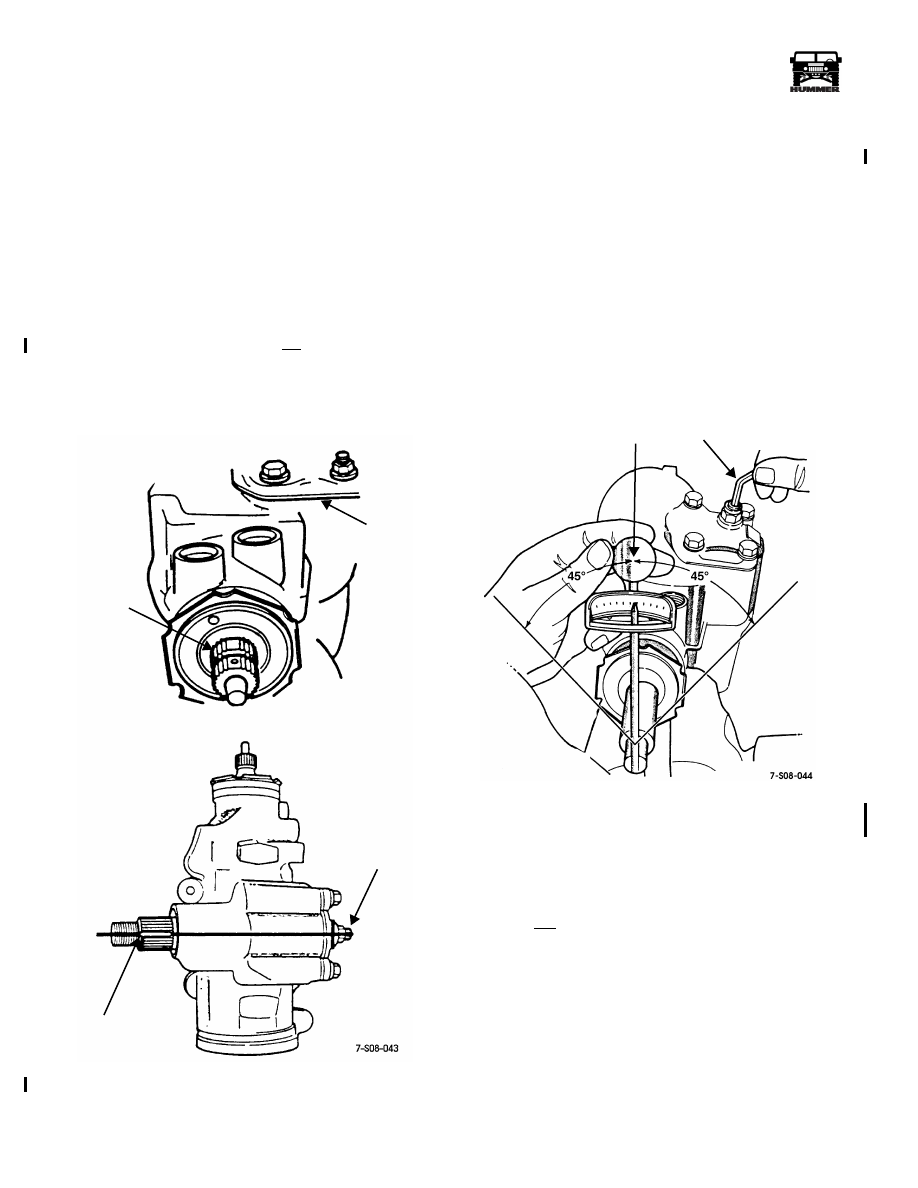

Figure 8-70: Verifying That Gear Is Centered

Measure wormshaft bearing preload as follows:

• Position suitable size 12 point socket and inch pound

torque wrench J–7754-C on stub shaft (Figure 8-71).

• Slowly rotate torque wrench 45 degrees left and right of

center. Note torque readings just before and on center in
both directions. Correct preload torque is 6 to 15 lb-in
(0.7 to 1.7 N•m).

• If preload torque is within limits, continue with proce-

dure as wormshaft bearing preload is correct.

• If preload torque is not within limits, wormshaft bearing

preload adjustment is incorrect, or wormshaft thrust
bearing races were installed backwards. Correct fault
before proceeding.

Figure 8-71: Checking /Adjusting Pitman Shaft

Over-Center Preload

Adjust pitman shaft overcenter preload as follows:

• Leave torque wrench in place on stub shaft.

• Note wormshaft bearing preload measured in step 5.

Then add additional 6-10 lb-in (0.7 to 1.1 N•m) to this
figure for required overcenter preload.

• Adjust overcenter preload by turning pitman shaft ad-

juster screw clockwise to increase preload, or counter-
clockwise to decrease preload.

Tighten adjuster screw locknut to 36 lb-ft (49 N•m)
torque. Use hex wrench to prevent adjuster screw from
turning while nut is tightened.

Verify that overcenter preload is still correct before
installing gear in vehicle.

SIDE COVER

STUB

PRELOAD

PITMAN SHAFT
MASTER SPLINE

ADJUSTER

SCREW

SHAFT

FLAT

CENTER

HEX WRENCH

ADJUSTER

IN PRELOAD

SCREW

4-1-00
